Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

AIM:

 Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.

1. Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
2. Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
3. Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header

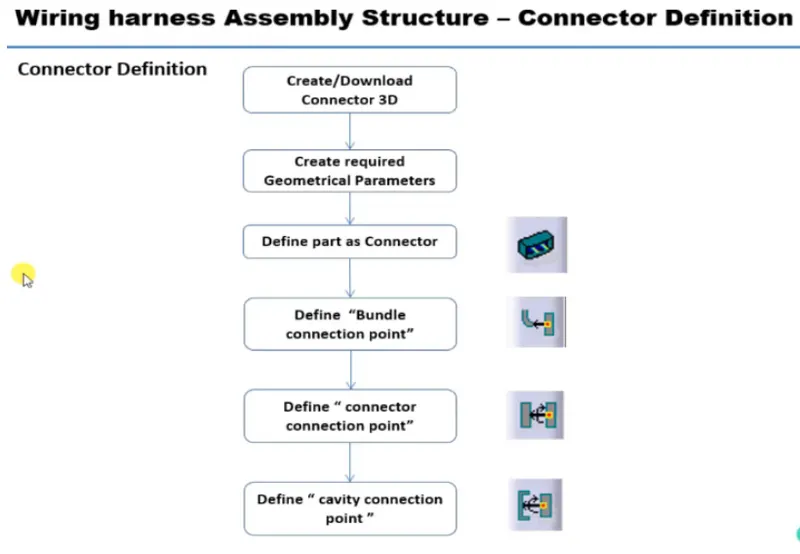

DEFINIG ELECTRIC PARAMETER FLOW CHART

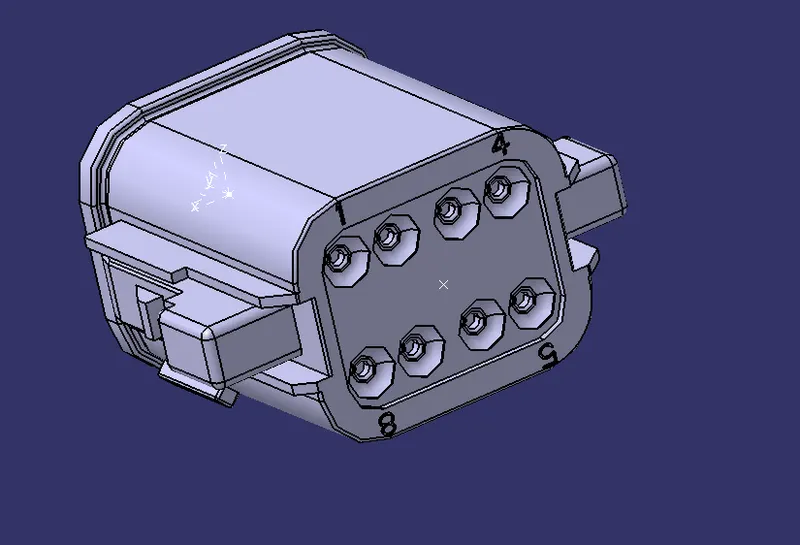

1.Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)

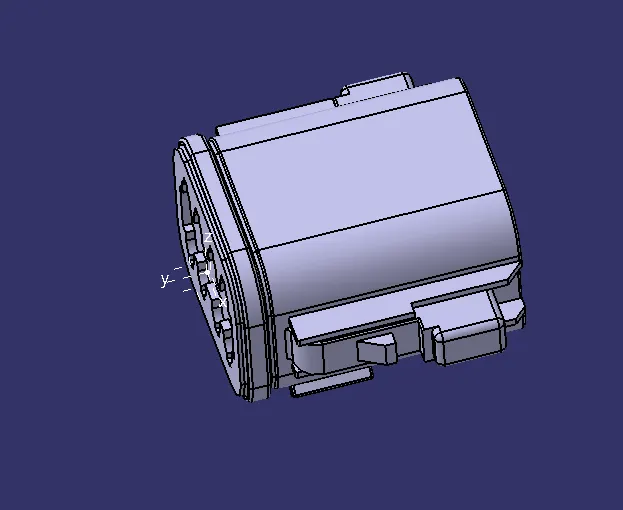

From the Above link we need to download .stp file from the TE.com website.After dowloand the file we have to save as .CATpart.

Connector connection point:

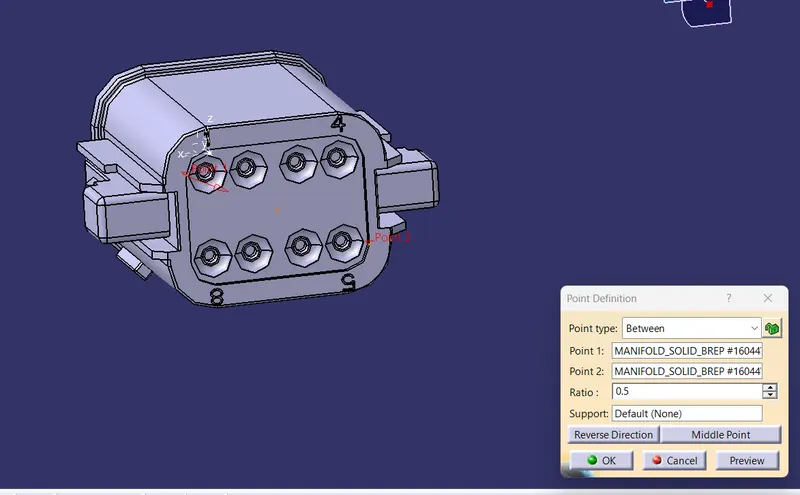

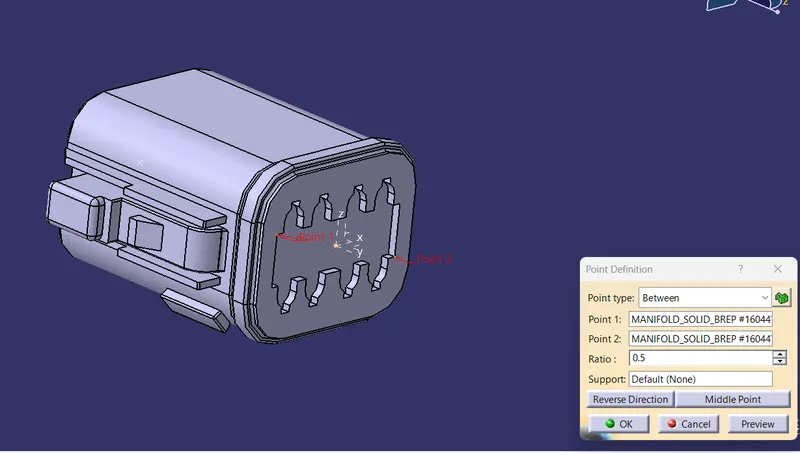

Create midpoint on the contact face which will be normal to wire bunddle insertion.

.

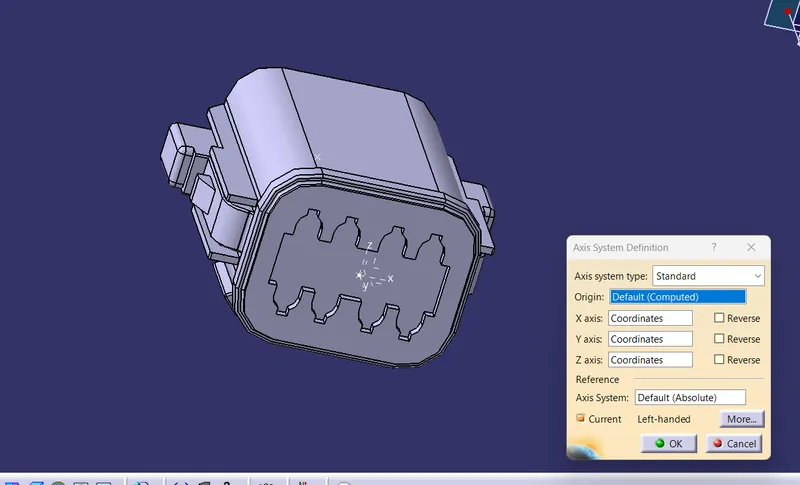

Craete Axis System with respect to the point which we have created and defining the axis direction as shown below,

Switch to 'Electric Part Design'

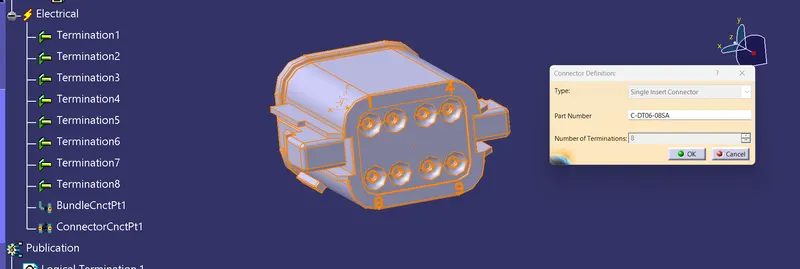

Define the part as connector in catia, give no. of termination as 8 because we have 8 entry points for wire.

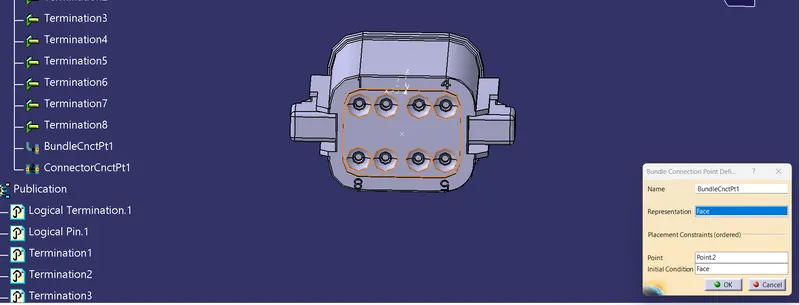

Define Bundle connection point

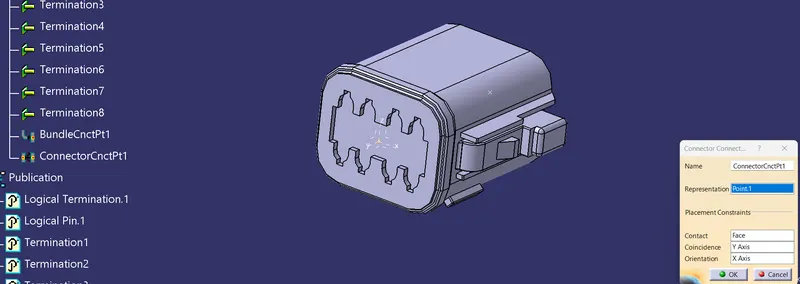

Define connector connection point

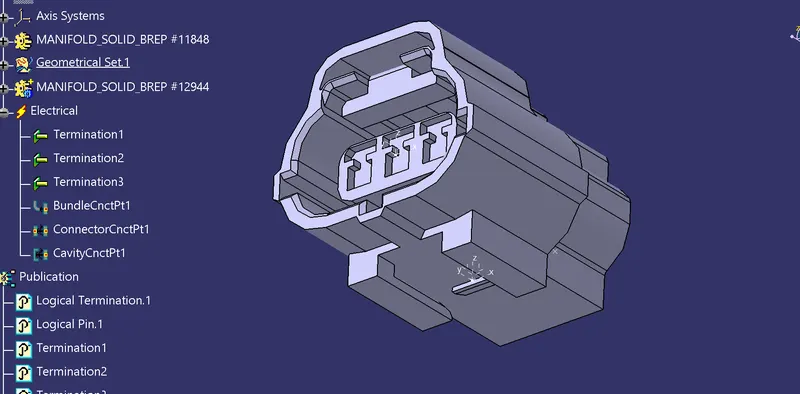

2.Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)

From the Above link we need to download .stp file from the TE.com website.After dowloand the file we have to save as .CATpart.

• Create midpoint
• create Connector connection point

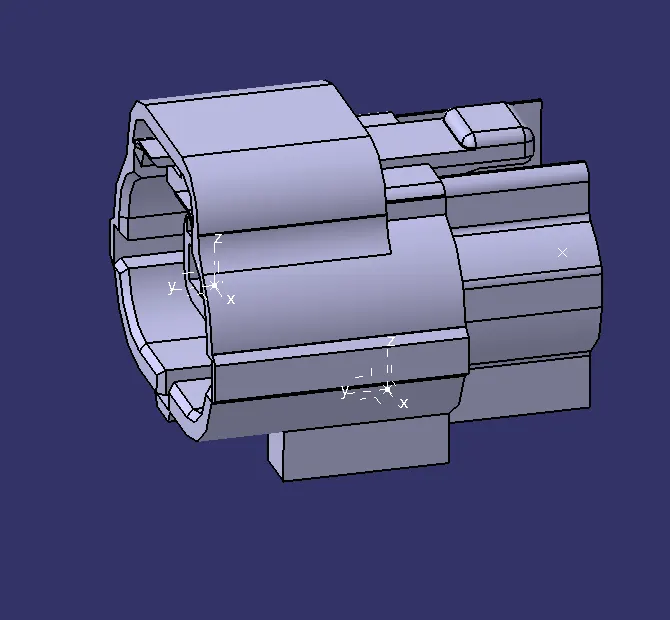

• create Connector connection axis system
• create cavity connection point
• create cavity connection axis system

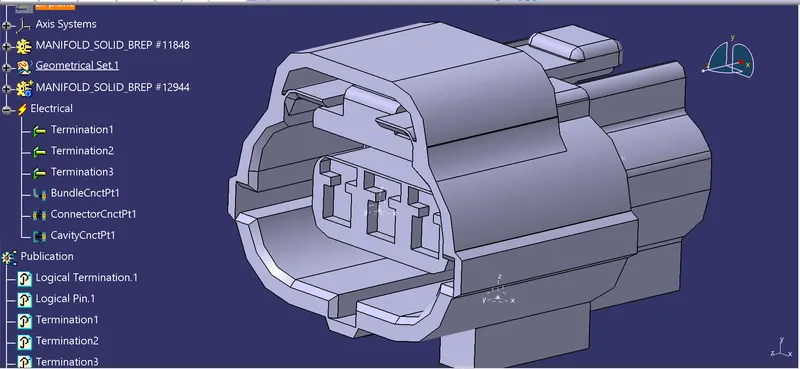

• Switch to Electric part design and define part as connector
• Define Connector connection point and cavity connection point

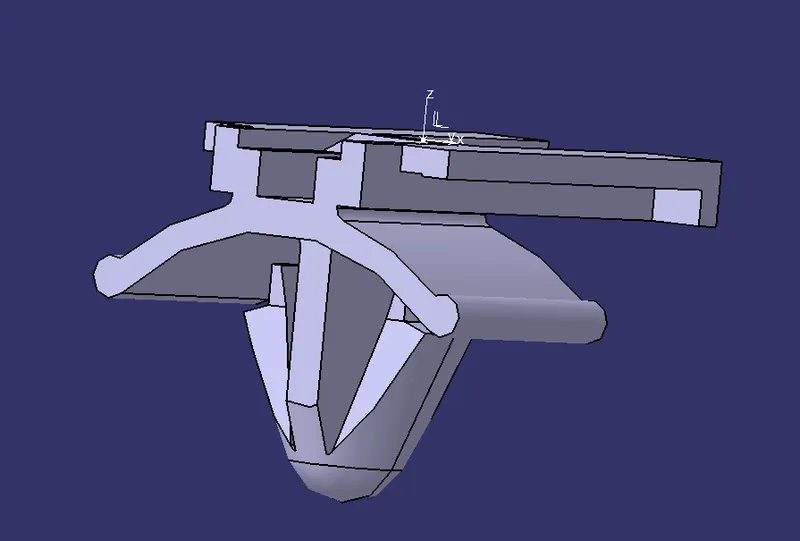

3.Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)

From the Above link we need to download .stp file from the TE.com website.After dowloand the file we have to save as .CATpart.

• Create midpoint
• create cavity connection point
• create cavity connection axis system and orientation should be same as in connector

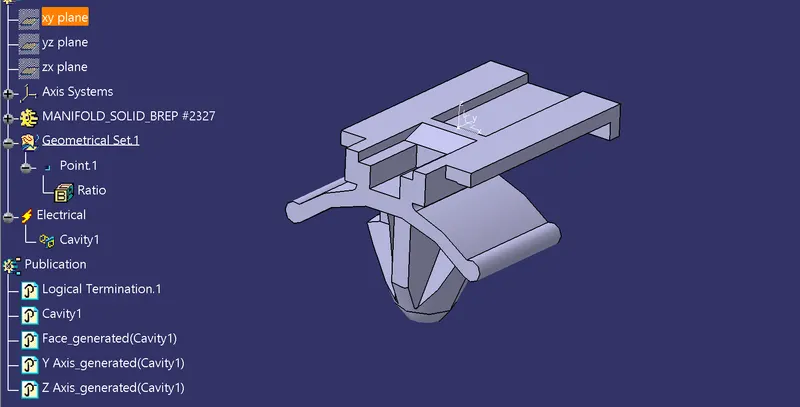

• Switch to Electric part design and define part as Mounting Equipment
• Define cavity connection point

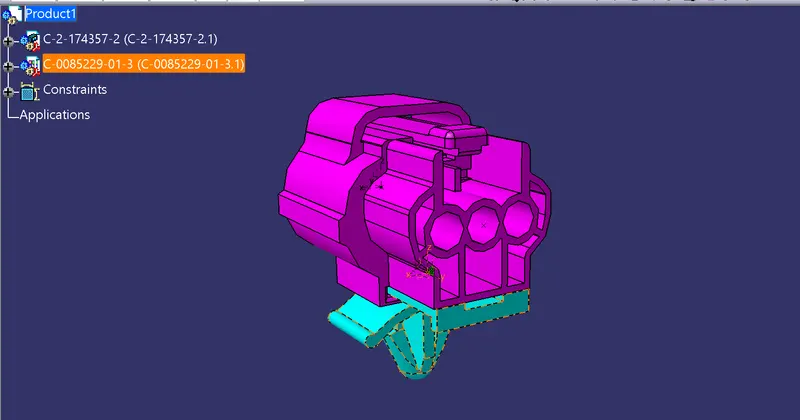

Elctric Assembly Design

• Import Connector and cavity / mounting clip.
• Select Defing Eelectric connection
• select cavity and then connector.
