Week 9 - Project - Master Section Development

AIM: To create a B pillar from the given master section and class A surface.

OBJECTIVE:

1. To check for surface discontinuities and perform draft analysis on class A surface.
2. To create a side flange from the master section.
3. To create a class B surface and C surface.
4. To create engineering features according to the master section.

B PILLAR

B pillar of a car is as shown in figure 1. Its properties determine the safety of the vehicles passenger in the event of a roll over. In this project a B pillar is created from the given master section and class A surface.

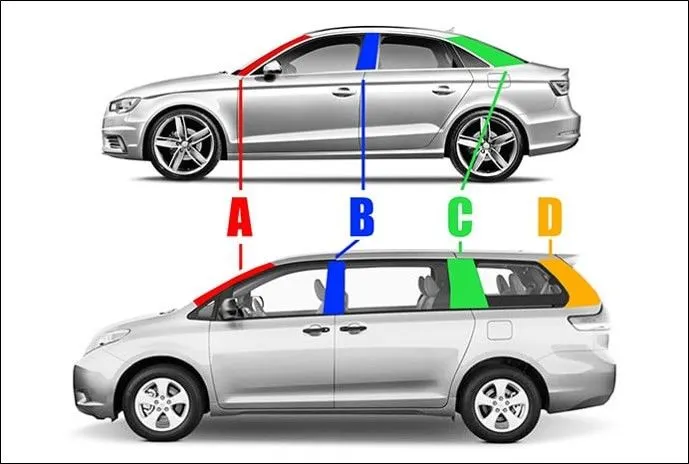

Fig 1: Picture with A, B, C and D pillar

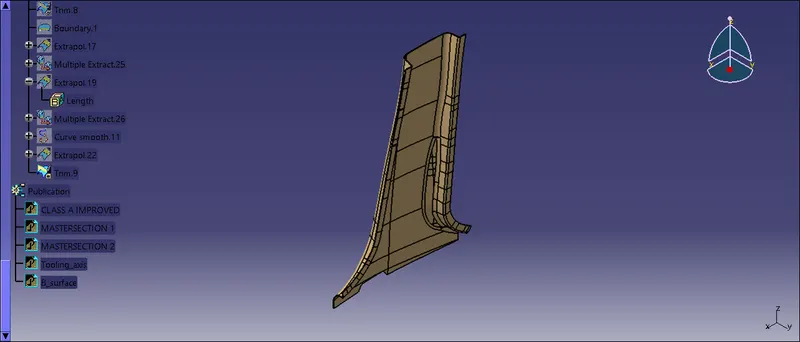

Fig 2: Class A surface of B pillar

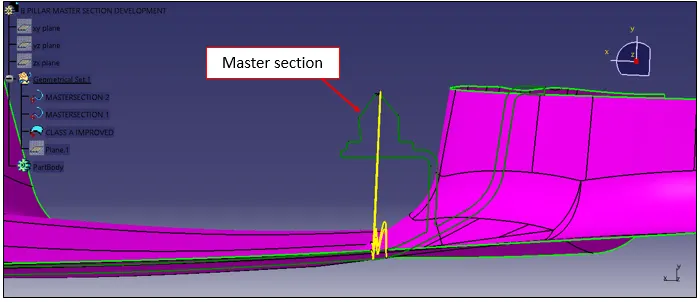

Fig 3: Master section of B pillar

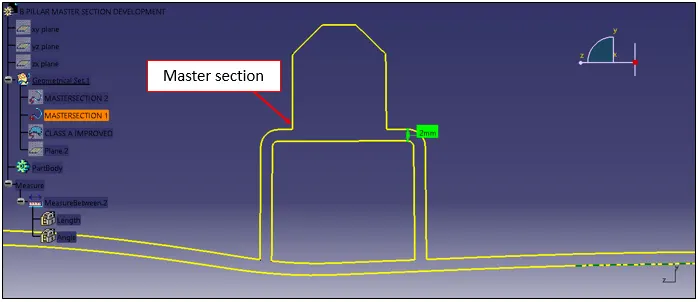

Fig 4: Master section of B pillar

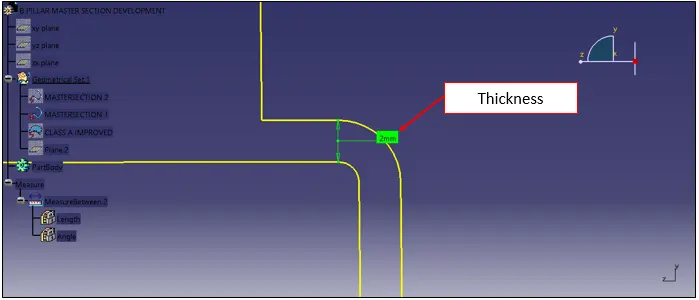

Fig 5: Thickness of the component

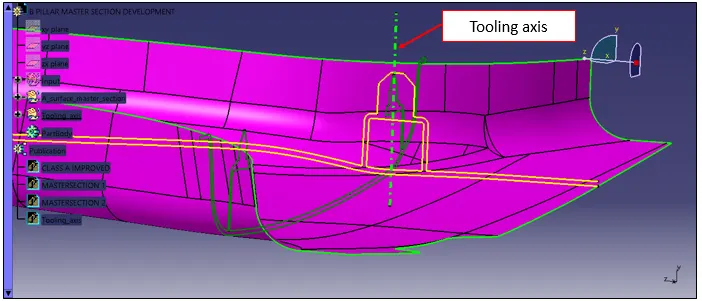

Fig 6: Tooling axis

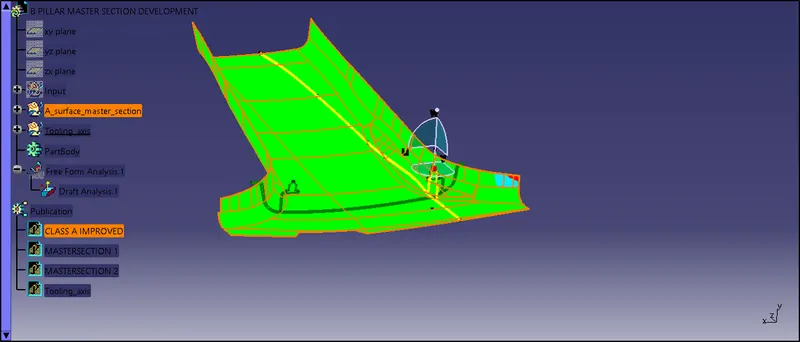

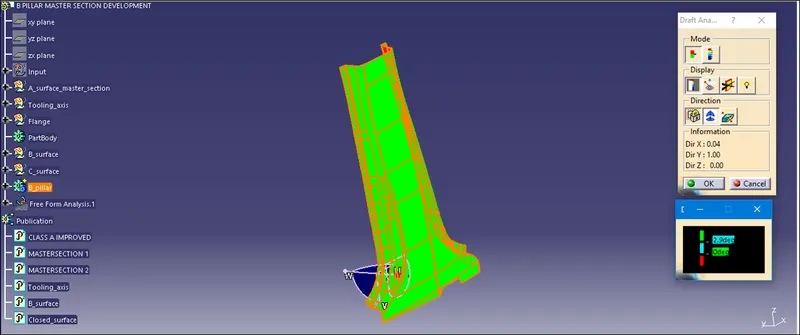

Fig 7: Draft analysis

Areas which are not in green should be highlighted to class A surface team.

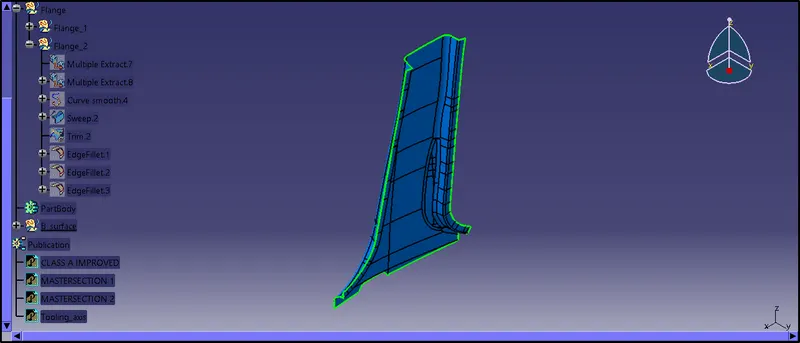

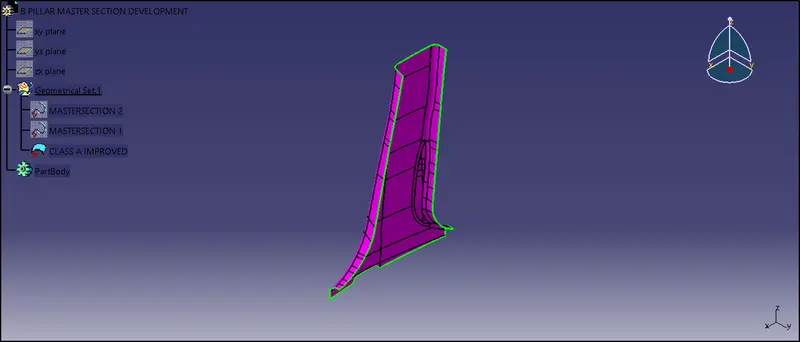

Fig 8: Class A surface with flange according to master section

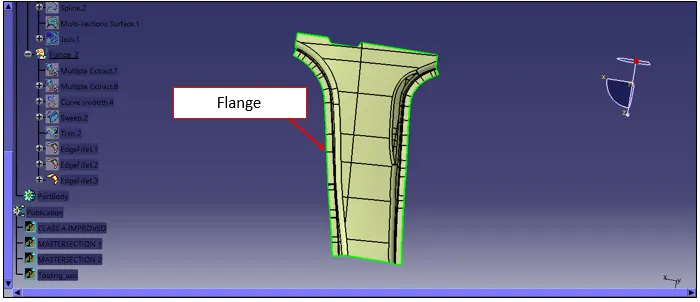

Fig 9: B surface with flange

Fig 10: Closed surface

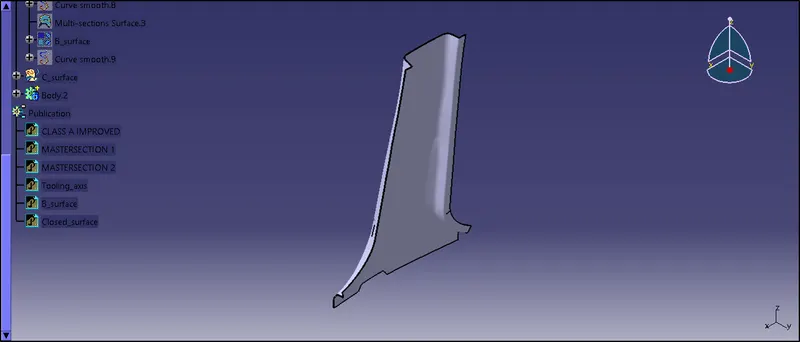

Fig 11: Part body of B pillar

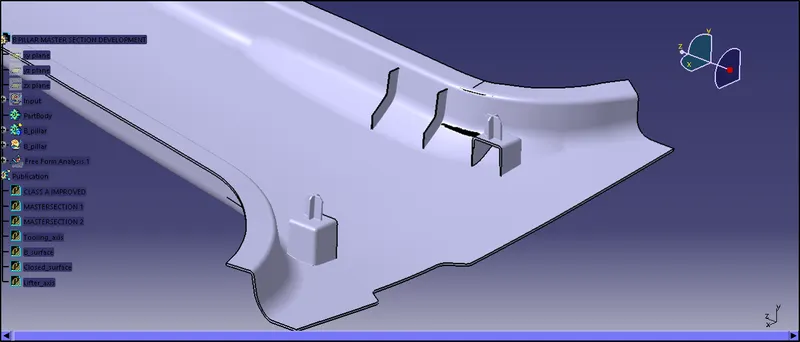

Fig 12: Part body of B pillar with engineering features

Fig 13: Draft analysis of B pillar part

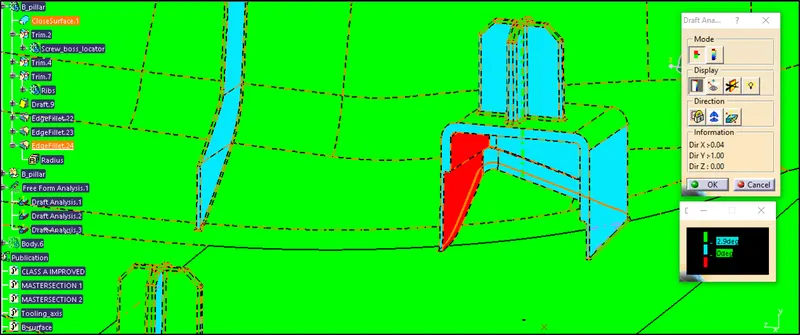

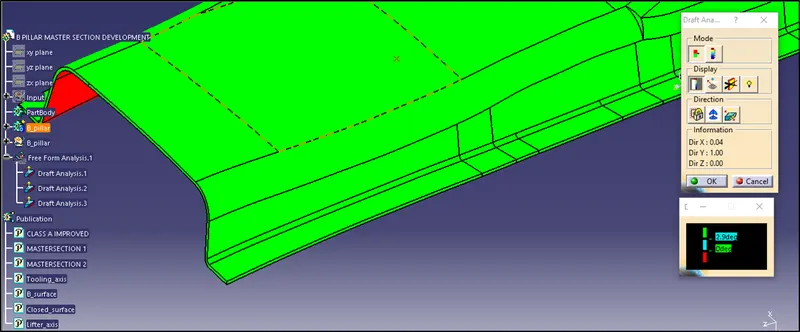

Fig 14: Draft analysis of C surface on B pillar

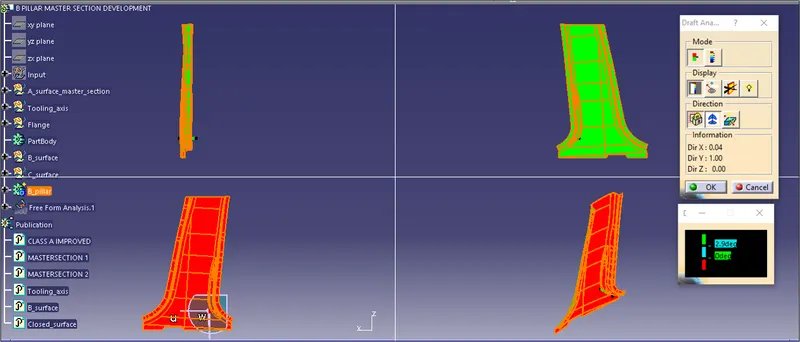

Fig 15: View of draft analysis

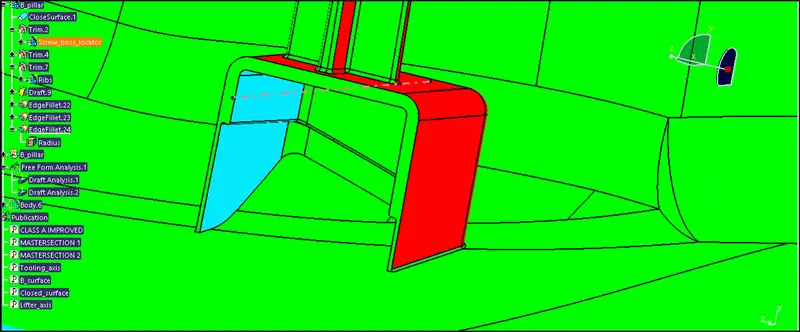

Fig 16: Draft analysis of dog house in lifter axis

Fig 17: Draft analysis of dog house in main tooling direction

All the areas are cleared by the tooling direction and parting line is at the B surface as intended hence the design is satisfactory
