Week 9 - Project - A pillar Design with Master Section

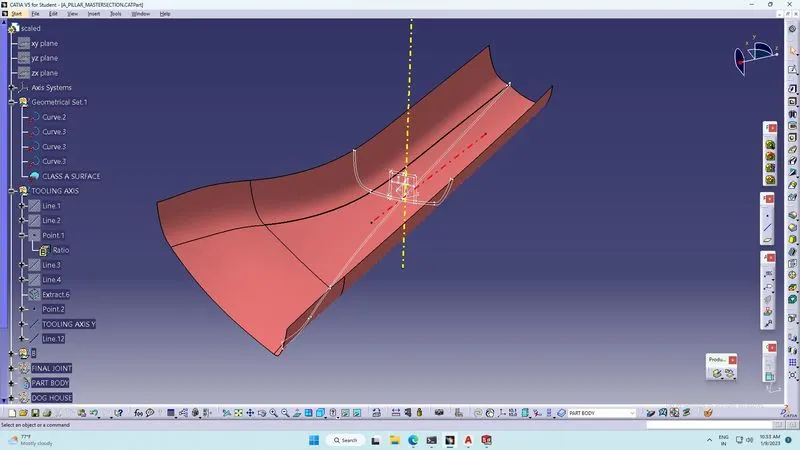

TOOLING AXIS

CENTER SURFACE EXTRACTED & CENTER POINT CREATED FOR THAT SURFACE.

LINE CREATED WITH REFERENCE TO THAT POINT & NORMAL TO EXTRACTED SURFACE.

DRAFT ANGLE ANALYSIS DONE FOR CLASS A SURFACE WITH REFERENCE TO NEWLY CREATED LINE.

IT GAVE RIGHT ANSWER.

SO CONSIDERED IT AS TOOLING AXIS.

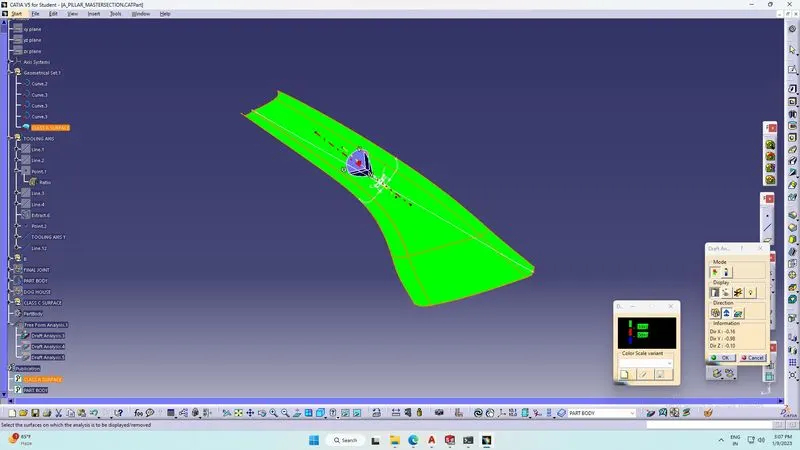

DRAFT ANGLE ANALYSIS FOR CLASS A SURFACE.

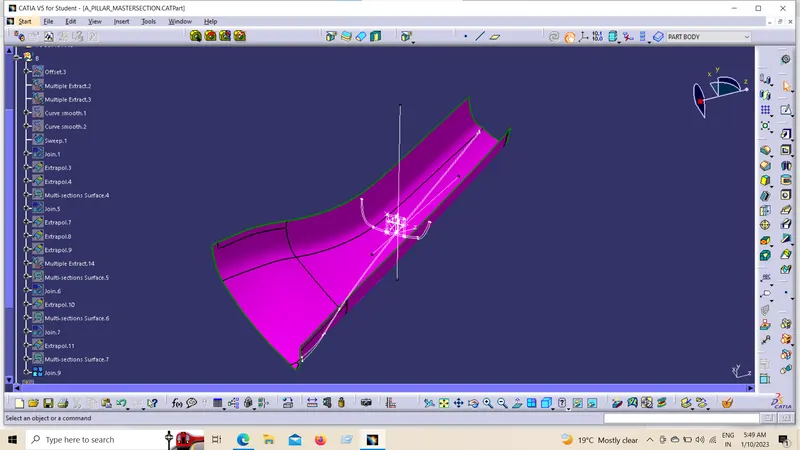

CLASS B SURFACE

DIRECTLY OFFSETTED CLASS A SURFACE BY 2.5mm.

WE NOTICED THICKNESS OF THE COMPONENT FROM MASTER SECTION.

THERE WAS ONE SURFACE MISSING.

USING SWEAP COMMAND CREATED THAT SURFACE.

EXTRAPOLATED CLASS B SURFACE EDGES.

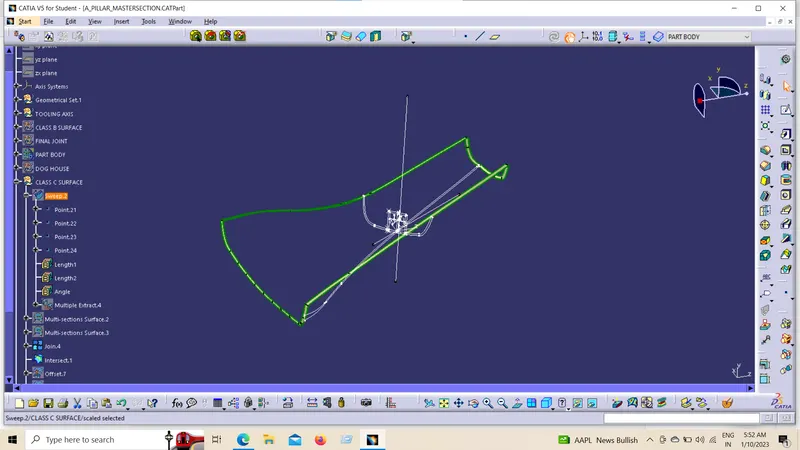

CLASS C SURFACE

OUTER EDGES OF THE CLASS A SURFACE EXTRACTED.

USING SWEAP COMMAND CLASS C SURFACE CREATED.

IT IS CREATED WITH 3DEG OUTWARD DIRECTION.

SO THAT PARTING LINE WILL OCCURE AT CLASS B SIDE.

THEN CLASS C SURFACE JOINED WITH CLASS A SURFACE.

THEN CLASS B SURFACE TRIMMED WITH THAT JOINT.

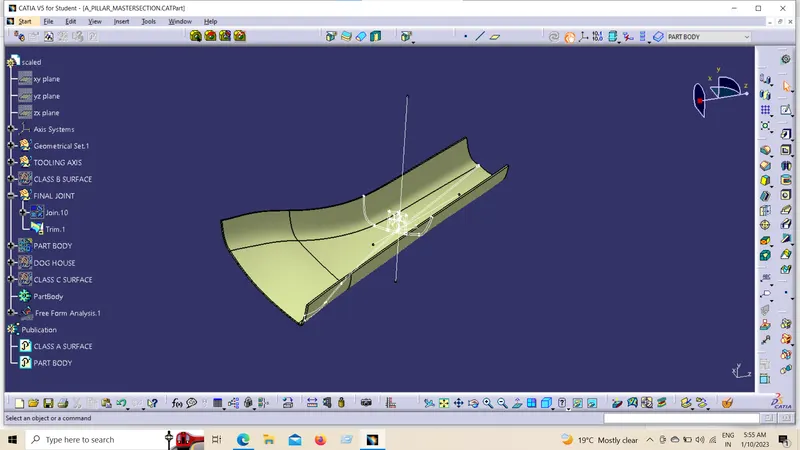

FINAL SURFACE MODEL CREATED FOR GIVEN CLASS A SURFACE.

USING CLOSE SURFACE COMMAND ,I MADE SOLID MODEL FROM SURFACE MODEL.

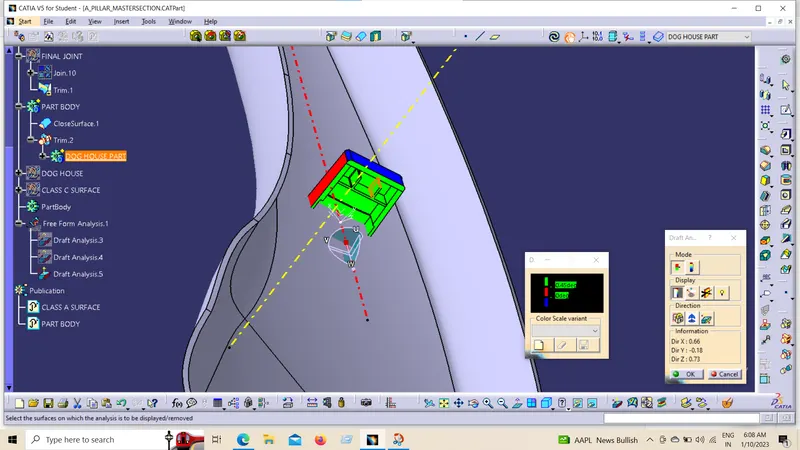

DOG HOUSE:

REFFERED GIVEN MASTER SECTION.

DOG HOUSE & RIBS INSIDE DOG HOUSE CREATED WITH SAME ORIENTATION OF MASTER SECTION.

OUTSIDE OF DOG HOUSE WALL IS 1.5DEG DRAFTED.

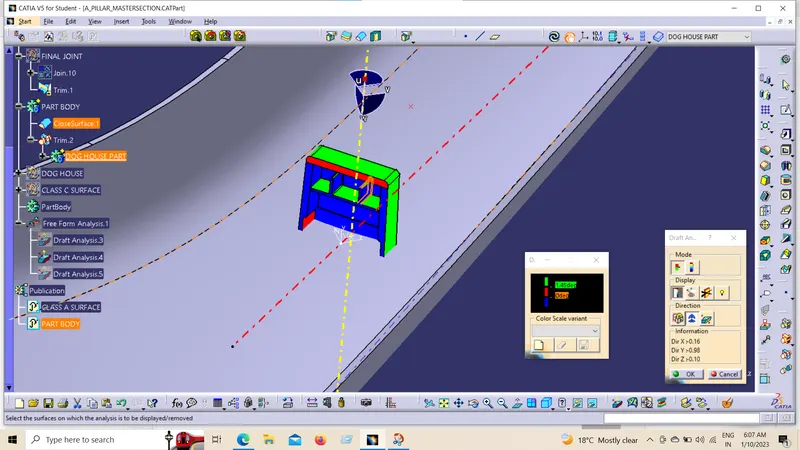

DRAFT ANALYSIS DONE FOR SIDE TOOLING AXIS.

IT IS 0.5DEG DRAFTED.

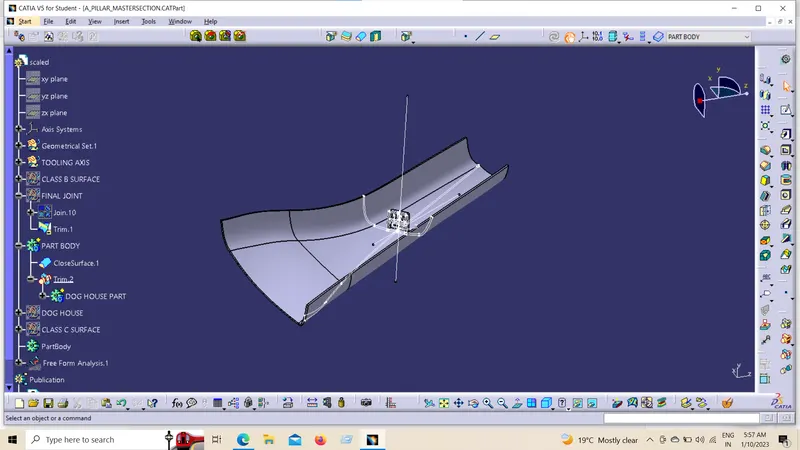

DOG HOUSE PART JOINED WITH MAIN BODY USING UNION TRIM COMMAND.

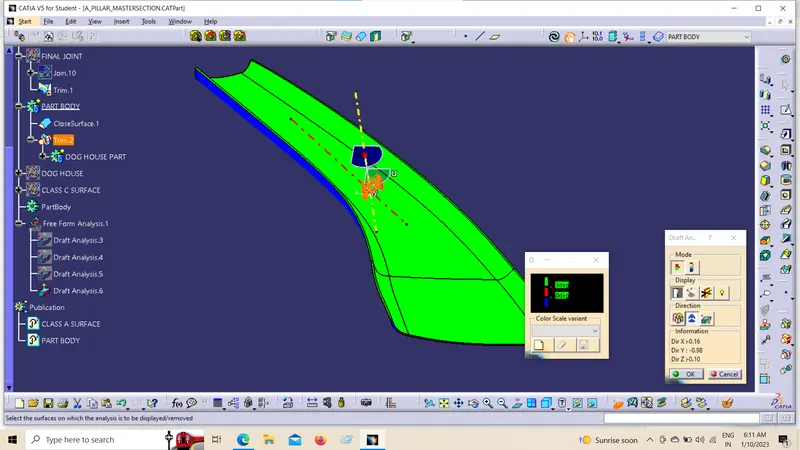

DRAFT ANGLE ANALYSIS DONE FOR FINAL PRODUCT

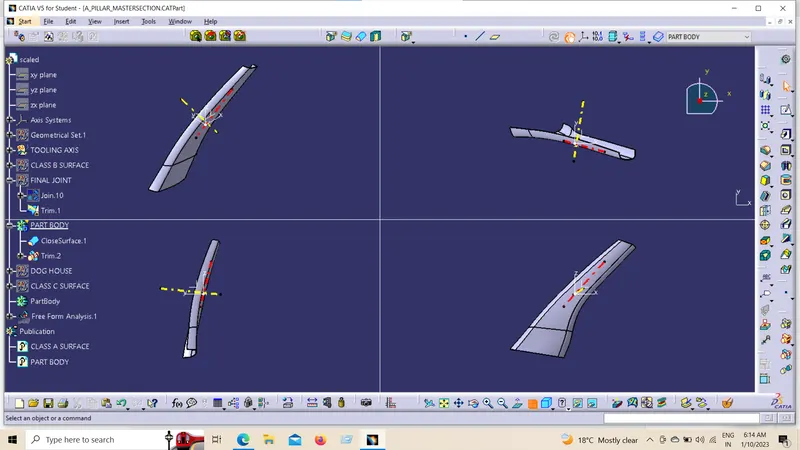

MUTI VIEW
