Week 8 - Challenge 3 - Coin Holder Design

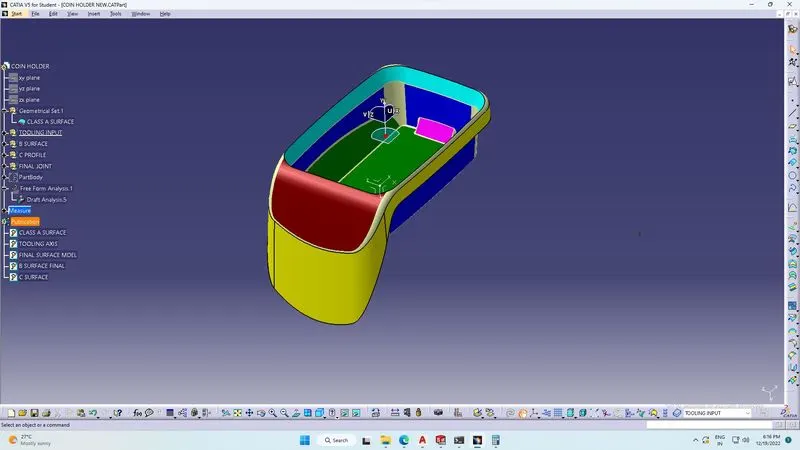

CLASS A SURFACE SEGRIGATED & IDENTIFIED WITH DIFFERENT COLOUR MARKING

NEW GEOMETRY CREATED FOR TOOLING AXIS

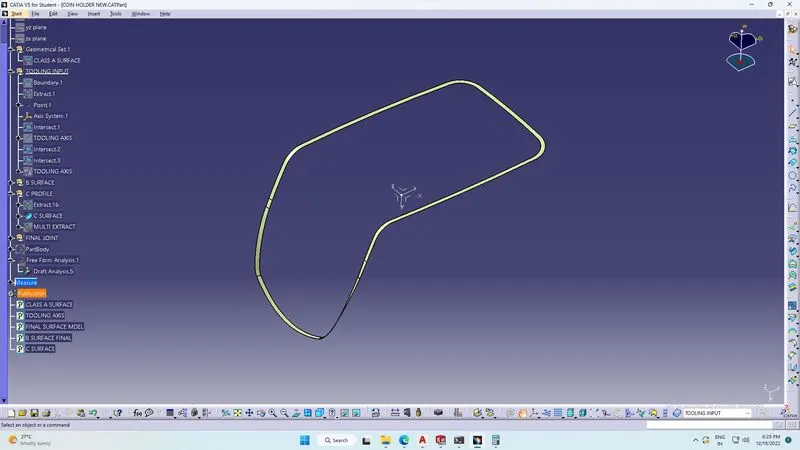

OUTER BOUNDARY CREATED.THEN EXTRACTED.

ORIGIN POINT CREATED WITH BASE SURFACE CENTER.

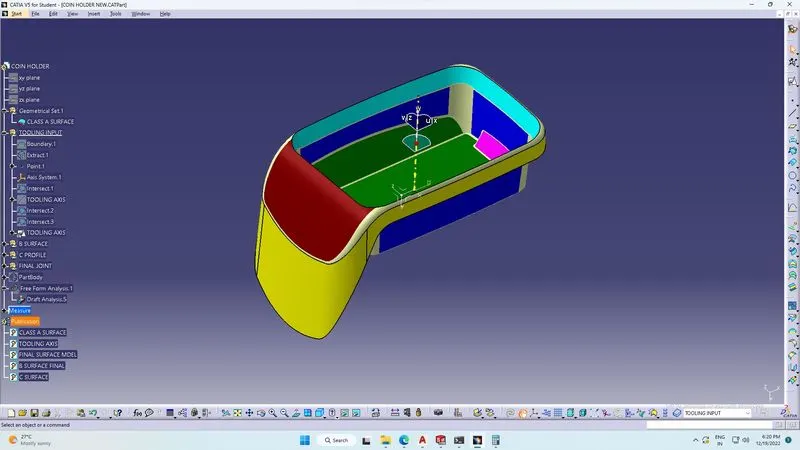

TOOLING AXIS CREATED WITH RESPECT TO THAT CENTER POINT & BASE SURFACE.

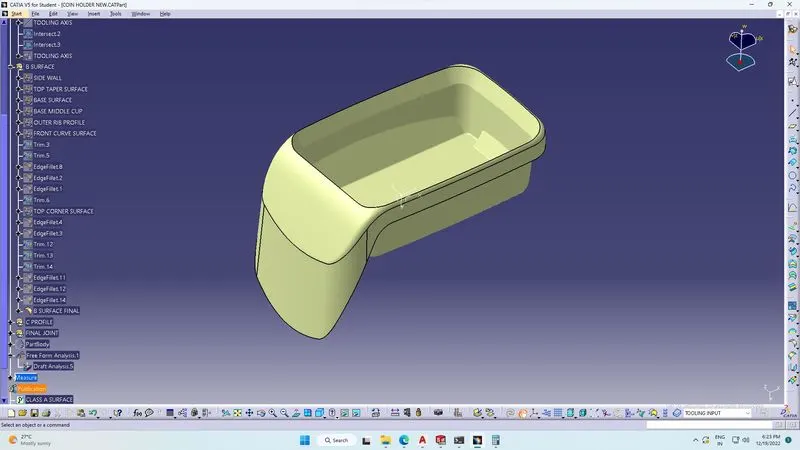

B SURFACE CREATED FOR EACH SET OF SURFACES SEPARATELY. THEN USING TRIM & JOIN COMMAND FINAL B SURFACE CREATED.

C SURFACE CREATED USING OUTER BOUNDARY OF THE GIVEN A SURFACE. SWEAP COMMAND USED FOR IT.

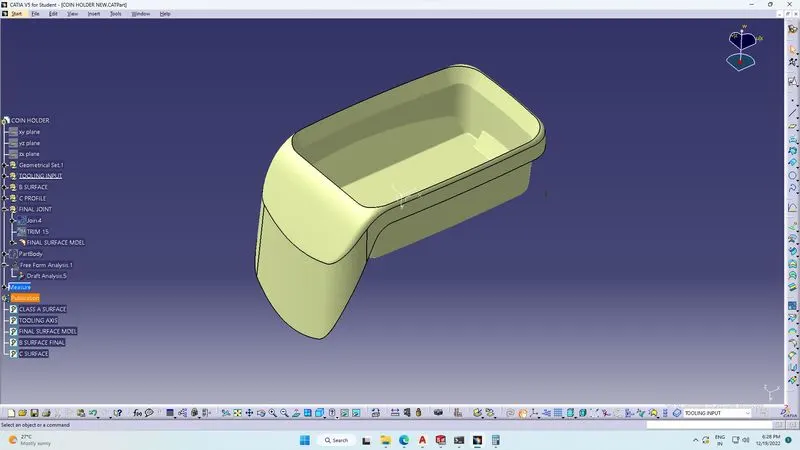

A SURFACE & C SURFACE JOINED. THEN TRIMMED WITH B SURFACE. FINALLY SURFACE MODEL CREATED. FILLET COMMAND USED WITH SUITABLE RADIUS VALUE.

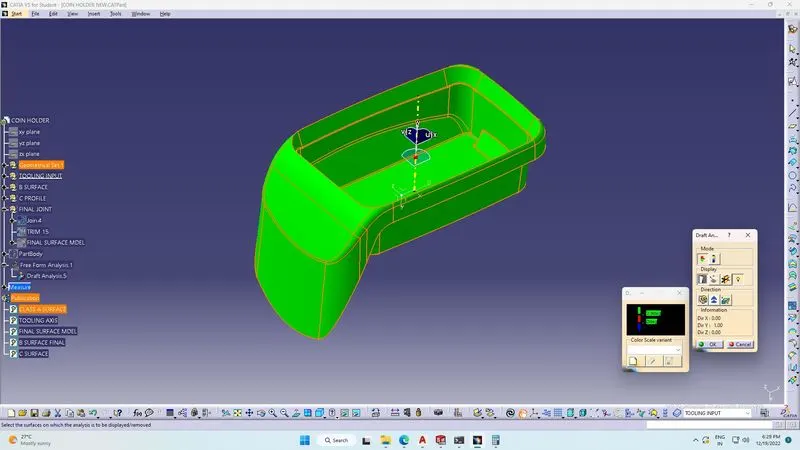

CLASS A SURFACE DRAFT ANGLE ANALYSIS

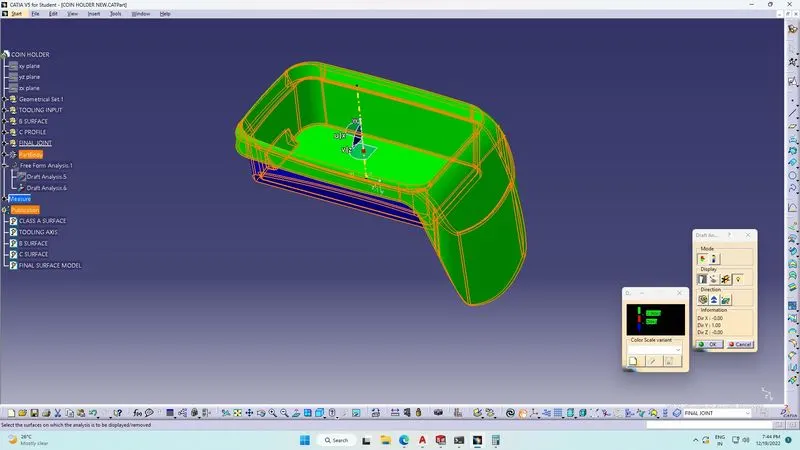

PART MODEL DRAFT ANGLE ANALYSIS

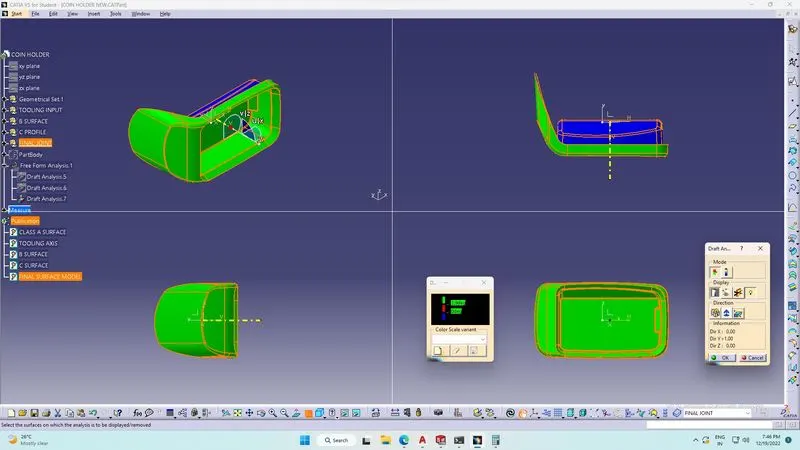

MULTI VIEW
