Week 8 - Challenge 2 - Switch Bezel Design

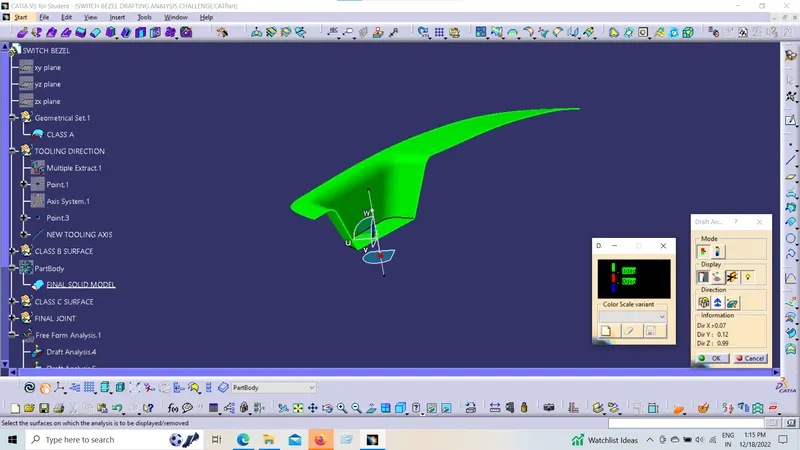

CENTER POINT CREATED USING SURFACE CENTER WITH BASE SURFACE

AXIS LINE CREATED WITH THIS CENTER POINT & PERPENDICULAR TO BASE SURFACE

THAT LINE CHECKED WITH A SURFACE.IT IS EVALUATED BY USING DRAFT ANGLE ANALYSIS.

RENAMED IT AS NEW TOOLING AXIS.THEN PUBLISHED.

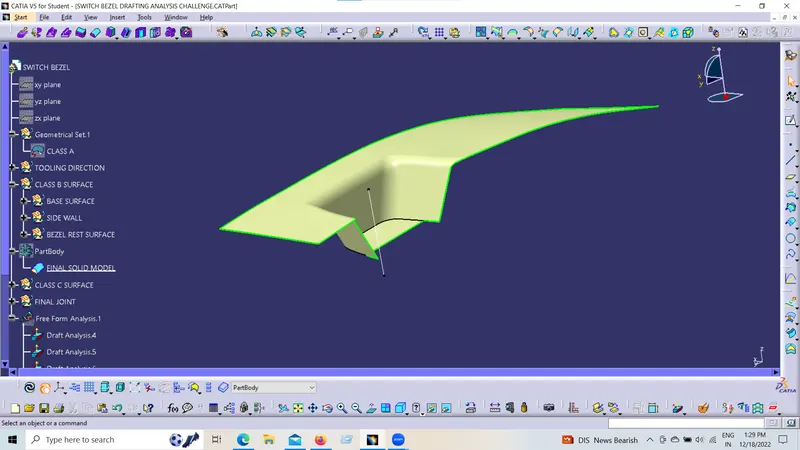

CLASS B SURFACE:

CREATED INDIVIDUAL SURFACES FOR BASE SURFACE,SIDE WALL & BAZEL REST SURFACE.

JOINED ALL SURFACES USING TRIM COMMAND.FINAL B SURFACE CREATED

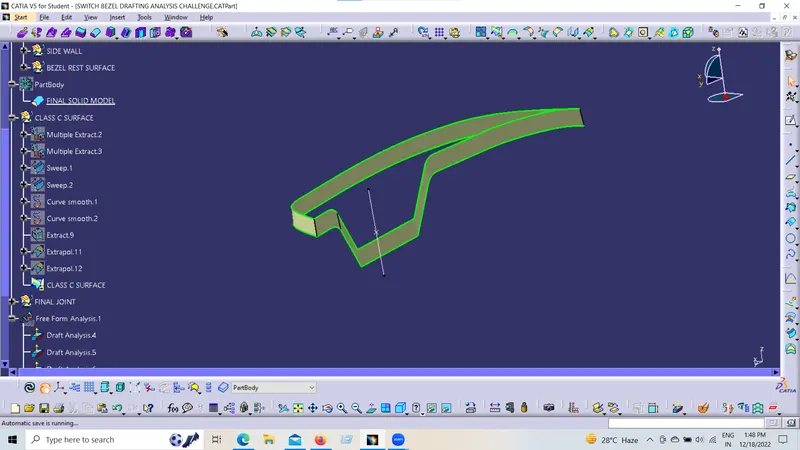

CLASS C SURFACE:

EXTRACTED BOUNDARY LINES OF CLASS A SURFACE

SURFACE CREATED USING SWEAP COMMAND

FINAL C SURFACE CREATED USING TRIM COMMAND

EXTRACTED CLASS A SURFACE & EXTRAPOLATED

TRIMMED WITH CLASS C SURFACE

THEN TRIMMED WITH CLASS B SURFACE.

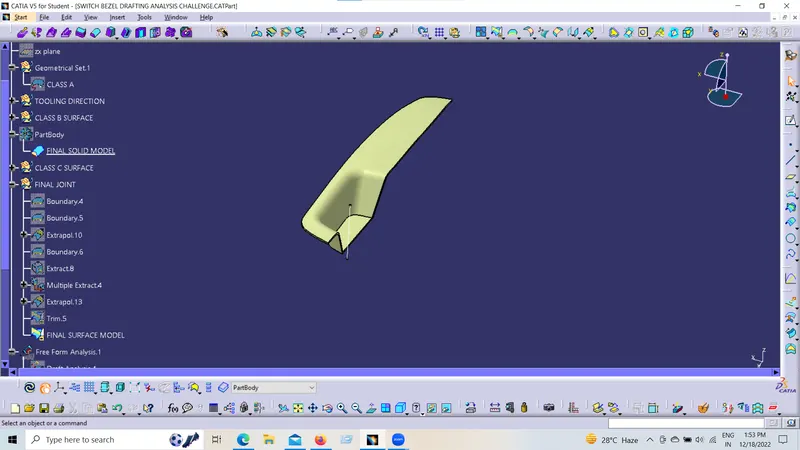

FINAL SURFACE MODEL CREATED

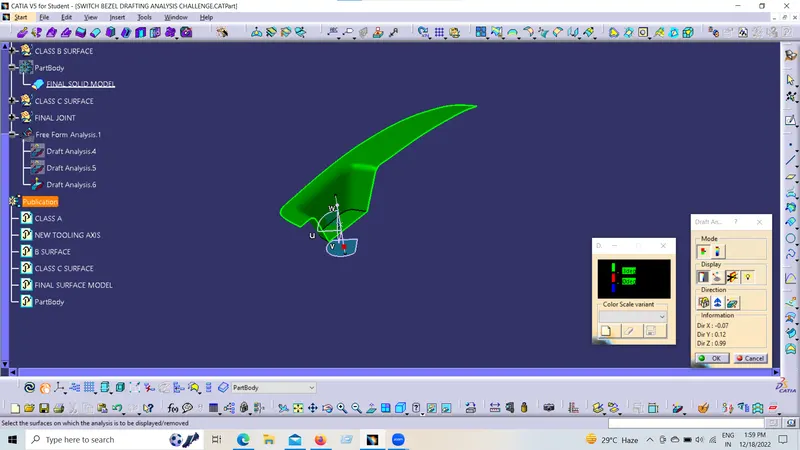

CLASS A SURFACE DRAFT ANGLE ANALYSIS

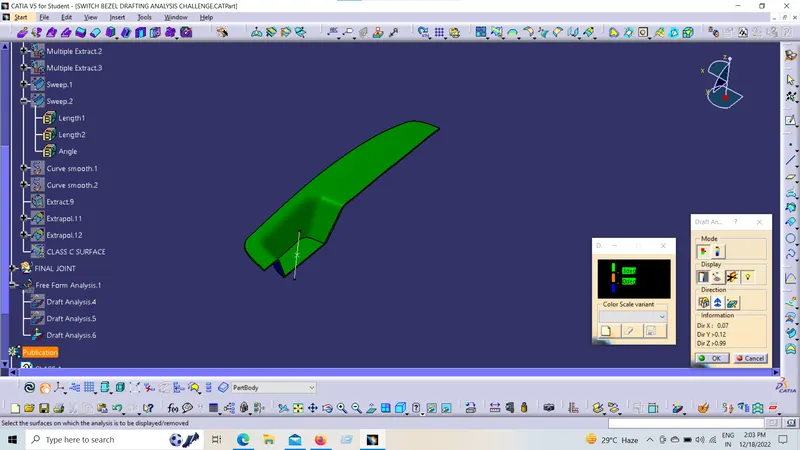

FINAL PRODUCT DRAFT ANGLE ANALYSIS

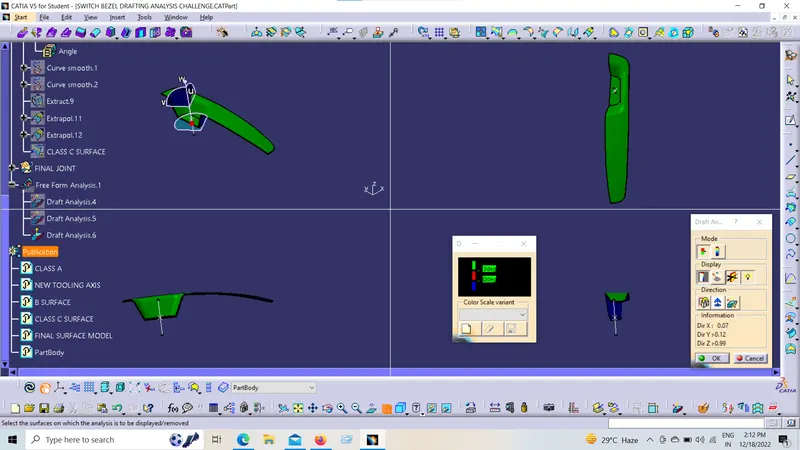

MULTI VIEW WITH DRAFT ANGLE ANALYSIS
