Week 8 - Challenge 6 - Core & Cavity Design

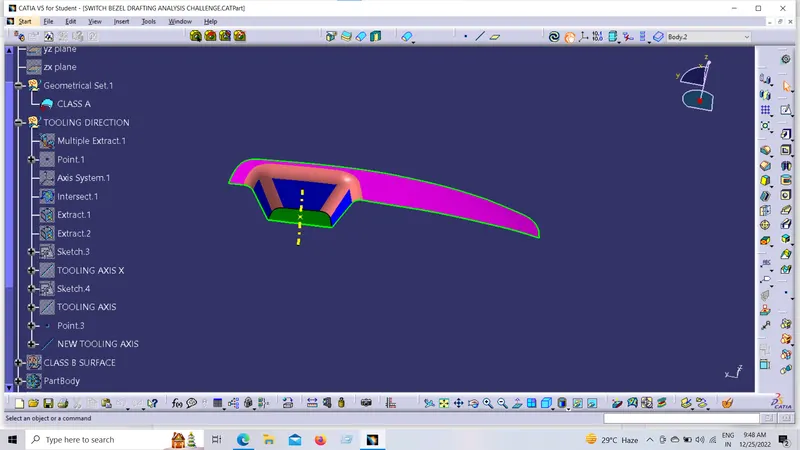

TOOLING AXIS CREATION

FOUND FLAT SURFACE IN A GIVEN CLASS A SURFACE

CENTER POINT CREATED.

TOOLING AXIS CREATED WITH THAT POINT NORMAL TO THAT BASE SURFACE

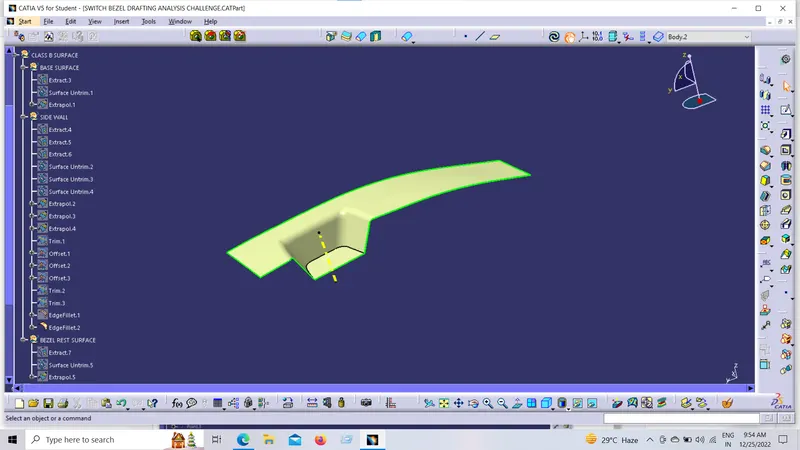

CLASS B SURFACE:

INVIDUALLY SURFACES EXTRACTED & EXTRA POLATED.

ALL SURFACES OFFSETED FOR 2.5mm. THAT IS OUR REQUIRED COMPONENT THICKNESS.

THEN ALL SURFACES JOINED USING TRIM COMMAND.

FINAL CLASS B SURFACE CREATED

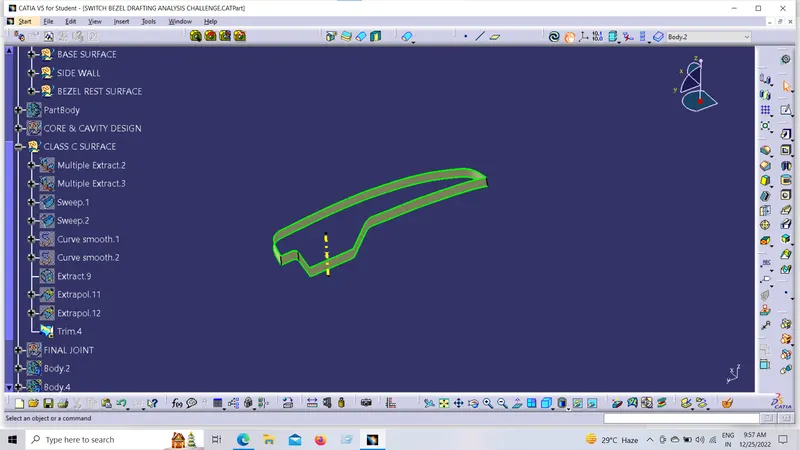

CLASS C SURFACE

EXTRACTED BOUNDARY OF GIVEN CLASS A SURFACE

SWEAP COMMAND USED TO CREATE CLASS C SURFACE

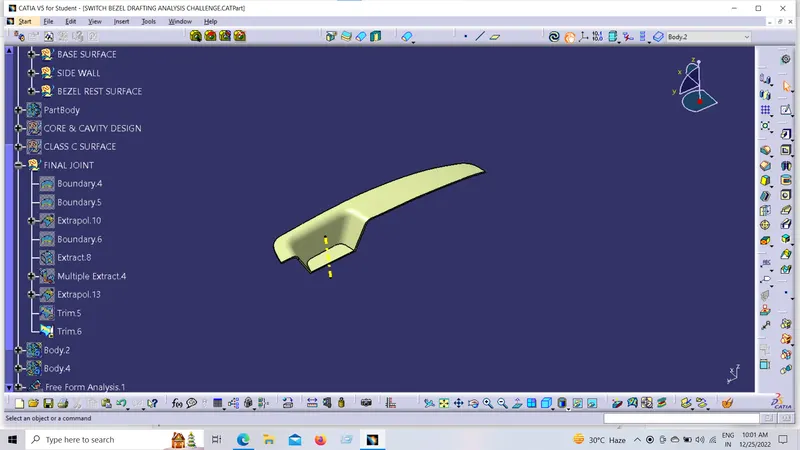

FINAL JOINT

CLASS A SURFACE JOINED WITH CLASS C SURFACE USING TRIM COMMAND.

THEN TRIMMED WITH CLASS B SURFACE.

CREATED FINAL SURFACE MODEL

SOLID MODEL CREATED FROM FINAL SURFACE MODEL USING CLOSE SURFACE COMMAND

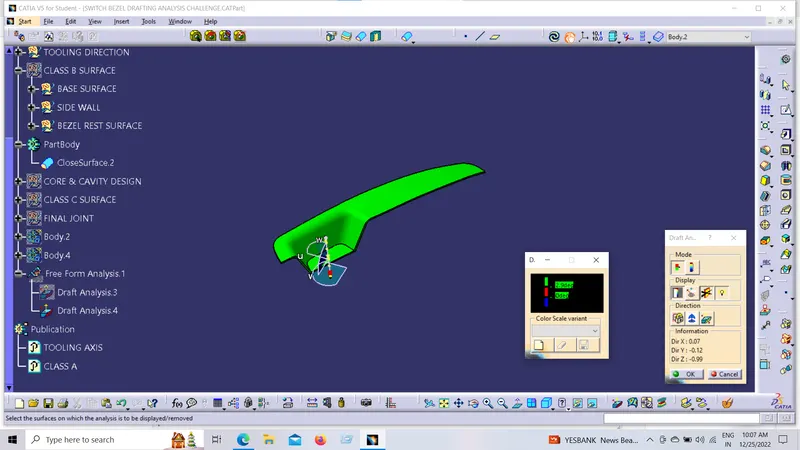

DRAFT ANGLE ANALYSIS CREATED FOR THAT SOLID MODEL.

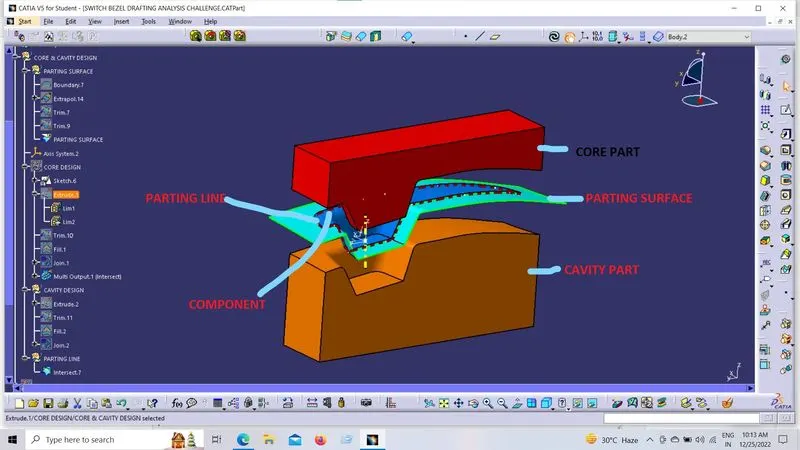

CORE & CAVITY DESIGN

THE ABOVE AREA OF PART MODEL CONSIDERED AS CORE PART.

PARTING SURFACE CREATED

CORE PART CREATED

CAVITY PART CREATED

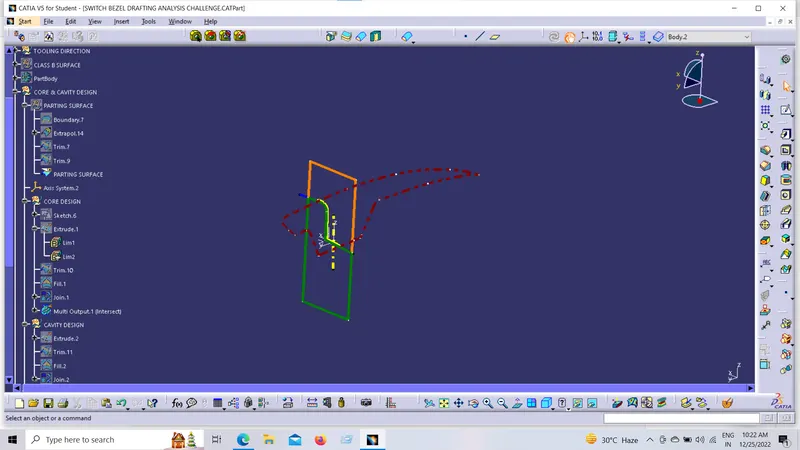

PARTING LINE EXTRACTED FROM CLASS A SURFACE

INTERSECTED SECTIONS

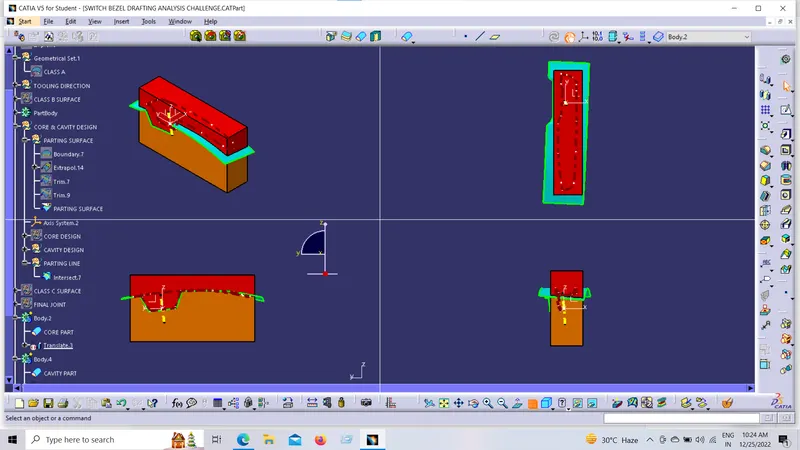

MULTI VIEW
