Week 8 - Challenge 1 - Base Bracket Design

CREATED TOOLING AXIS BY USING BISECTING METHOD WITH THE AXIS LINES CREATED IN 2 PERDICULAR DIRECTIONS

CREATED INDIVIDUAL PARTS AS SURFACE B

RIB 1 , RIB 2,BASE SURFACE & MIDDLE SURFACE

JOINED ALL SURFACES USING TRIM OPTION

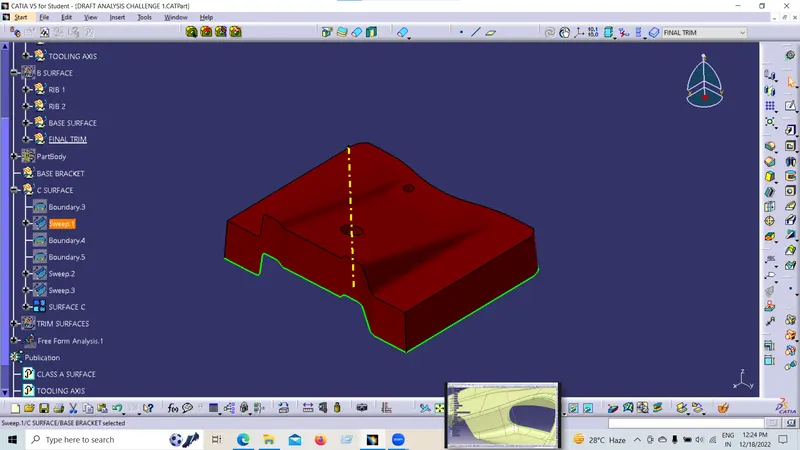

CREATED C SURFACE:

OUTER PROFILE CREATED USING SWEAP OPTION WITH THE GUIDE CURVE EXTRACTED FROM A SURFACE OUTER PROFILE.

HOLES MADE INDIVIDUALLY BY USING SWEAP OPTION

BY USING TRIM COMMAND JOINED SURCA B & C.IT BECAME FINAL SHAPE WHICH WE NEED.

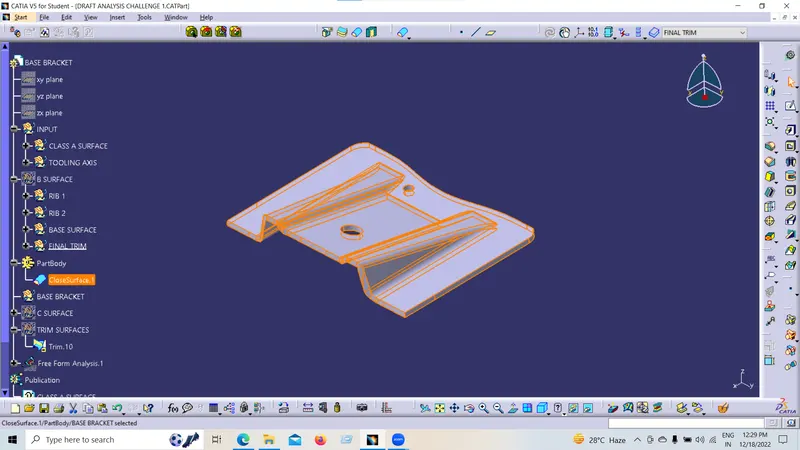

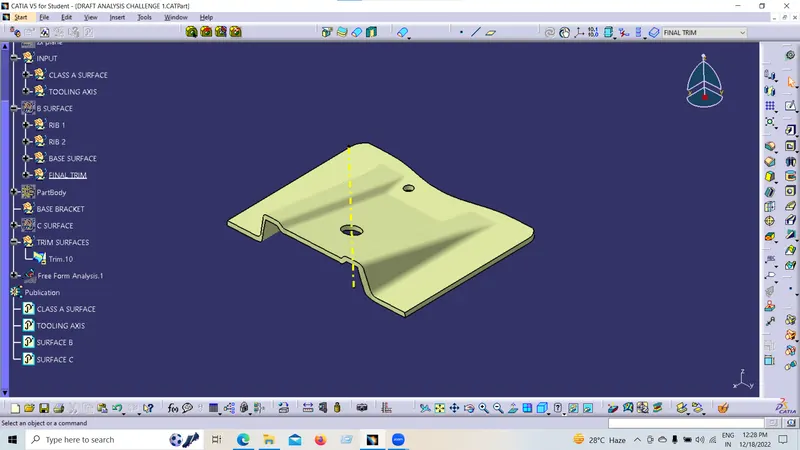

BY USING CLOSE SURFACE OPTION ,CREATED SOLID MODEL OUTPUT.

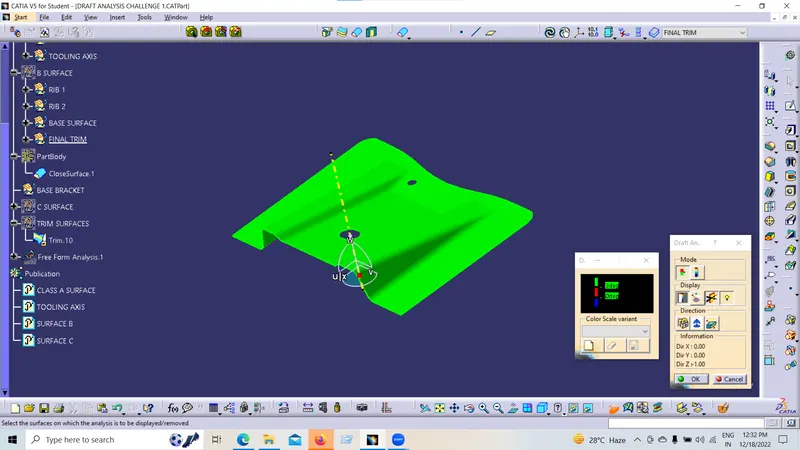

DRAFT ANGLE ANALYSIS ON A SURFACE

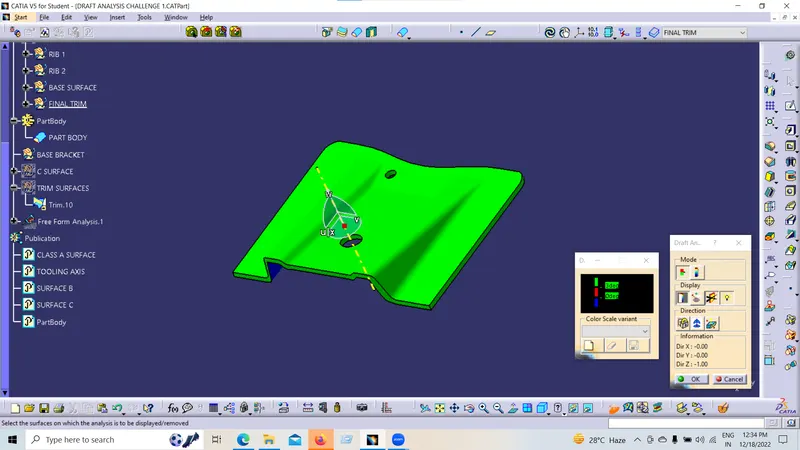

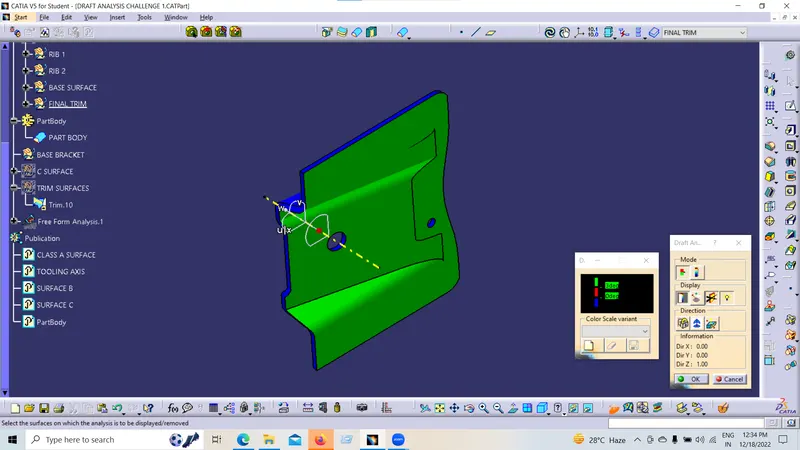

DRAFT ANGLE ANALYSIS ON FINAL SOLID MODEL

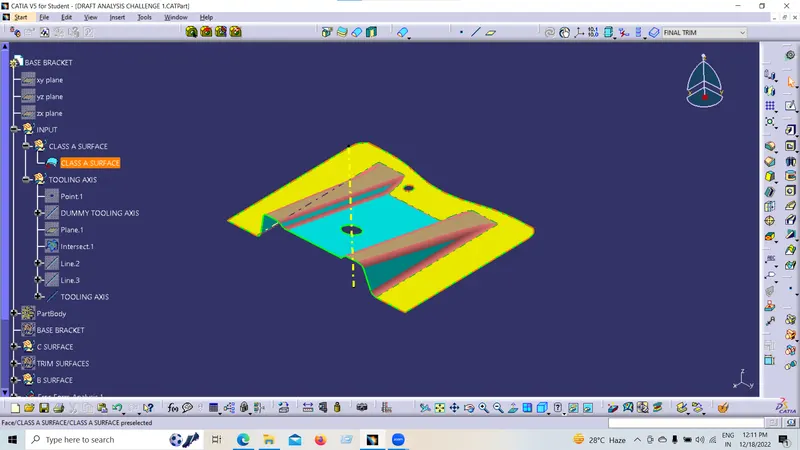

A SURFACE

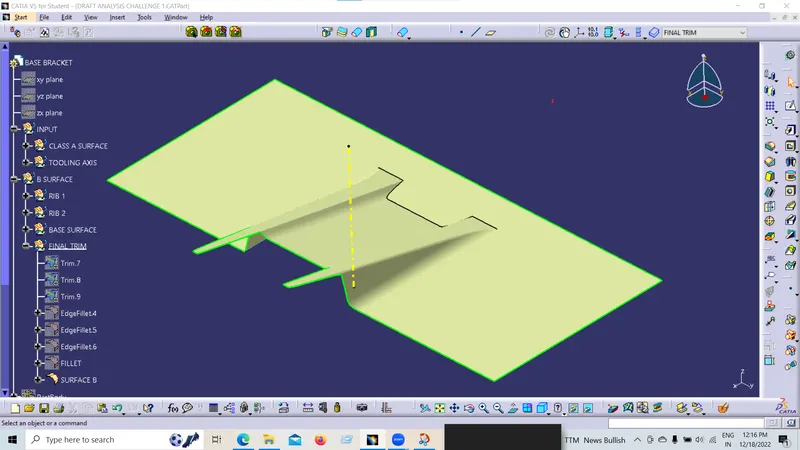

B SURFACE

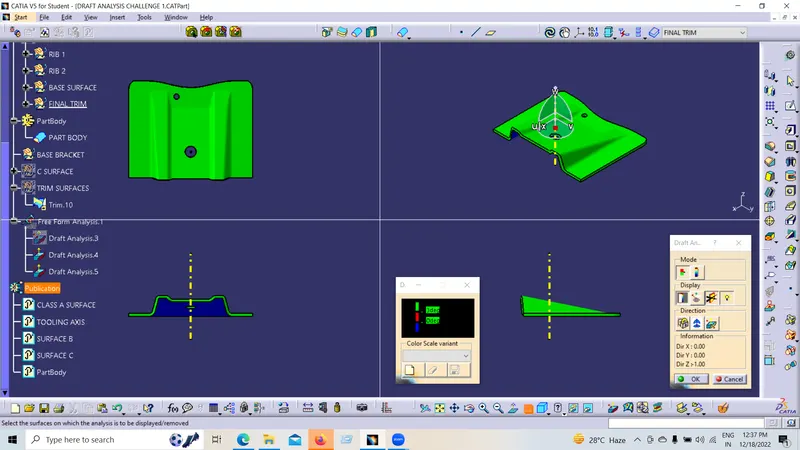

MULTI VIEW
