Week 9 - Project_1 - Door Trim Lower with Engineering Features

Door Trim Lower with Engineering Features

AIM

Create the Door Trim Lower Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

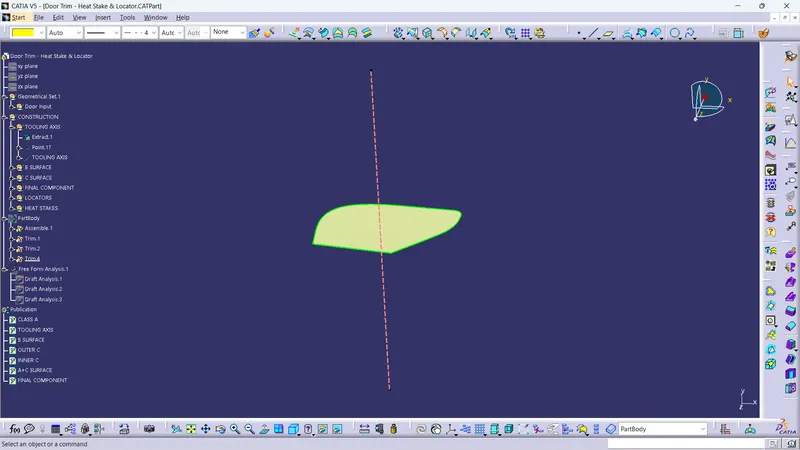

TOOLING AXIS

• The tooling axis is created in the y direction
• In this part we can simply create the tooling axis in y direction by creating a point in the extracted surface

B SURFACE

• The B surface is an offset from the A surface for 2.5mm
• By offsetting the a surface it will create some patches so we can solve the patches by using jion,extrapolate,extract and trim command

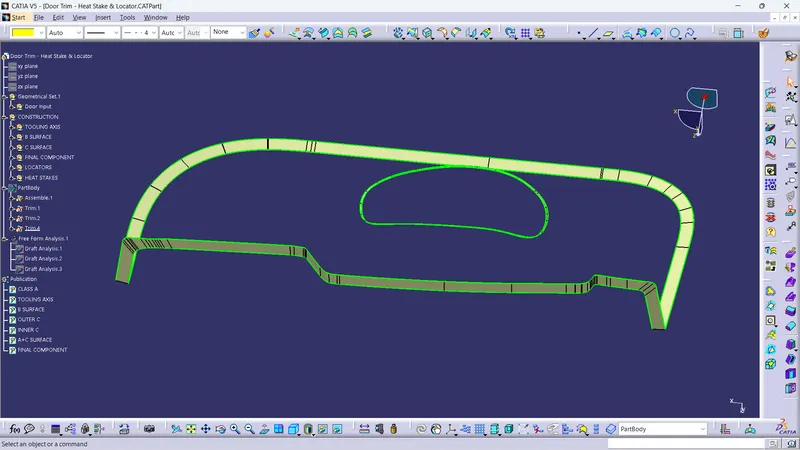

C SURFACE

• The inner c surface and outer c surface in created by using sweep command

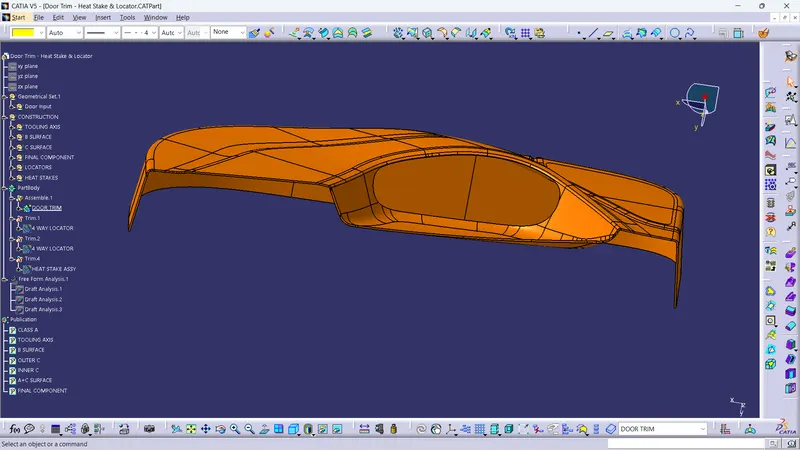

FINAL TRIM

• A surface and C surface is jioned together later it was trimed by the B surface ensuring there is no open line

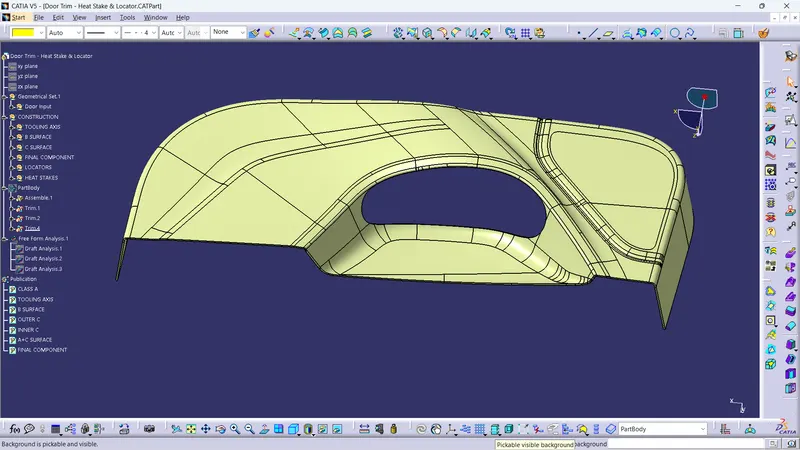

SOLID BODY

• The close surface command is used to create the solid body

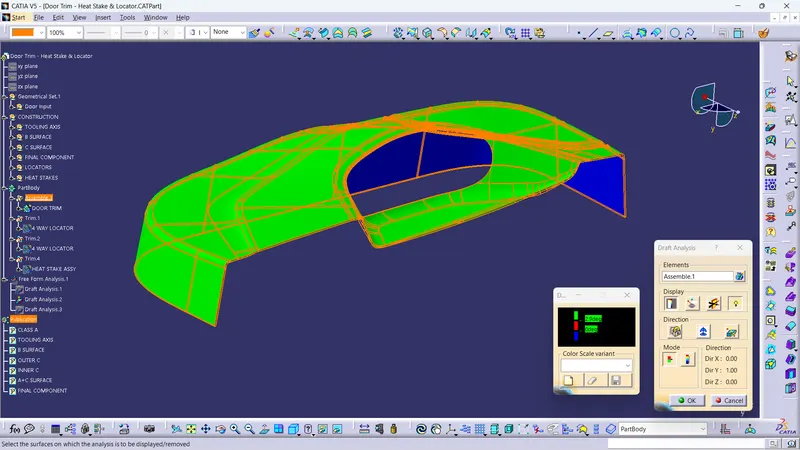

DRAFT ANALYSIS IN SOLID BODY

• Draft analysis is done in the solid body the component will be cleared in 2.9 degree

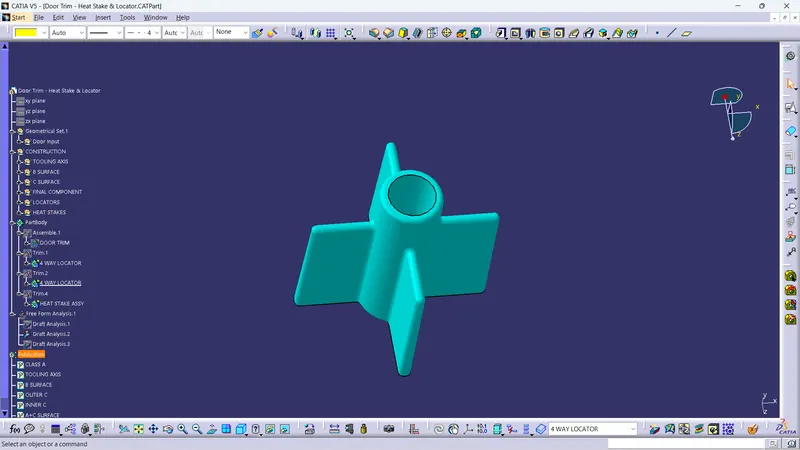

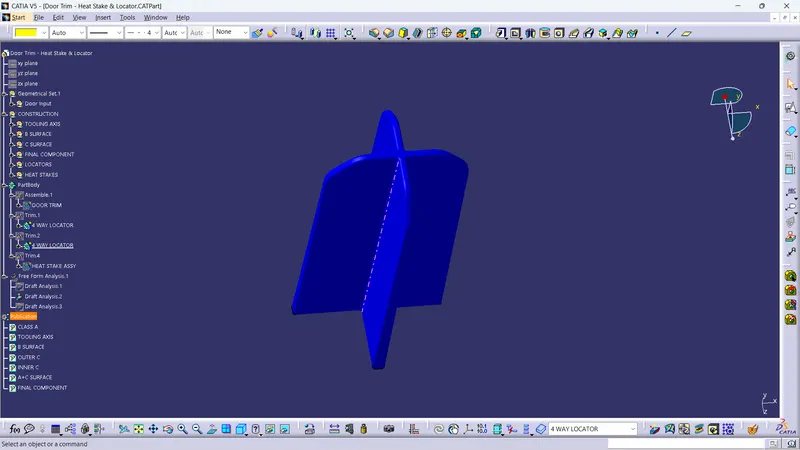

FOURWAY LOCATOR

• This locator is done by using pad,draft and fillets

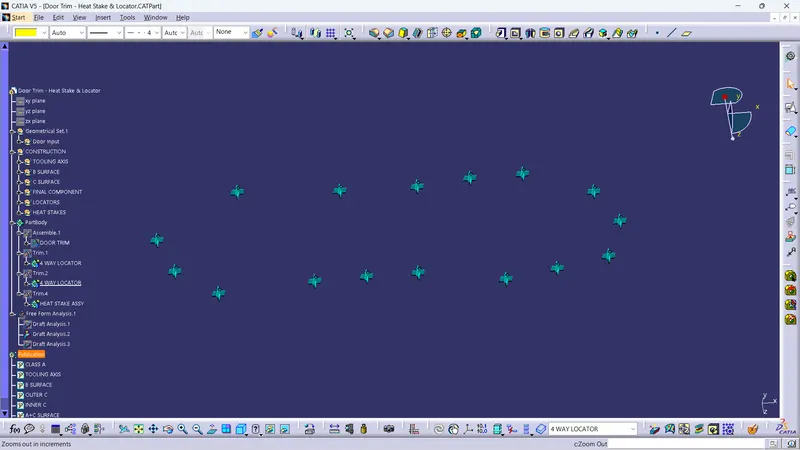

HEAT STAKE

• The heat stakes are created and placed in the give points

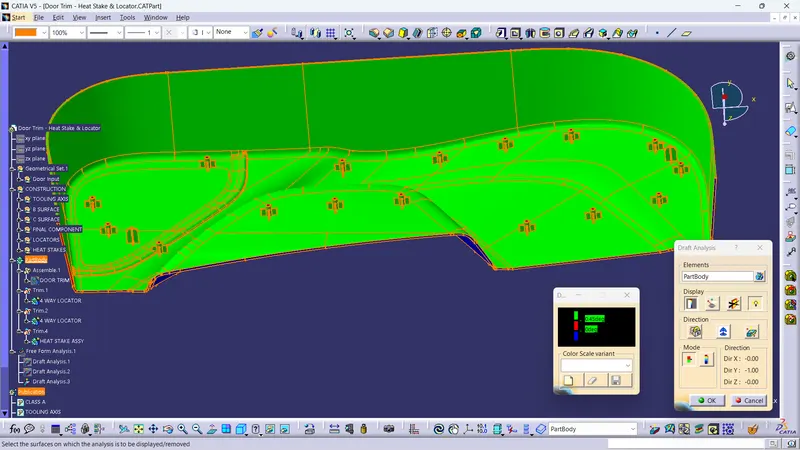

DRAFT ANALYSIS FOR 4 WAY LOCATORS AND HEAT STAKES

• Draft analysis is done to the 4 way locators and heat stakes
• This will be cleared in .45 degree

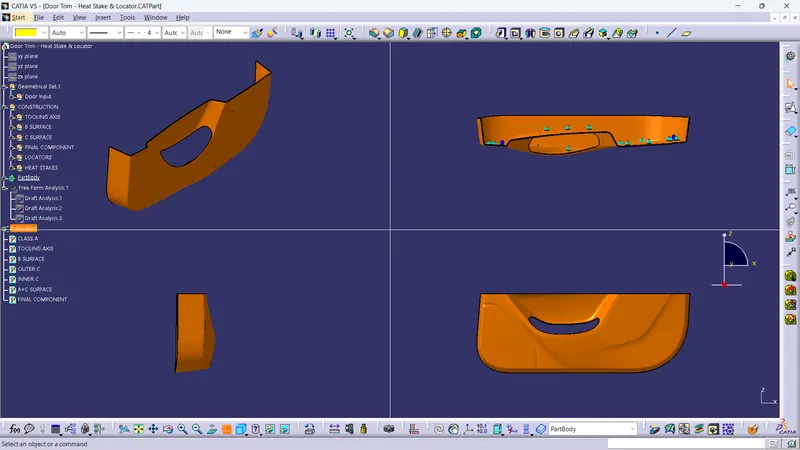

ORIENTATIONS

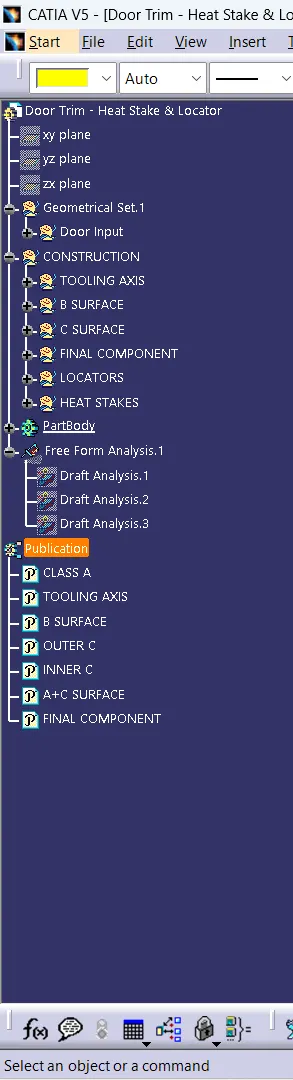

TREE STRUCTURE
