Week 9 - Project 1 - Door Trim Lower with Engineering Features
- Report on creation of tooling axis
REPORT ON CREATION OF TOOLING AXIS
The specimen provided was a door trim. A tooling axis was created for the A surface considering the draft constraints. With respect to tooling axis a B-surface and C-surface was created.

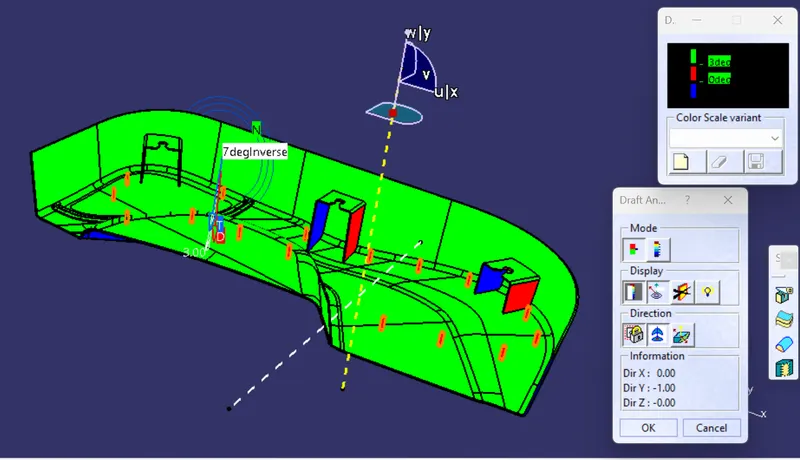

Tooling axis was created by considering all the draft requirements. Different tooling axes were created on different axis. Finally a tooling axis was selected by the bisecting method.

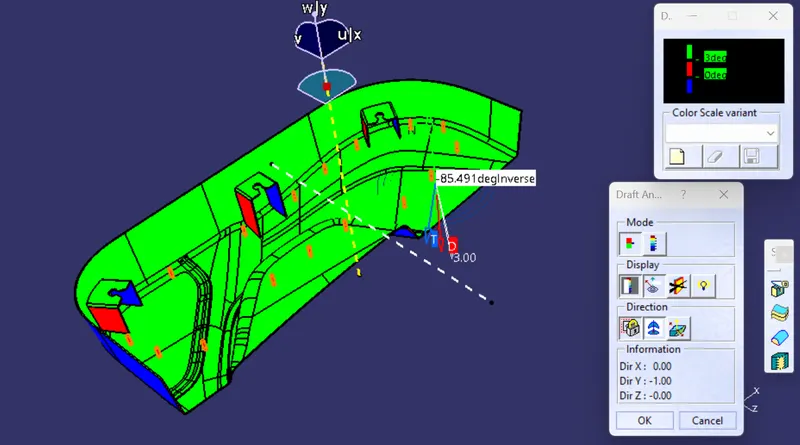

Also another tooling was created based on a trial and error method. In this method Y axis passed as the tooling axis. Since Y axis was more adequate, the later tooling axis was considered as the final tooling axis of the specimen.

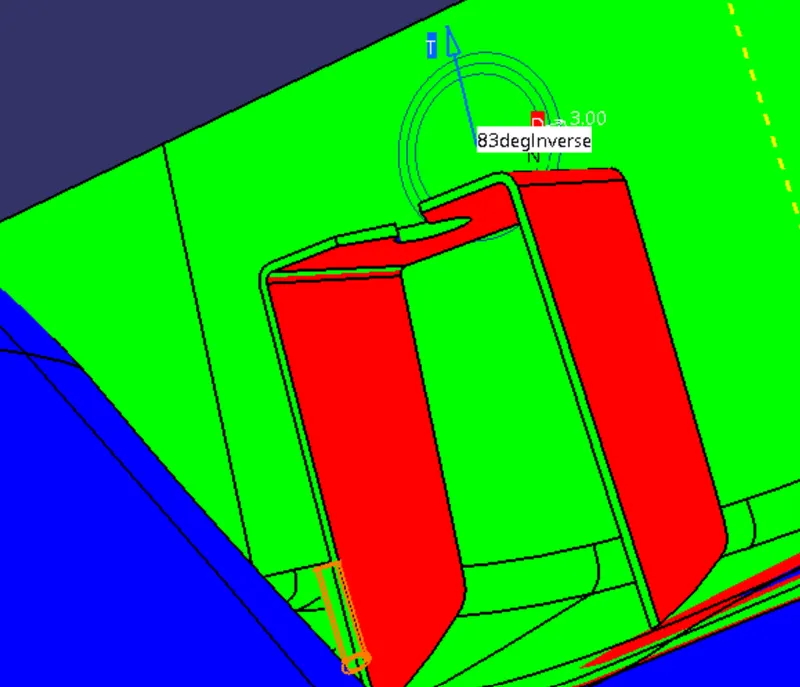

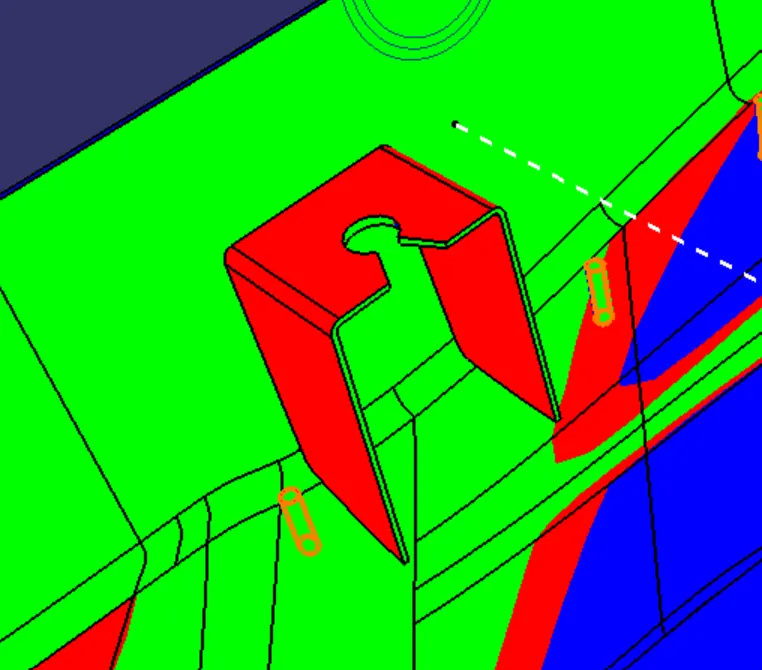

- Dog house, Draft with respect to side core axis.

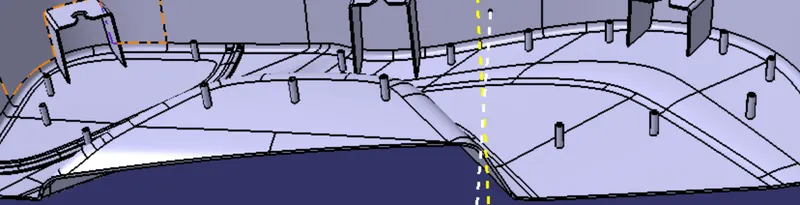

- heat stakes

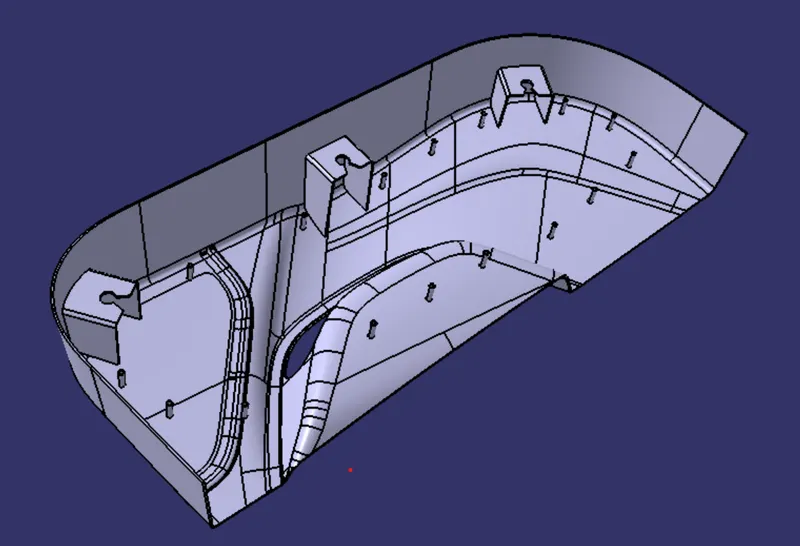

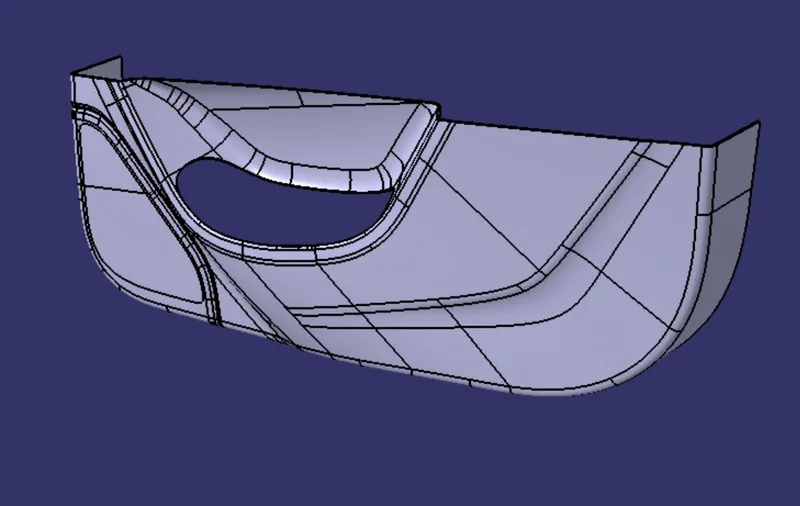

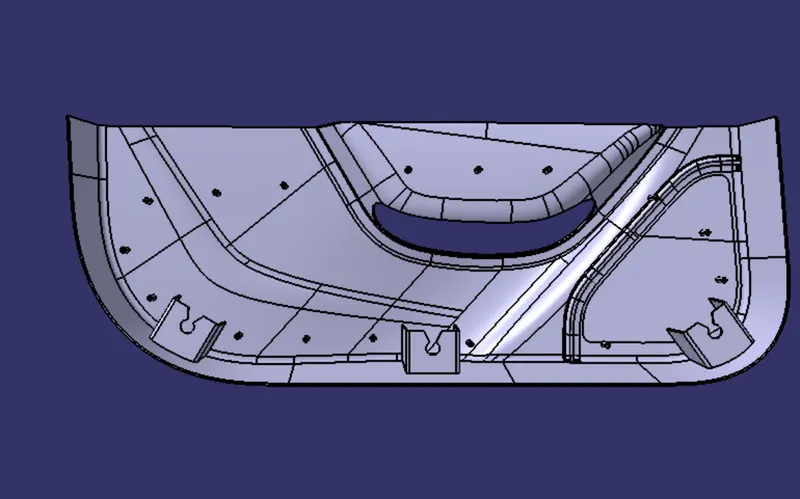

- Views of solid
