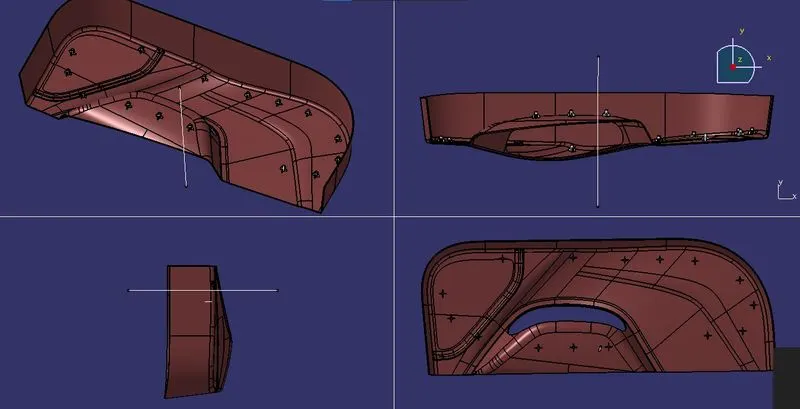

Door Trim Lower with Engineering Features

REPORT:

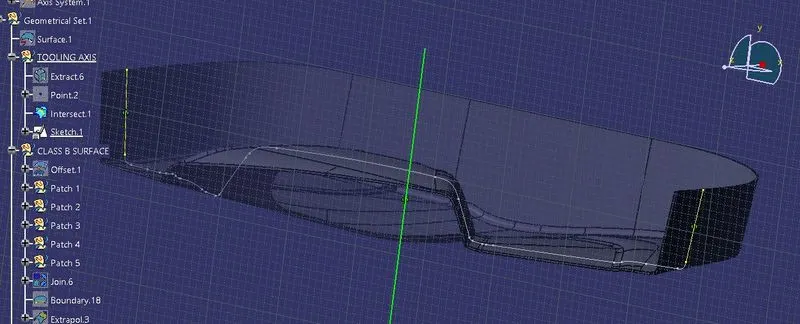

Tooling axis is created using bisecting method. Lines are extracted from side faces and are bisected to generate tooling axis.

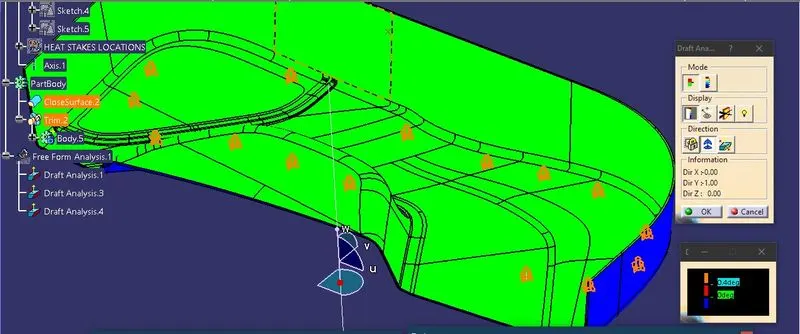

3 degree draft is given for the door part and 0.5 degree draft is given to the heat stakes.
