Week 9 - Project 1 - Door Trim Lower with Engineering Features

Find the draft analysis and convert the part into solid model.

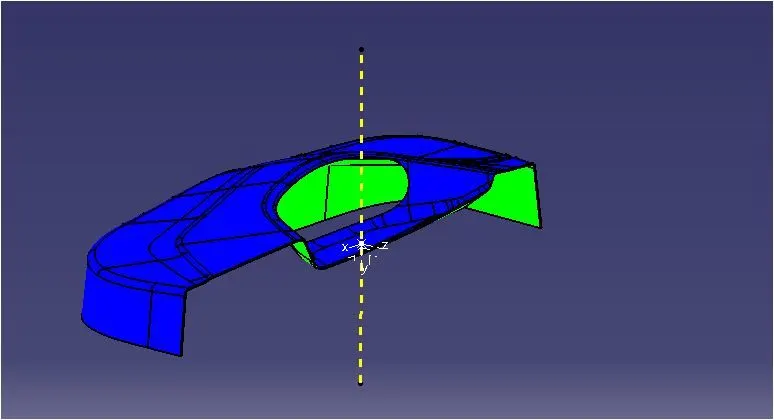

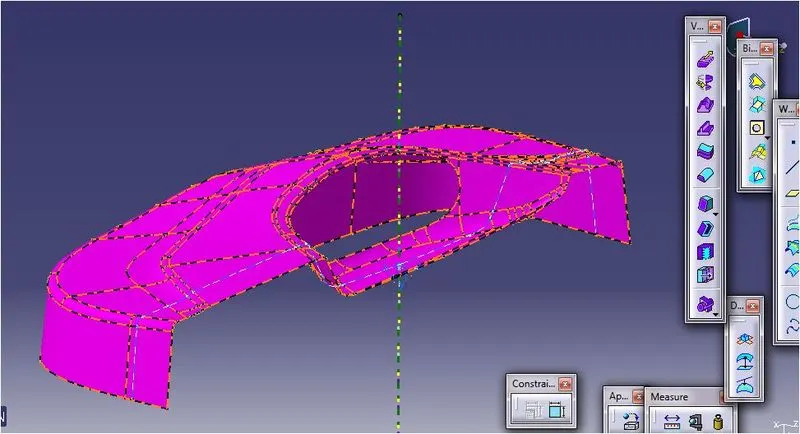

Create a tooling axis by using bisecting method then by using the feauture draft analysis find the draft analysis.

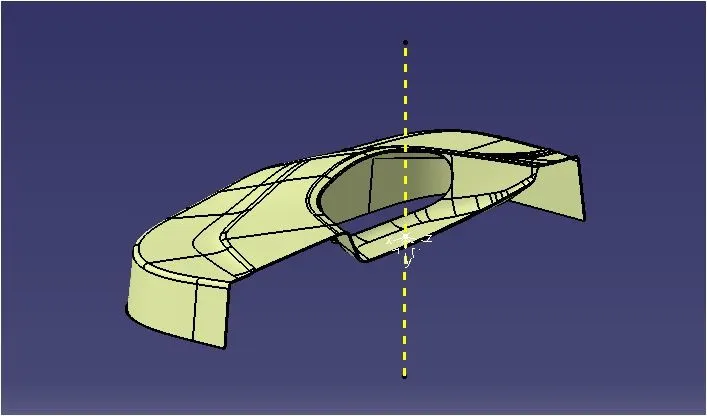

Offsect the door trim upto 2.5 mm create B surface.

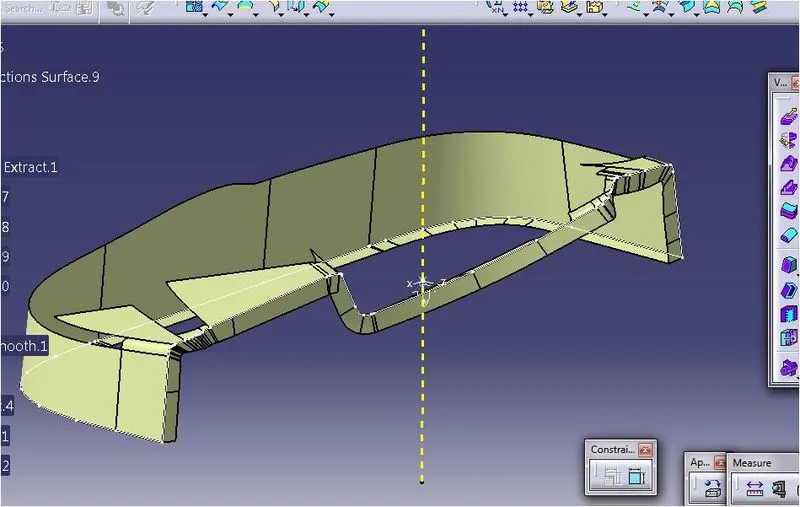

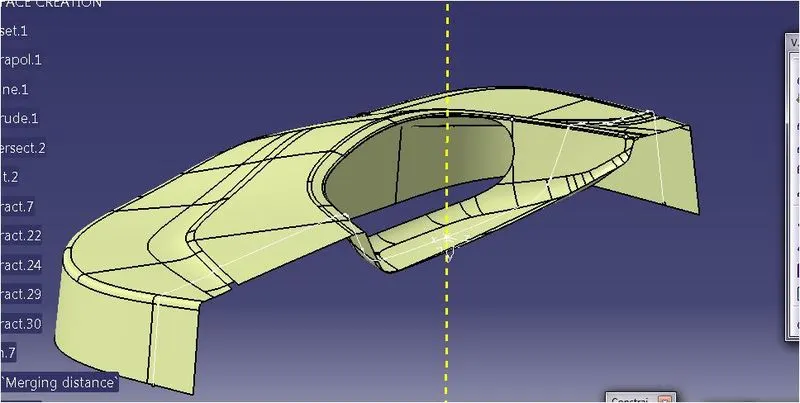

For C surface extract the edges and create a boundary over it and create sweep. Trim the sweep with B surface. Then join with A surface.

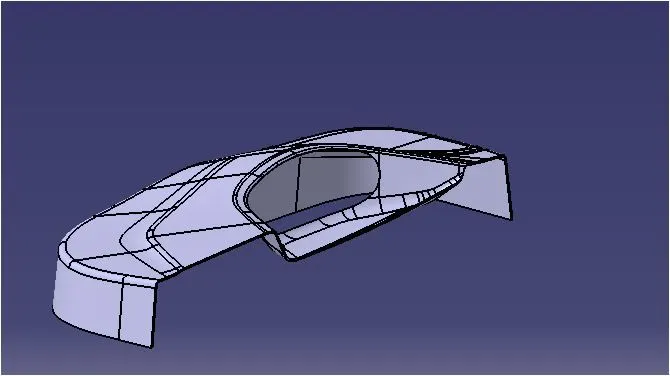

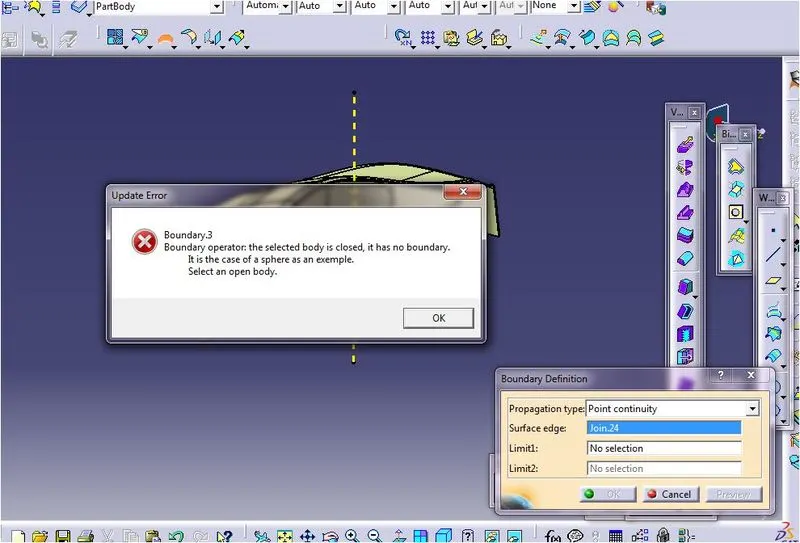

By using boundary check the part is closed or not. Then in part design workbench make the sueface into solid by using closed surface command.

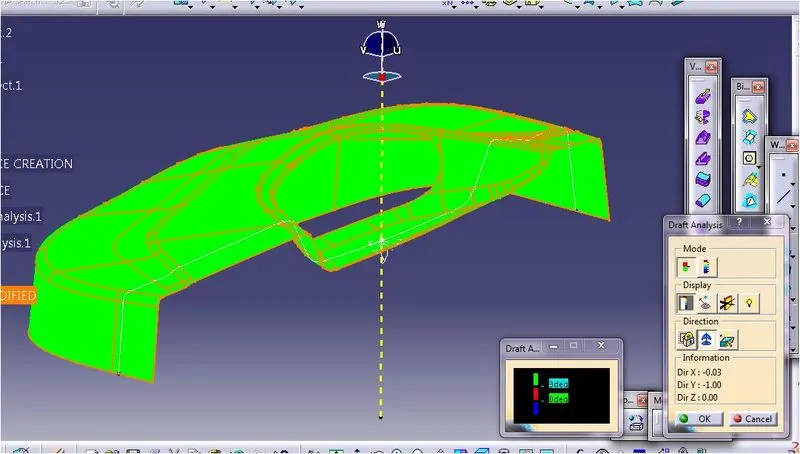

Find draft analysis fir the solid part.

Locators

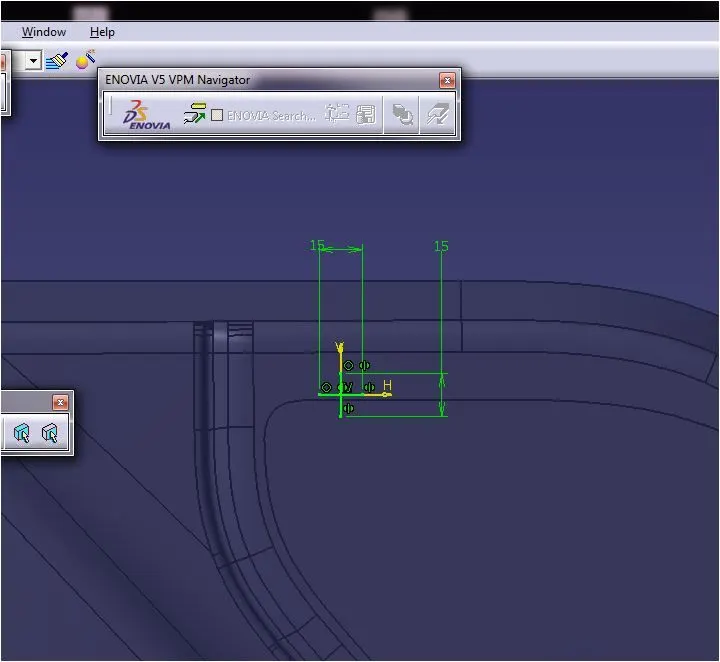

Place the locators on a given point create plane over the point draw a sketch for 4way locators

Pad it draft chamfer and fillet copy the pad paste it over the product by using paste special then result with link.

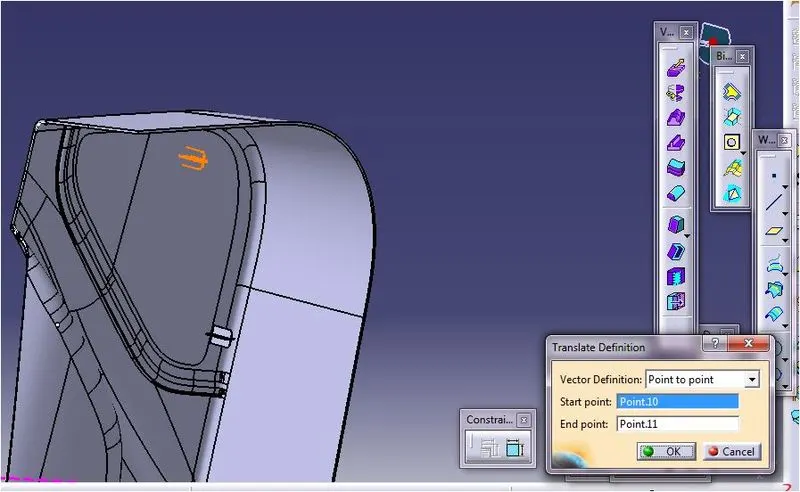

Tanslate the duplicate part by using point to point method .

Make a clearance for upto .1mm each side for locators.

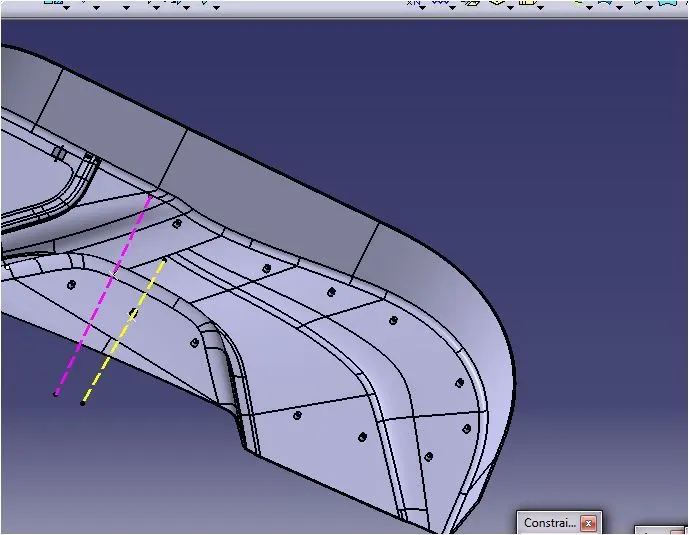

Heat steaks.

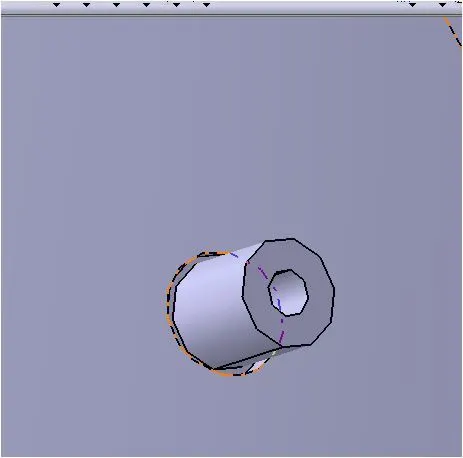

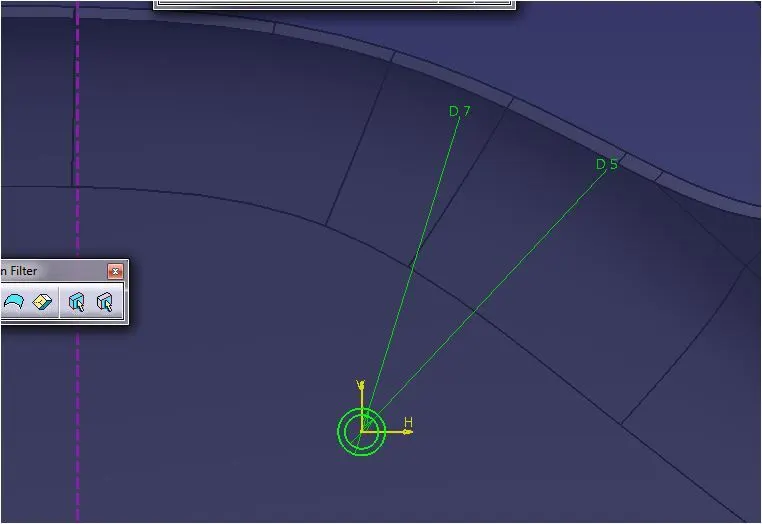

Create a sketch over the point of Dia 7 and 5mm pad it upto 6 to 8mm draft it.

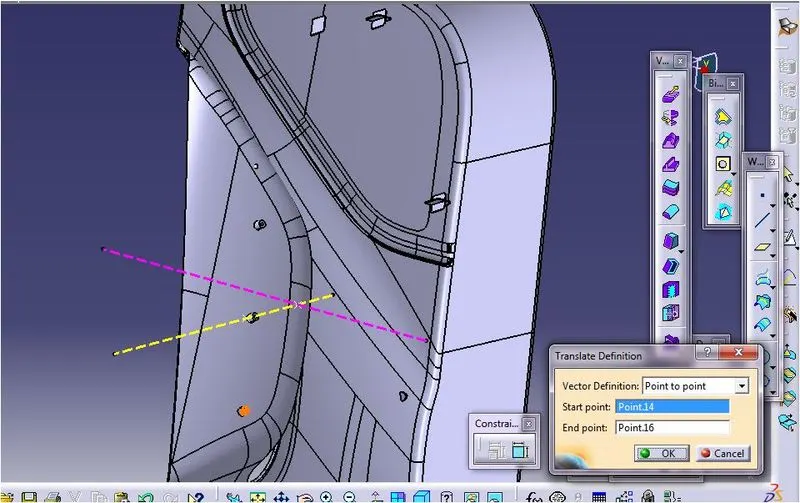

Copy the heat steaks and paste it over product with paste special link with result. Translate with point to point method.

Make a clearance fir heat steaks .5 mm each side. Pad the 1mm circle then draft it then remove it with yhe main part body.
