Week 9 - Project 1 - Door Trim Lower with Engineering Features

REPORT-

Boundary is checked for provided class A surface. there are saperate two boundaries.

tooling Axis Creation-

As class A surface has a flat surface at bottom. the same is considerd for tooling axis. line normal to surface at center of extracted surface is tooling axis.

no need to check or use bosecting method.

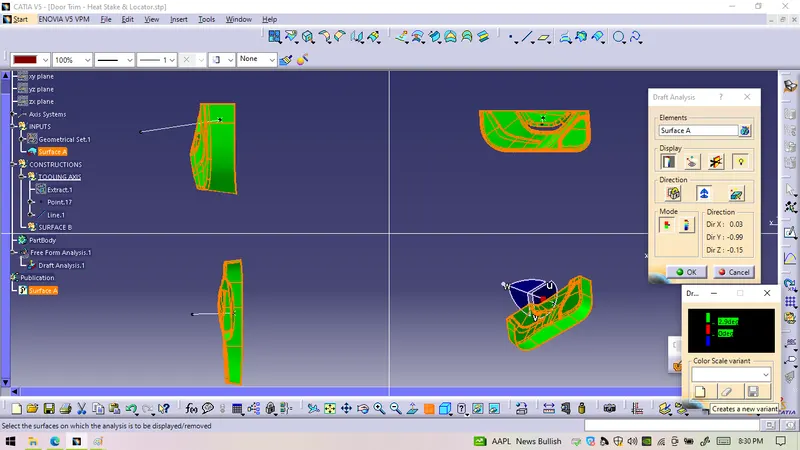

Draft Analysis -

Draft Analysis is performed for class A surface all areas of A surface are clearign class A.

Creation of Class B-

Thickness value not provided. Hence it is asumed to be 3 mm, as its door trim.

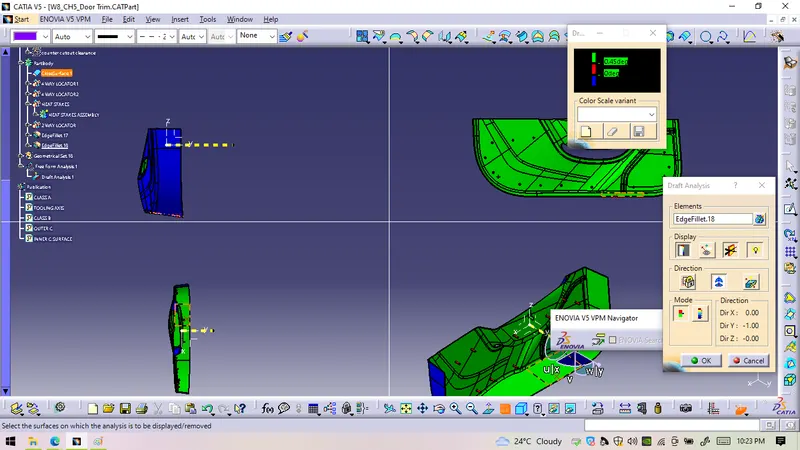

DRAFT Analysis of body-
