Week 9 - Project 1 - Door Trim Lower with Engineering Features
AIM:- To Create The Heat Stakes and Locators on Door Applique part.
LOCATORS:- Locators are used to arrest the Degrees of freedom of a component, there are many ways of creating locators based on the model, here for this model , I have created four way n two locators at corner position.
The Locators sketch is padded along Tooling axis sirection with thickness to obtain the locators.

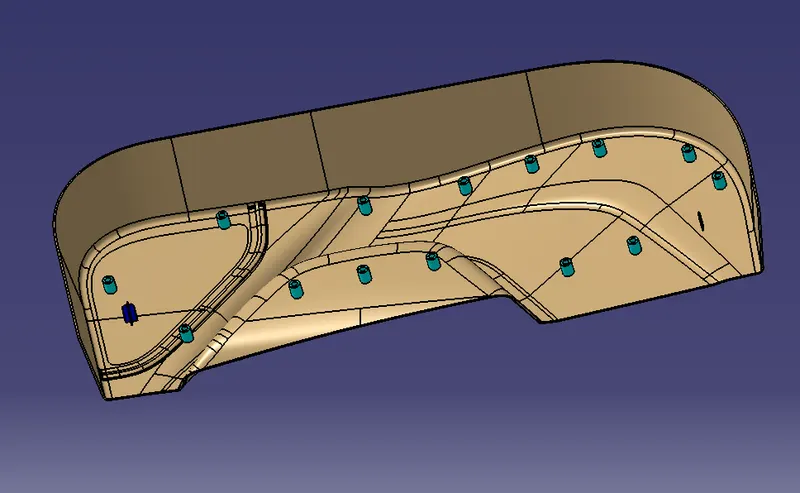

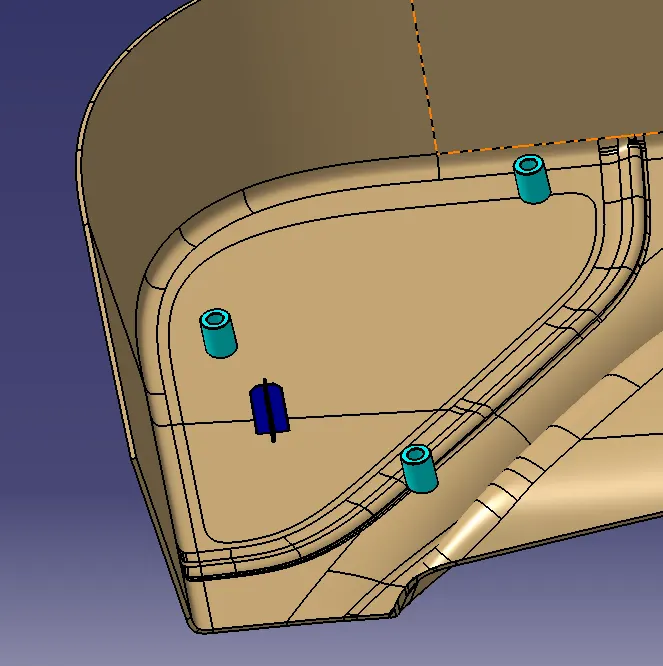

HEAT STAKES:- Heat stakes are use to rivet the plastic componnet to the environment that is the reference surface provided,It is riveted by melting the heat stakes such that the extra part of the heat stakes will be melted and acts as rivet.

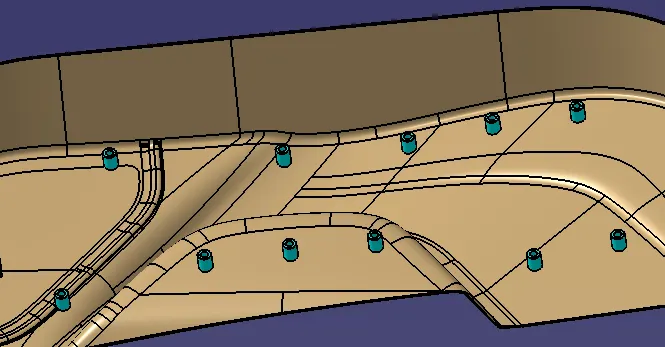

A single heat stake will be created by padding the sketch along with tooling axis and other heat stakes will be created using copy and paste special option along the points created.

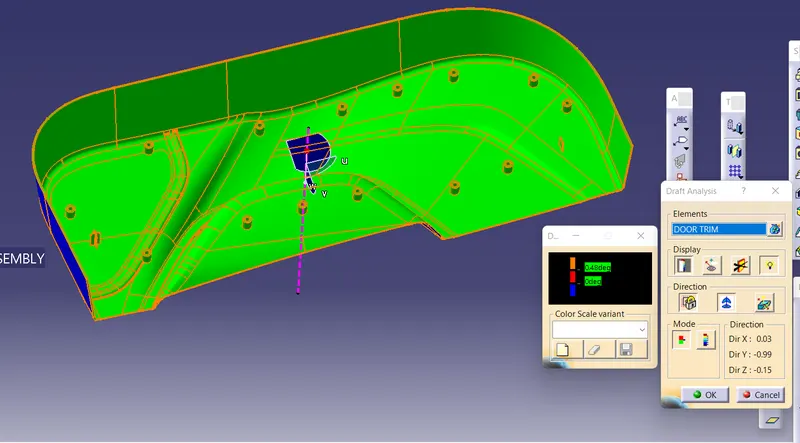

Draft analysis:- The Draft analyse technique is used to analyse whetherour part model created in CAD is manufacturable based on the drfat condition applied.Here the part should get easily removed from the mould.
It also let us know whether the mould is having a drfat angle and how much is the drfat angle from the tool direction.Here I have given `0.48 degree`to clear the draft.
As we can see in the picture all solid is green in color that means it is satisfying the Draft.

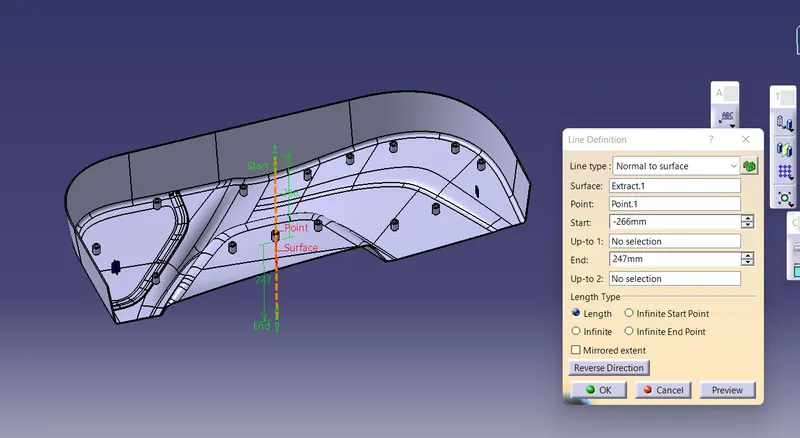

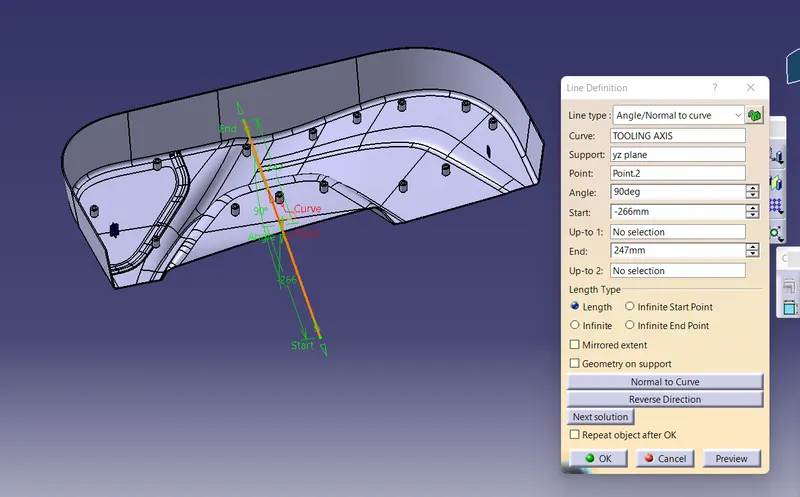

TOOLING AXIS:-It is a direction along which core & cavity or mould opens,it can be decided by analysing model visually.
Here, Ihave used Normal to surface method to create tooling axis.

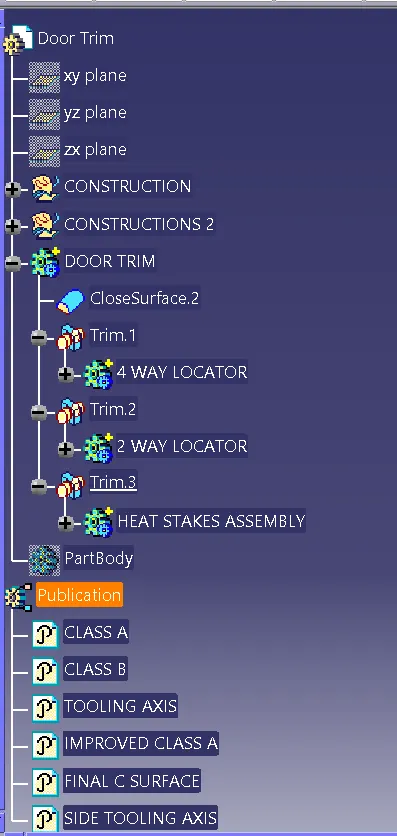

- ALL VIEWS AND FEATURE TREE ARE AS FOLLOW:-
- ISO VIEW:-
- ISO VIEW

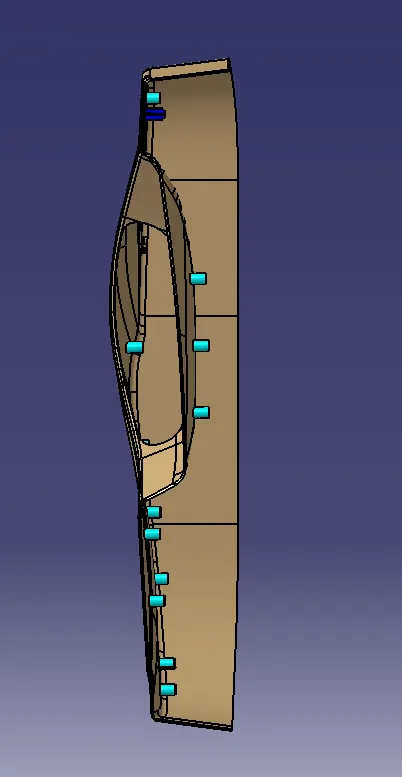

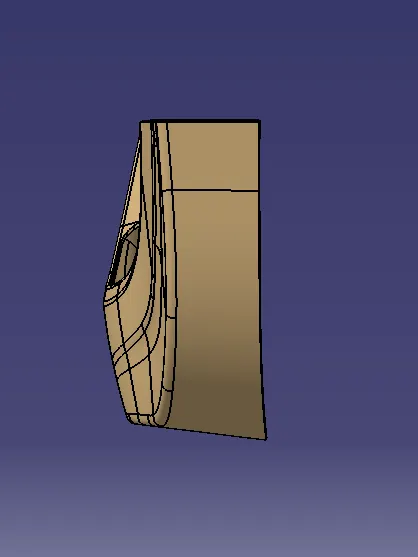

- SIDE VIEW

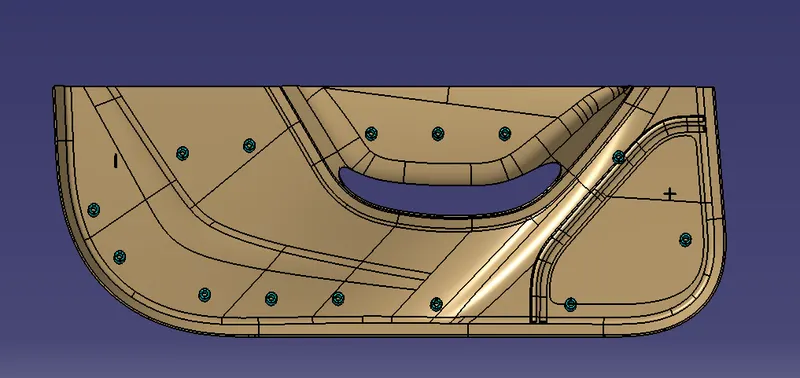

- TOP VIEW
