Week 9 - Project 1 - Door Trim Lower with Engineering Features

DOOR TRIM LOWER WITH ENGINEERING FEATURES

Aim:

To create the Door Trim component From the given Class A surface and perform Draft analysis and also create the Heat Stakes and Locators for the final closed component.

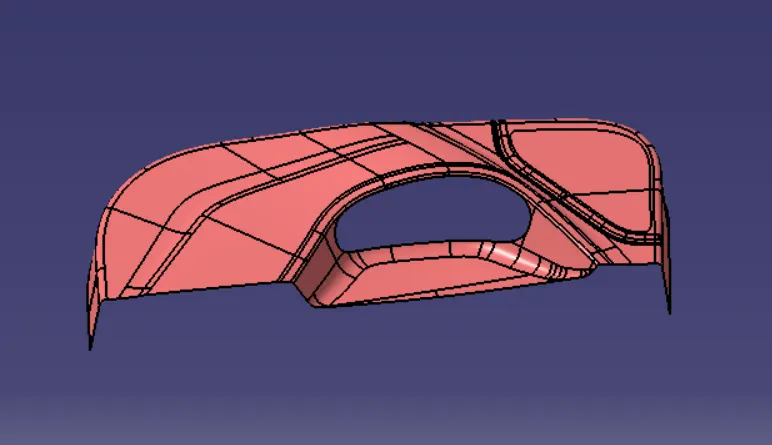

Given Class A

The whole class A surface is joined to avoid any gaps.

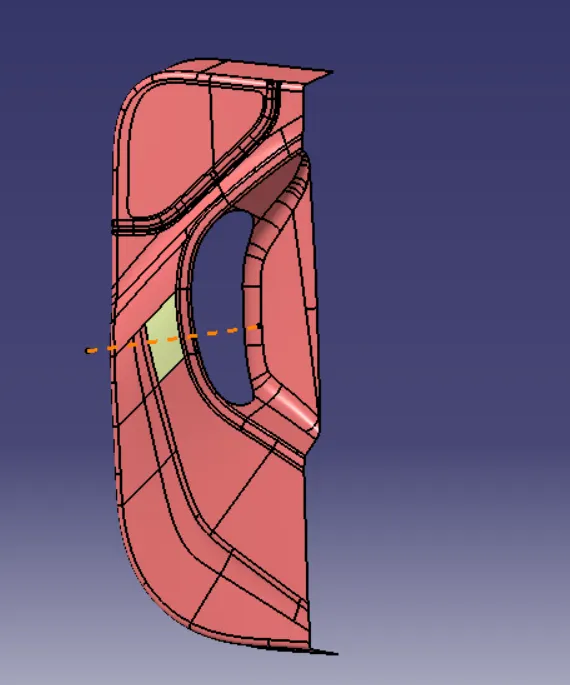

Creation Of Tooling Axis:

A tooling axis is created by extracting a surface from class A and a point is created on the extract and a line is created on the point direction.

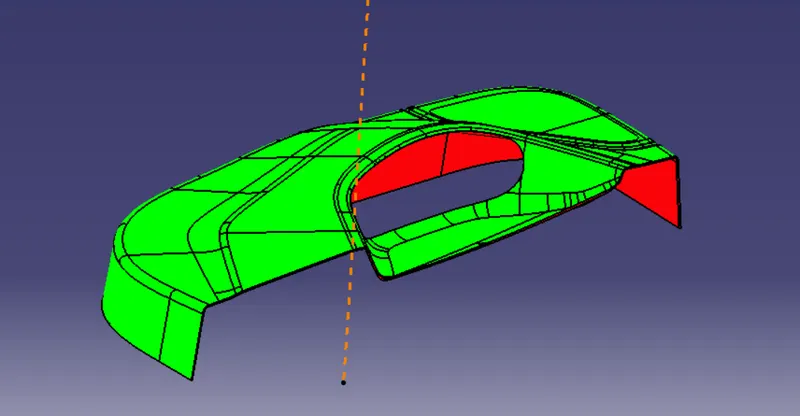

Draft Analysis On Class A:

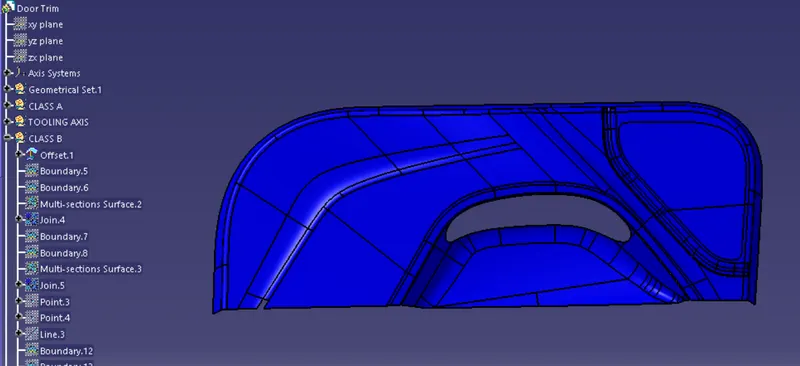

Creation Of Class B:

The given Class A is offsetted to 2.5 mm.

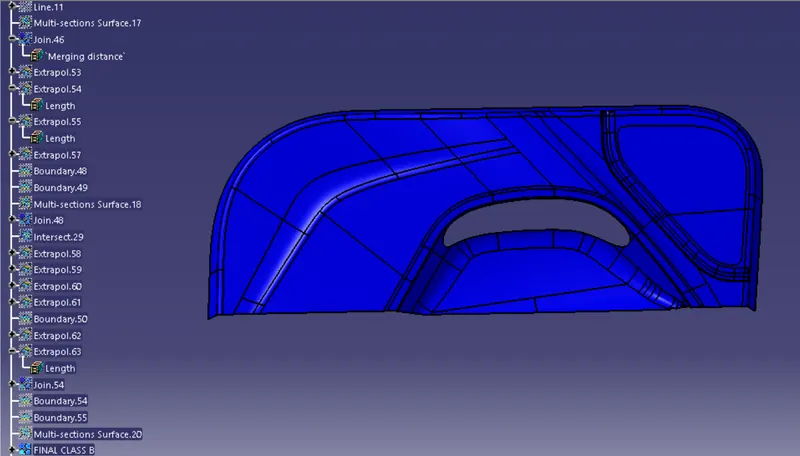

the offsetted surface has some patches.These patches need to be resolved by Multi section Surface,Fill,Extrapolation etc.

Creation Of Class C:

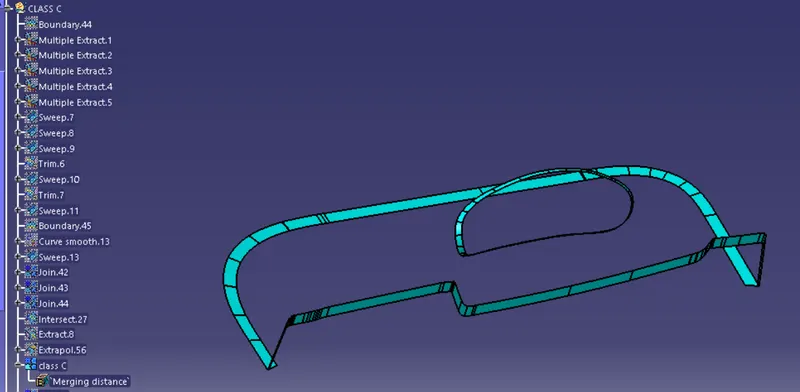

The class C surface created by taking the extract of boundary of class A and sweeping it.

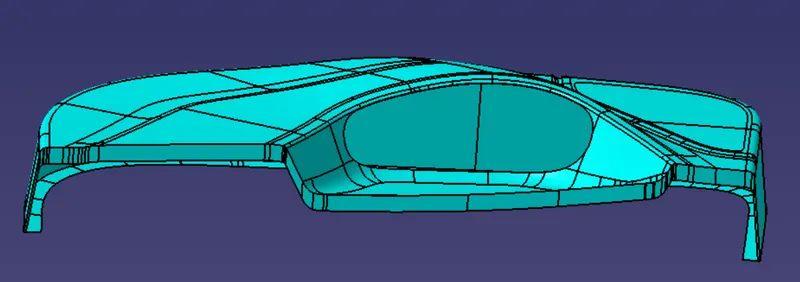

Join Of Class A +Class C:

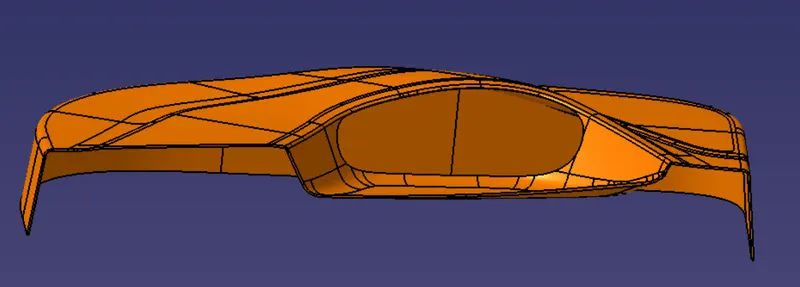

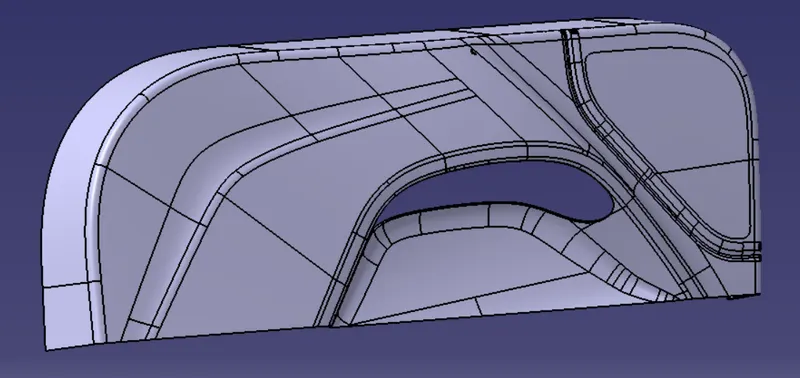

Final Body:

By trimming the Class AC with B the final body is created.

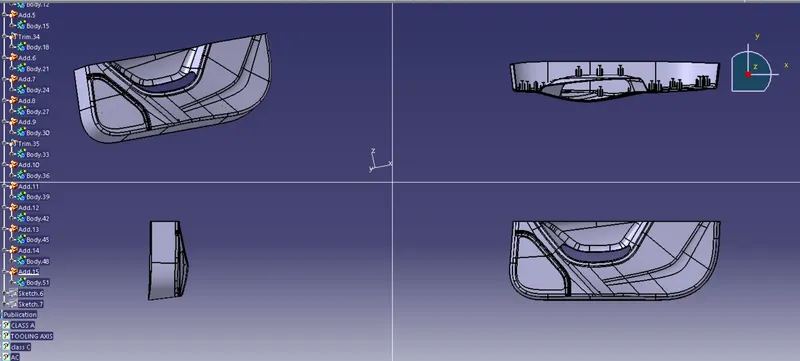

Final Solid Body:

Using Close surface in the part workbench the final solid body is created.

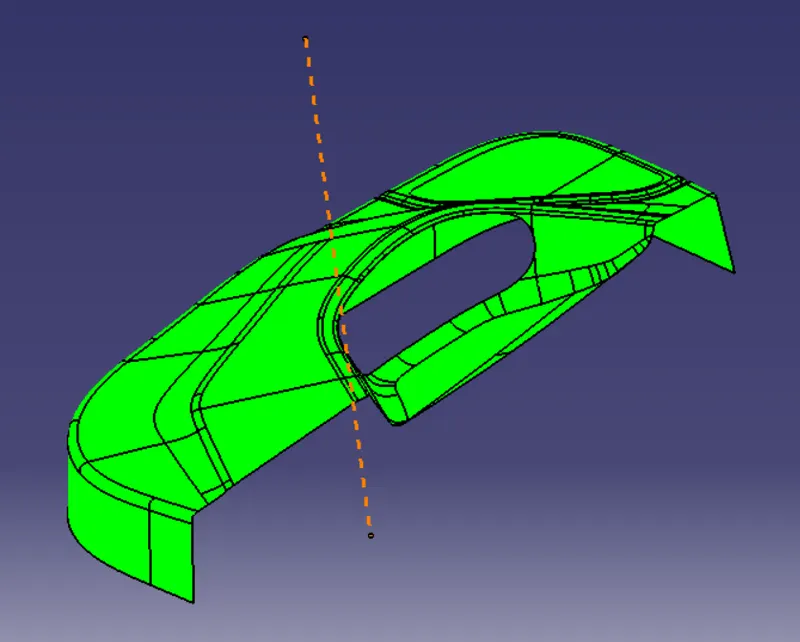

Draft Analysis On Final Plastic Component:

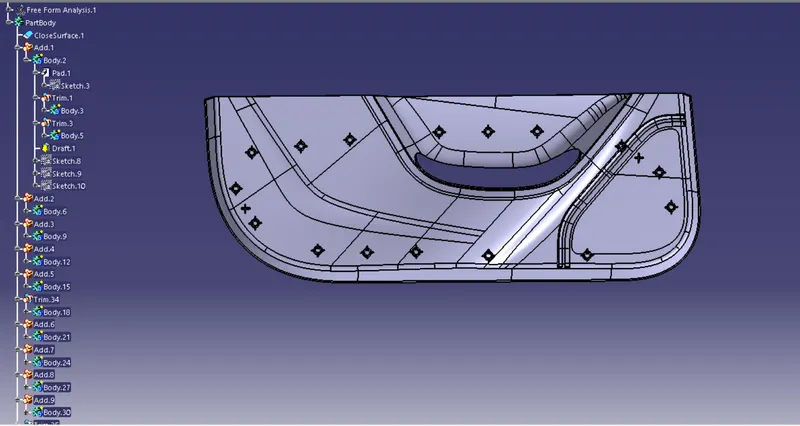

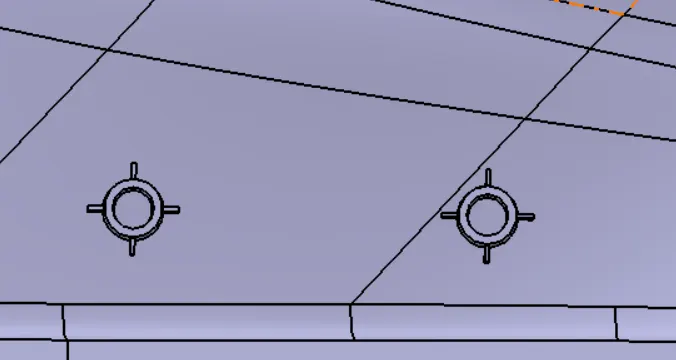

Creation Of Heat Stakes:

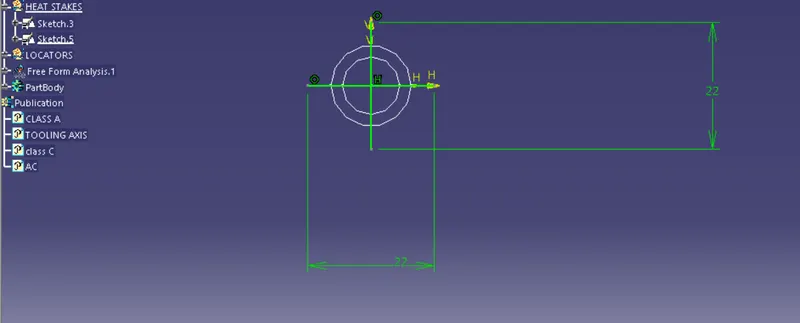

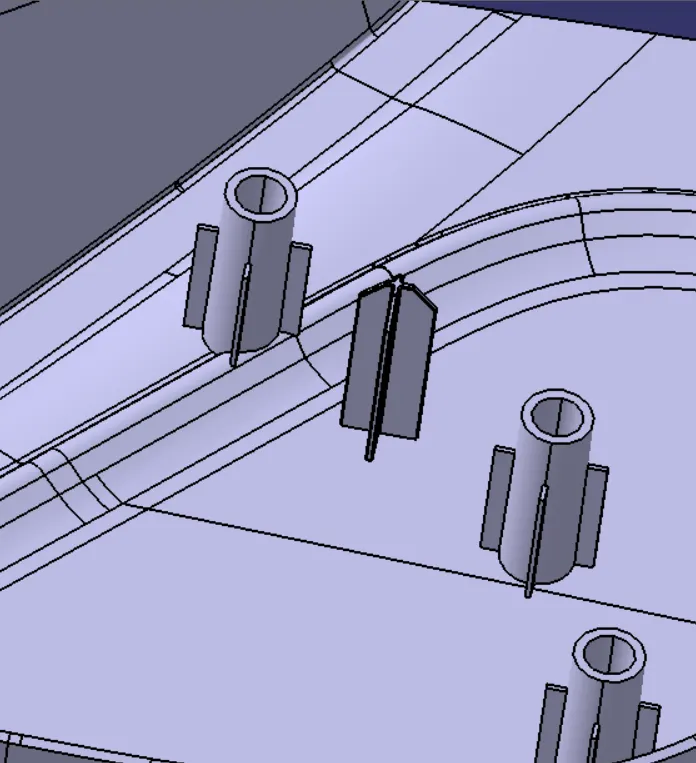

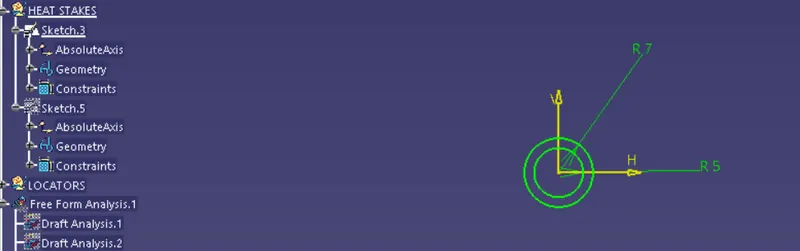

Sketches are created for the heat stakes(screw bosses and ribs) and Pad is used.

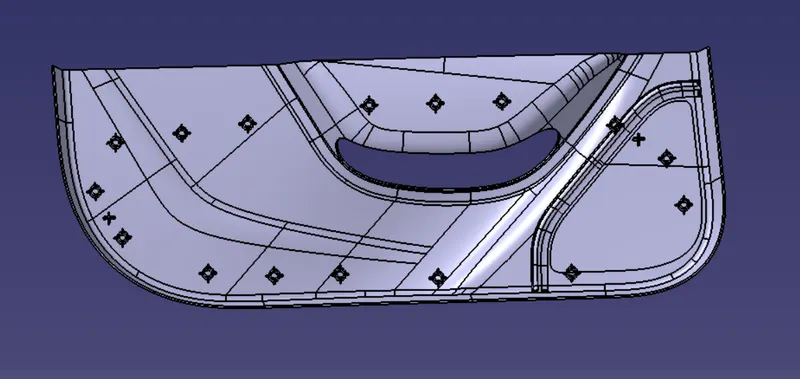

After pading the heat stakes are translated to the given points.

Creation Of Locators:

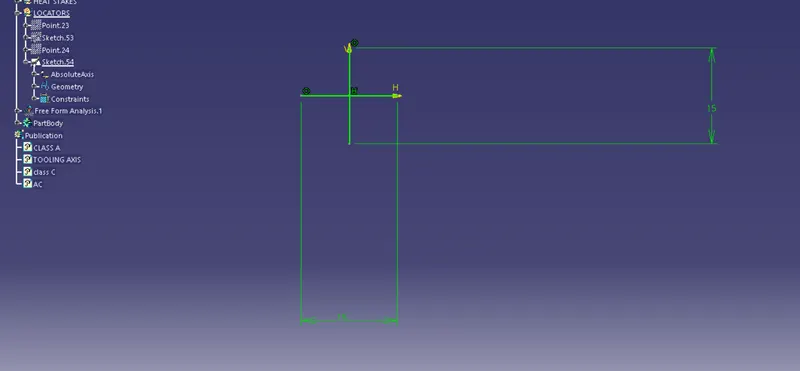

Sketches for 4way locators are created.

This sketch is paded for 2 mm more than the pad value for the Heat Stakes and chamfered.

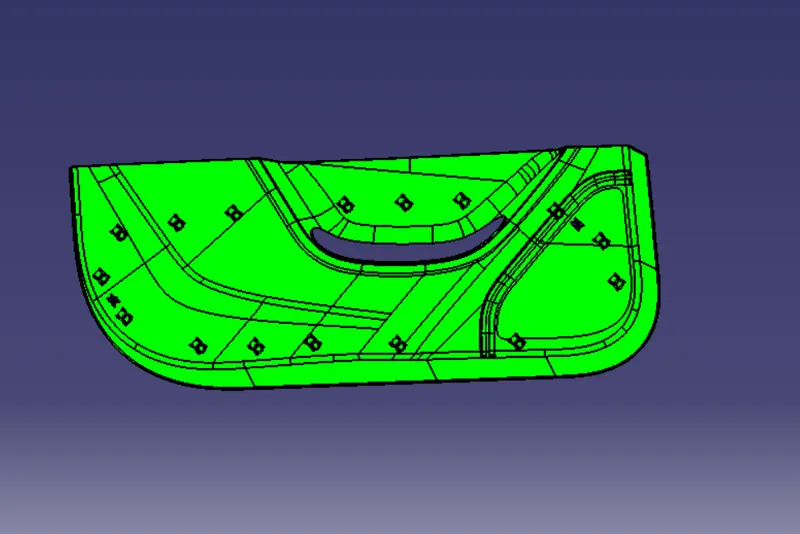

Draft analysis:

Conclusion:

The plastic component is created from the given class A and also the B side features are created.Draft Analysis are also Carried Out.

*************************************************************************************************************************************************
