Week 9 - Project 1 - Door Applique Design with Engineering Features

Door Applique Design with Engineering Features.

Aim- To create a door applique and door attachment from the given class A surfaces and to create engineering features to fit the component in the main surface.

Introduction-

Engineering features are the extensions on the plastic components available on the class B surface such as ribs, screw bosses, heat stakes, locaters and dog houses which help fix the plastic component to the main surface and to avoid plastic defects while manufacturing the component through mould process.

The features such as locators and heat stakes are to be assembled on the main component (B-surface).

Procedure-

Create the tooling axis for class A surface following the steps below

• Create a point in the middle of the component.
• Create a line perpendicular to the surface setting the created point as a base.

The obtained line is said to be the main tooling axis

Creation of class B surface.

• Extract the plane surface from the class A surface neglecting the fillet surfaces.
• Untrim the surfaces from the extracted surfaces to get the actual shape of the surfaces.
• The untrimmed surfaces should be intersecting with each other. If not intersecting extrapolated the surfaces.
• The thickness of the component is to be maintained at 2.5 mm.so offset the extrapolated surfaces setting 2.5 mm as the offset value.
• Trim the surfaces as per the shape of the class A surface.
• Create fillet for the component as per the class A surface .

Creation of Class C Surface.

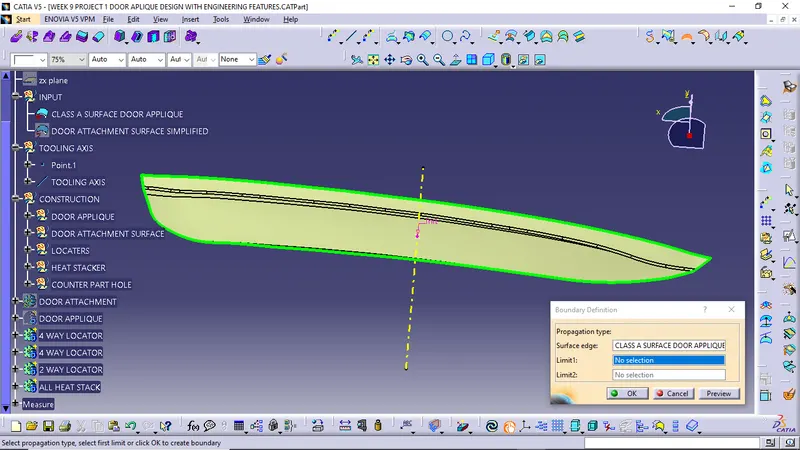

• Extract the edge lines for the class A surface using multiple extract option.
• Create edge surface from class A surface using sweep option.
• Set sweep mode to draft direction, select the extracted lines as guide curve and tooling axis as the draft direction. Set the sweep angle as 3 degree and the length of sweep more than 2.5 mm.
• Now trim the class B and C surfaces as required to create a thickness of the component.
• After trimming the class B and C surfaces join the class A surface together.
• Now create a solid component for a closed surface component using the closed surface feature in the part design.

Now the engineering features that is locators and heat stakes should be created for the component.

Creation of locators

• There are two types of locators. They are 4 way and 2-way locators.

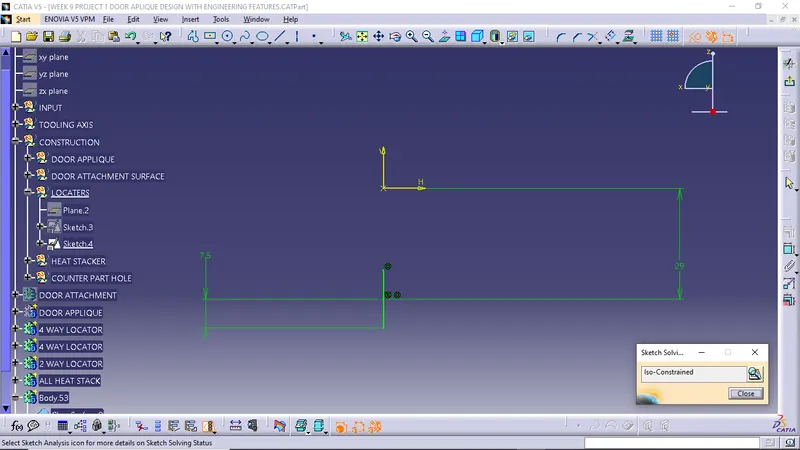

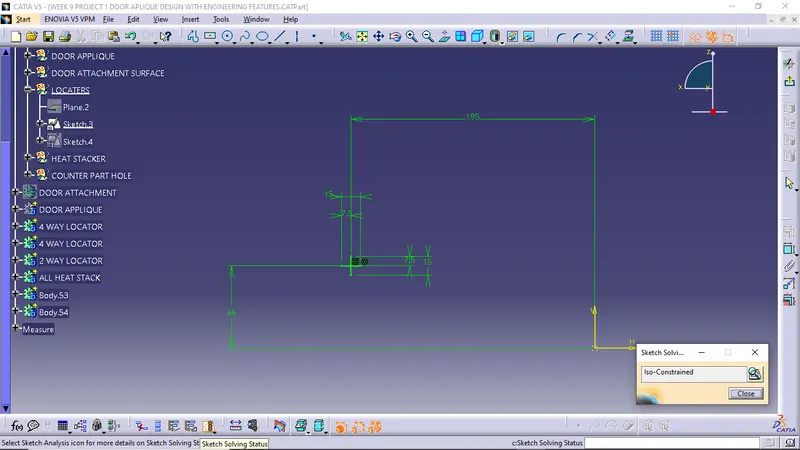

• Considering the 4-way locator create a sketch for the locator.
• Now create a new part body for the locator and pad the sketches such that it intersects through the surfaces of the door applique and the door attachment surface sample.
• Create a draft for the locator walls up to 0.5 degree.
• Create chamfer angle for the edges of the locator as 45 degree and length up to 3mm. Create fillets for the edges of the component up to 0.25 mm.
• There are two locators fixed for the component.
• Create a two-way locator as done for the above 4- way locator except the sketches is to be created.
• Draft the created cylinder up to 0.5 degree and translate 2 more cylinders for the remaining 2 locators as done for placing the locators.
• The gap between the locator and the opening should be around 0.1 mm.

Creation of heat stakes

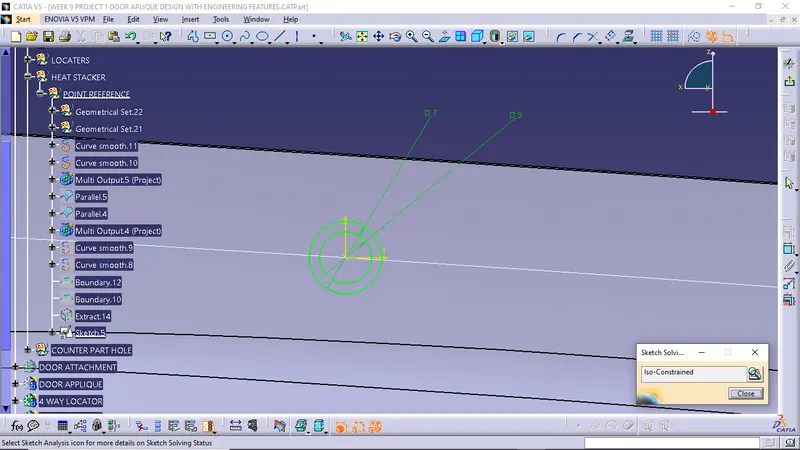

• Create a new sketch for the heat stake.
• Create a new part body and pad the sketch as done for the locators.
• Similarly, 12 more features are to be created on the door applique.
• Create an offset for the boundary lines which are created in C surface creation around 5 mm on the component.

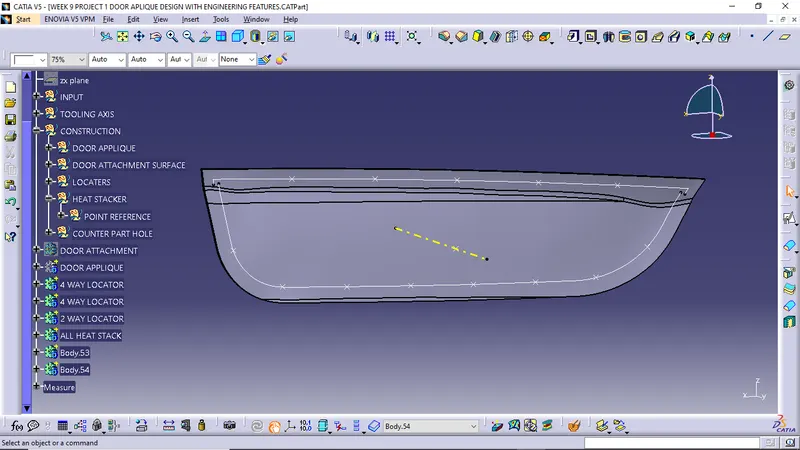

• Now create 12 points on the offset lines maintaining the distance around 50 mm from each other.
• Translate the heat stakes as done for the locator taking the created points as references.
• Now create the openings for the heat stakes on the door attachment surface sample as done for the locators maintaining the gap of 0.5mm between the heat stakes and the openings.

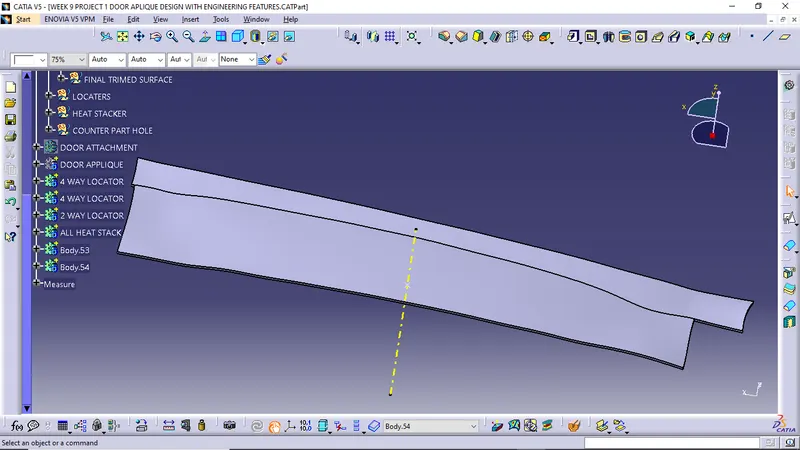

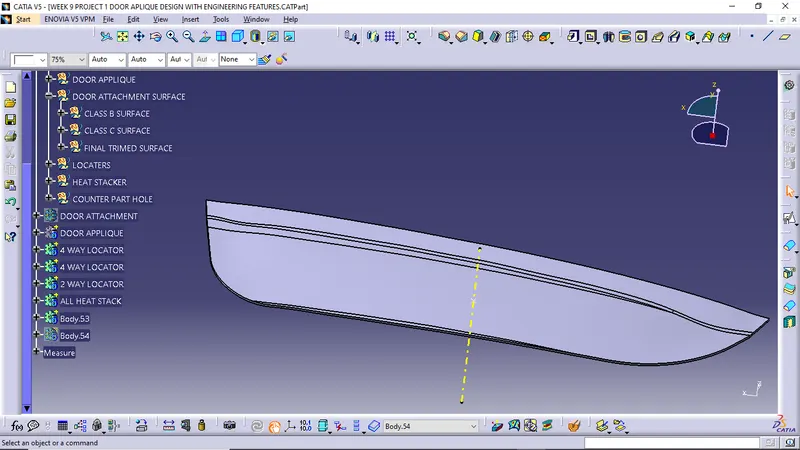

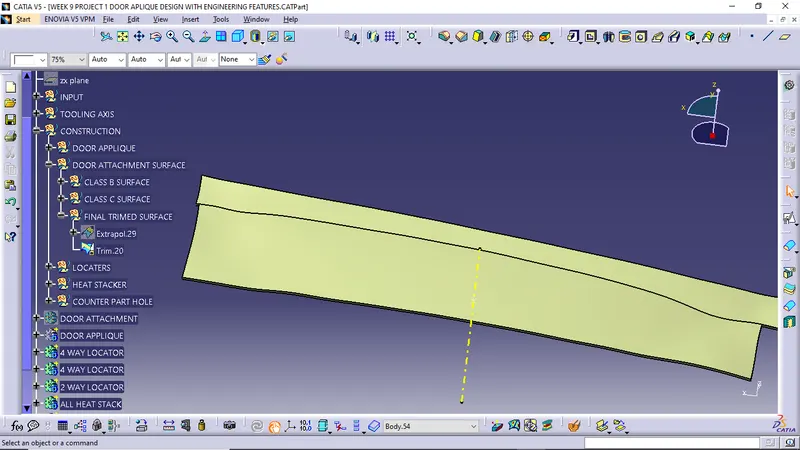

Door applique part after joining its class A, B and C surfaces.

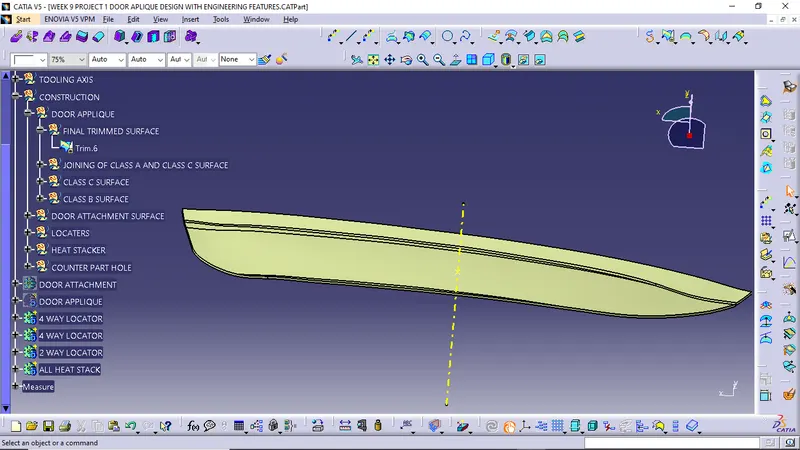

Door attachment part after joining its class A, B and C surfaces.

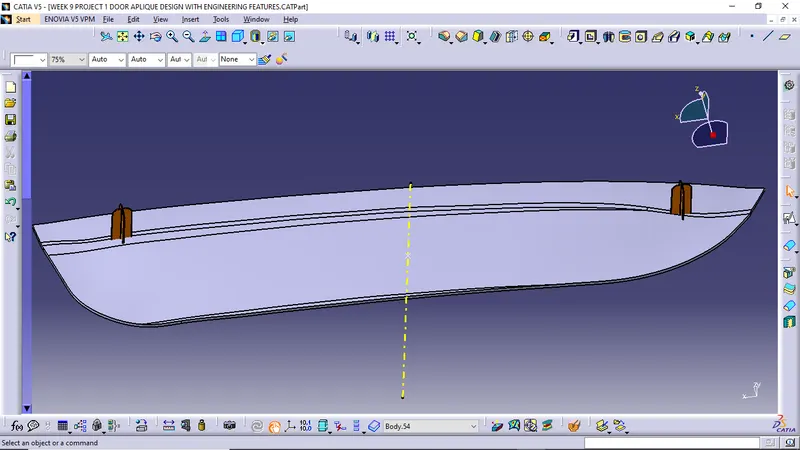

4-Way locators

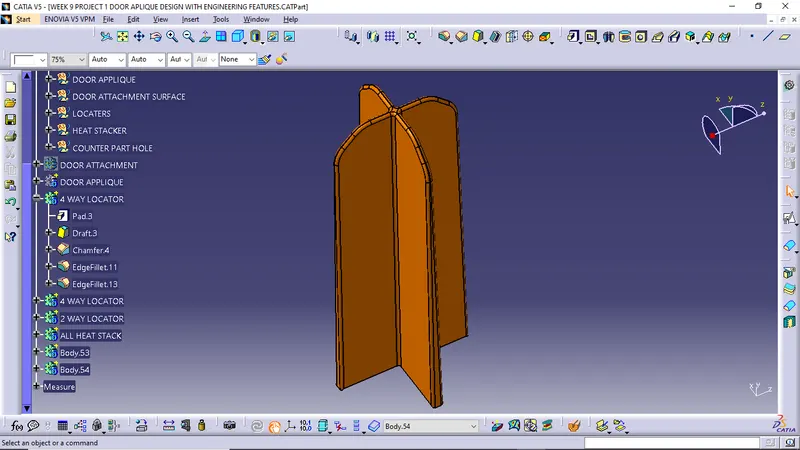

4-Way locators after the faces are drafted with 0.5 degrees and chamfered 3 mm*45 degree and edge filleted with 0.25 mm.

Now translated this

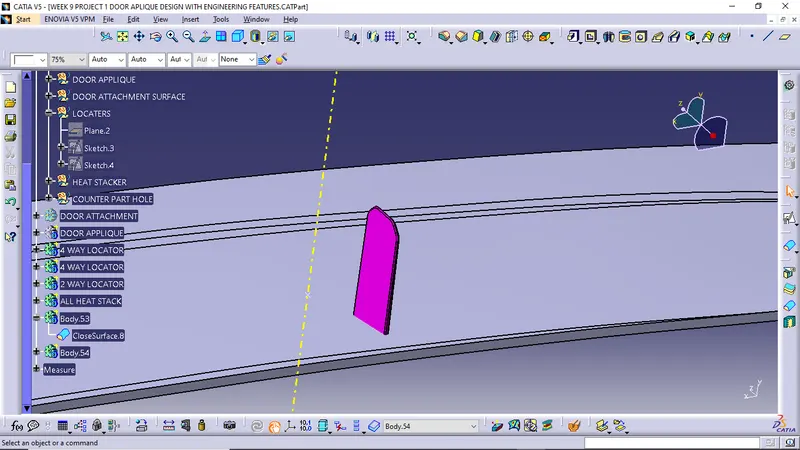

2-Way locators

Heat stakes creation

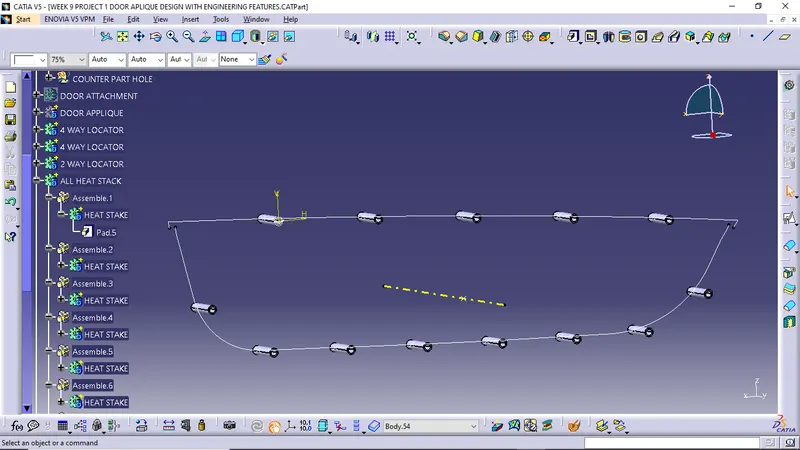

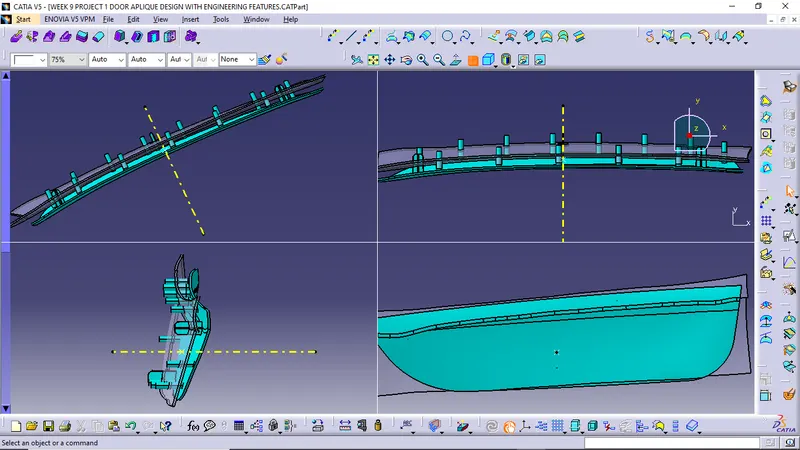

Create and Translated to each and every point

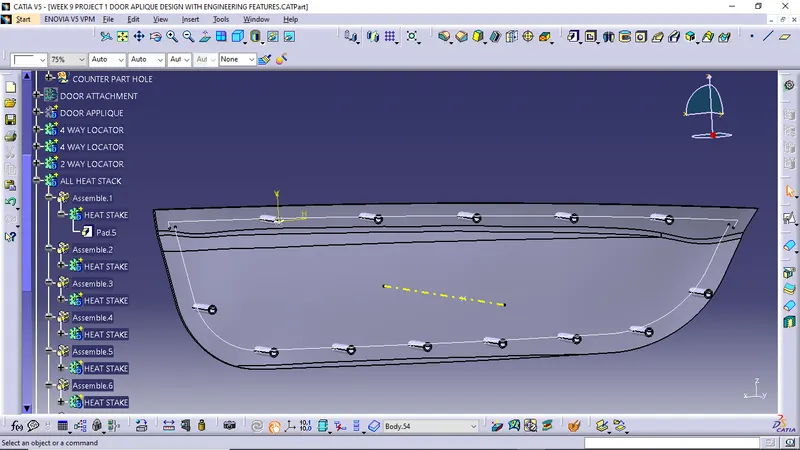

Union trimmed by removing the faces we don’t need.

Door attachment

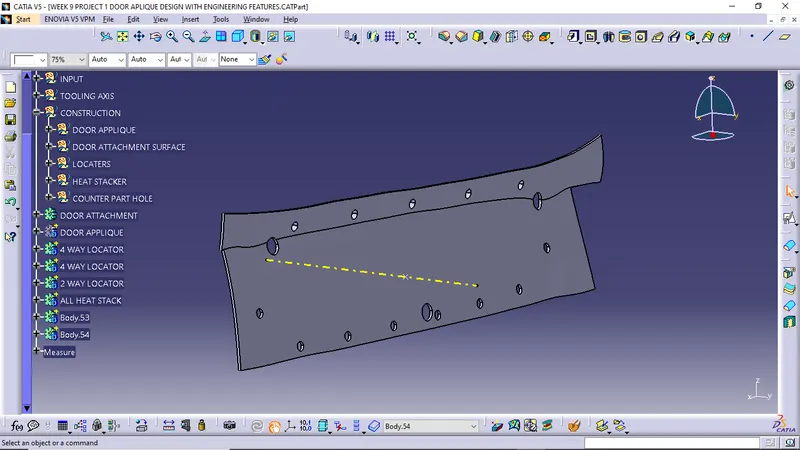

The holes have been created from the above reference points.

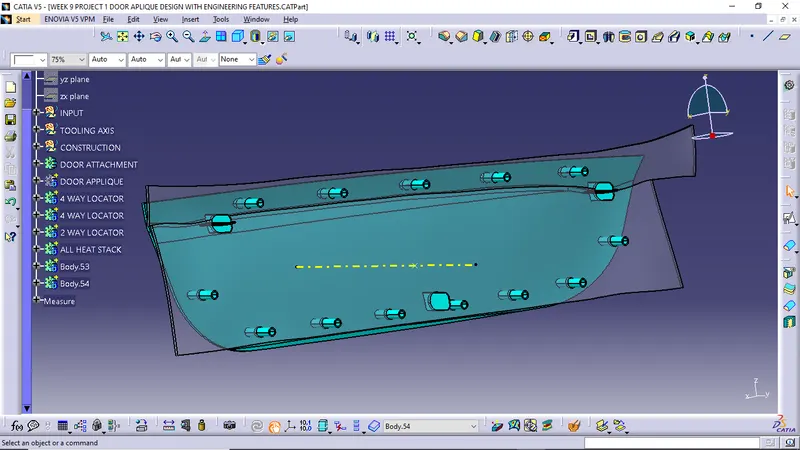

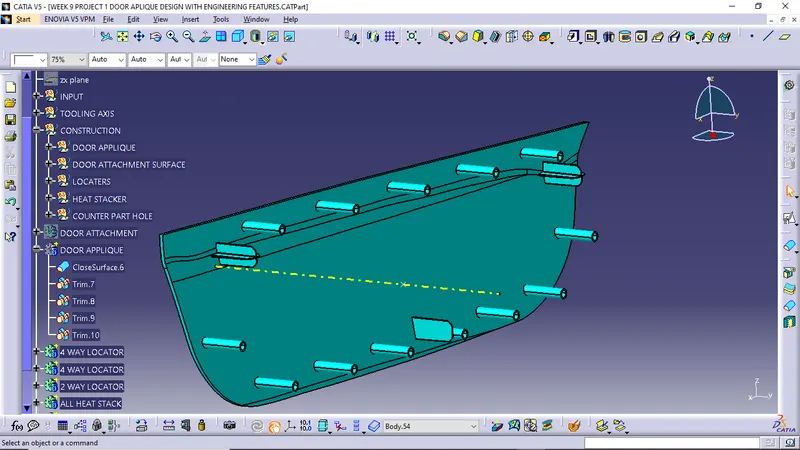

Final part-

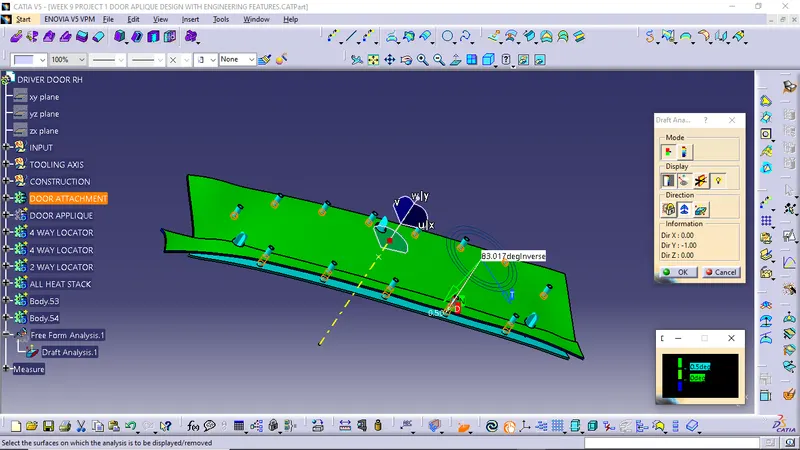

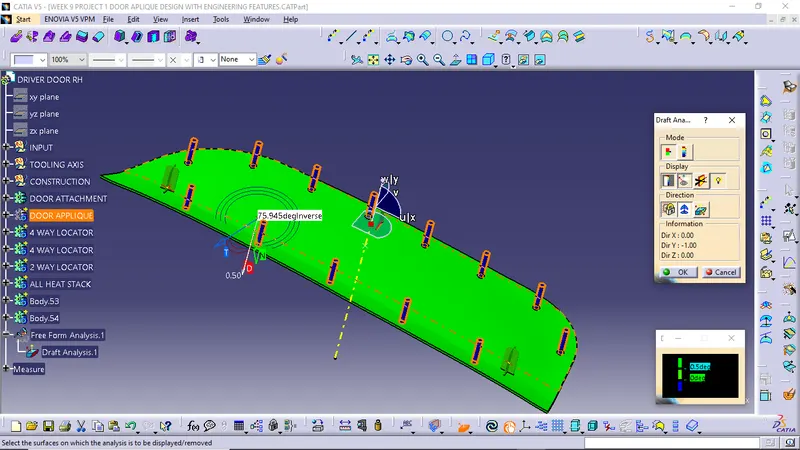

Draft analysis

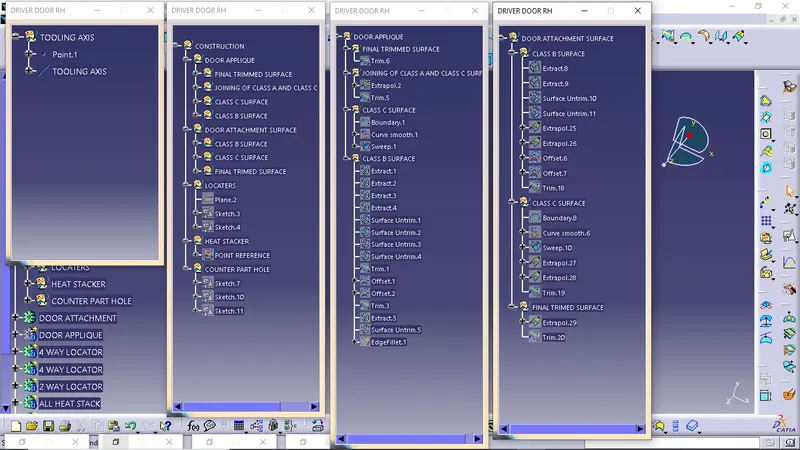

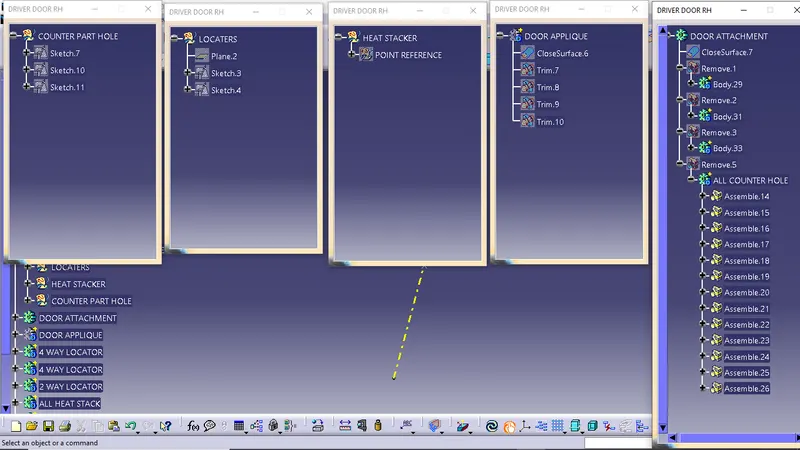

Design tree structure
