Challenge 5 : Concept Modeling of Car Bumper

Concept modelling of front and back bumper of car ABARTH 500

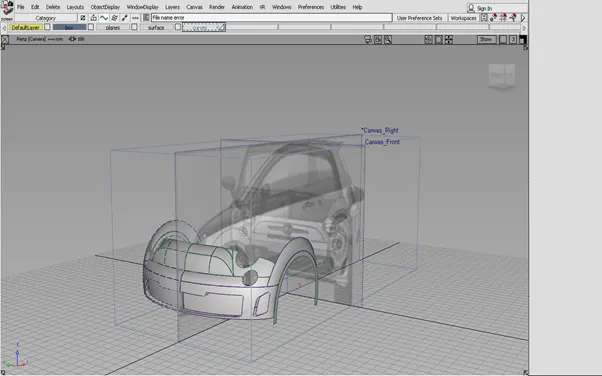

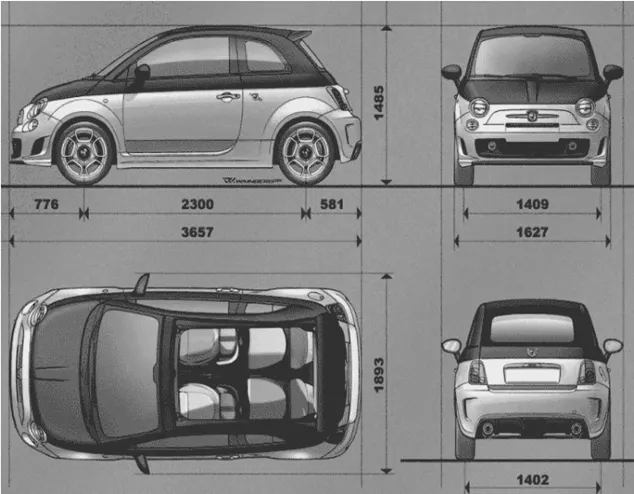

Objective: - My objective is to use the 2D images of the car and to make the 3d surface model of the car bumper.

Introduction: - Auto desk ALIAS is a CAID software which helps in creating the Automotive models in form of surfaces where engineers and designer work together to develop a conceptual model with the help of sketches for ideation and transfer it to software for rendering and visualization which is very essential for the product development cycle.

We are going to work on conceptual modelling of modelling of front and rear bumper of ABARTH 500.

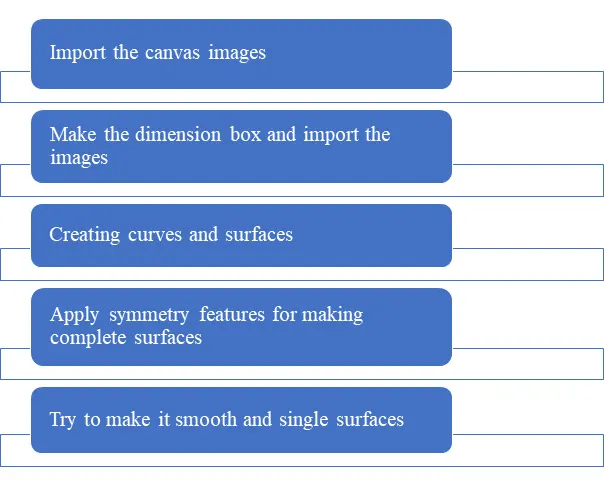

Methodology: -

Work Process: -

Following features are used

1.CV curves

2.Blends

3.Align

4.Attach/Detach

5.Trim

6.Project

7.Duplicate

8.Circle

9.Extend

10.Square

11.Skin

12.Rail/Bi-Rail/M-Rail

13.Free-form blend

14.Surface fillet

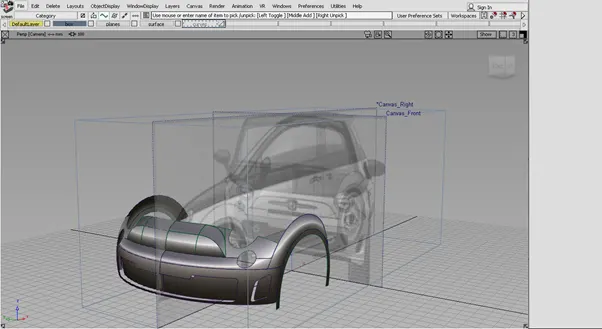

Now first we start making the base surface

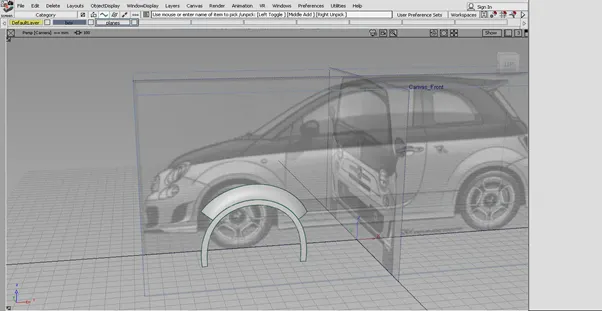

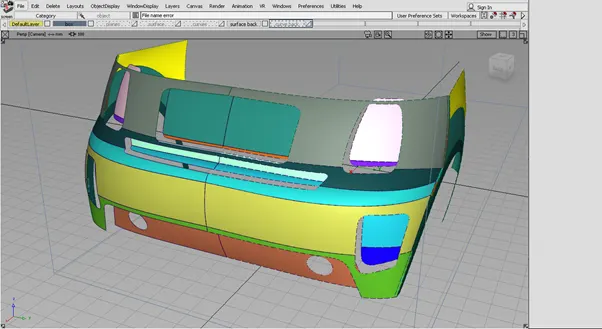

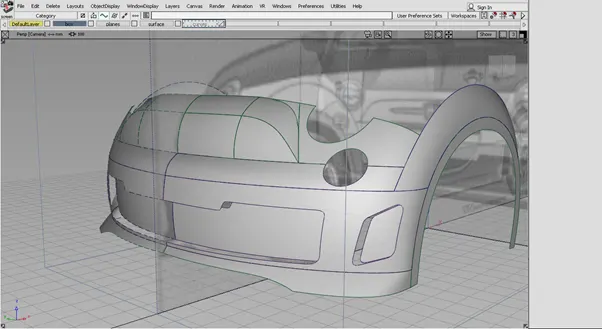

Now that this part is over, we will make the surface for that we can use various features like square skin etc.

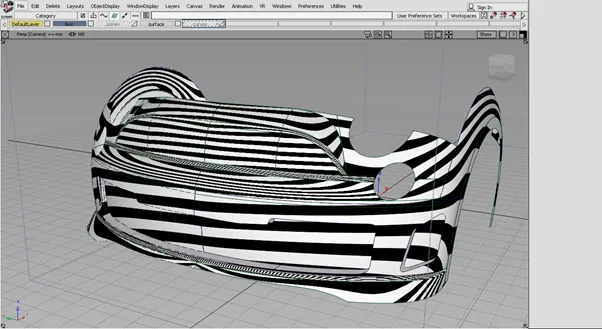

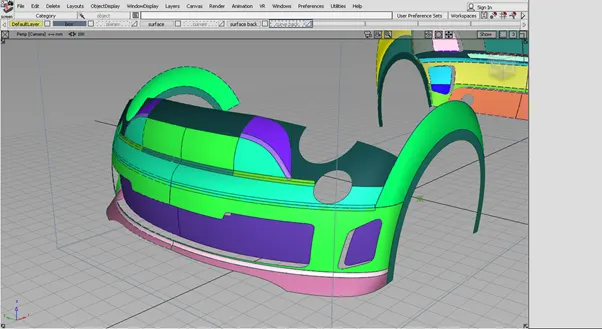

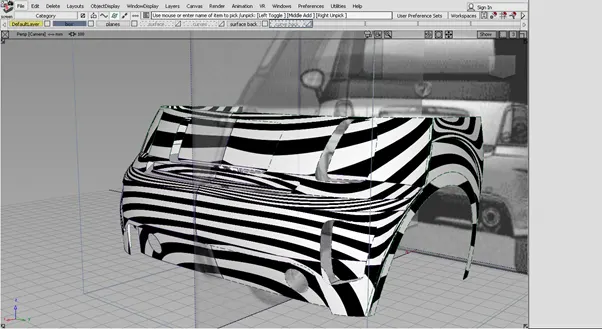

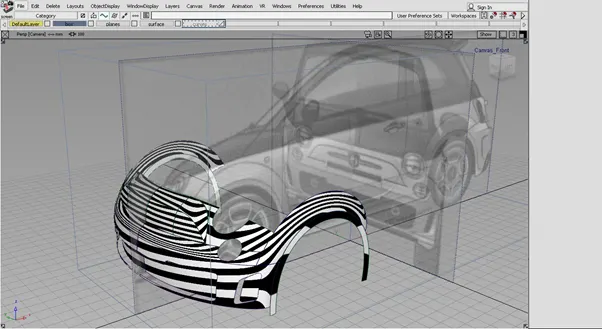

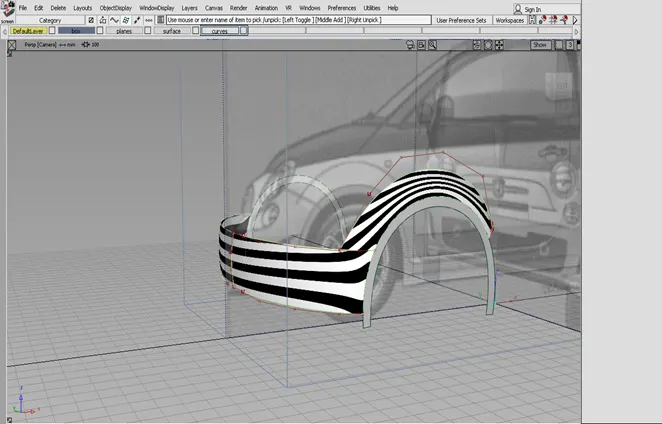

There are various features with ALIAS provides various dynamic shades for different understanding of the flow of surfaces and reflection on the surfaces.

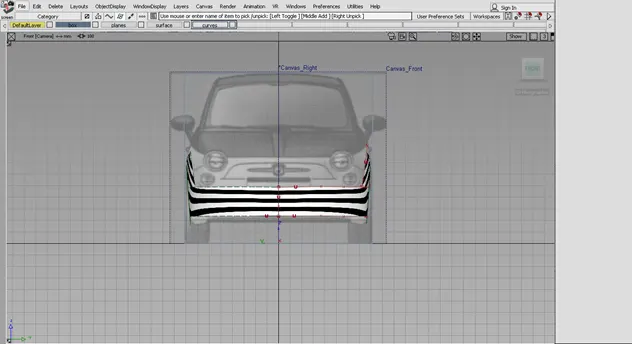

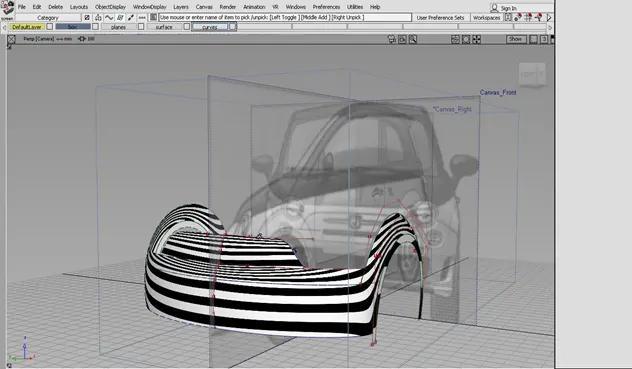

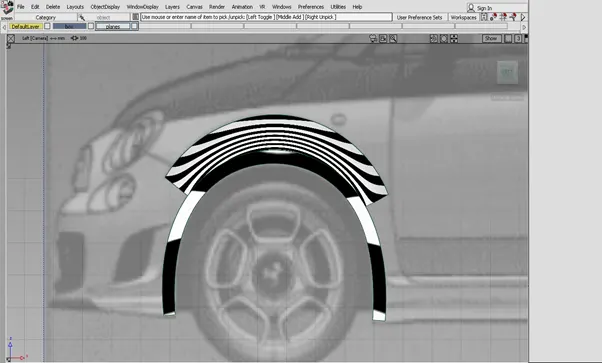

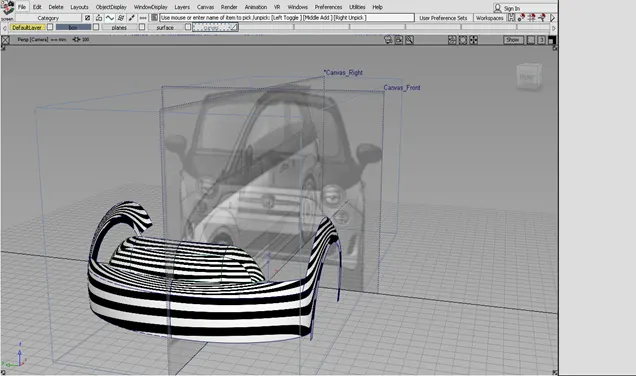

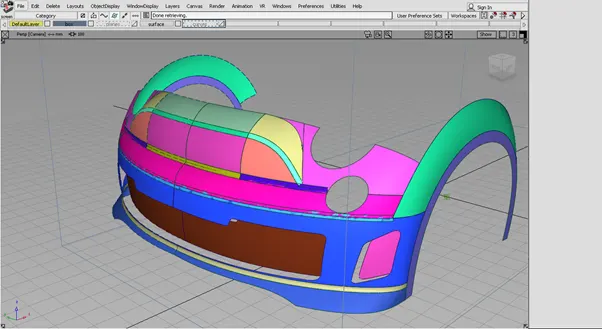

After that we will follow further process according to the images.

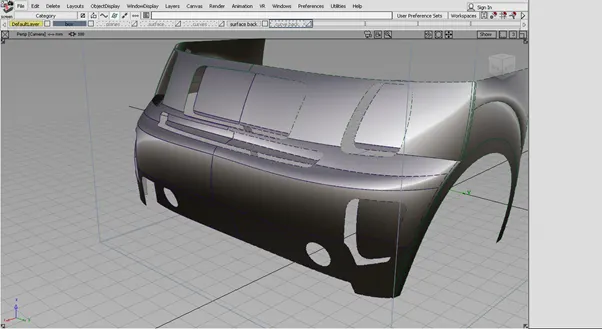

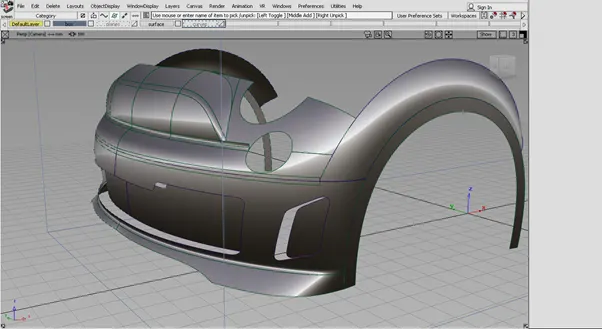

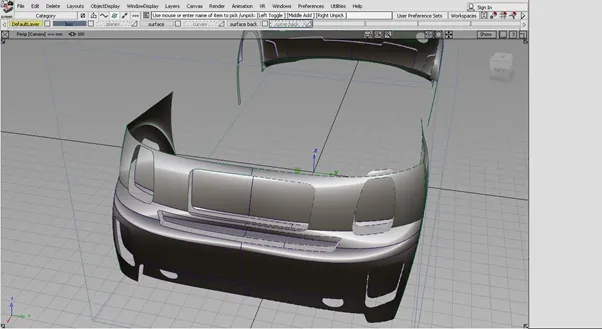

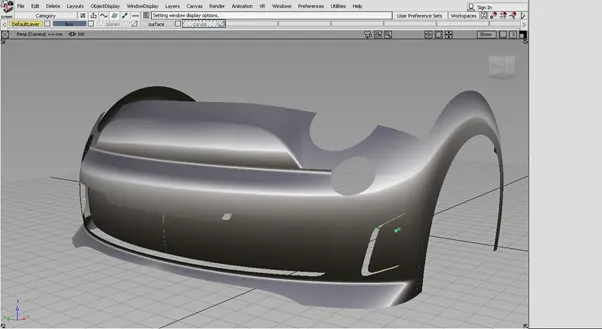

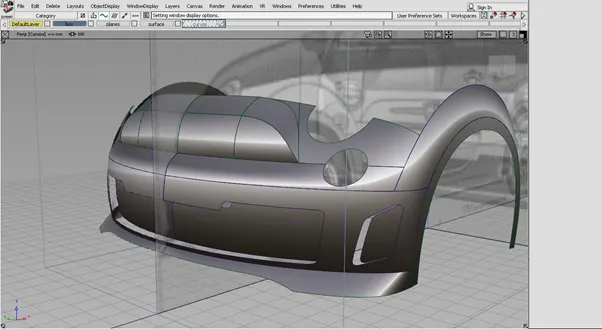

After using the surface fillet image looks like as following

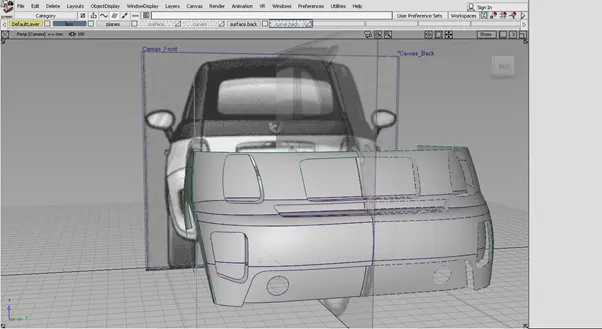

After making front bumper we have made back bumper

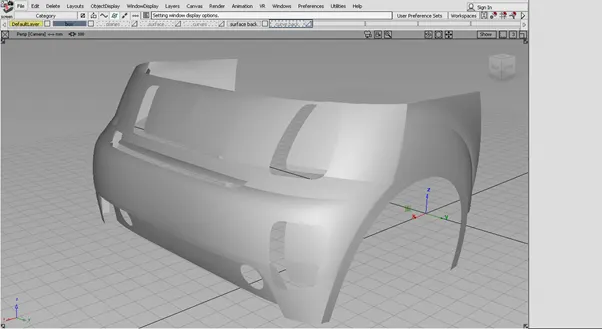

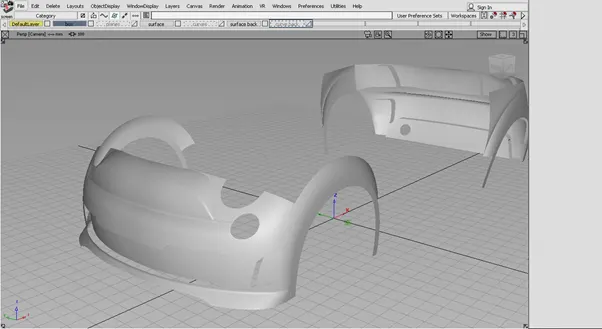

Front with back bumper

Conclusion: -

After performing this task, I have increased visualization capability and saw how by using align and extend commands we can get good results.
