Attachment Feature Creation

AIM:-

To create 2 way and 4 way locaters and heat stakes from the part provided.

Heat Stake:-

Heat Staking is a pulsed-heat process to join two or more parts out of which one at least is made of plastic. The process is to deform the plastic material using heat and force at a set process time. The bond is made by partially de-forming the plastic part in order to fix the other.

Heat Staking makes it easy to bond metal to plastic and is commonly used in high volume/low cost applications such as automotive, IT and consumer appliances.

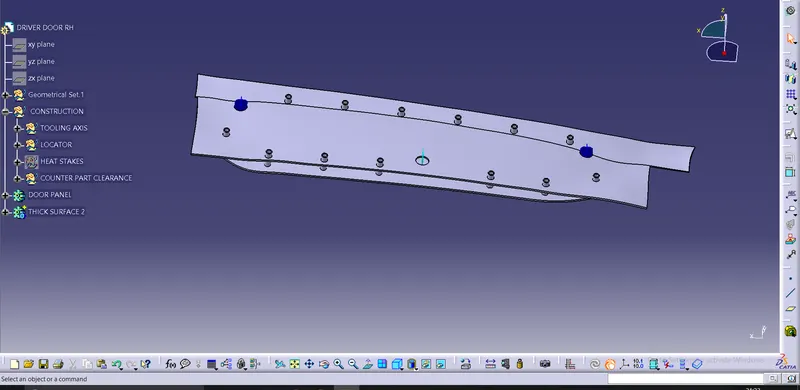

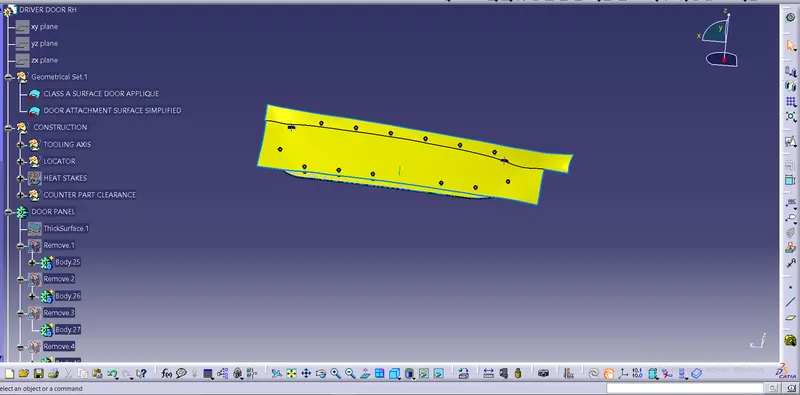

Images:-
