Week 9-Creation of 1D Connectors Challenge
AIM :
For this challenge, We have to mesh the given geometry. Provided below are the quality parameters that you have to follow.
Target Element size - 5 Units
|
S.N |
Quality Criteria |
Value |
|
1 |
Aspect Ratio |
5 |
|
2 |
Skewness |
45 |
|
3 |
Warping |
15 |
|
4 |
Taper |
0.5 |
|
5 |
Min. Length |
2 Units |
|
6 |
Max. Length |
8 Units |
|
7 |
Min angle Quad |
45 |
|
8 |
Max angle Quad |
135 |
|
9 |
Min angle Tria |
30 |
|
10 |
Max angle Tria |
110 |
|
10 |
Tria % |
15 |
PROCEDURE :

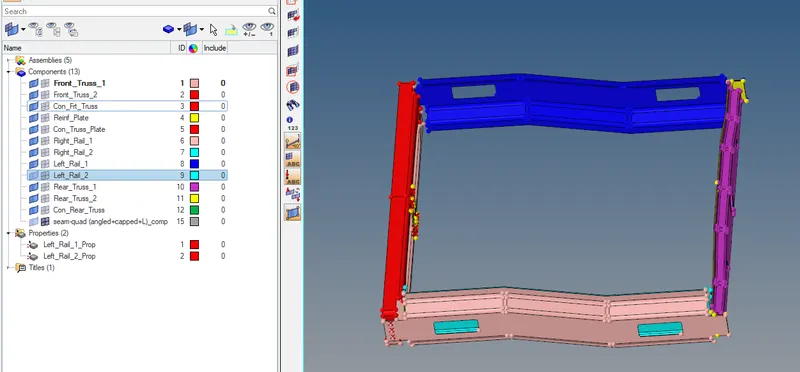

- Import the model.
- Create connector and Attach the various parts of the given model

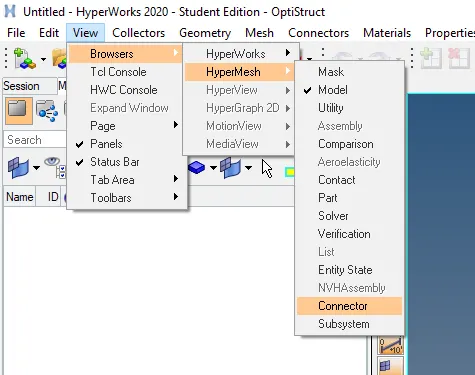

- We have to make visible the connector option in that panel, ref below fig.
- As we see below there are mutliply operations has to be done on each specified area as mentioned.

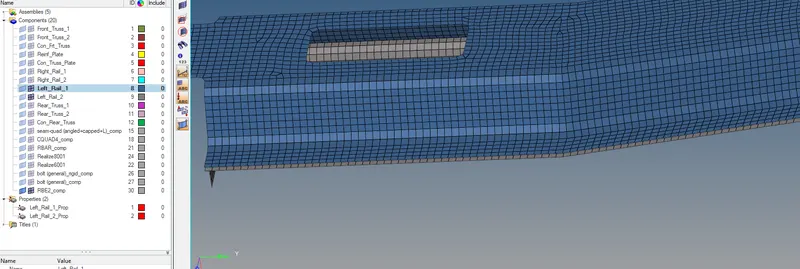

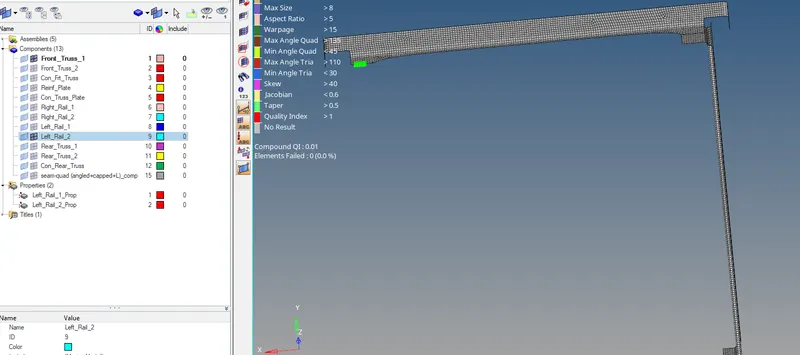

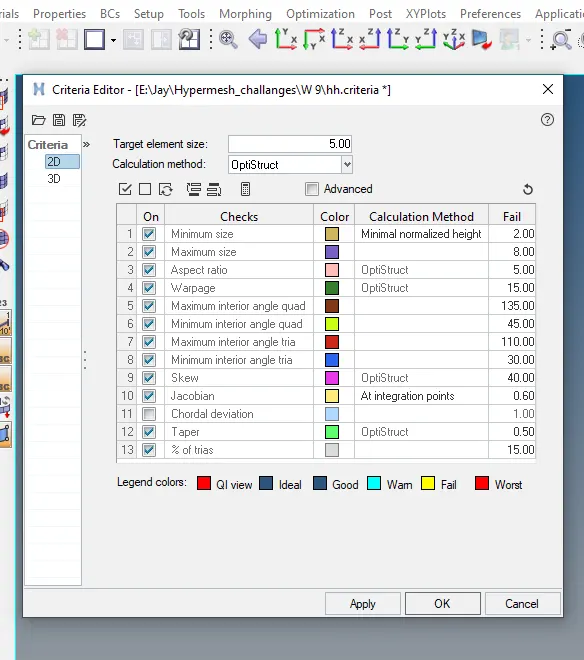

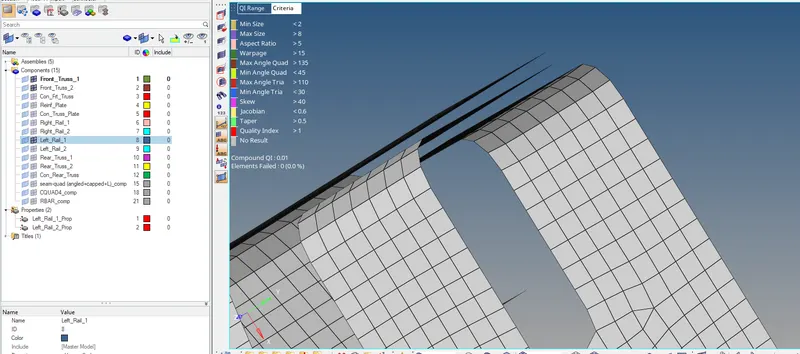

-Mesh the given comp using *F12--Surf (displayed) only with Quad--Mesh. While doing certain task we can remesh the improper areas. Set and save the criteria file before meshing as per mentioned above.
- For each condition we have turn-on that particular comps surf-on, remaing will be turned off.
- we can always see in the components panel, if any new connector is made, it wil be visible properly with its type.

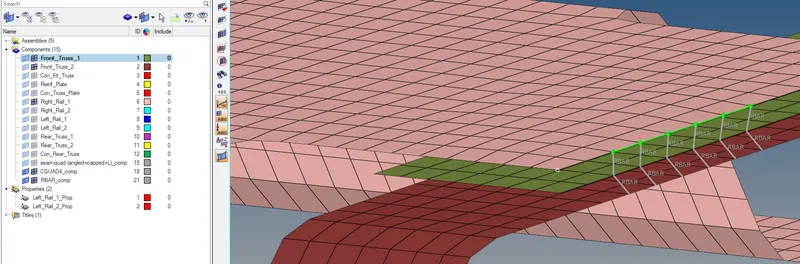

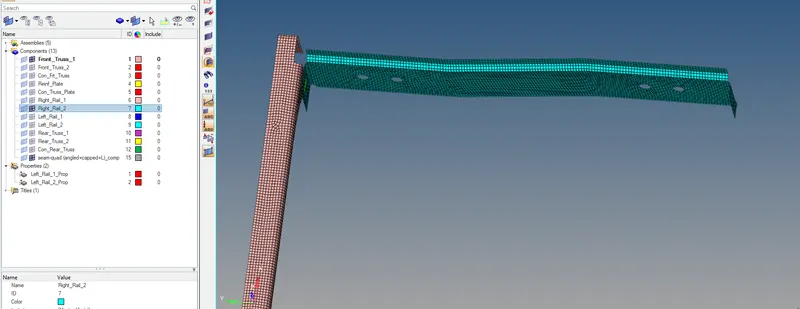

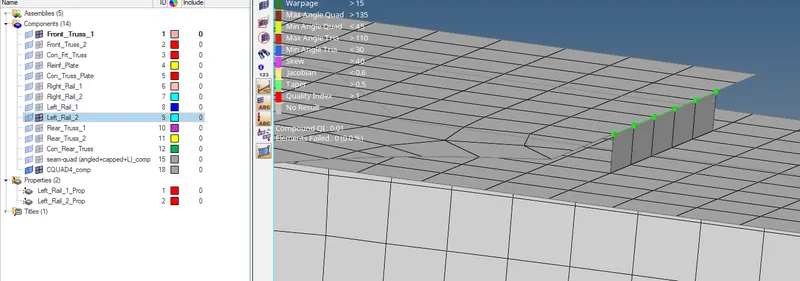

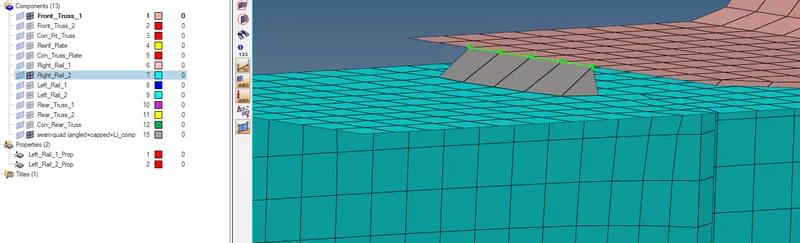

1. Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)
*1D/2D--Connectors--Seam-Quad(angled+capped+L)--create
2. Left_Rail_2 & Front_truss_1:- Quad elements
*1D/2D--Connectors--Seam-Quads--create

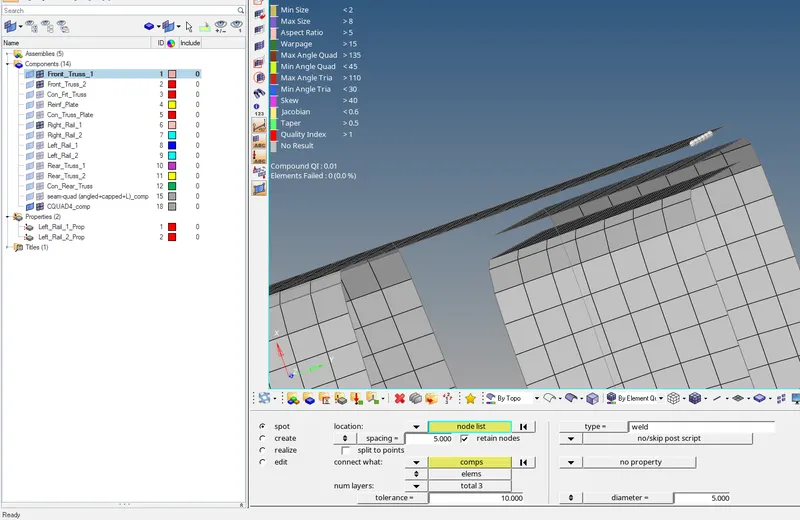

3. Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weld with 2 Layers and 5 mm Diameter
*1D/2D--Connectors--Spot--weld--create

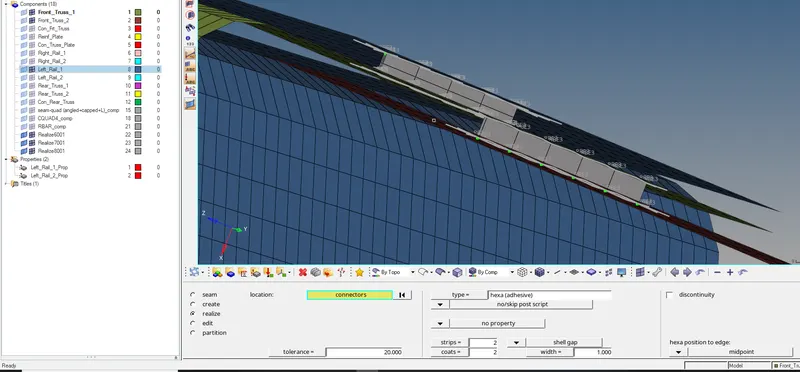

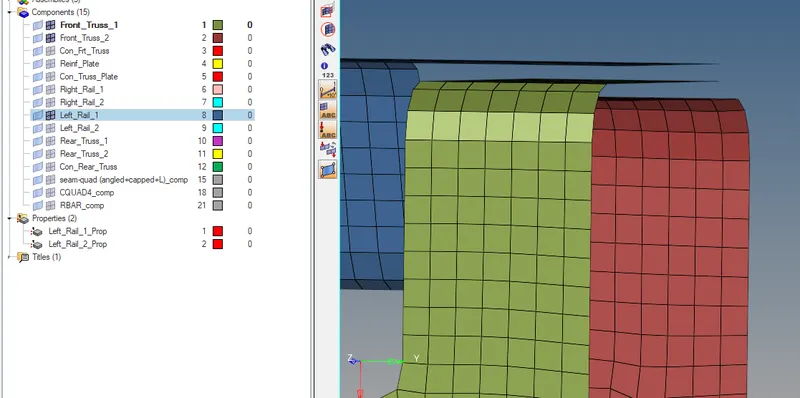

4. Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)
*1D/2D--Connectors--Seam-hexa(adhesive)--create - Give some width

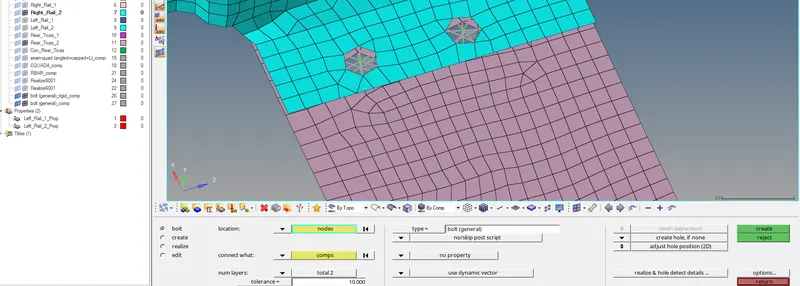

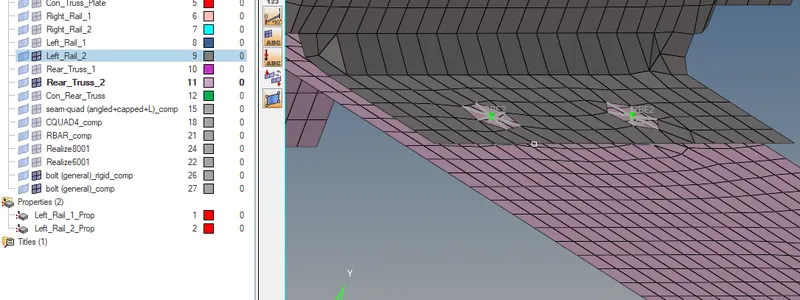

5. Rear_truss_2 & Right_Rail_2:- Bolt Connector
*1D/2D--Connectors--Bolt--(Create hole, if none)--create

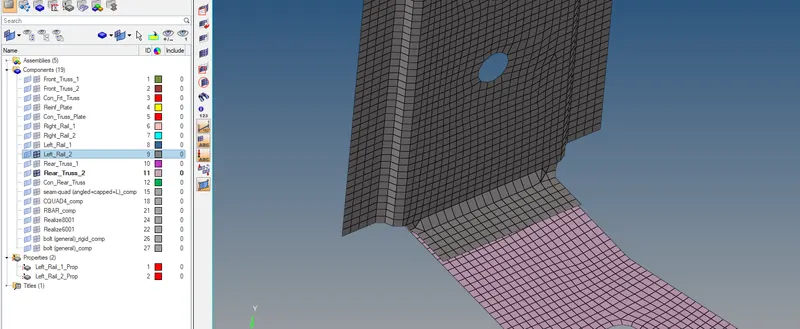

6. Rear_truss_2 & Left_Rail_2:- Bolt Connector
*1D/2D--Connectors--Bolt--(Create hole, if none)--create

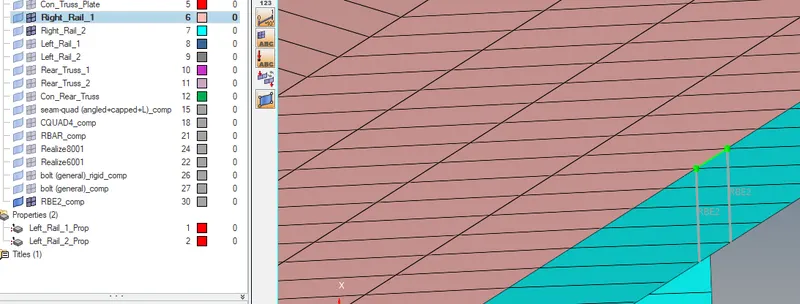

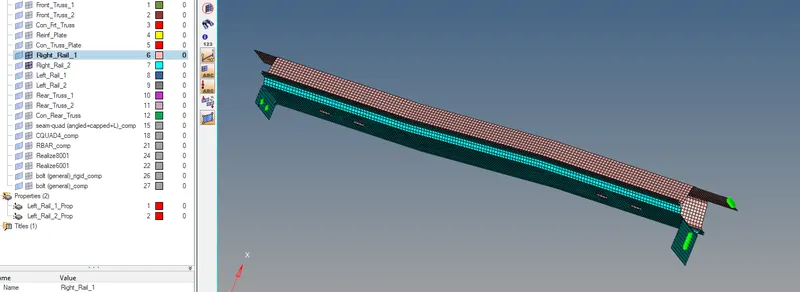

7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements
*1D/2D--Connectors--Spot--Rigid--create

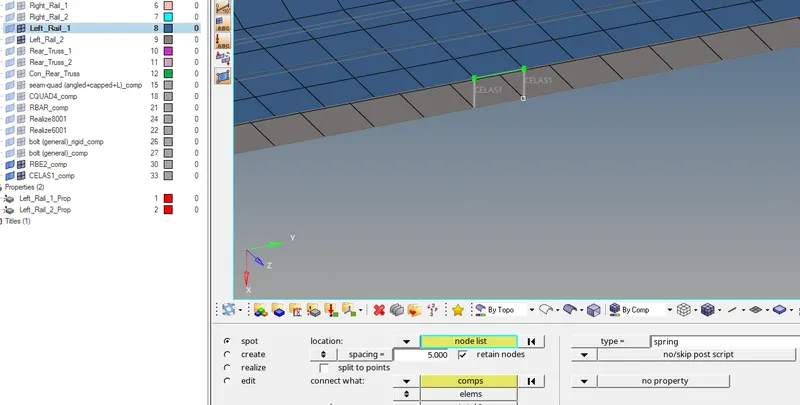

8. Left_Rail_1 & Left_Rail_2:- Spot-weld with Spring Elements
*1D/2D--Connectors--Spot--Springs--create
9. Rest all the component left Join them with suitable connectors

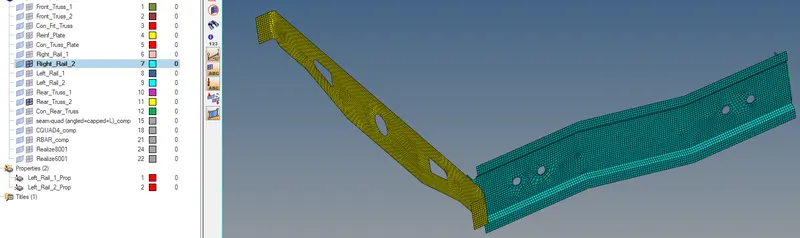

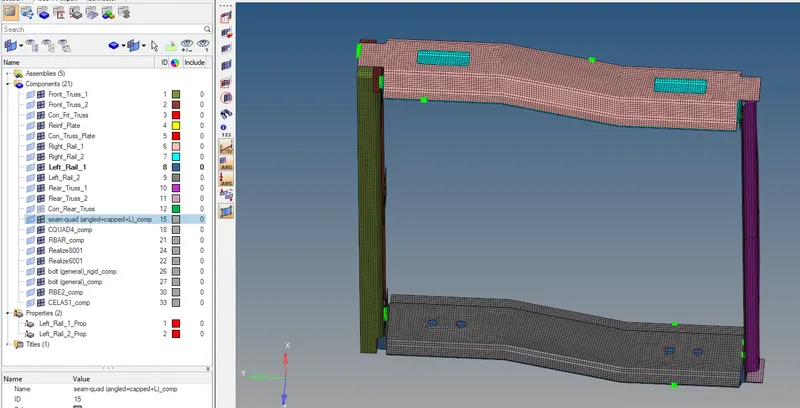

FINAL VIEW :
