Week 9-Creation of 1D Connectors Challenge

OBJECTIVE:- (1) CREATE 2D MESH ON GIVEN COMPONENTS AS PER THE GIVEN QUALITY CRITERIA.

(2) CREATE CONNECTORS AS SPECIFIED BETWEEN COMPONENTS OF ASSEMBLY.

PROCEDURE: - (1) CONNECTORS BETWEEN DIFFERENT COMPONENT IS AS FOLLOW

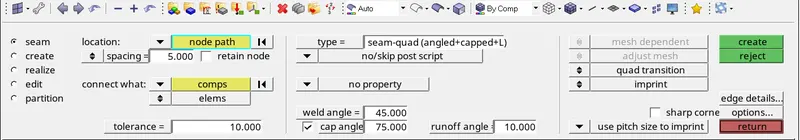

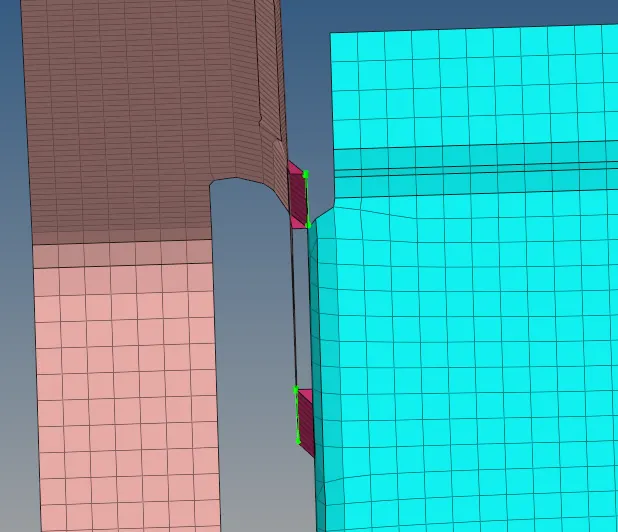

(A) BETWEEN RIGHT RAIL 2 AND FRONT TRUSS 1 < SEAM - QUAD ( ANGLE + CAPPED +L)

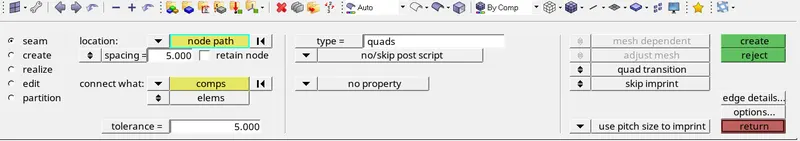

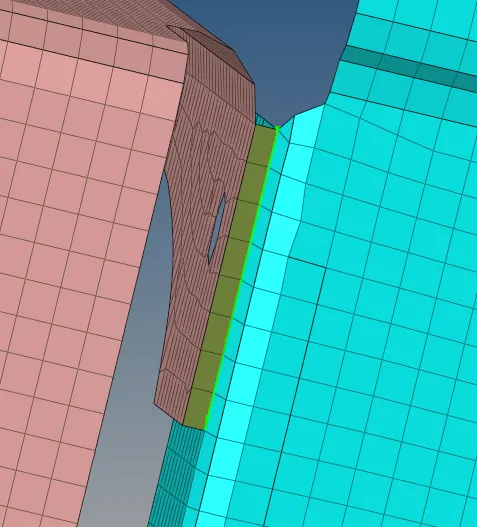

(B) LEFT RAIL 2 AND FRONT TRUSS 1 < QUAD ELEMENTS

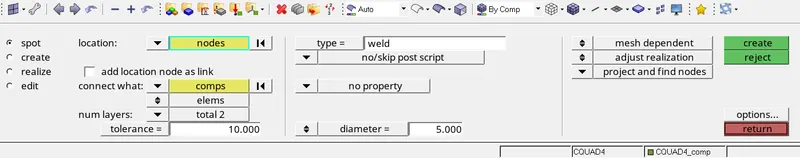

(C) FRONT TRUSS 2, FRONT TRUSS 1, AND RIGHT RAIL 1 < SPOT WELD WITH 2 LAYERS 5 MM DIA

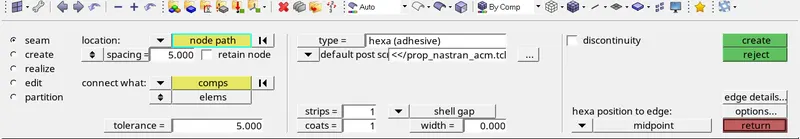

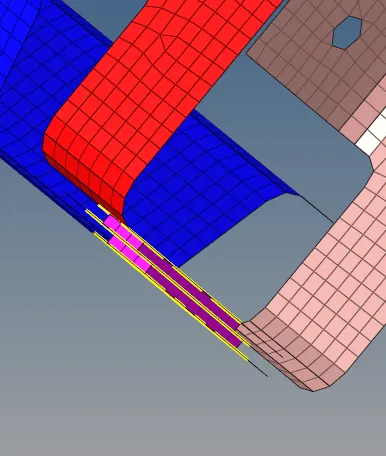

(D) FRONT TURSS 2, FRONT TURSS 1, AND LEFT RAIL 1 < HEXA ( ADHESIVE)

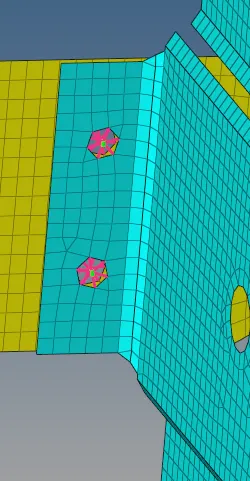

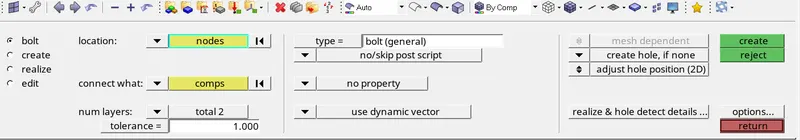

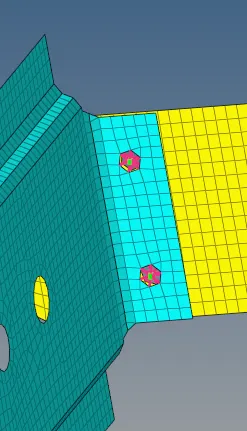

(E) REAE TURSS 2 AND RIGHT RAIL 2, REAR TURSS 2 AND LEFT RAIL 2 < BOLT CONNECTOR

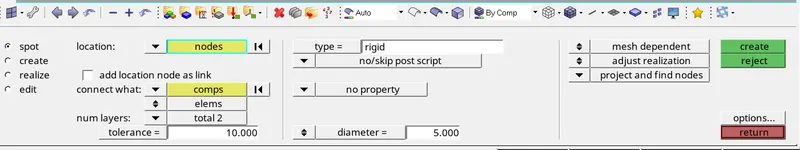

(F) RIGHT RAIL 1 AND RIGHT RAIL 2 < SPOT WELD WITH RIGID ELEMENT

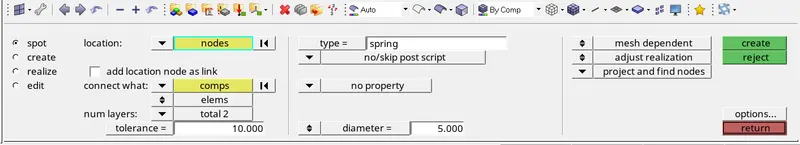

(G) LEFT RAIL 1 AND LEFT RAIL 2 < SPOT WELD WITH SPRING ELEMENT
