Week 12:Project-1-Meshing of Door Inner Panel Challenge
OBJECTIVE : (1) CREATE THE MID SURFACE OF THE GIVEN PLASTIC MODEL SO THAT IT SHOULD ACCURATELY REPRESENTS THE MODEL.
(2) CREATE MESH ON THE MID SURFACE WITH GIVEN QUALITY CRITERIA AND PROPER MESH FLOW.
(3) ASSIGN MESH THICKNESS TO ELEMENTS.
PROCEDURE: (1) FIRSTLY I WHAT TO IMPORT SOLVER DECK AND IMPORTED THE MODEL DOOR INNER PANEL PLASTIC BODY.

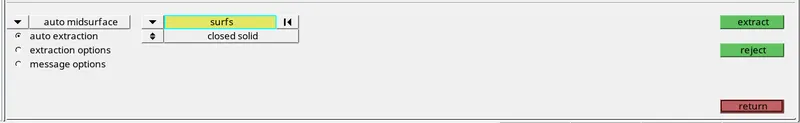

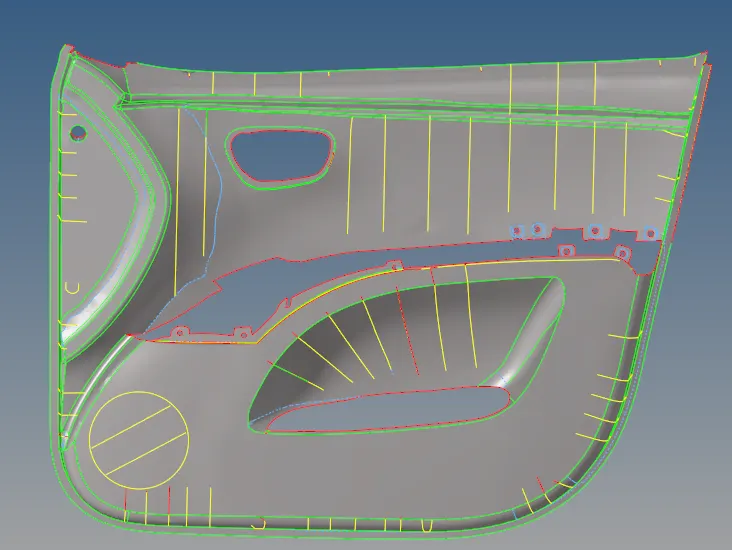

(2) AFTER I EXACTED THE MID-SURFACE FROM THE MODEL USING THE AUTO MID-SURFACE OPTION IN GEOM.
I USED THE PLANE + OFFSET + SWEEP METHOD TO EXTRACT MID-SURFACE FROM THE MODEL.
(3) AFTER I ANALYSE THE MID SURFACE THE REPAIR THE SURFACE WHERE IT'S REQUIRED USING SURFACE, SURFACE EDIT, AND QUICK EDIT OPTIONS.

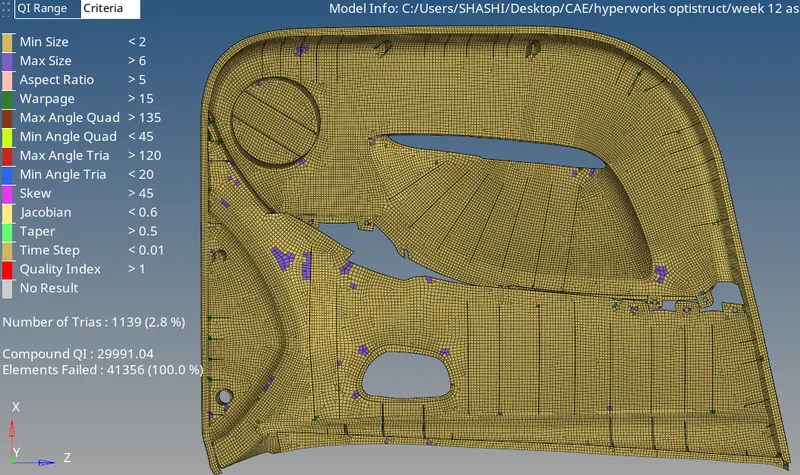

(4) AFTER THAT I MESH THE MID-SURFACE USING THE AUTO MID-SURFACE OPTION AS PER THE GIVEN CRITERIA OF MESH QUALITY BY SETTING MESH QUALITY CRITERIA.
(5) THEN I REMESH THE DIFFERENT REGIONS TO IMPROVE THE MESH FLOW AND REDUCE THE NUMBER OF TRI ELEMENTS.

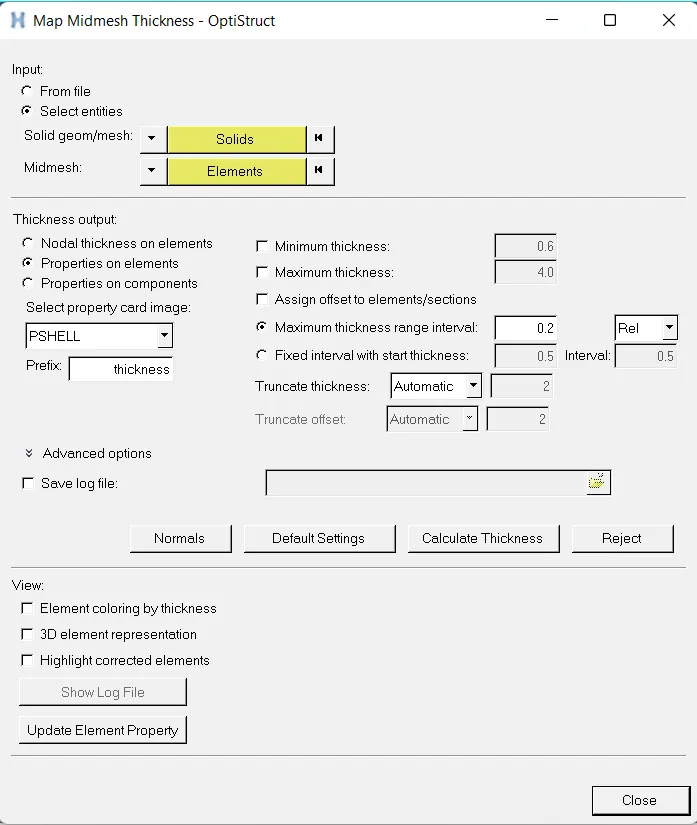

(6) AFTER THAT I ASSIGN THICKNESS TO THE ELEMENT BY GOING TO THE MAIN MENU BAR > MESH > ASSIGN > MID MESH THICKNESS.
(7) FIRST I SELECTED THE SURFACE IN THE SELECT ENTITY FOR REFERENCE AND COMPLETE MESH TO WHOM I HAVE TO ASSIGN THICKNESS

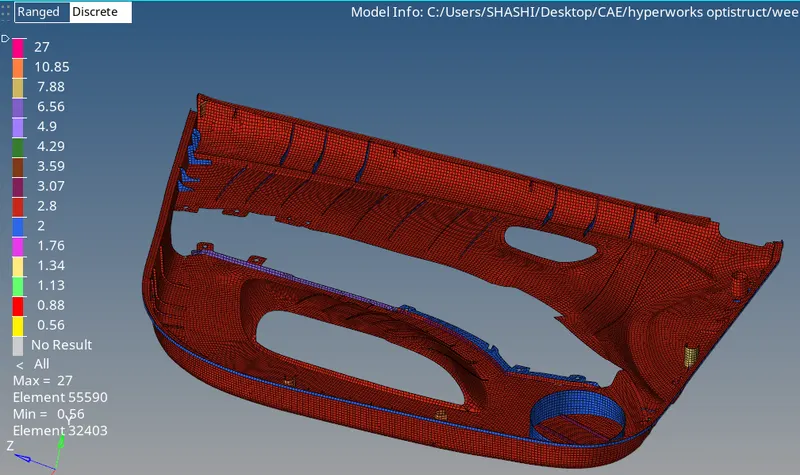

CLICKED ON CALCULATE THICKNESS.
(8) AFTER THAT I CHECKED IF THE ASSIGNED THICKNESS IS PROPER OR NOT, THEN I UPDATED THE THICKNESS USING THE " UPDATE ELEMENT PROPERTY" OPTION WHERE THE THICKNESS ASSIGNED WAS NOT AS PER THE MODEL.
