Week 8-3D Tetra Meshing Challenge

OBJECTIVE : (1) In this challenge we got 3 models with an objective to create a 3D mesh on a given model by different methods as mentioned.

method 1 - first by creating 2D mesh on than converting 2D mesh into 3D mesh.

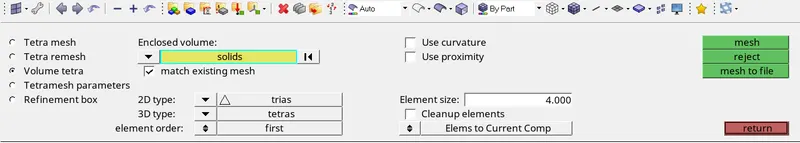

method 2 - directly creating a 3D mesh using volume tetra mesh.

PROCEDURE:- (1) Model A is the housing model which is first imported then 2d mesh is created by auto mesh.

After that, I try to improve mesh flow and reduce tri concentration.

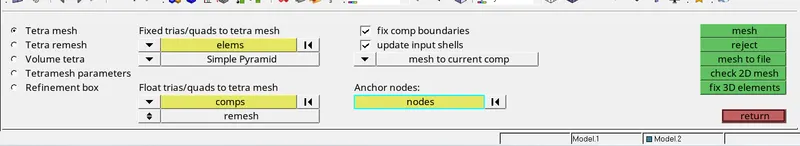

Then I want to 3D mesh < tetra mesh < selected all 2d elements and click on mesh to convert 2d mesh into 3d mesh.

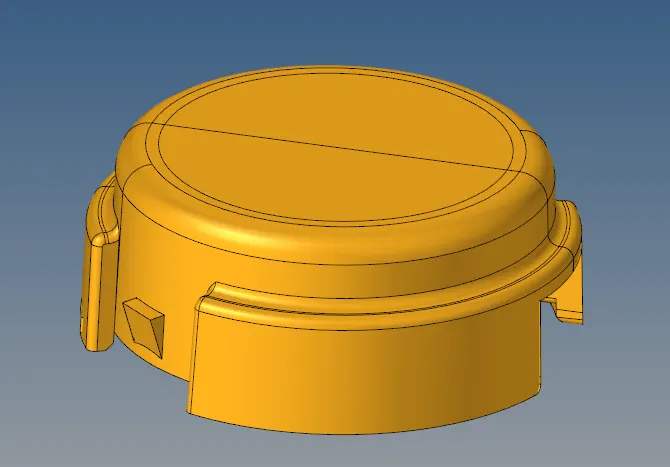

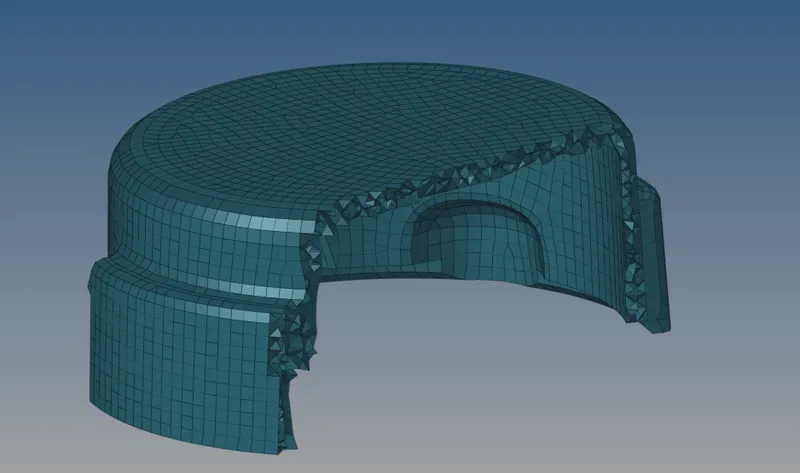

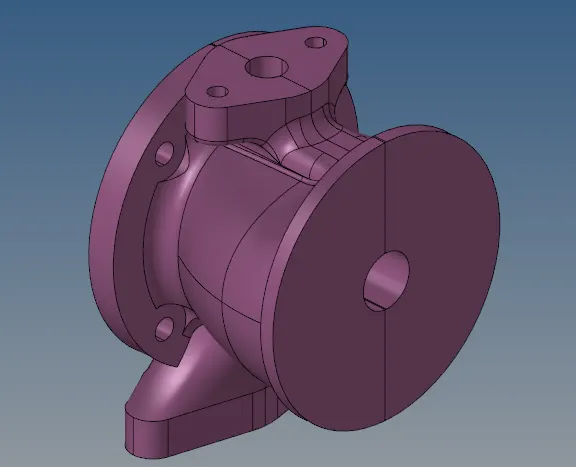

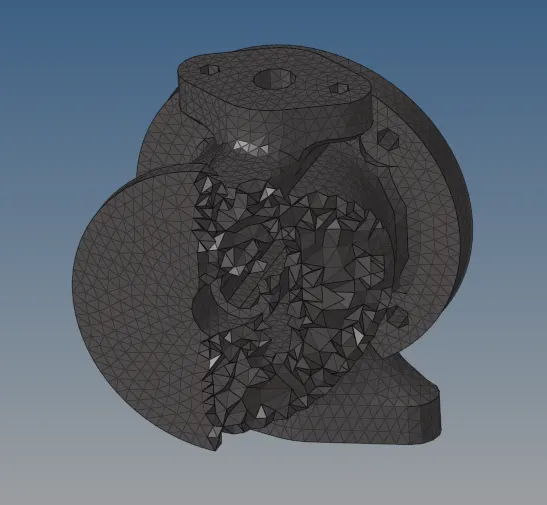

MODEL A

(

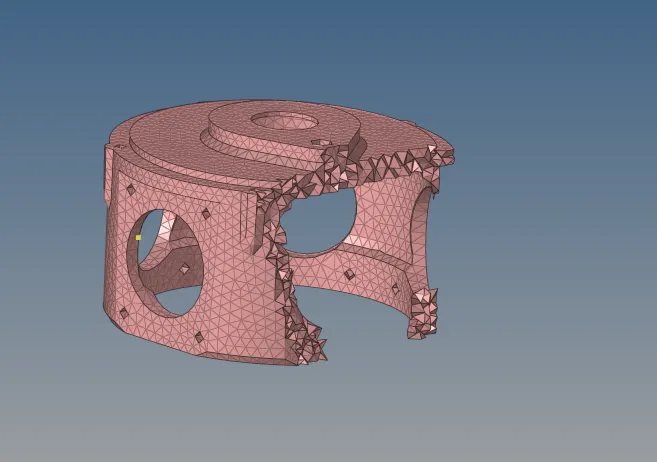

(2) MODEL B AND MODEL C has meshed with a similar method by directly creating 3d mesh in this method we can't control mesh quality and mesh flow.

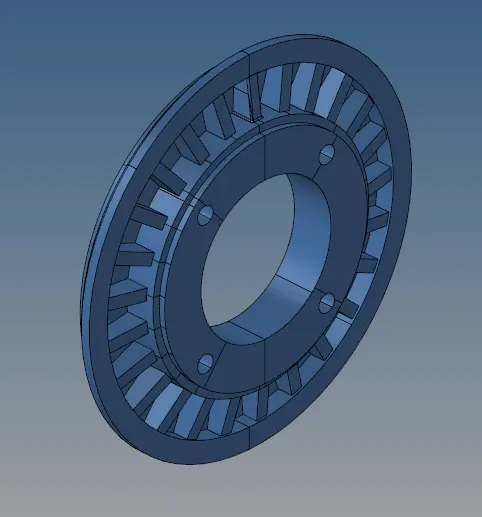

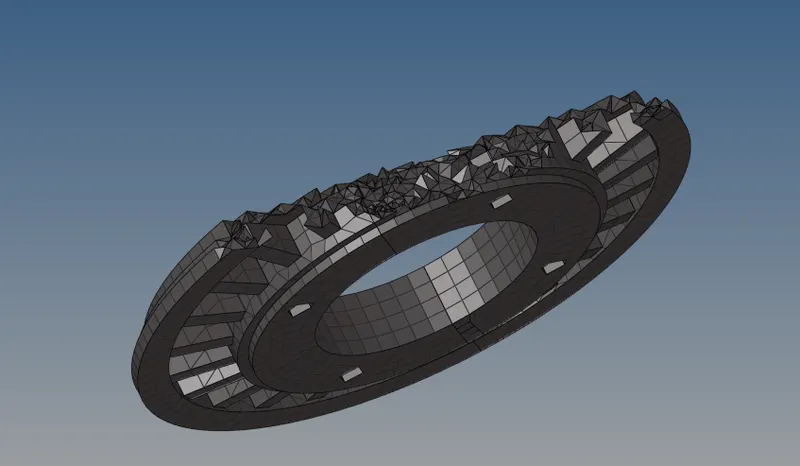

MODEL B

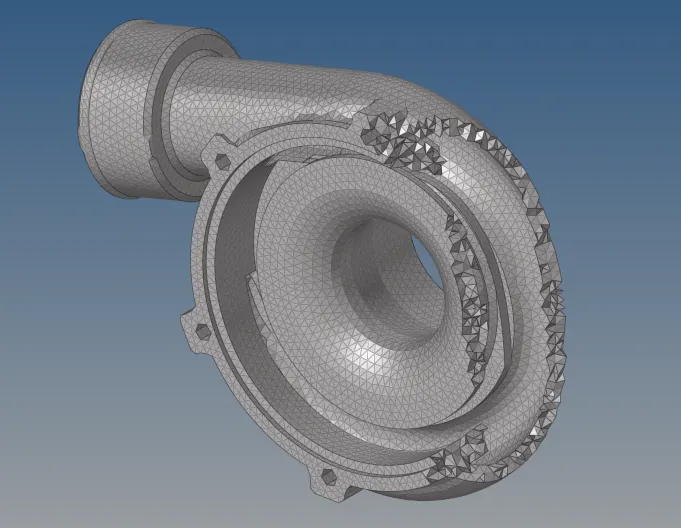

MODEL C

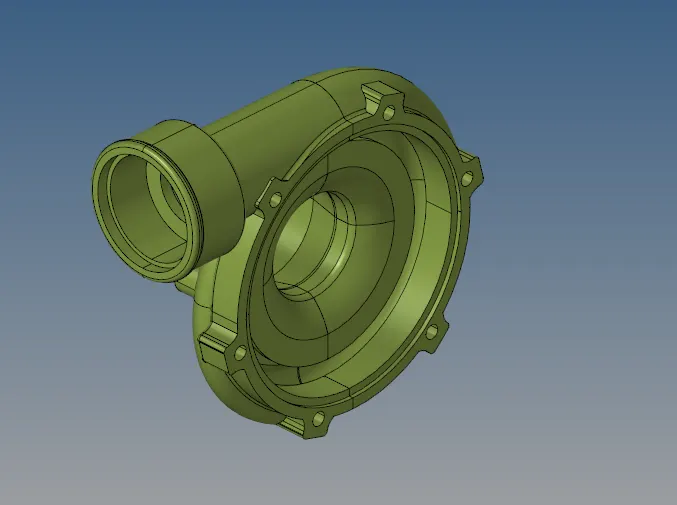

CASTING COMPONENT

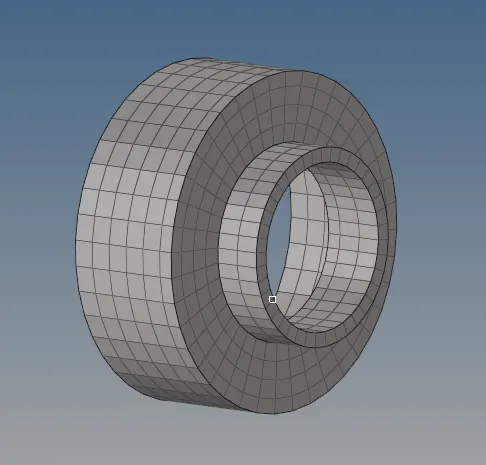

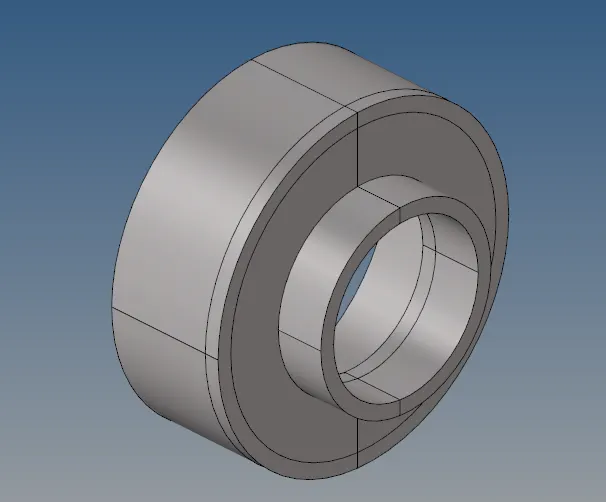

HUB

SUPPORTING PLATE

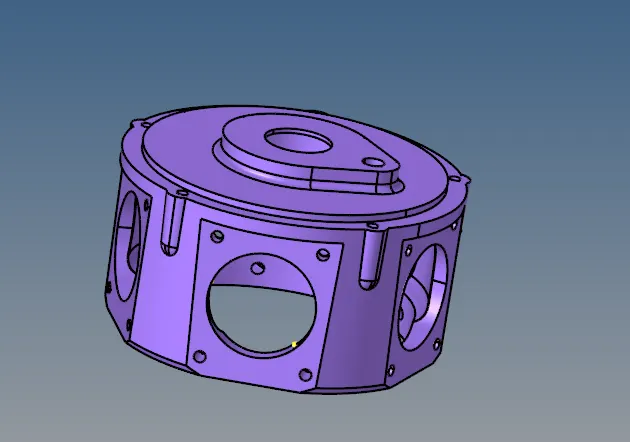

HOLDER HOUSING
