Week 4-1D Element Creation Challenge

OBJECTIVE - (1) TO CREATE MID-SURFACE OF A 3D MODEL AND ASSIGN PROPERTY TO SURFACE.

(2) CREATE RB2 AND RB3 LINKS AND USE LINKS TO GIVE RELATION TO THE SURFACE.

(3) CREATING VARIOUS CROSS-SECTIONS USING HYPER BEAM.

PROCEDURE- (1) FIRST I STARTED BY IMPORTING THE IGS FILE OF THE BRACKET.

(2) THEN I CREATE THE MID SURFACE OF BOTH BRACKETS SEPARATELY. THE NAME AS MID SURFACE 1 AND MID SURFACE 2.

(3) AFTER I CREATE 2 SEPARATE PROPERTIES OF MID SURFACE 1 AND MID SURFACE 2 AND ASSIGN THEM TO SURFACES 1 AND 2.

(4) I WANT TO HYPER BEAM AND CREATED 3 CROSS-SECTIONS "BOX ", "I" AND "CROSS" AND 3 PROPERTIES WITH NAMES "ROD", "BEAM" "AND BAR" THEN ASSIGN 3 PROPERTIES TO 3 CROSS-SECTIONS.

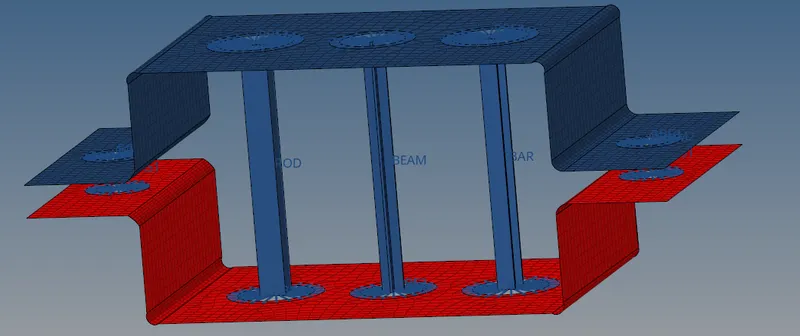

(5) FIRST I WANT TO GEOMETRY AND CREATE RB2 ELEMENTS AT POSITION "A" ON BRACKET 1 AND BRACKET 2 AND THEN WANT TO ROD AND SELECTED RB2 NODE AT BRACKET 1 AND 2 AND CREATED ELEMENT TYPE CROD WITH CROSS-SECTION OF BOX SIMILARLY I CREATE OTHER 2 CROSS-SECTION AT POSITION "B" AND "C".

(6) AFTER THAT I CREATE AN RB2 ELEMENT AT "D" AND "E" AND ASSIGN A MASS OF 10 UNITS AT THE CENTER NODE OF RB2.

(7) AFTER THAT I ASSIGN SPRING TO POSITION "F".
