Week 6-Meshing of Hood Challenge

OBJECTIVE :(1) TO GENERATE MID SURFACE OF ASSEMBLY CONTAIN 4 COMPONENT WHICH WILL ACCURATELY REPRESENT 3D MODEL.

(2) CREATE MESH FOR THE 4 COMPONENT WITH KEEP IN CHECK THE MESH QUALITY REQUIREMENT

PROCEDURE :

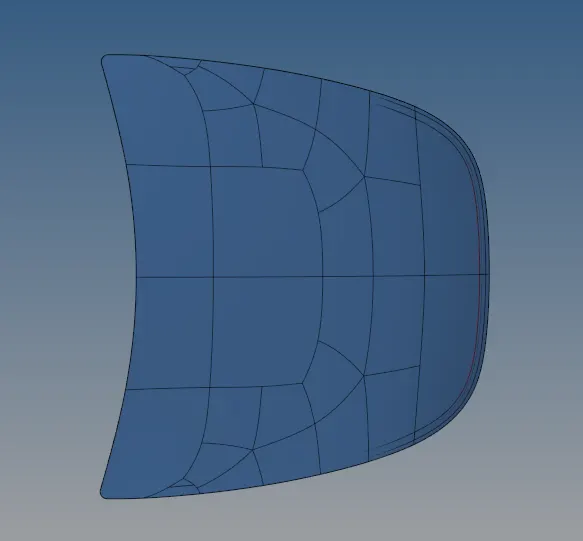

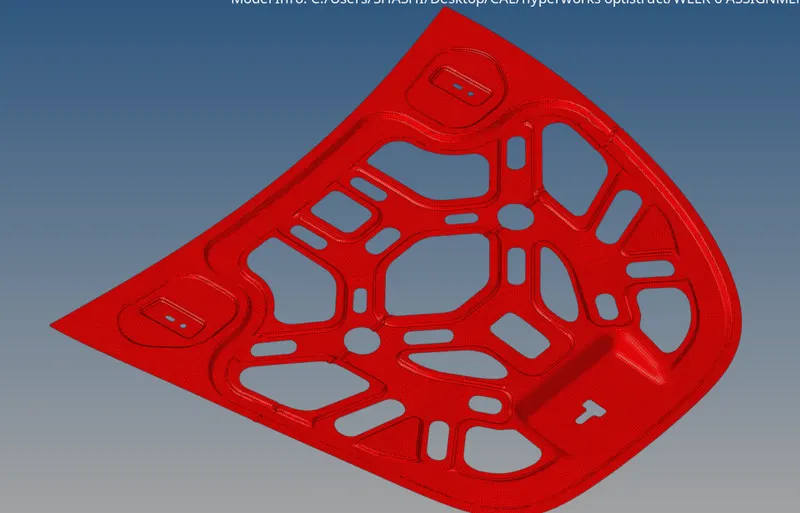

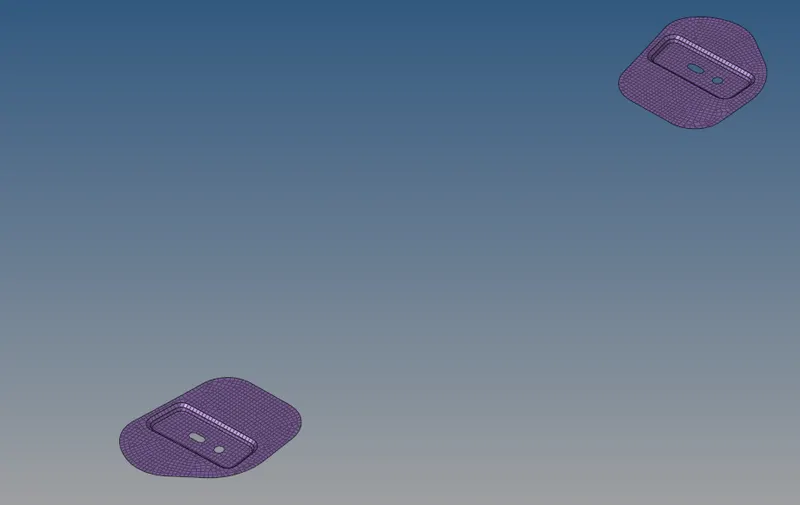

(1) THERE WERE 4 COMPONENT IN ASSEMBLY (A) INNER EXTRACT (B) OUTER EXTRACT (C) HINGE REINFORCEMENT (D) LATCH REINFORCEMENT

(2) WHILE WORKING ON THESE COMPONENT SAME SET OF STEP ARE FOLLOED FIRST SELECTING THE COMPONENT ON WHICH YOU ARE WORKING AFTER THAT AND HIDING THE REST

(3) AFTER THAT I WANT TO AUTO MID SURFACE AND SELECT DISPLAY SURFACE TO MAKE SUARE THAT ONLY ONE COMPONENT IS SELECTED FOR MID SURFACE

(4) AS MID SURFACE IS GENERATED I COMPARED MID SURFACE WITH 3D MODEL TO MAKE SURE THE MID SURFACE IS PROPERLY REPRESENTING THE MID SURFACE.

(5) AFTER CERATEING MID SURFACE FIRST I SET MESH QUALITY CRITERIA AS MENTION BY GOING ON TOOL > ELEMENT CHECK> SETTING.

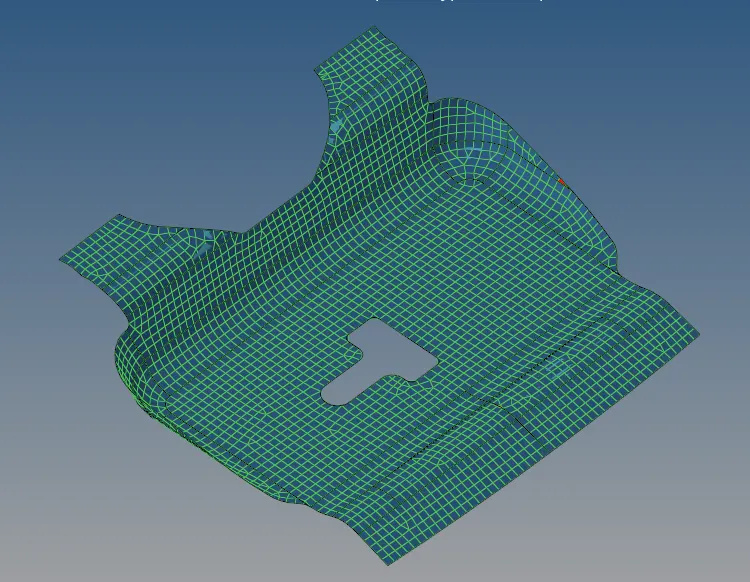

(6) AFTER CREATING MESH FOR EACH COMPONENT ONE BY ONE I CHECK WHICH ELEMENT IS FAILING IN WHICH MESH QUALITY CRITERIA AND THAN SAVEING THE ELEMENT

(7) THAN I WANT TO MASK AND SELECTED RETRIVE THAN MASK AND THAN REVERSED THAN UNMASKED ADJACENT AFTER THAT I REMESH THE FAILED ELEMENT ALONG WITH ADJACENT ELEMENT

(8) I WANT TO 2D>QUALITY INDEX > ELEMENT OPTIMIZE / PLACE NODE AND OTHER OPTION TO REDUCE FAILED ELEMENT
