Week 9-Creation of 1D Connectors Challenge

Aim

Given models have to mesh with the quality criteria given and  Create connector and Attach the various parts of the given model.

Procedure

Step 1

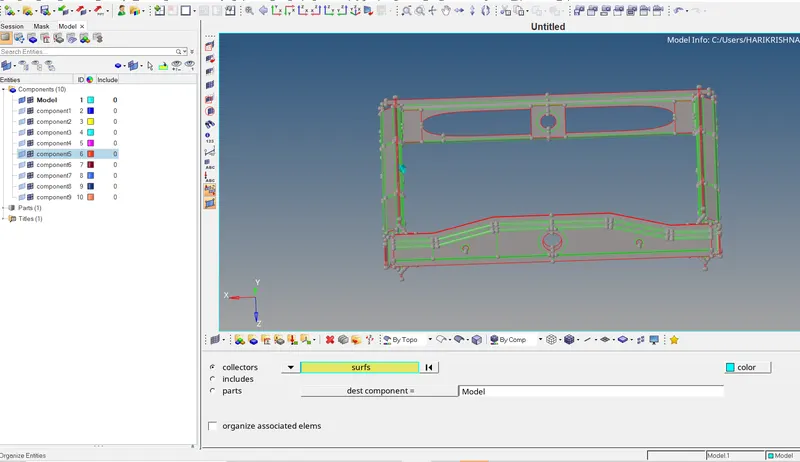

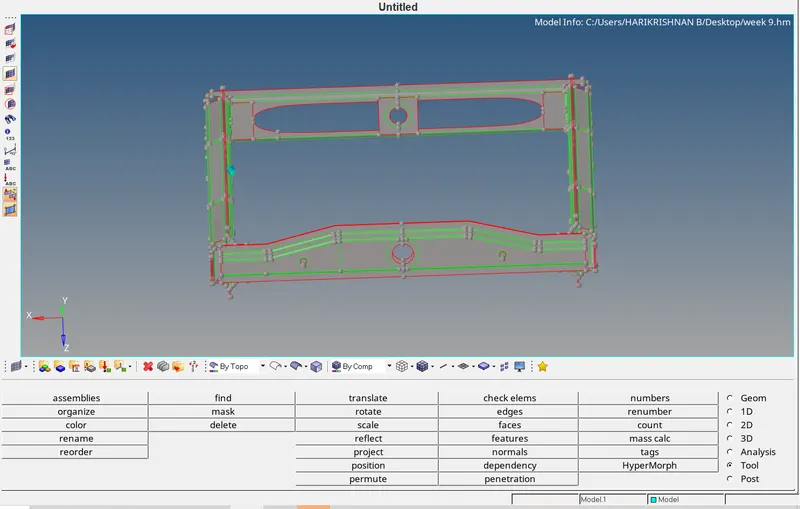

Checked the geometry error then organized it into different parts.

Step 2

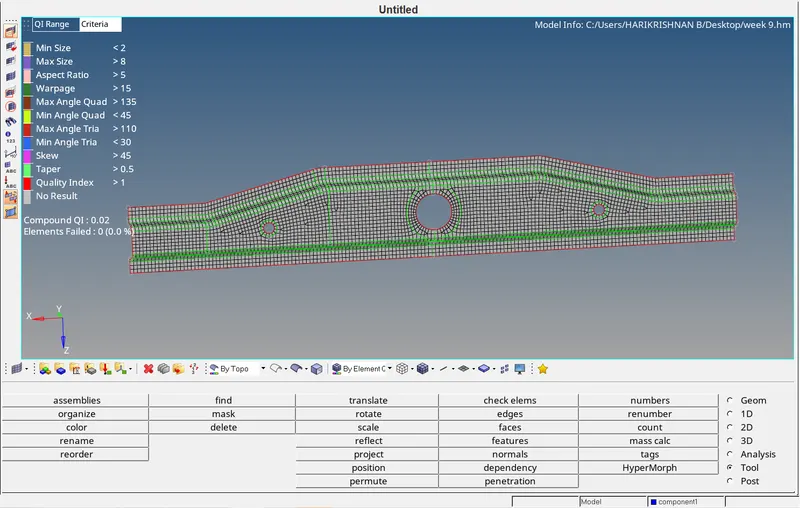

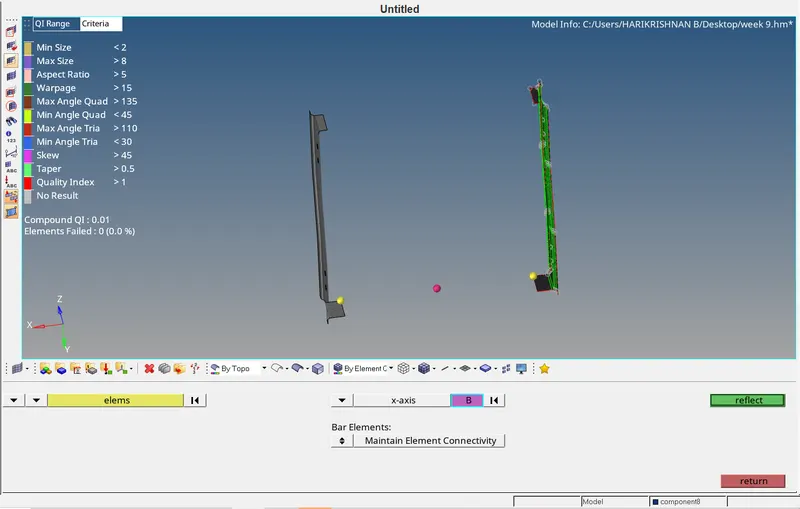

All the parts have been mesh in different with the quality and tria condition.

Step 3

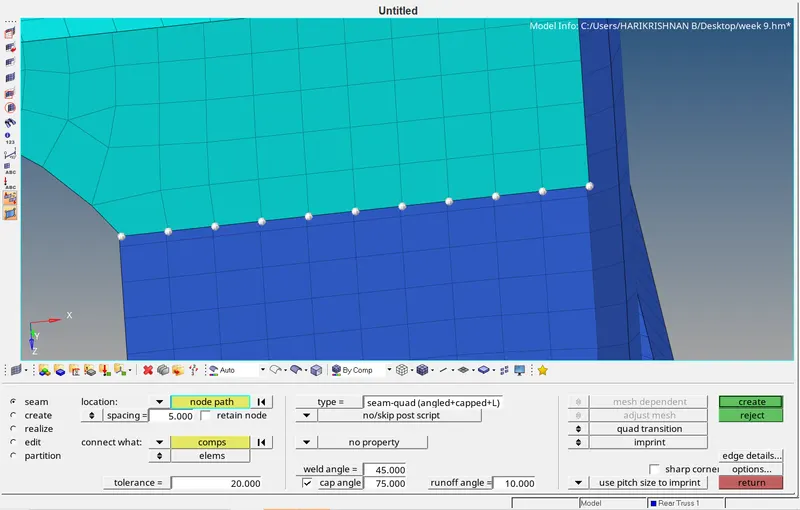

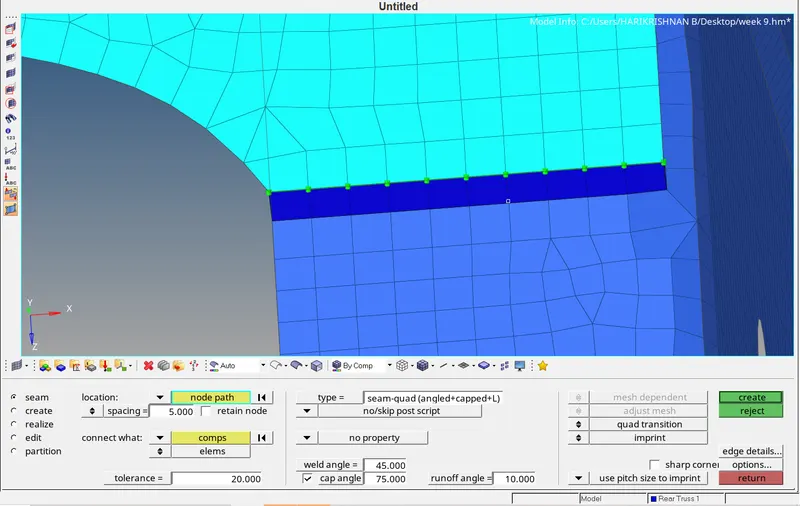

The given components are connected as per the given parts. 1. Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)

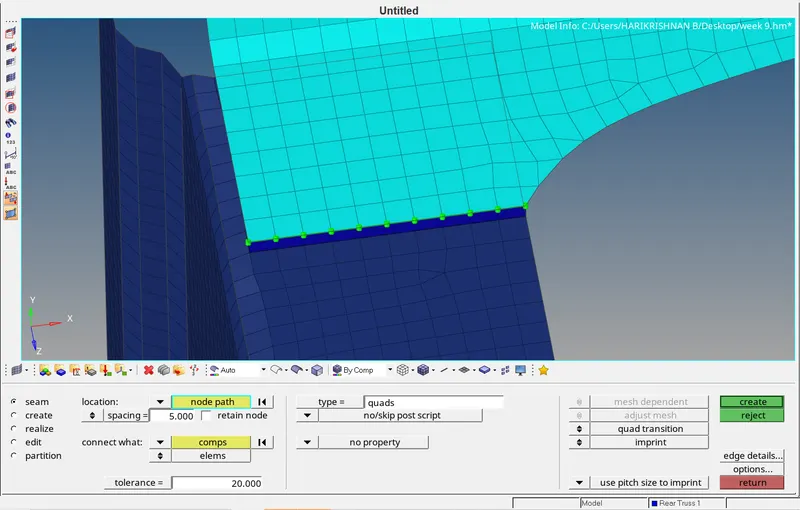

2. Left_Rail_2 & Front_truss_1:- Quad elements

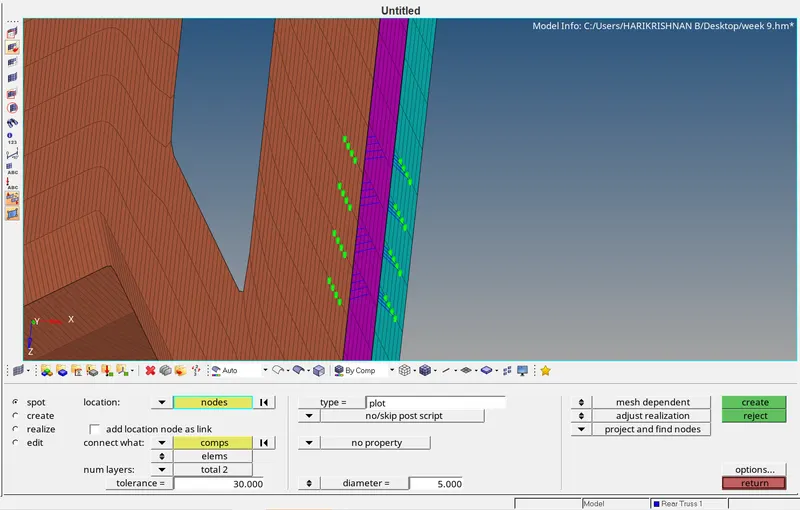

3. Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weld with 2 Layers and 5 mm Diameter

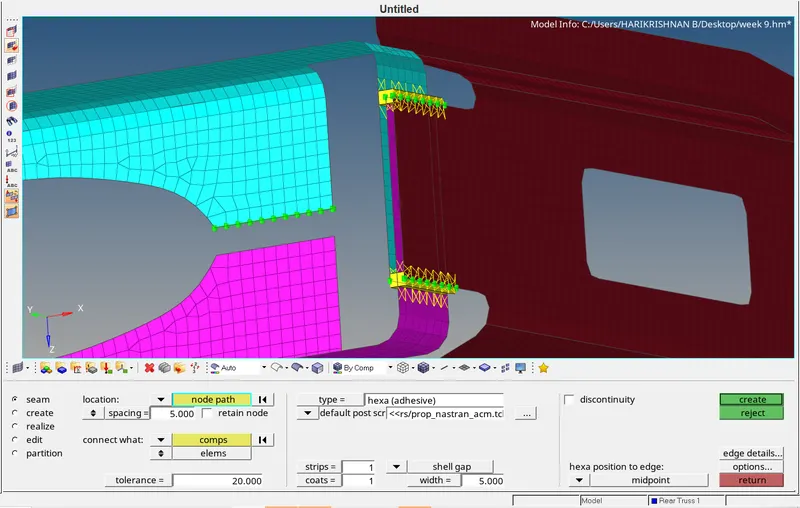

4. Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)

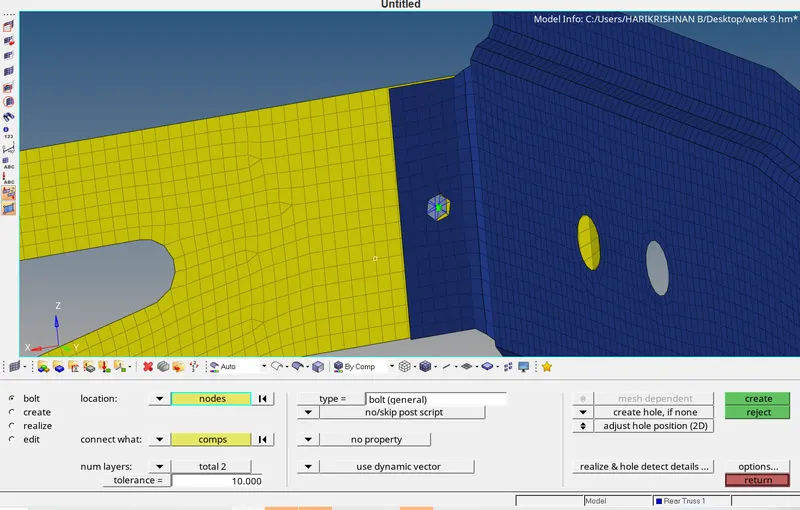

5. Rear_truss_2 & Right_Rail_2:- Bolt Connector

6. Rear_truss_2 & Left_Rail_2:- Bolt Connector

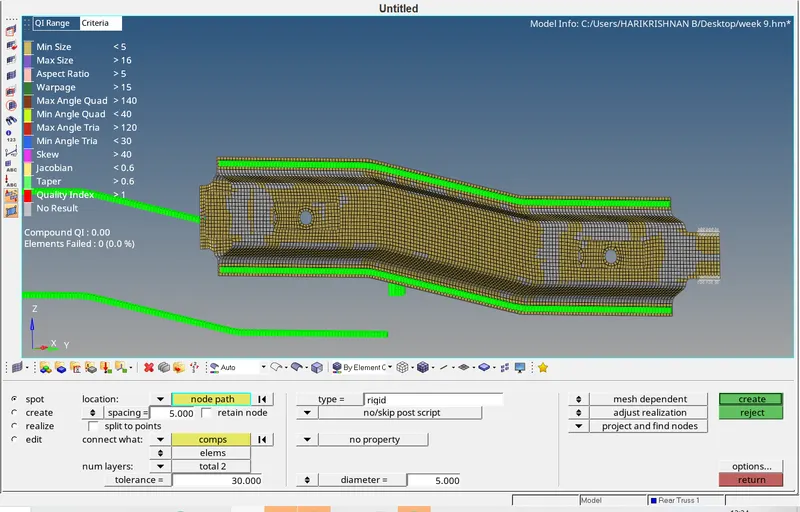

7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements

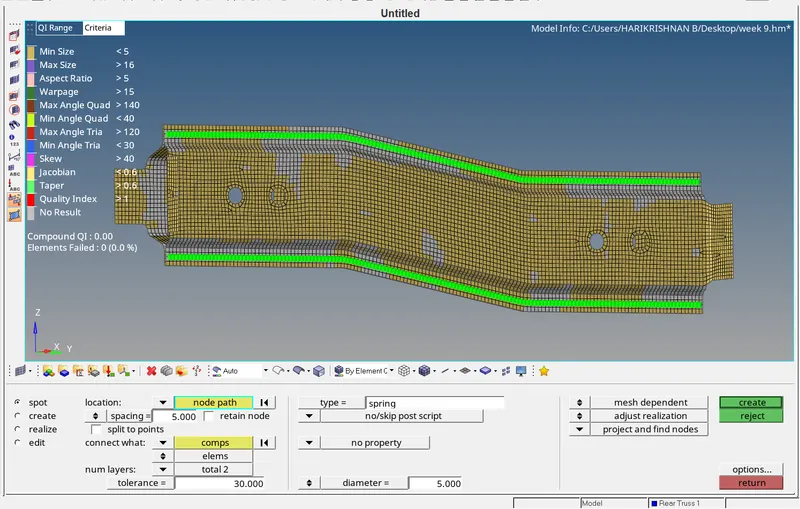

8. Left_Rail_1 & Left_Rail_2:- Spot-weld with Spring Elements

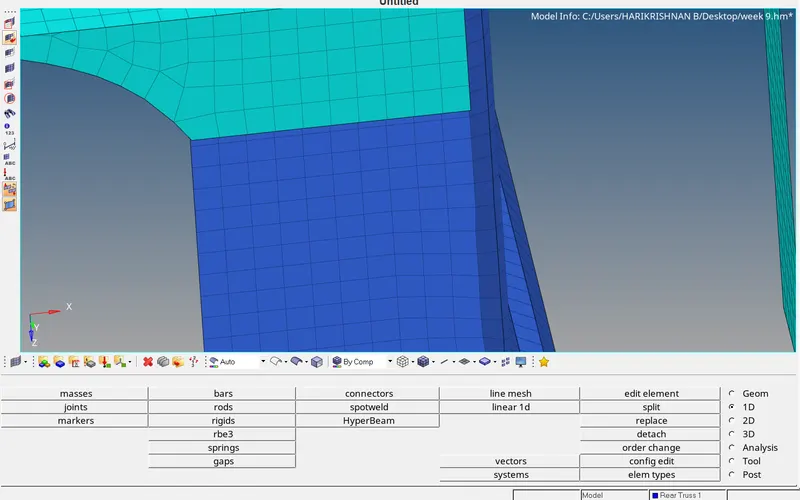

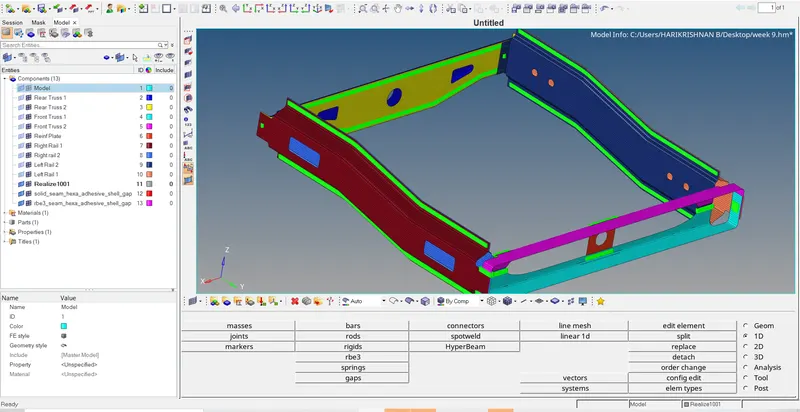

9. Rest all the component left Join them with suitable connectorsusing connection in 1D . seam welding, spot welding and bolt connection did.

Result

The given geometry and meshed with the proper mesh flow and contained the quality criteria as per given, even the tria condition has been followed in this model.

Conclusion

In this week 9 challenge I got understanding how I can create a 1D connection between the parts in hyper mesh software.
