Week- 5 - Solid meshing

Aim
To check the quality of the give geometry as per the given target values above mentioned in tetra mesh.

Procedure

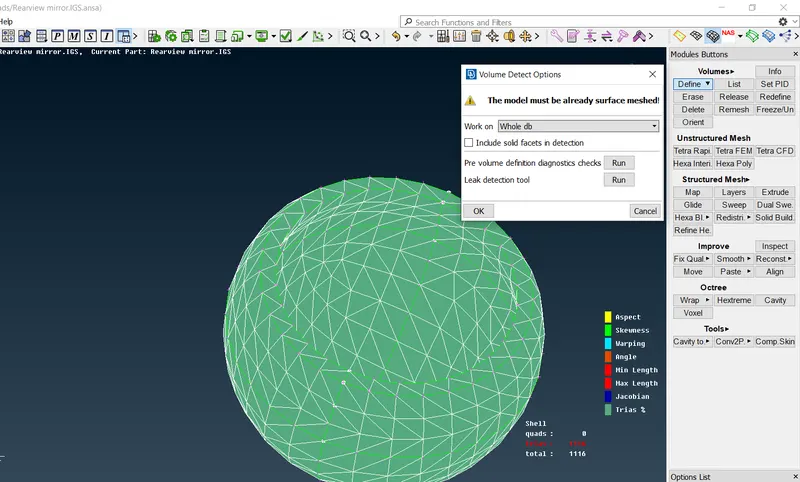

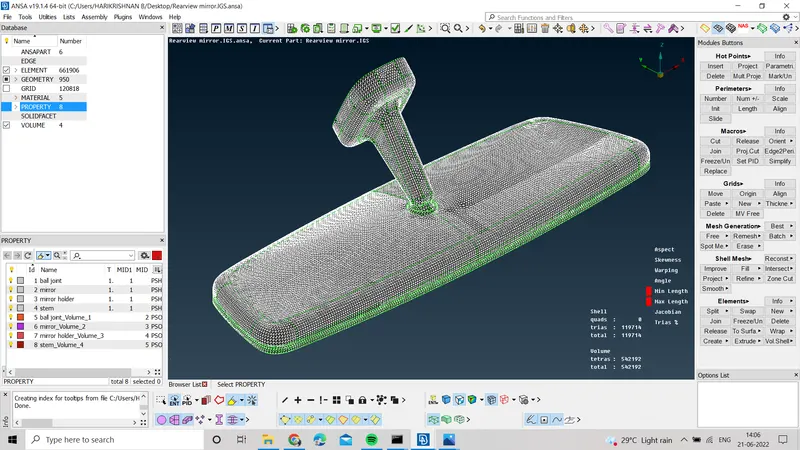

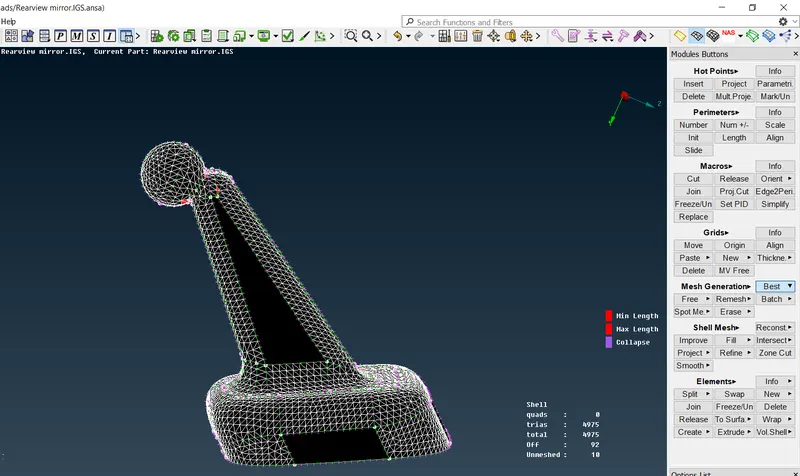

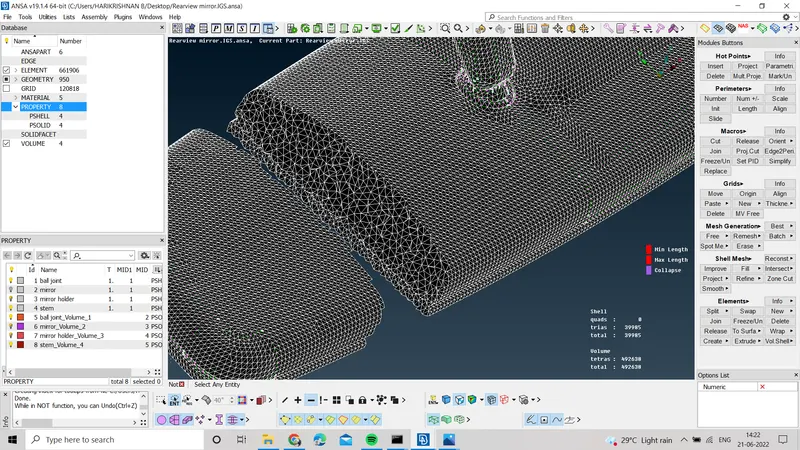

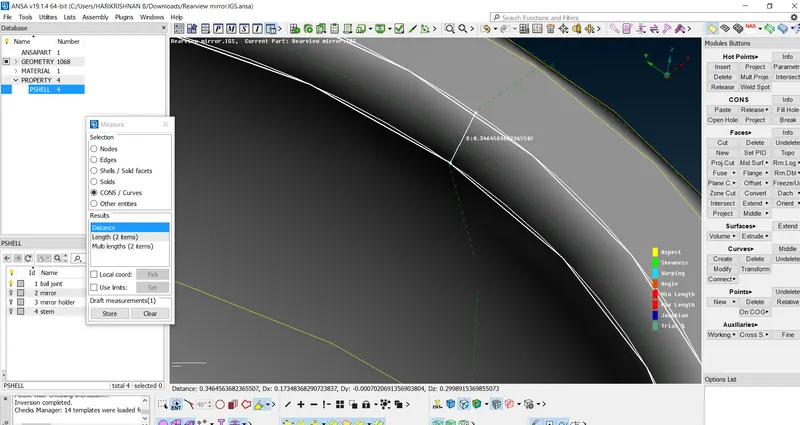

Insert the file, did the topology clean up and given target value. Further moved to the one by one component. First move to the ball joint did the orient and geometry checked, the error found has been fix and move to the target valve failure using the measurement tool and suppressed those cons, the move to the mesh using best tool for the plan surface used the element type tria and curves ortho tria and failing region reconstruct mesh use and rectify the failure. Further moved to volume mesh, following this steps like define define-> whole dp-> edit-> tetra rapid, the gave remesh generated the volume mesh. There was no element failure in this ball joint. As per the same procedure followed in remaining 3 parts mirror, mirror holder and stem.

New things leaned
Understood the element types in in 3D elements, why tetra mesh is prefers over hexa, tet collapse, and how to do a sold mesh.

Conclusion
For solid mesh we finding out the tet collapse of the components and follow the step as it required, in this model for required quality criteria there is no quality failure
