Week 9 - Challenge 2 - Switch Bezel Design

Switch Bezel Design

1. Introduction

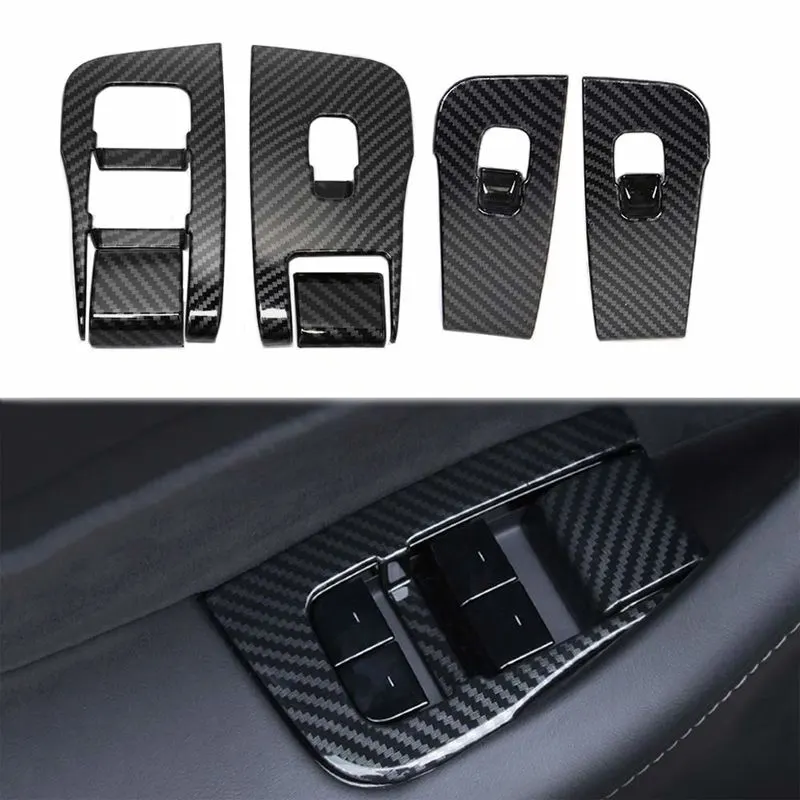

Switch Bezels in car are parts which contains switches and controls for different functions like Window control, Door lock/Unlock,Media and Temperature controls. Acrylonitrile Butadiene Styrene(ABS) is used in switch bezel.which is scratch-resistant and wear-resistant. Sturdy, polished, not easy to fade, durable.The stylish appearance adds a sense of luxury to your car and makes your car unique.The car window switch cover helps protect the car window switch button from scratches or impacts. Cover existing scratches. The shell is sturdy, rust-proof and scratch-resistant, ensuring maximum strength and durability during long-term use These car window lift switch frame cover has self adhesive design, no harm to your car, easy to attach it to car and won't peel off. Surface must be clean and dry prior to adhering. [Reference: 1, 2]

class A creation

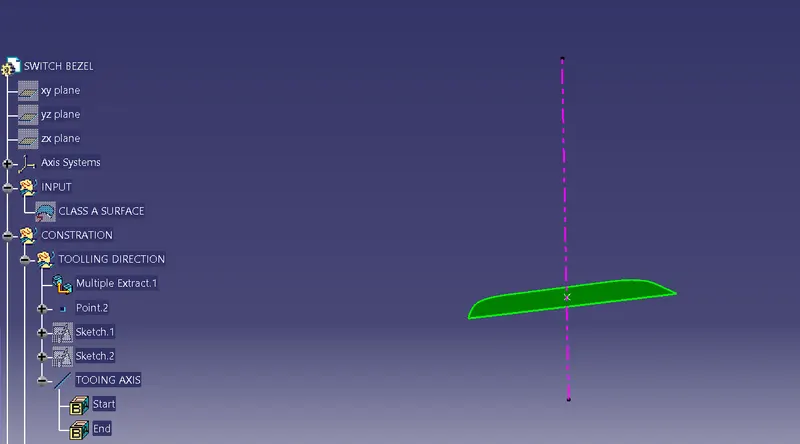

TOOLING Axis

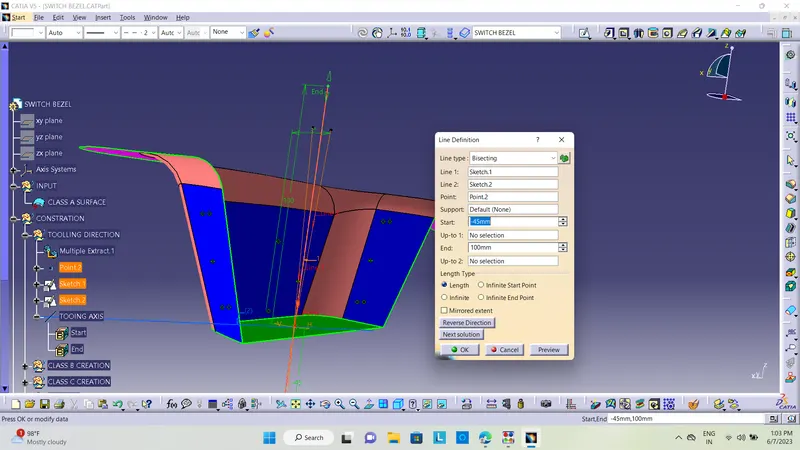

bisecting

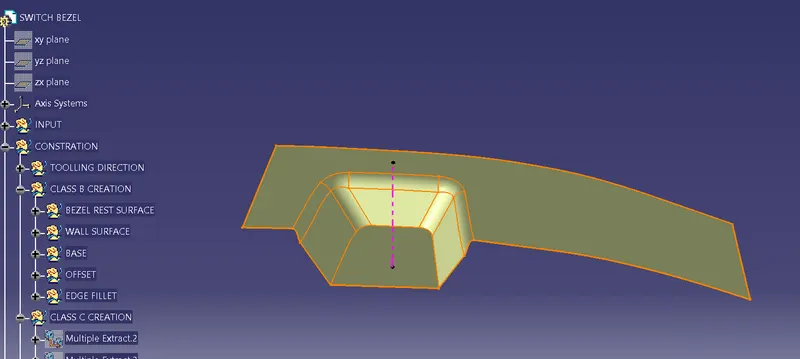

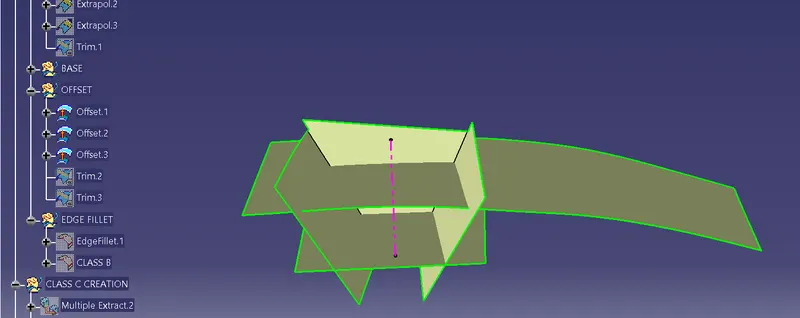

class B creation

class b offset creation

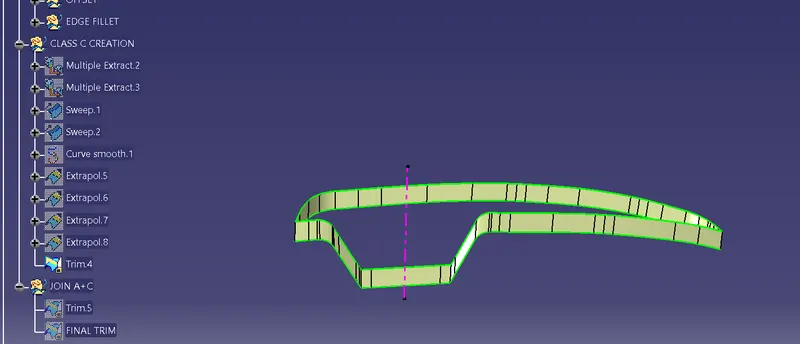

class c creation

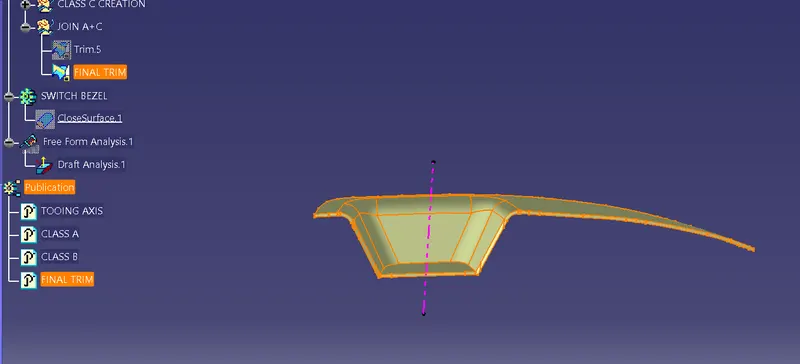

final trim

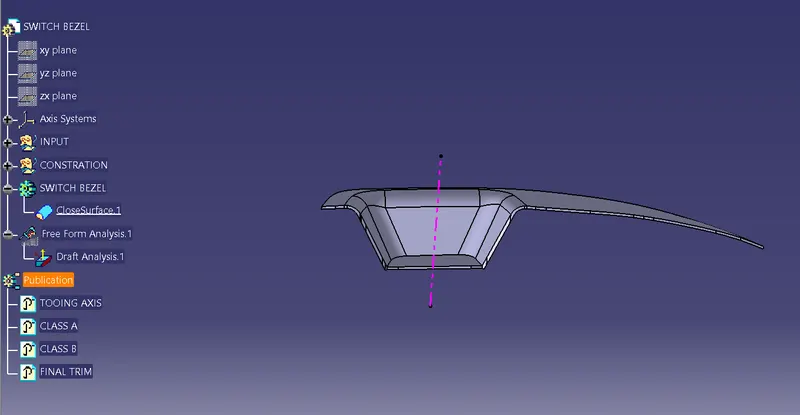

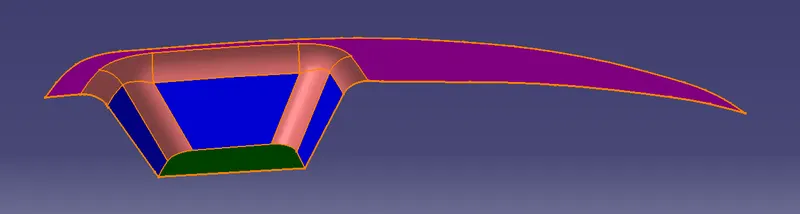

closed solid surface

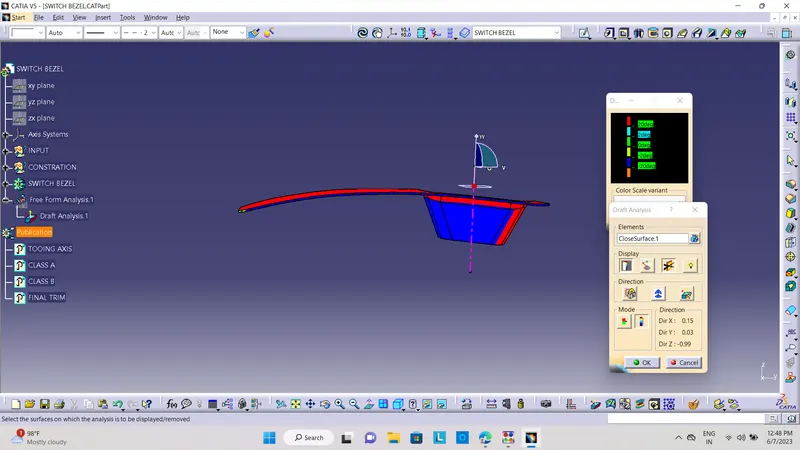

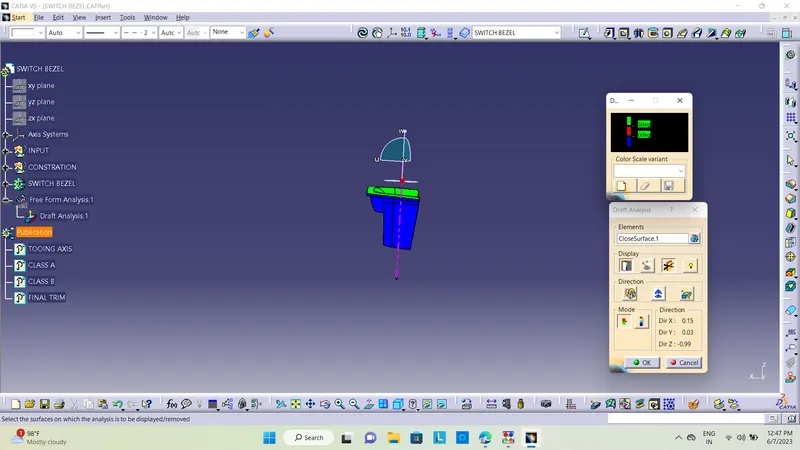

DRAFT ANALYSIS:

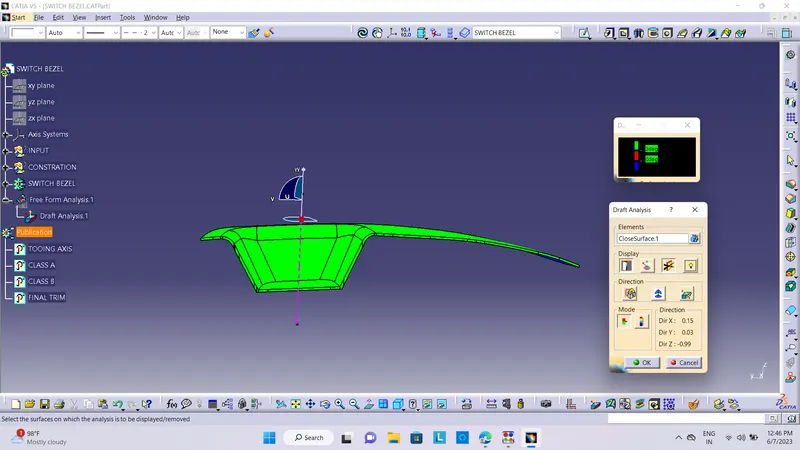

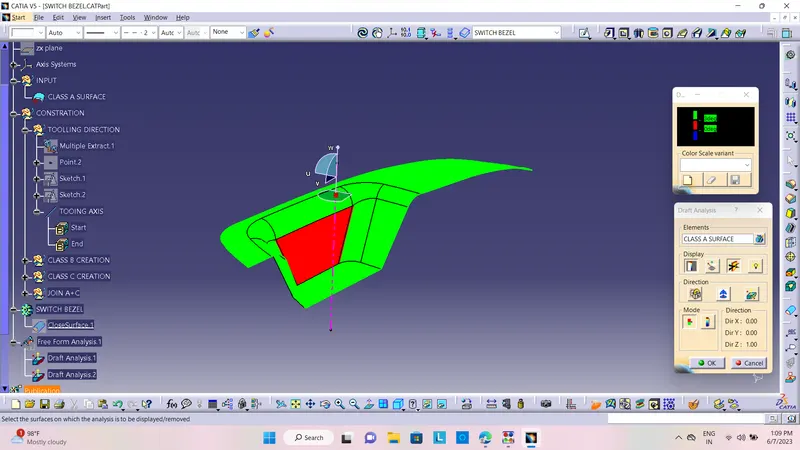

The draft analysis is done after the creation of the solid body by using the featured draft analysis command. Click on the compass symbol and align the compass to the tooling axis and give the color bar angle 3deg, now check the color difference on the surface. If the surface is green color the draft angle is greater than 2.9deg (the green color limit is 2.9 deg), if the surface is red the draft angle is less than 0deg.

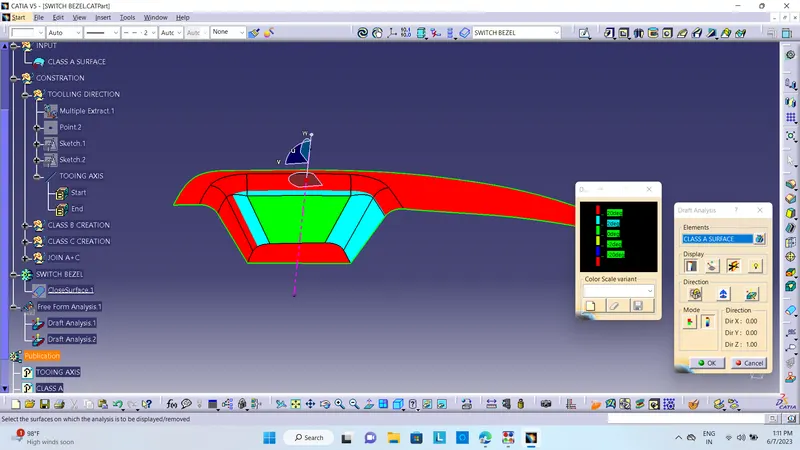

class a surface = 3deg

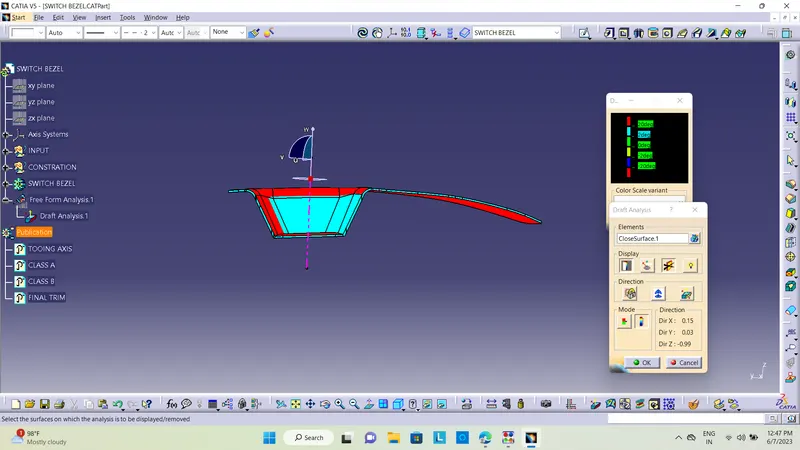

final draft analysis : 3degree

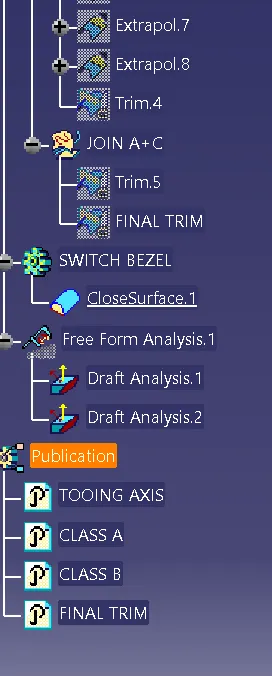

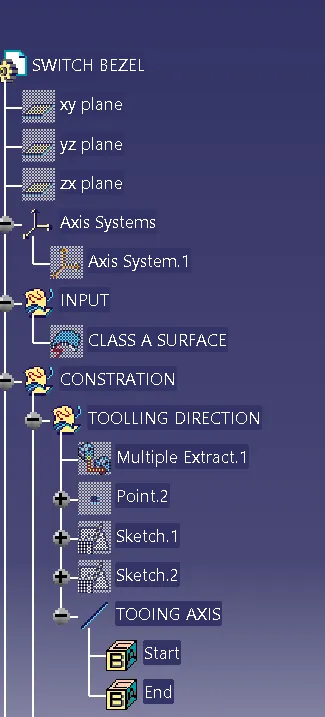

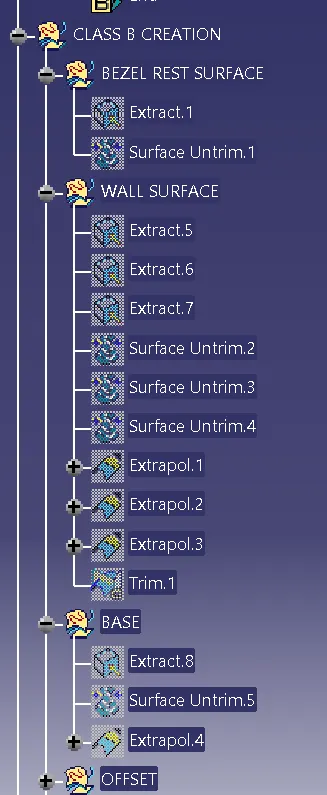

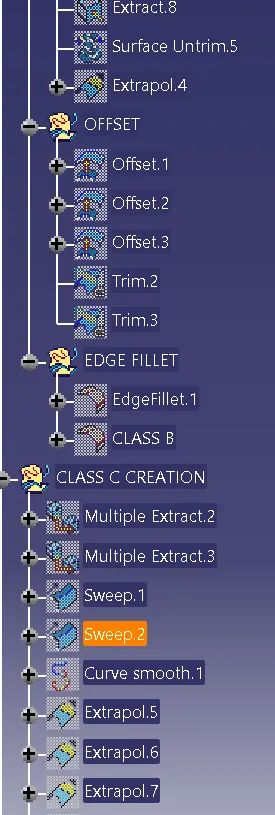

TREE CONSTRACTION

CONCLUSION

From the given class A surface the Class B and C surfaces for the Switch Bezel were created and by creating a tooling direction for manufacturing the Switch Bezel was analyzed and found successful
