Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

TOOLING AXIS :- AFTER CREATION OF TOOLING MAIN TOOLING AXIS WE HAVE TO DRAFT ANALYSIS ON TO THE COMPLETED COMPONENT BUT HERE TO DRAFT AN DOGHOUSE WE NEED A SIDE CORE AXIS .

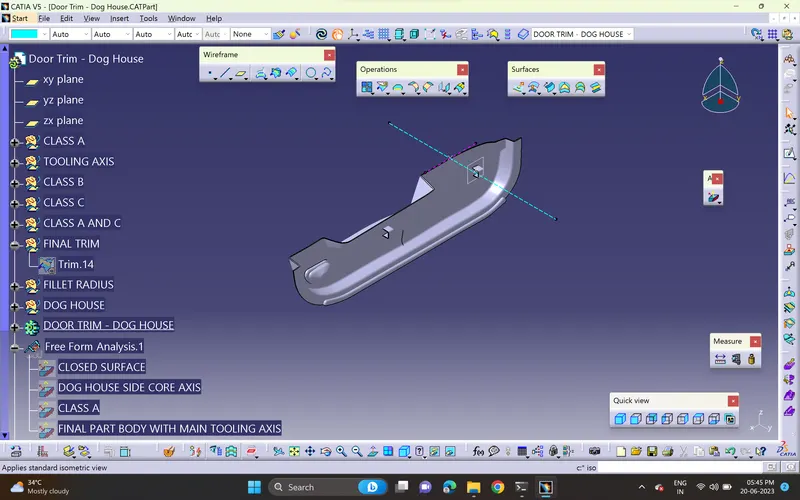

SIDE CORE AXIS :- FOR THIS AXIS CREAT A POINT AND DRAW THE LINE ALONG PLANE WHICH DIRECTION WE CREATING DOGHOUSE.

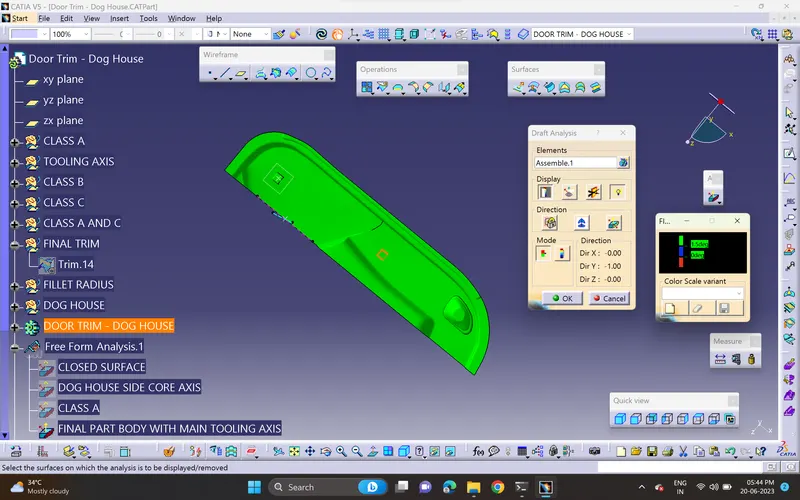

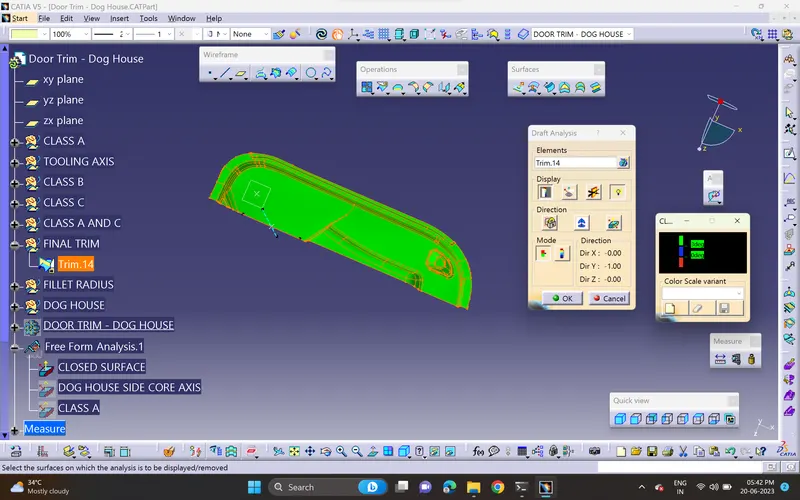

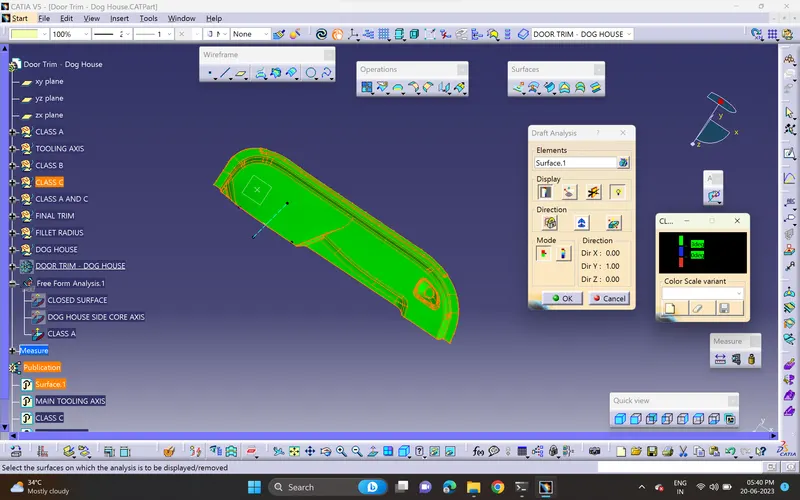

DRAFT ANALYSIS RESULT:- FOR THE DRAFT GO TO VIEW<CUSTOMIZED<MATERIAL<OK.NEXT GO TO TOOLS<ANALYSIS<FEATURE DRAFT ANALYSIS<OK.THEN IT SHOWS DIALOUGE BOX FIRST MAINELY DRAFT ON MAIN CMPONENT WHITH MAIN TOOLING AXIS (1.5 DEGREE) THEN CLICK ON COMPONENT IT SHOWS THE COLOUR MEANS COMPLETE GREEN COLOUR IS THE SIGN OF EJECTION OF COMPONENET IS SAFE IF THE COLOUR IS IN THE RED THE EJECTION OF COMPONENT MAYBE DMAGE AND ITS NOT WITH UNDER OUTSIDE DIRECTION AND NOT APPLIED PROPER DRAFT .

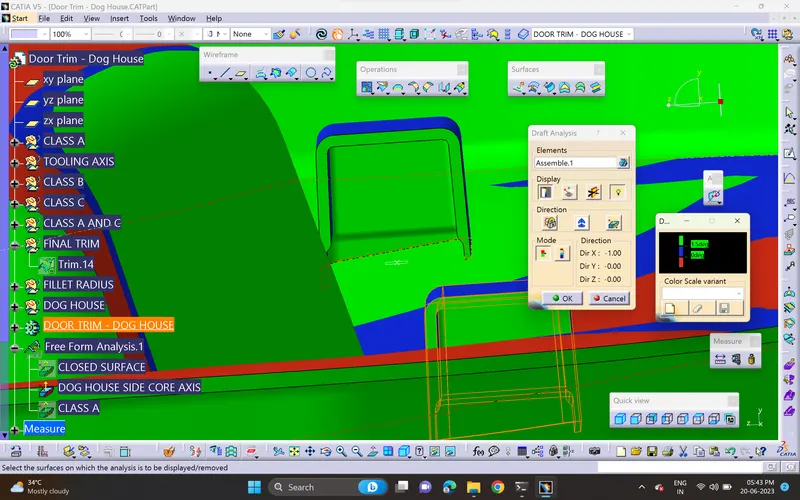

BUT IN THE DOG HOUSE THE OUTER WALLS GET DRAFT ANALYSIS BUT INSIDE OF THE DOGHOUSE WALLS ARE NOT ANALYSIED.TO MAKE ANALYSIS INSIDE OF DOGHOUSE WE HAVE TO PLACE THE COMPASS ON SIDE CORE AXIS (1.5 DEGREE )HAVE TO APPLY THEN ONLY IT ANALYSIS WITH DRAFT.

IN THE CORE AND CAVITY BLOCK SETS AN SIDE CORE BLOCK ALSO TO EJECT COMPONENT WITH CLEAR FINISHING.

RESULT:- AFTER COMPLETION OF DRAFT ANALYSIS THE COMPONENT IS SAFE AND HAVE THE PERFECT DIMENSIONS AND PROPER DEGREES.
