Week 9 - Challenge 1 - Base Bracket Design

Following Class A Surface have been given a proper draft surfaces Class B Surface and Class C Surface after a thorough Draft Analysis using a proper Tooling axis . Required Surfaces and axis are being Published using the Publication Tool.

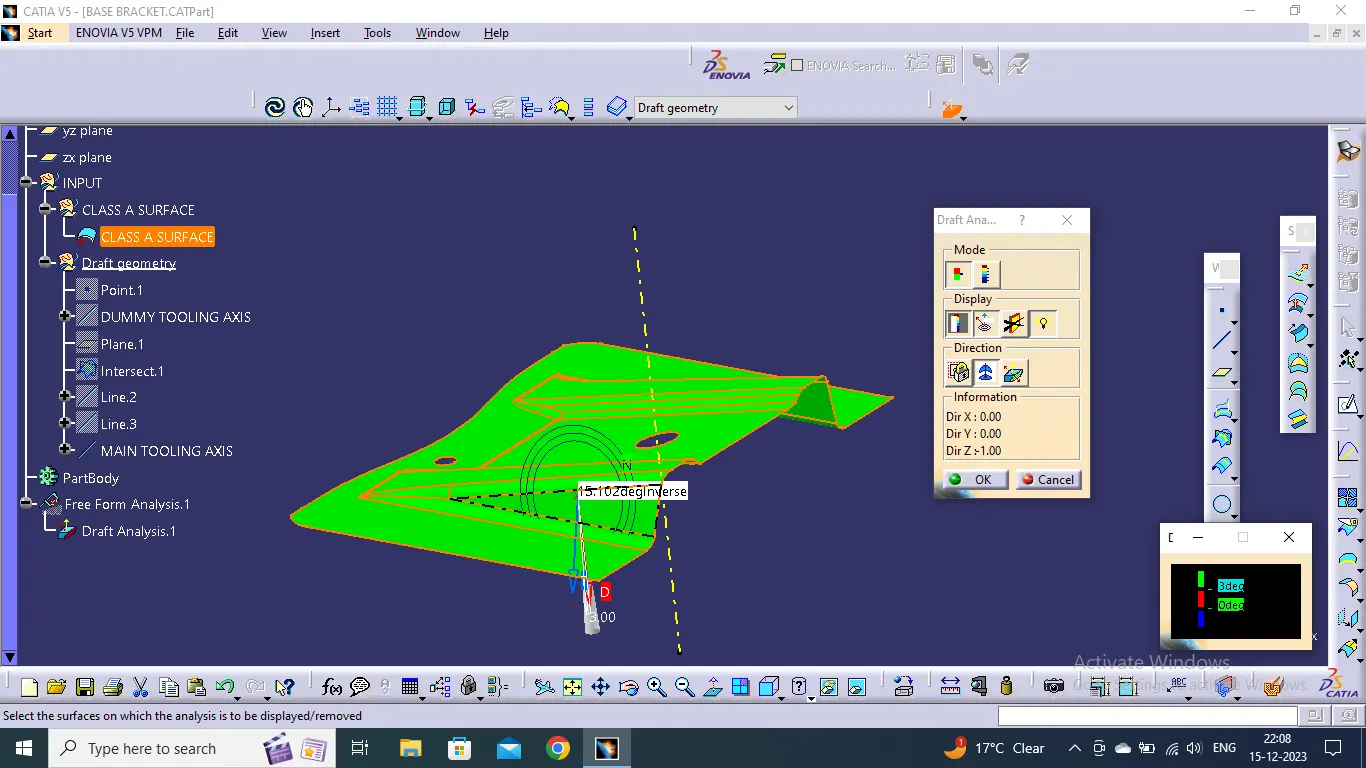

The result of Draft Analysis is as shown below:

The result was positive and satisfactory.

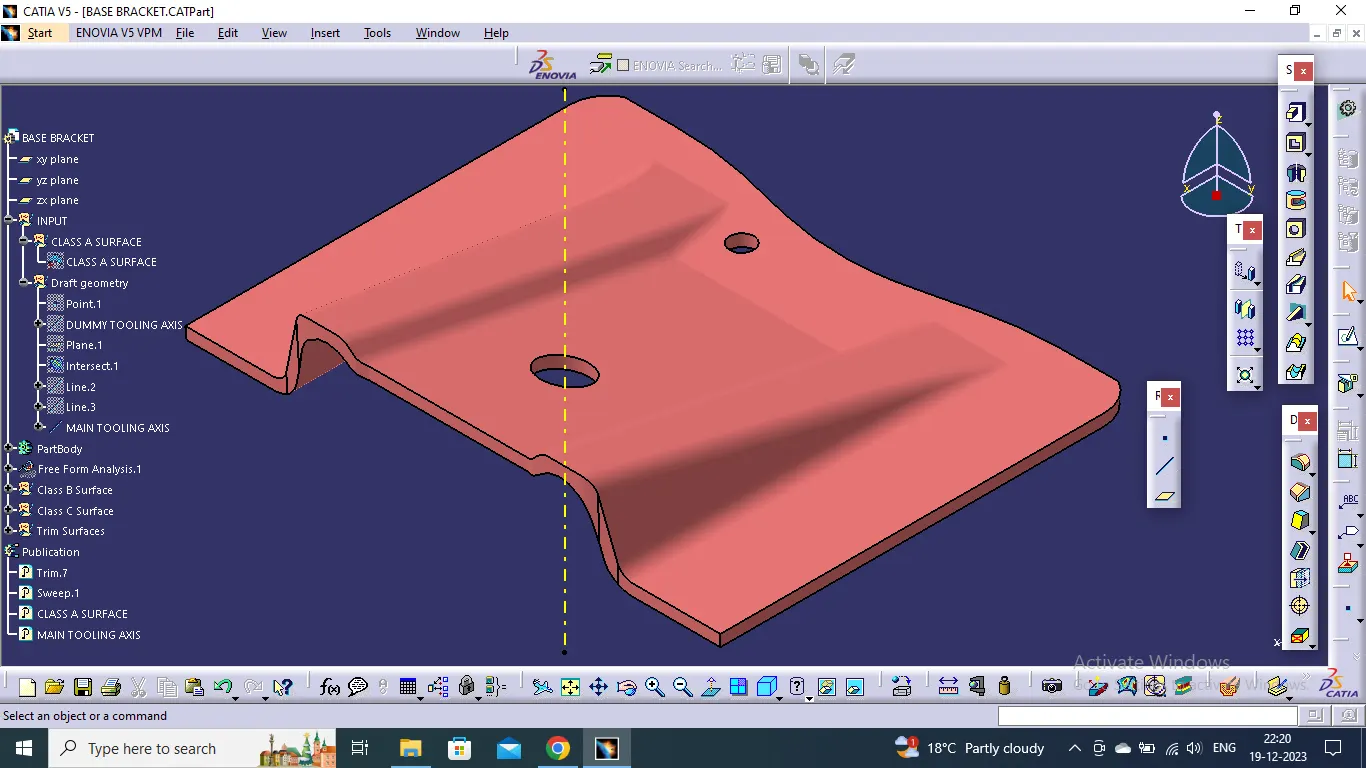

Next the tooling axis is indicated, using the same axis Draft Aalysis and Class C Surafce was able to be produced.

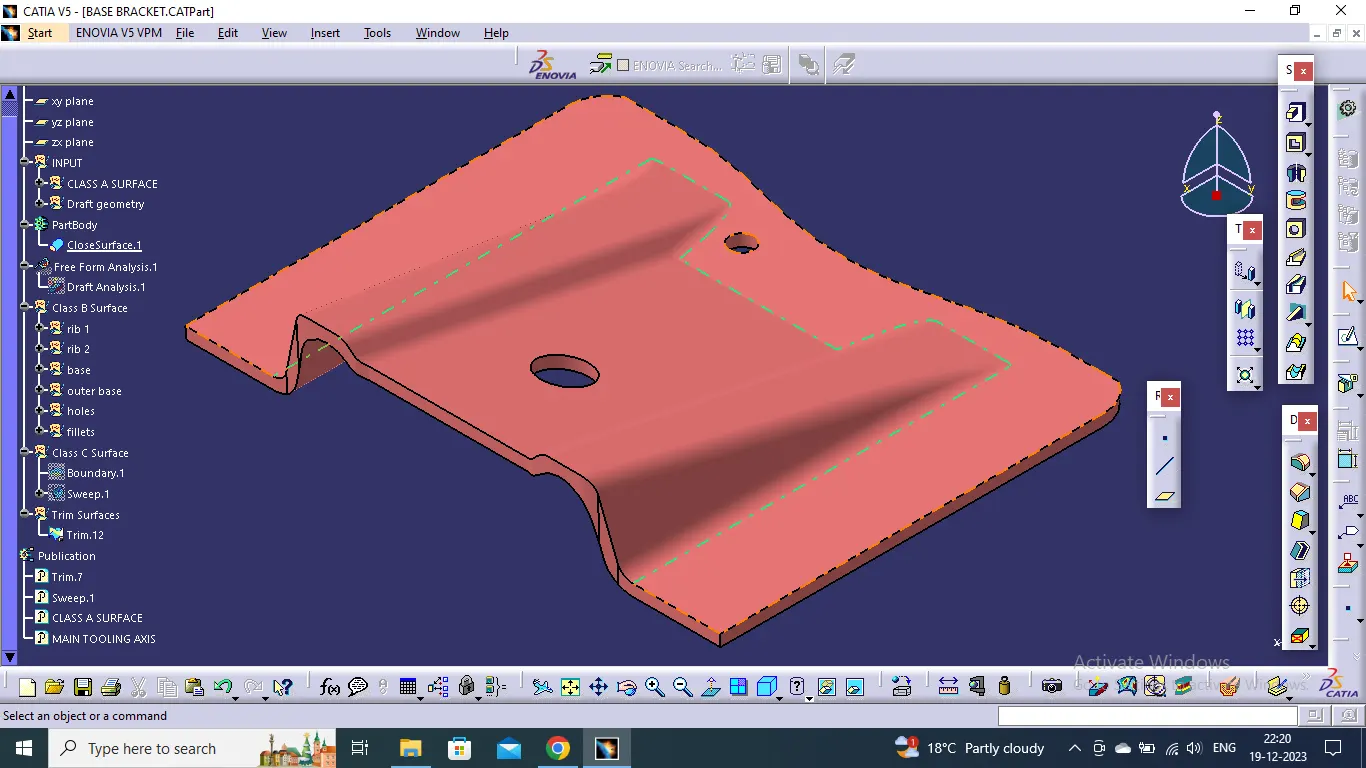

The combined surface then is converted to a part body using close body command.

Concerned CATIA Part File ( Base Bracket) have been attached below with screenshots .
