Week 9 - Challenge 1 - Base Bracket Design

OBJECTIVE

To create the Base Bracket Plastic component from given input Class-A surface. Tooling axis for the given input Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis for the final model.

INTRODUCTION

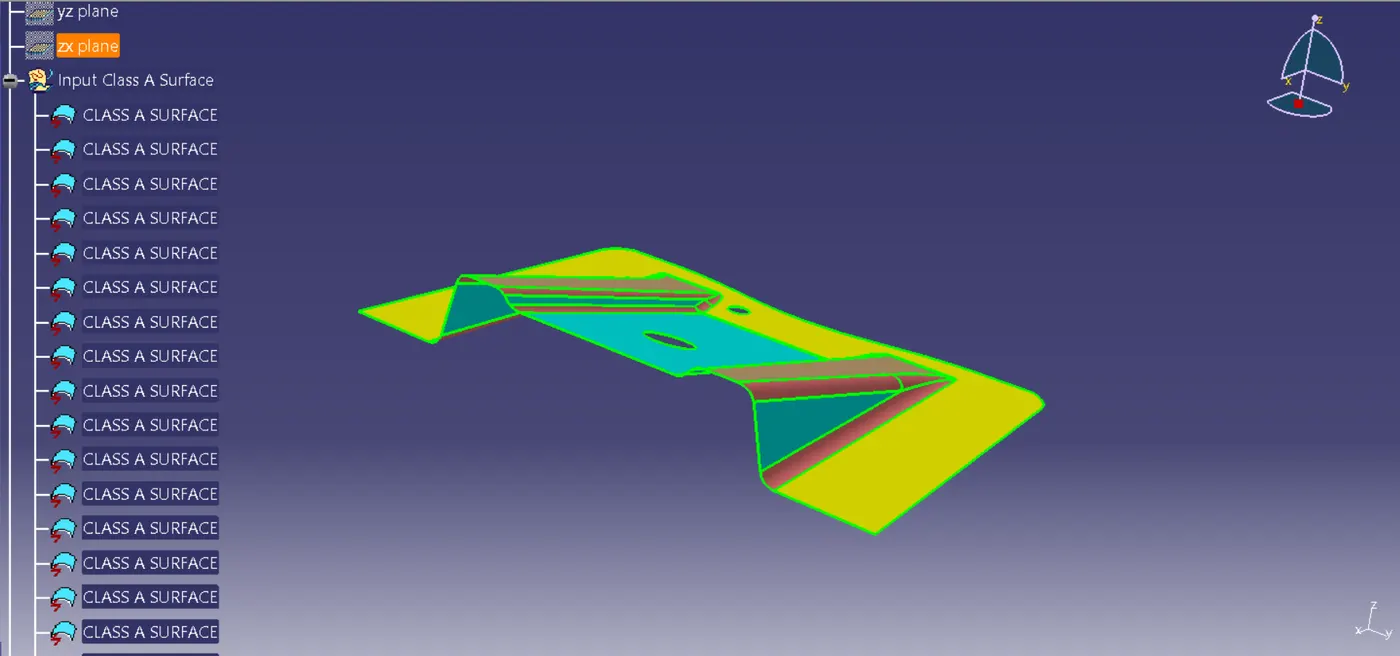

Given input Class A Surface



Tooling Direction or Axis

The Tooling Axis is the direction in which the mold pulls apart from the casting. As the mold is constructed in two independent sections; Core and Cavity. The Tooling Axis is formed when the Core separates from the Cavity. Also the ejection of the part from the mold is determined by the draft angle. A zero draft might cause shrinking, which could lead to difficult or no ejection. Hence for all plastic component manufacturability, the draft angle is given 3 degrees.

Steps involved in creating Tooling axis:

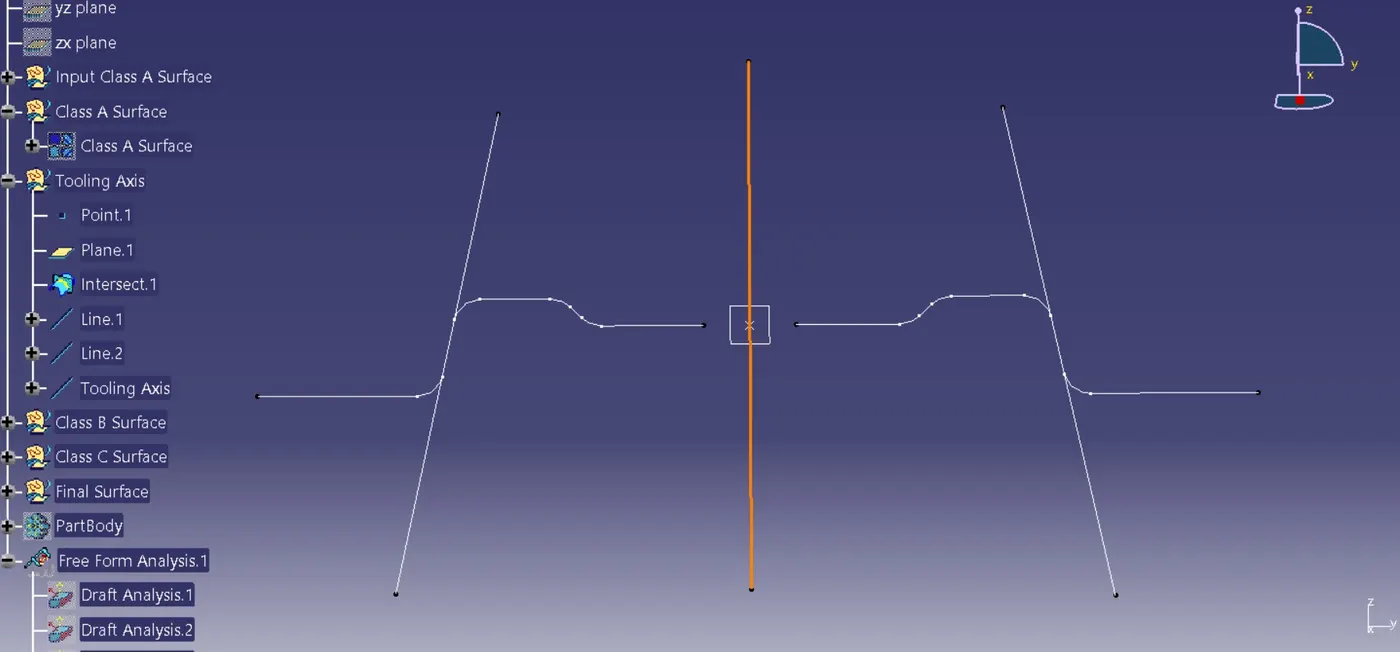

1. Create a point on Class A Surface. Here for the base bracket design, create a point at the centre of circular hole.

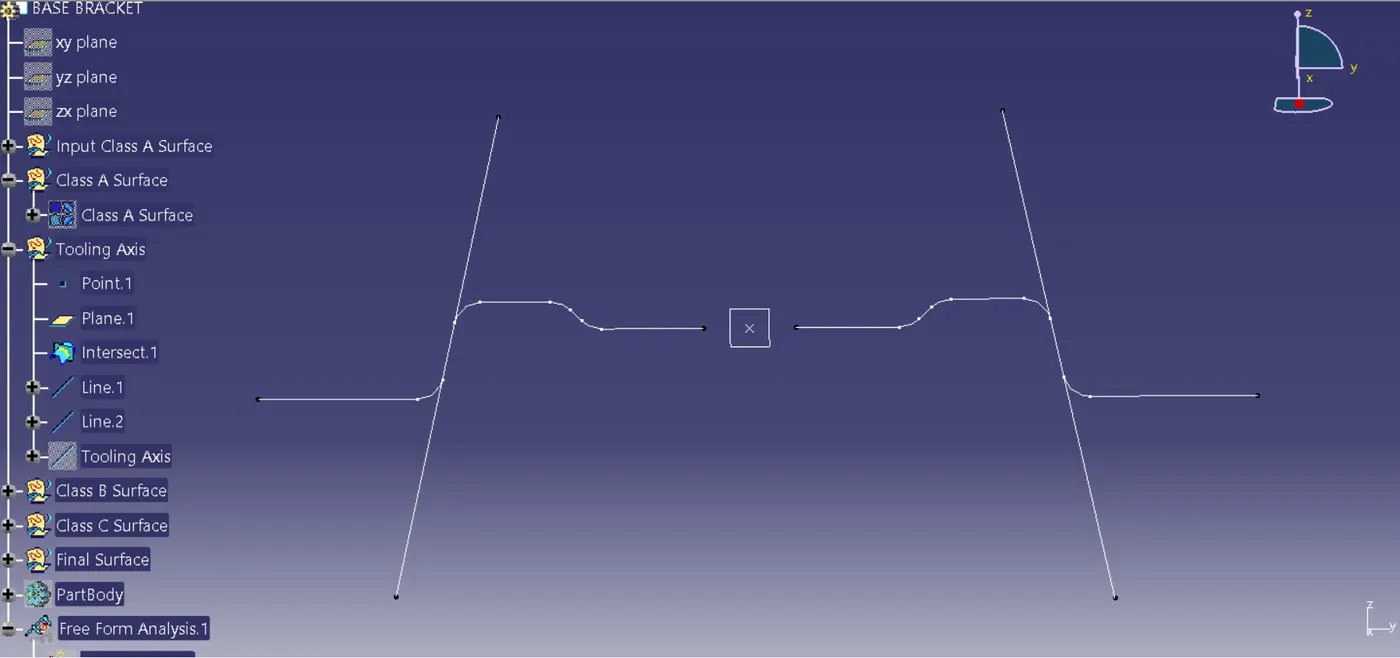

2. Create a YZ Plane and create an intersection between the Class A Surface and Plane.

3. Create two lines using the points on curve using Point-Point command.

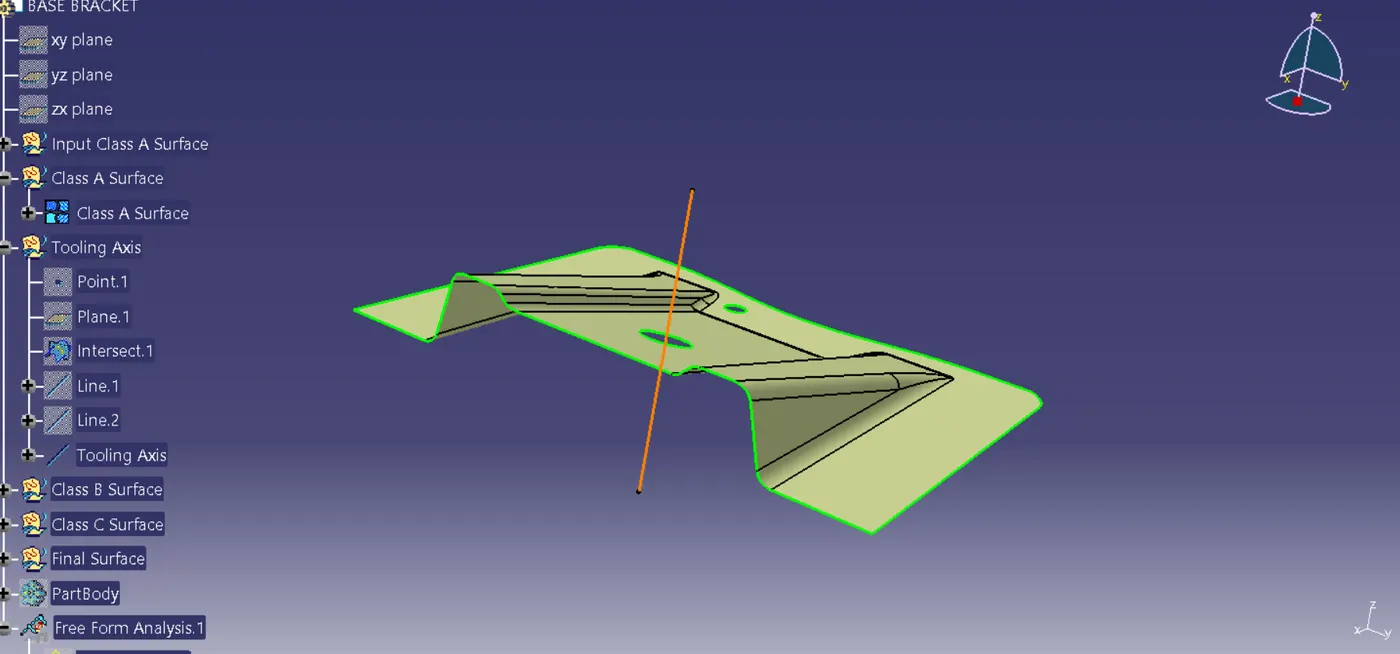

4. Choose bisecting command in Line to create the Tooling axis with the two line created on curve and Point 1.



Draft Analysis

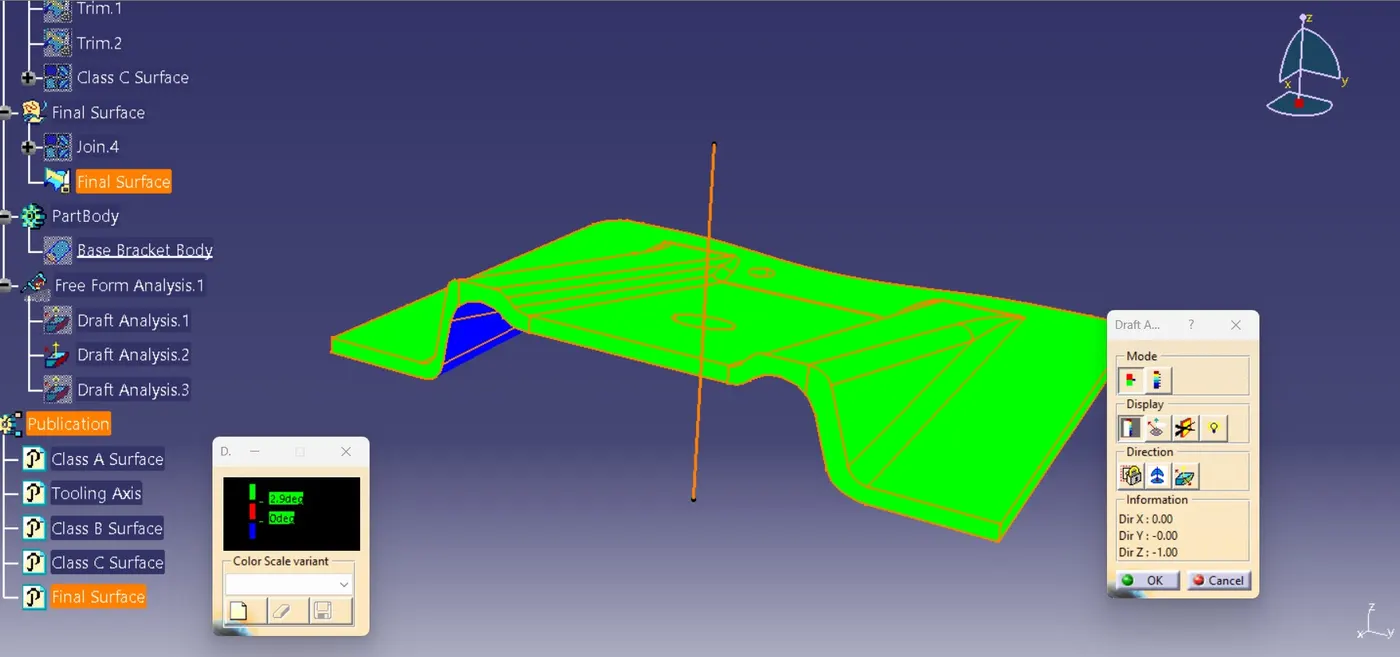

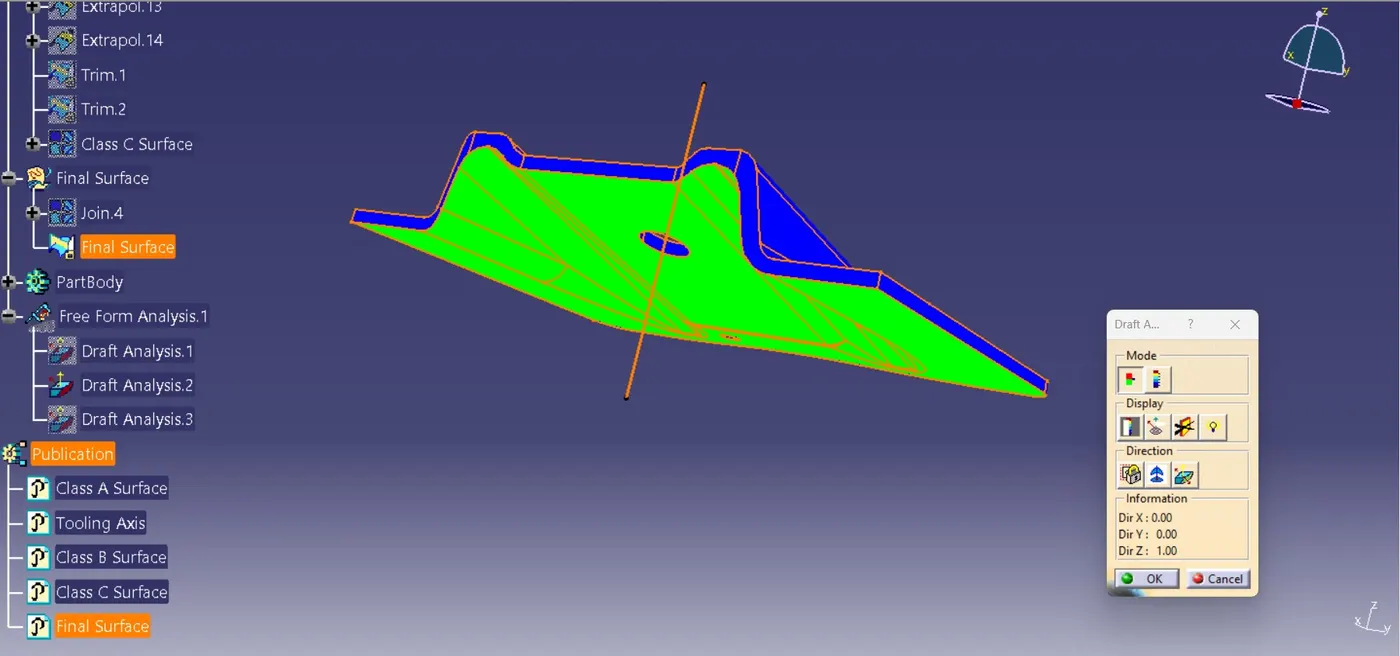

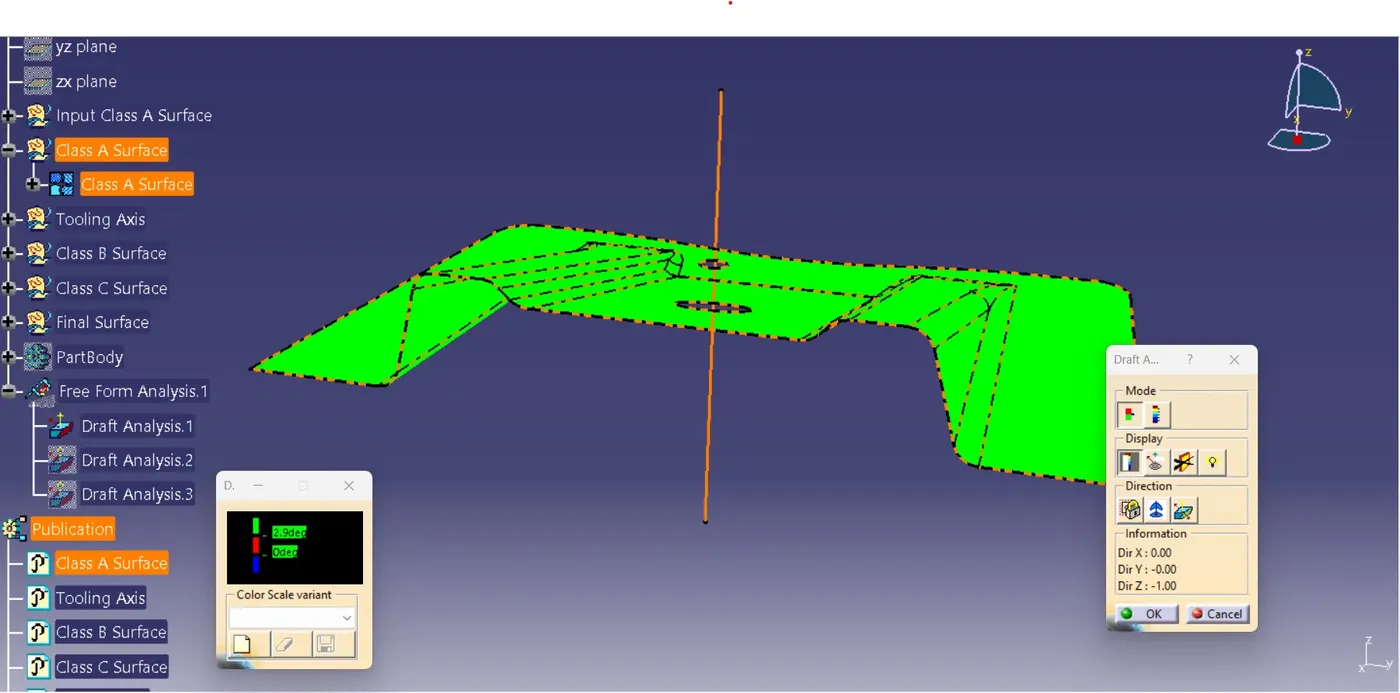

Choosing the class A surface perform Feature Draft Analysis with respect to Tooling Axis. Green colour indicates the surface can be manufactured using core and cavity method.

DESIGN METHODOLOGY

Commands used in creating the model:

• Join
• Intersect
• Point
• Line
• Extract
• Surface Untrim

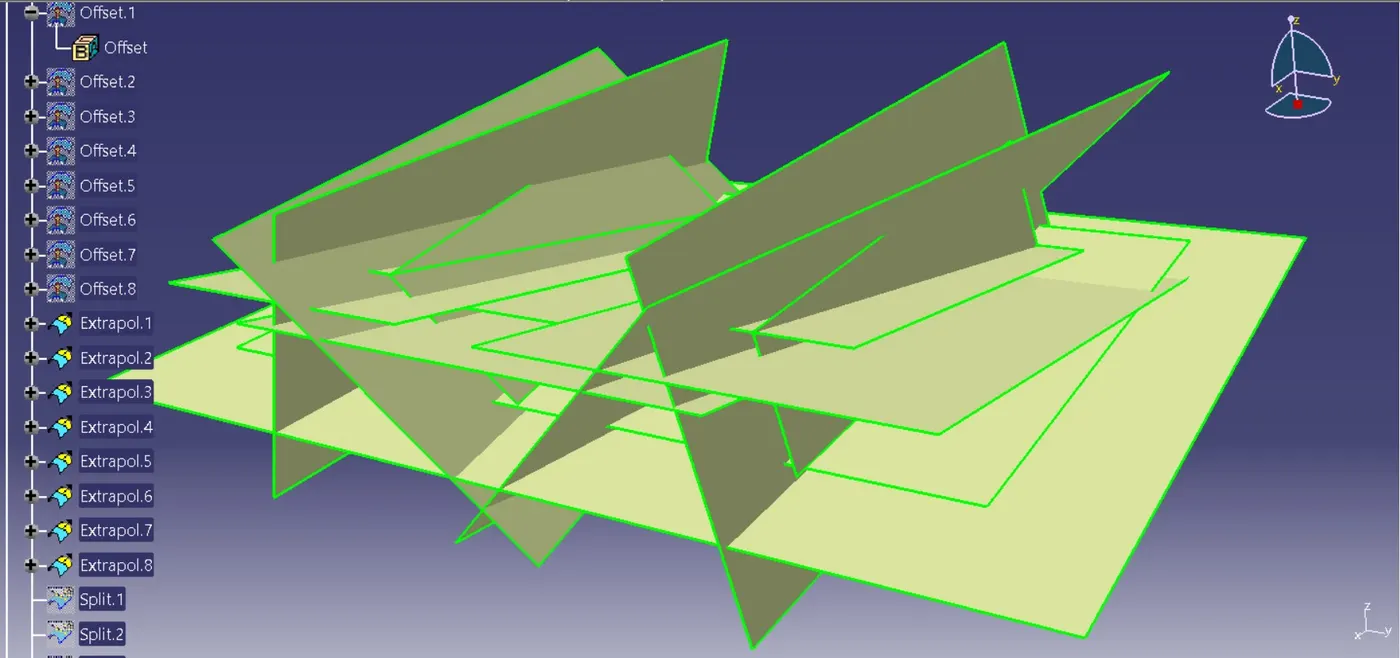

• Offset
• Extrapolate
• Boundary
• Split
• Trim
• Curve Smooth
• Sweep

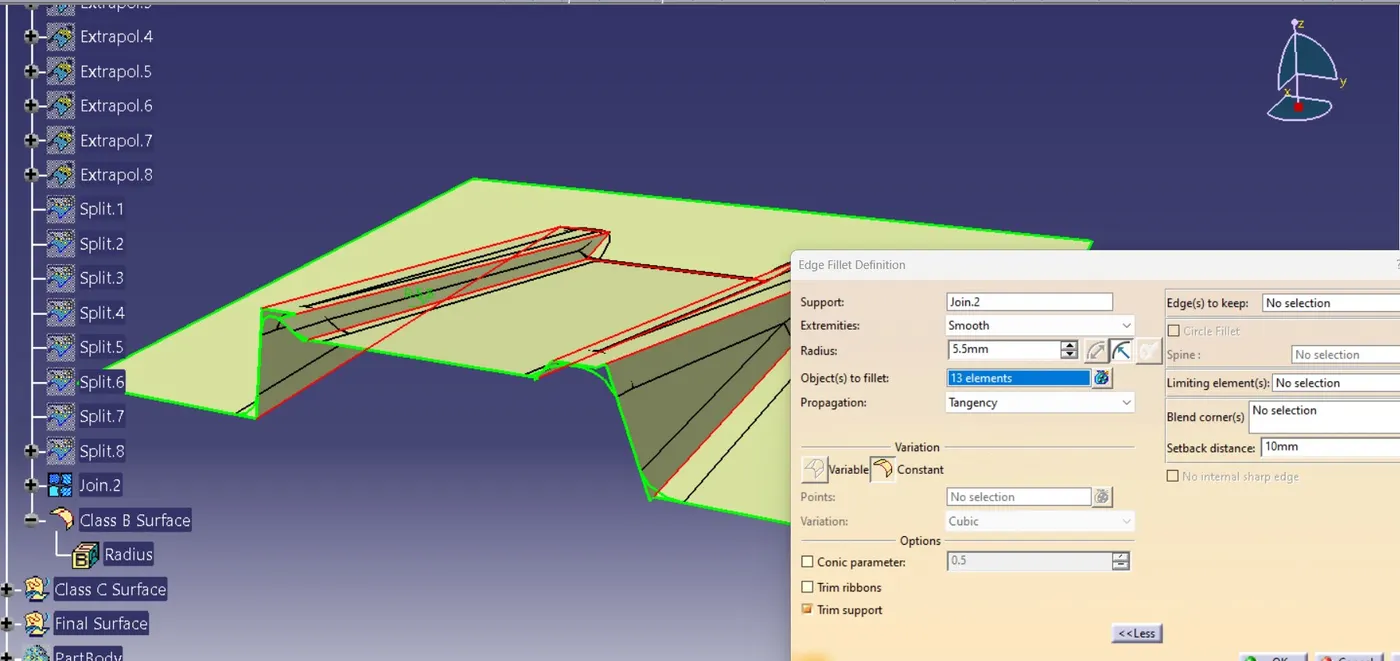

• Edge Fillet

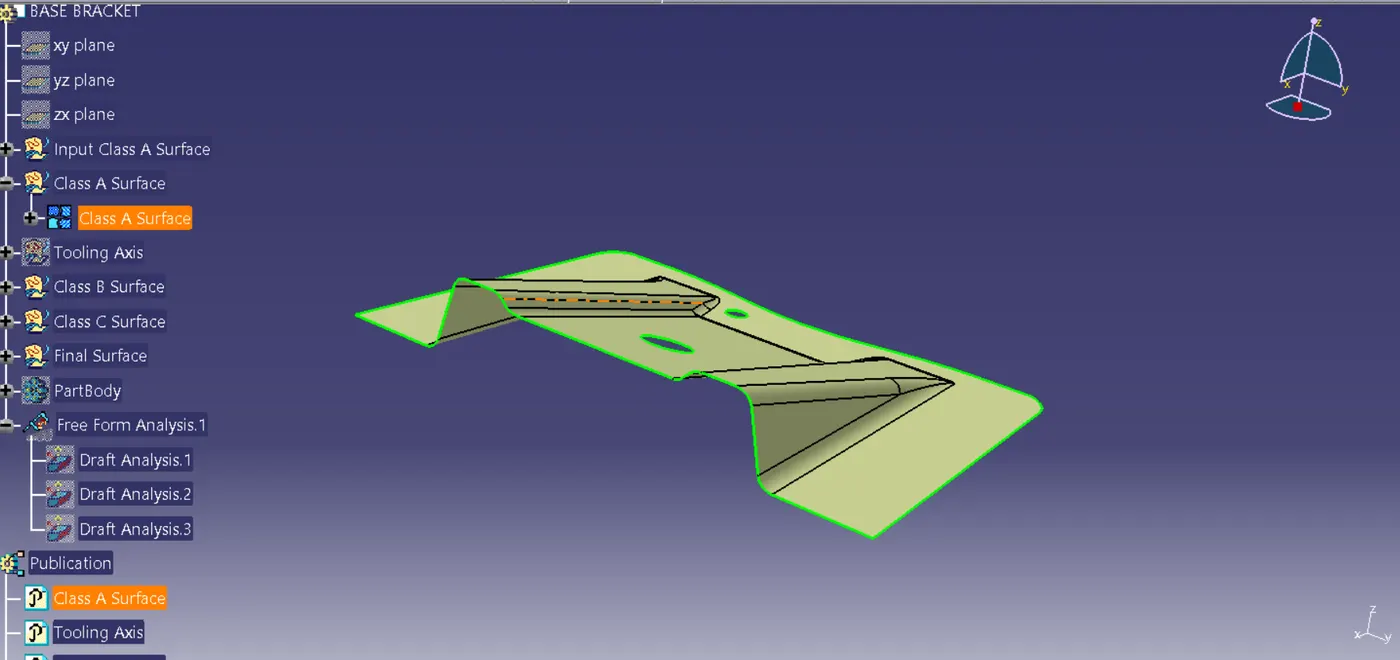

Class A Surface

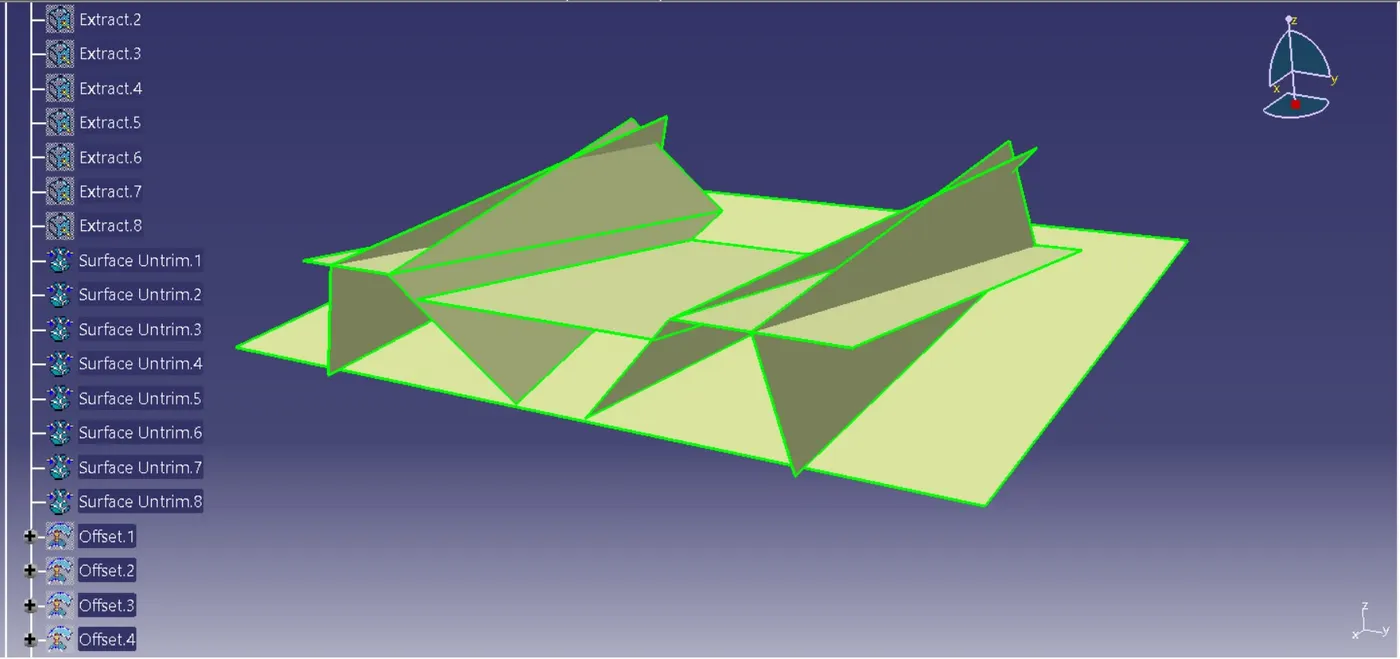

Class A surface is the aesthetic part of the model, which is already created by design engineer as input Class A Surface. Class B Surface is then created by offseting the Class A Surface according to the thickness of the part.

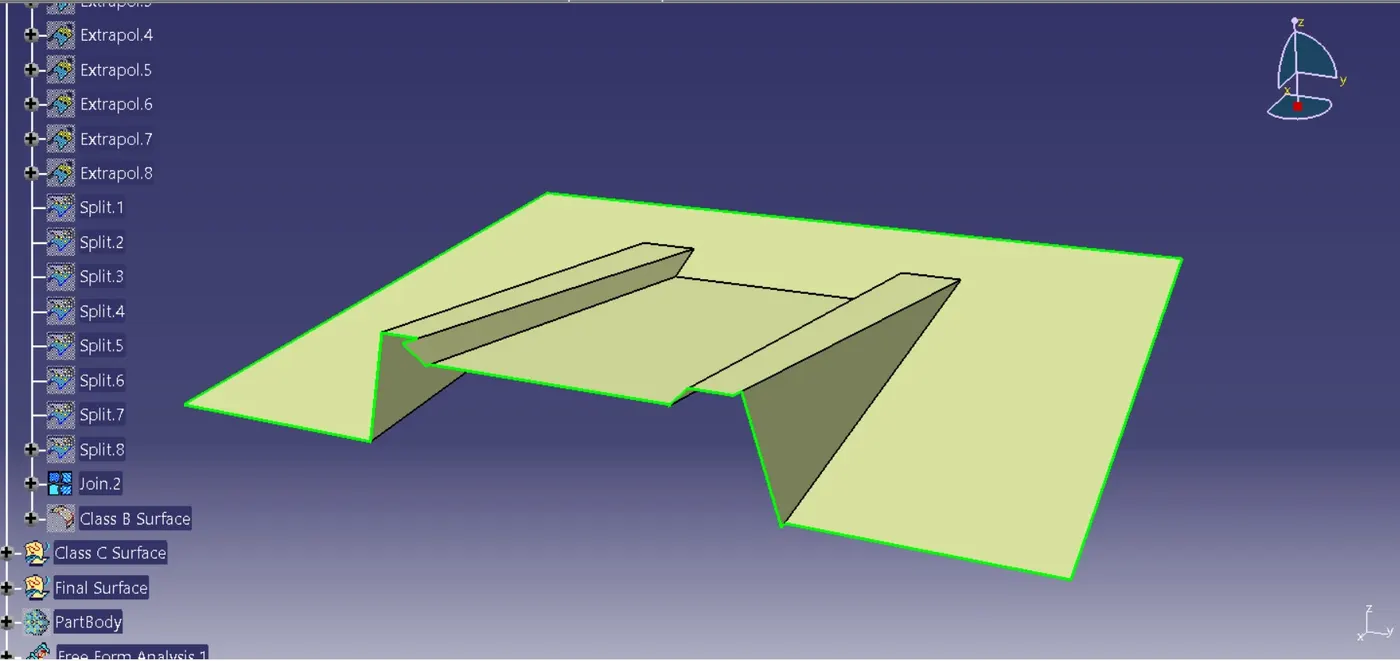

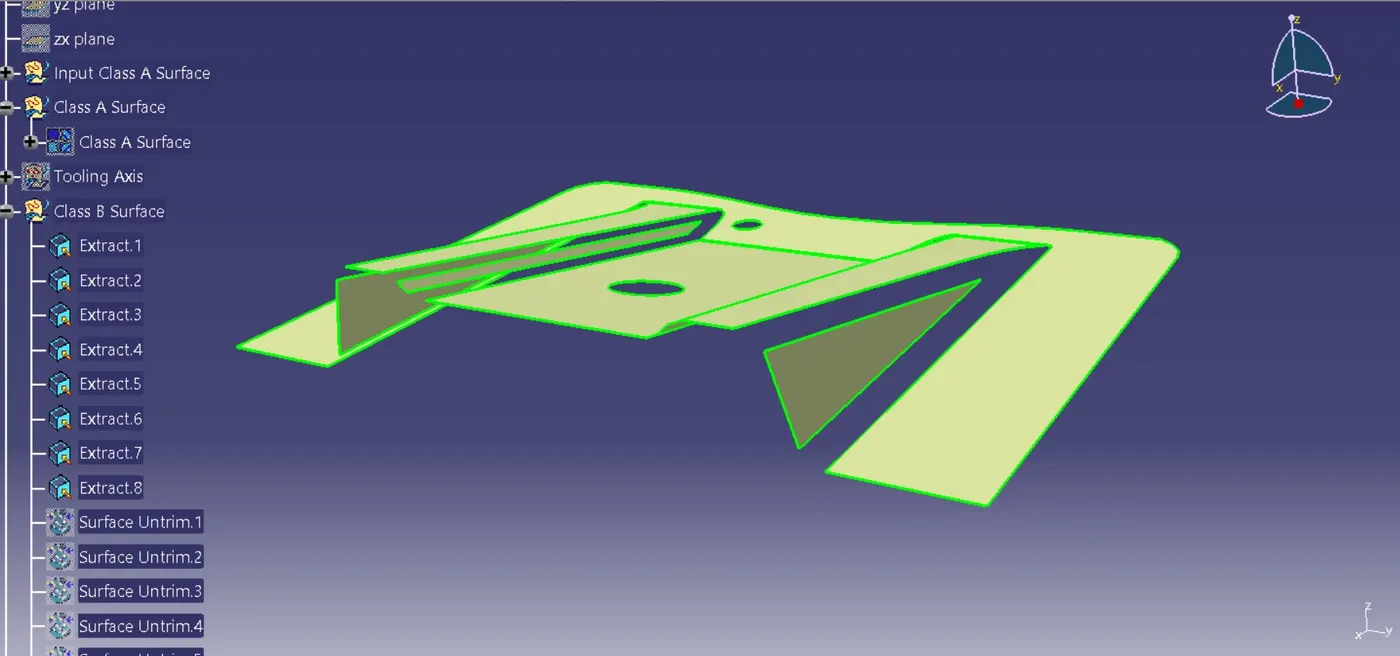

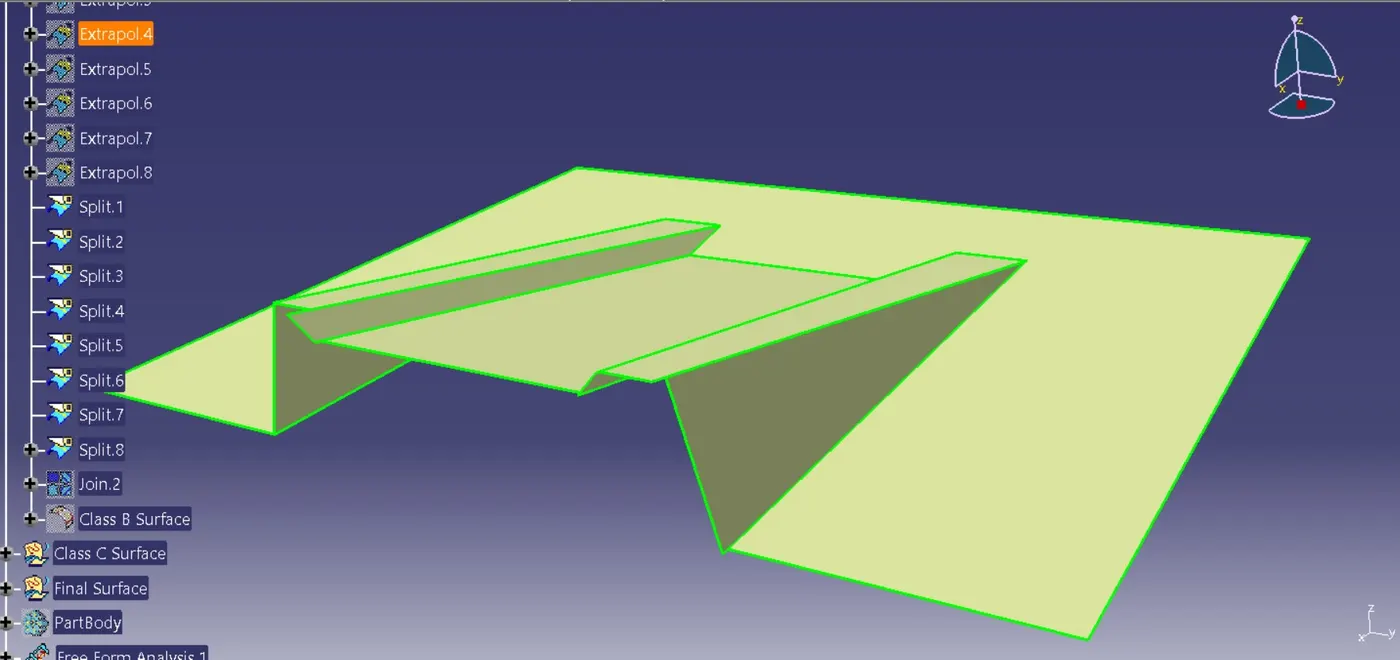

Class B Surface

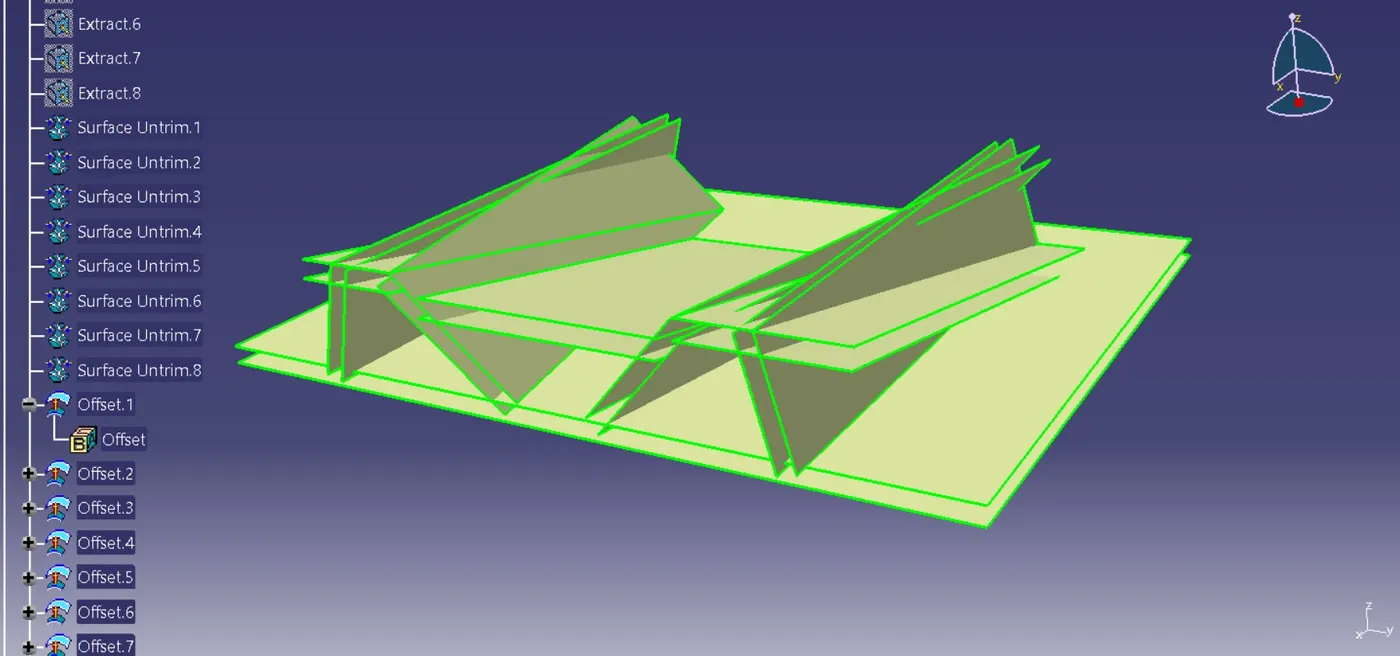

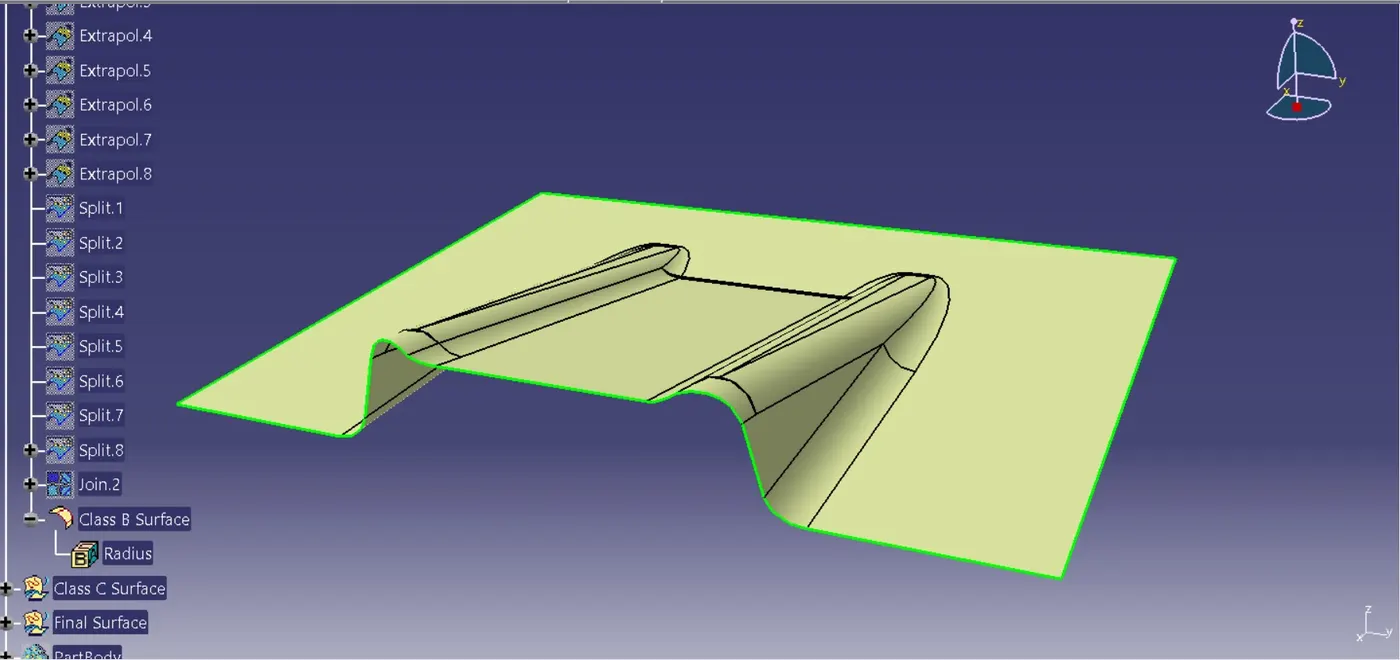

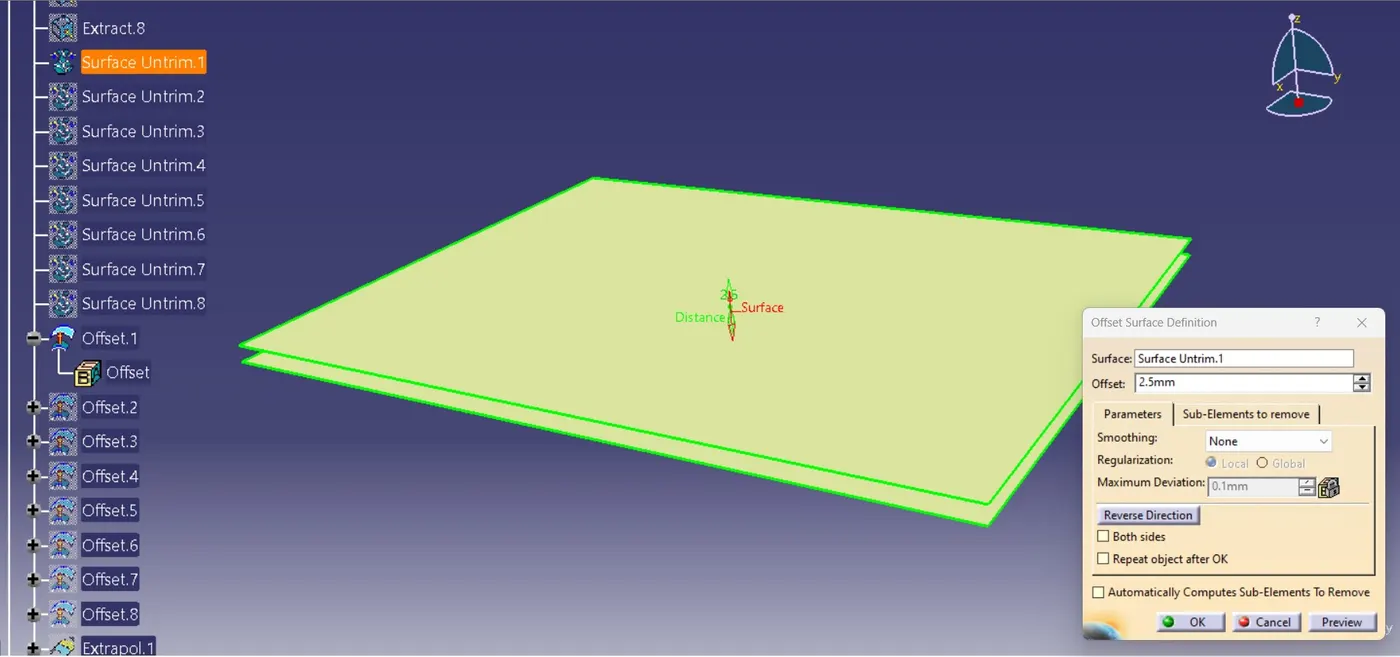

Class B Surface is created by offseting the Class A Surface according to the thickness of the part. Here in this model 2.5mm thickness is taken.

Class C Surface

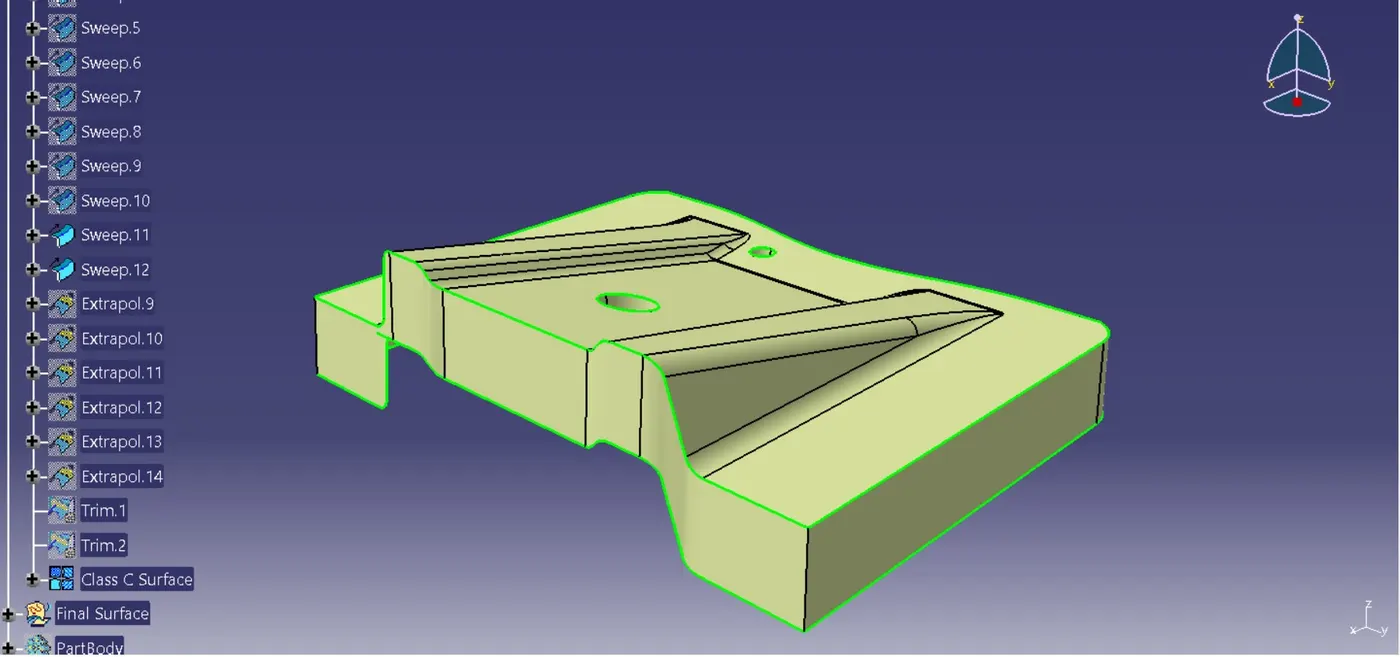

Class C Surface is the joining surface between Class A Surface and Class B Surface to obtain the plastic model.

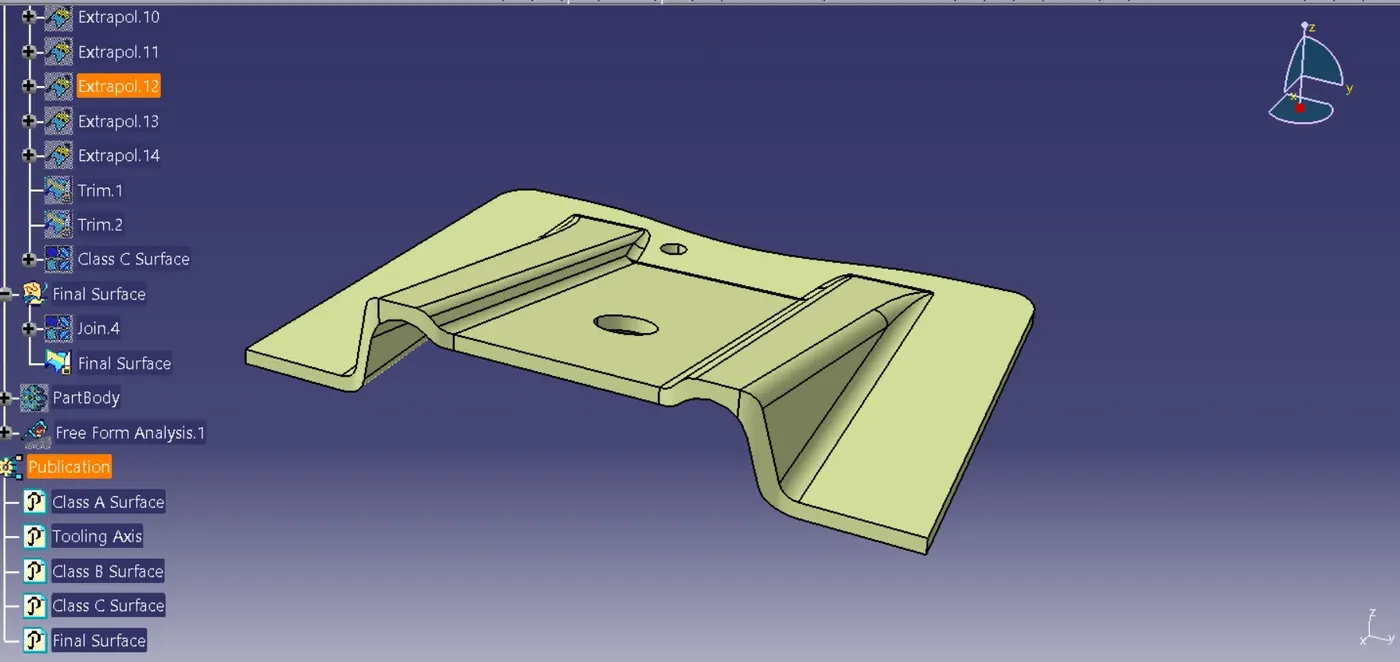

Final Surface

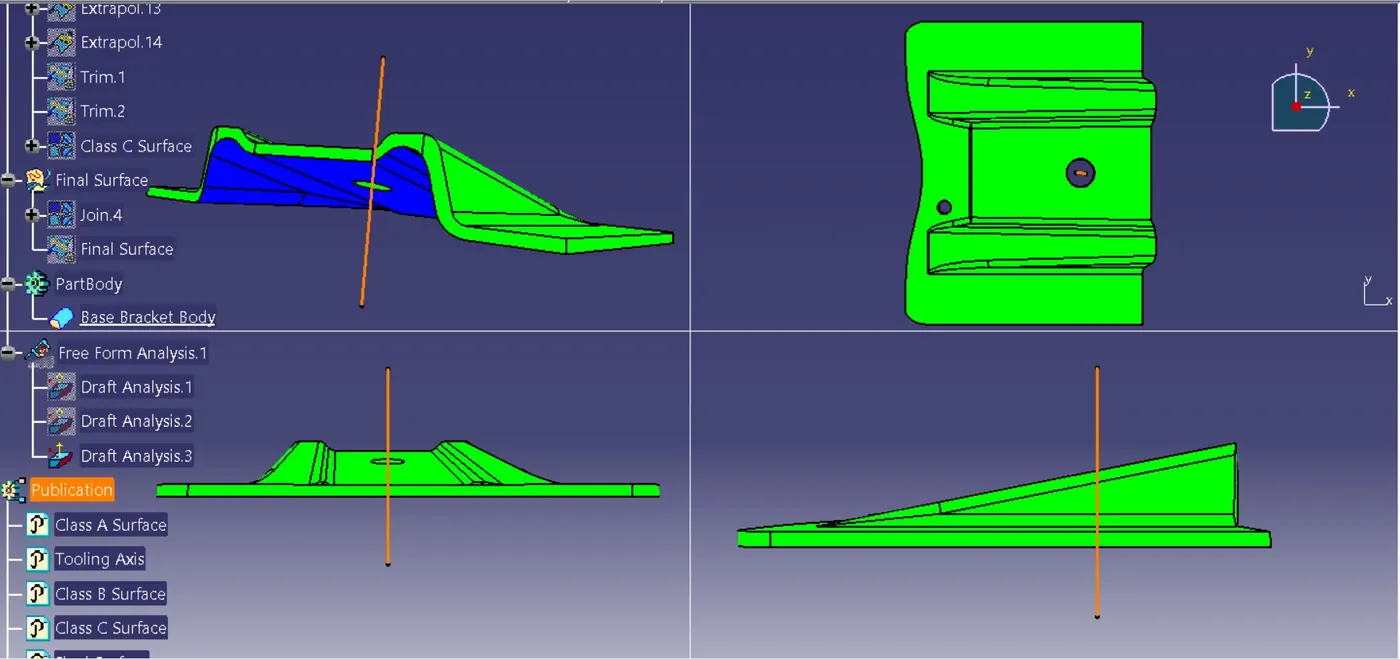

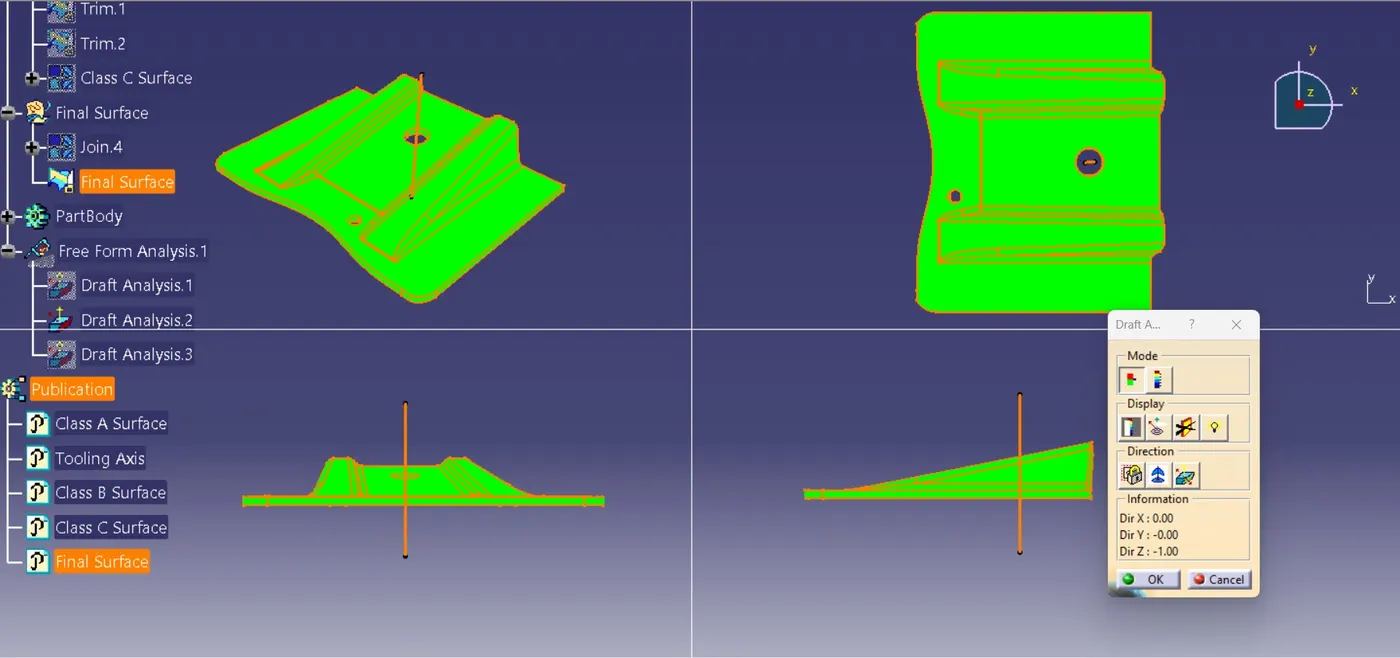

Final Model and Draft Analysis

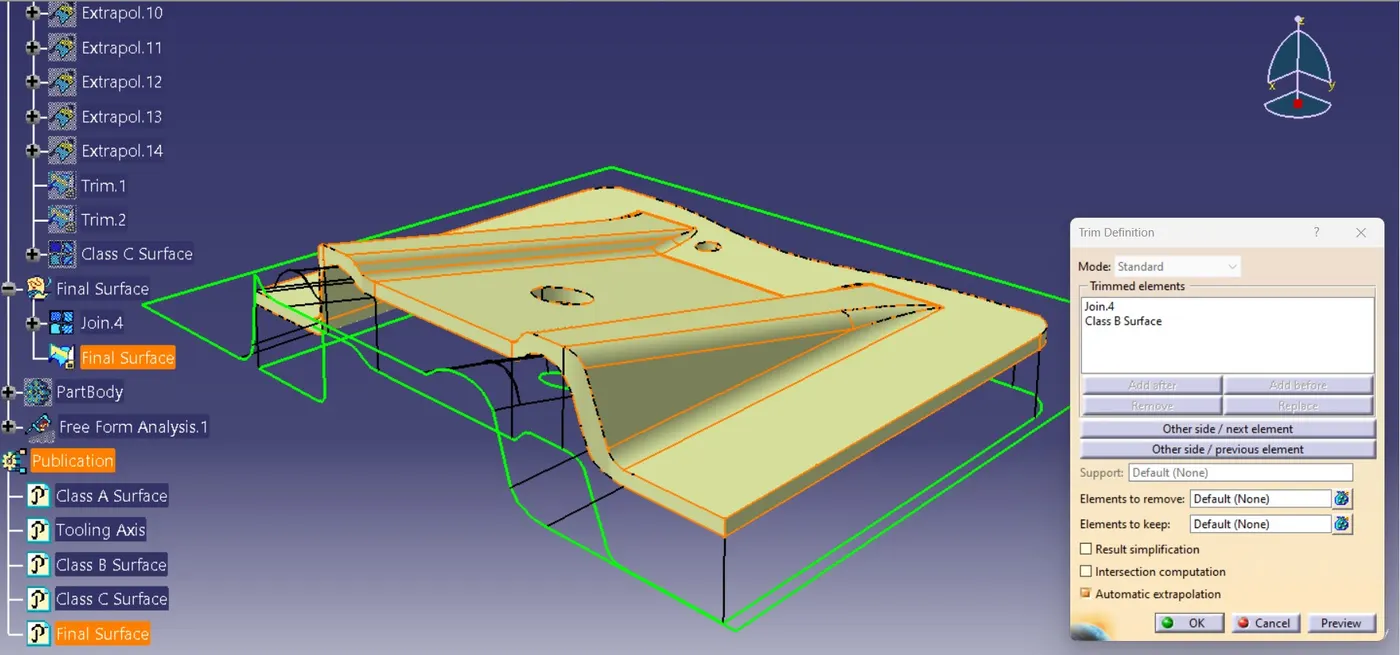

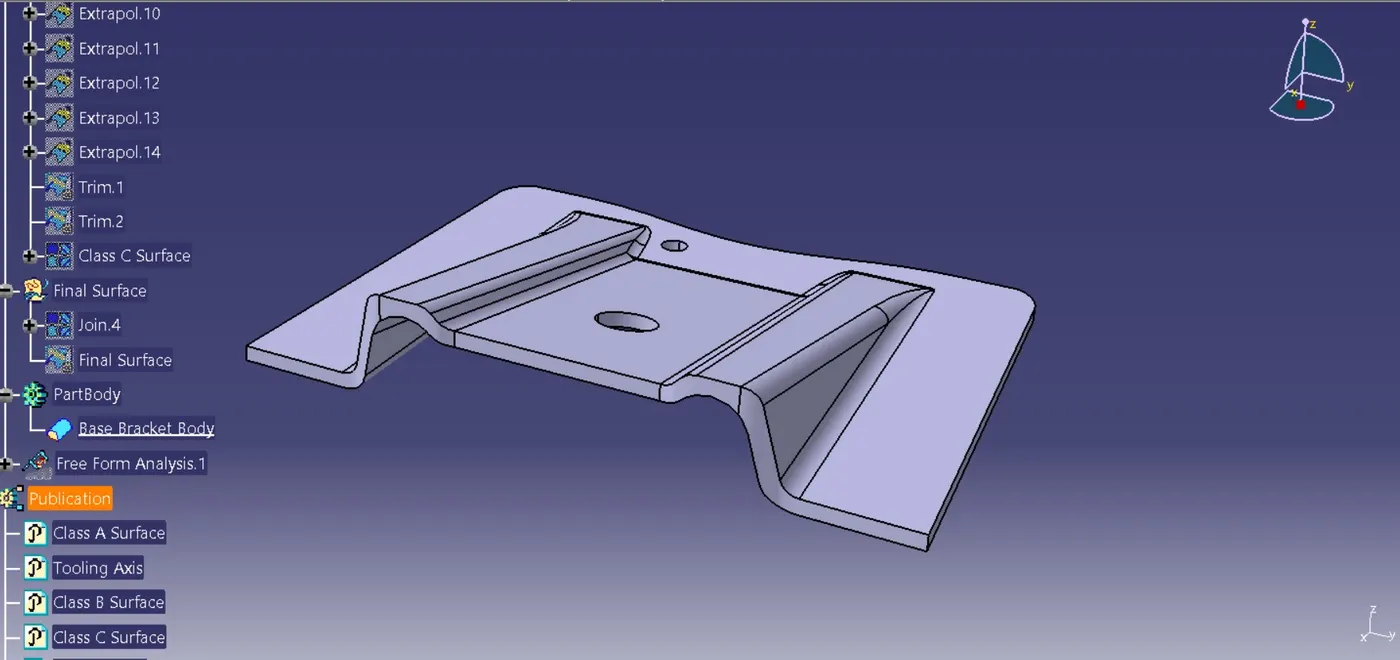

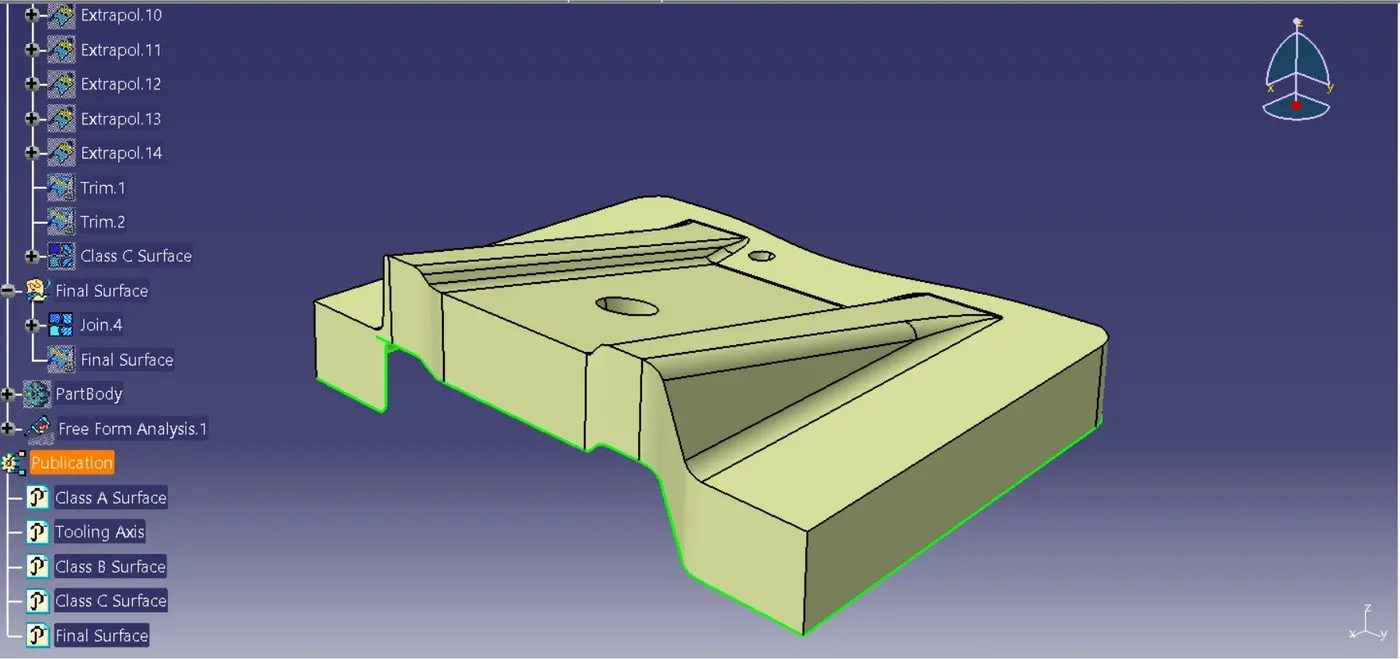

Final model is obtain by using Close Surface command from Surface based feature.

CONCLUSION

From the given input Class A Surface, created Class A Surface, Class B Surface and Class C Surface using CATIA. Solid model of the part model was obtained and performed draft analysis on both Class A Surface and final Surface clearing the required draft angle. Publications for Class A Surface, Tooling Axis, Class B Surface, Class C Surface and Final surface was also created using Publication Tool.
