Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

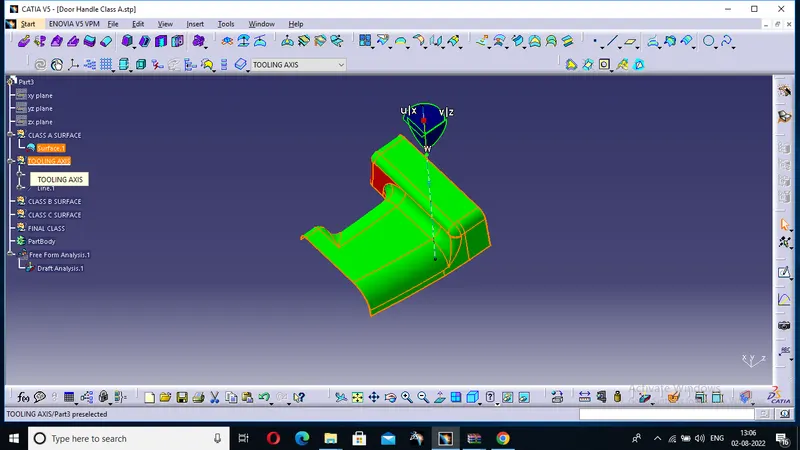

THIS IS OUR GIVEN CLASS A SURFACE WE WILL MAKE THE TOOLING AXIS AND TAKE DRAFT ANALYSIS

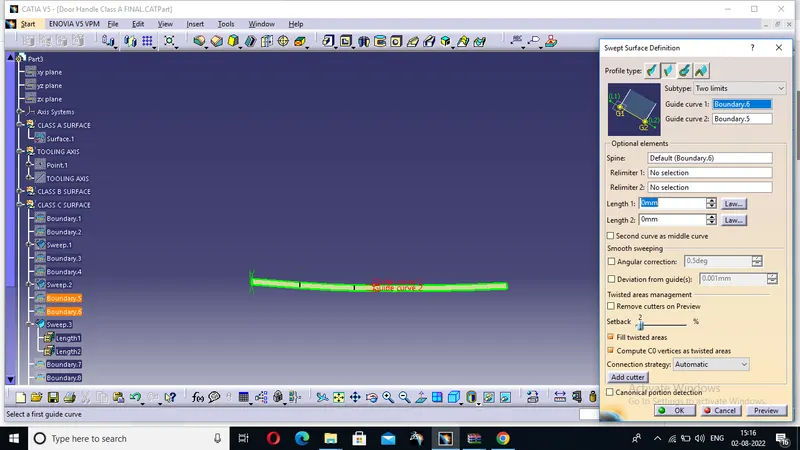

THEN WE WILL OFFSET OUR CLASS A THEN WE WILL GET OUR CLASS B THEN WE WILL DO MULTISECTION TO FILL THE PATCHES THEN ,

HERE WE HAVE OUR CLASS C SURFACE WITH RELATION TO CLASS A SURFACE

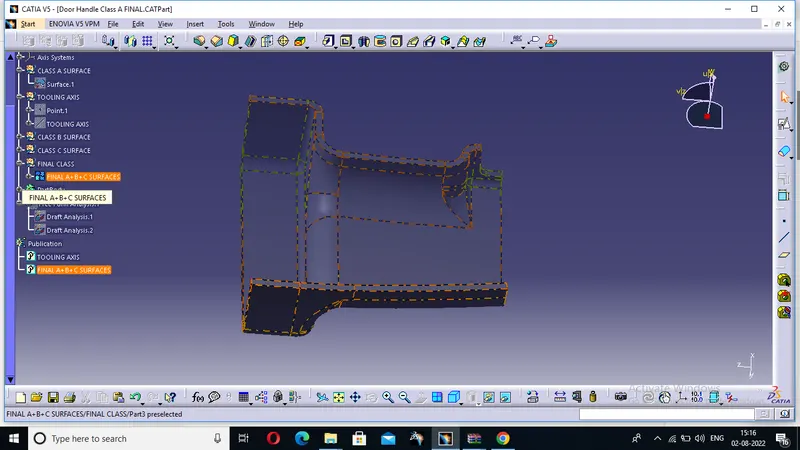

THIS IS OUR FINAL CLASS A+B+C SURFACE JOINED TOGETHER ,

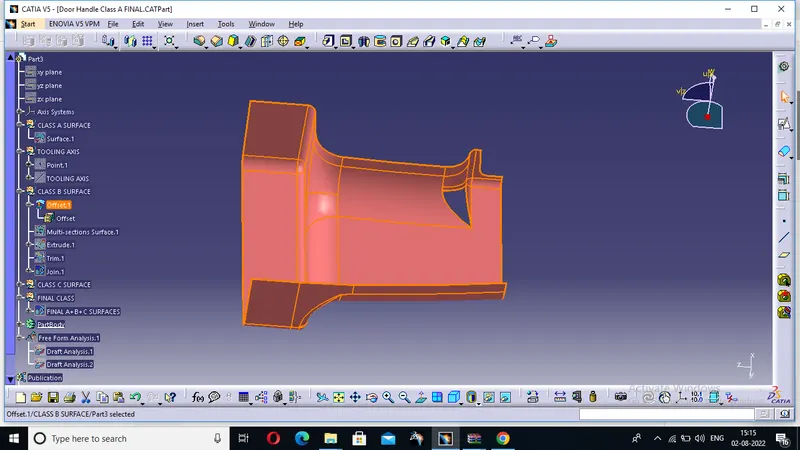

THIS IS OUR FINAL SOLID FORM THE CLASS A,B AND C SURFACE

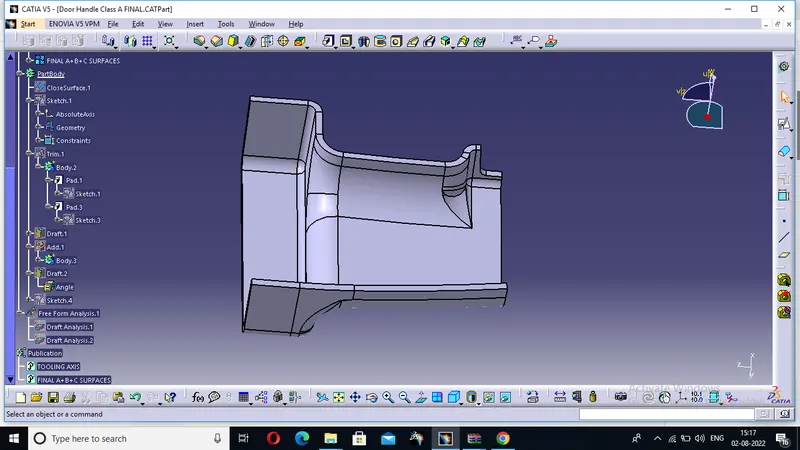

HERE WE WILL DO THE PADDING SO THAT PAD IS REFERENCE TO THE TOOLING AXIS DENOTED BY LINE . 1

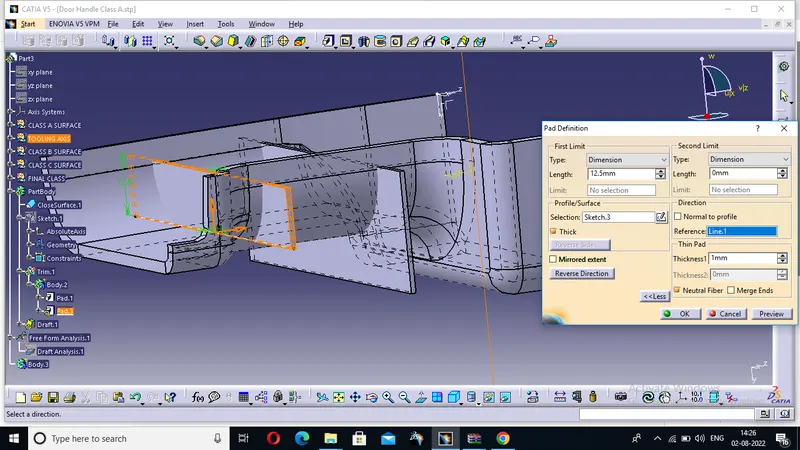

THE IMPORTANT THING IS THAT OUR A AND B SURFACE THICKNESS IS 2.5 THE HEIGHT OF THE WALL IS 5 TIMES TO THE THICKNESS OF A AND B SURFACE SO WE TOOK 2.5MM * 5MM= 12.5MM WITH THE WALL OF 1MM THICKNESS

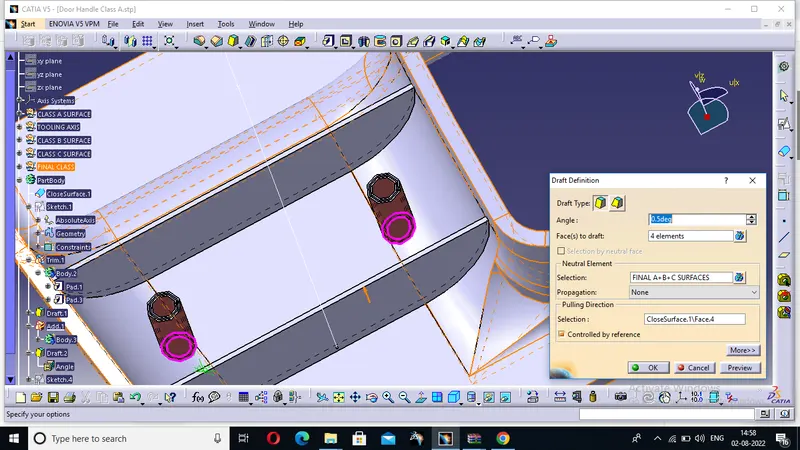

SAME THING WE WILL USE PAD OPTION TO MAKE SCREW BOSS WITH DRAFT ANGLE OF 0.5 AS SAME WE DID WITH RIBS

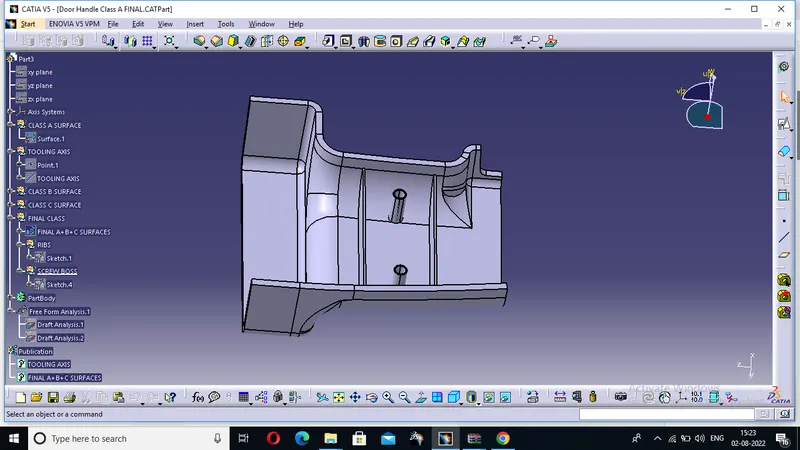

THIS IS OUR FINAL MODEL OF DOOR HANDLE WHICH SHOUS ALL THE FEATURES GIVEN IN OUR TASK OF THE QUESTION.
