Week 8 - Challenge 3 - Coin Holder Design

WE FORM SURFACE B AND C WITH THE REFERENCE TO CLASS A SURFACE THE EXICUTION ARE AS FOLLOWS :-

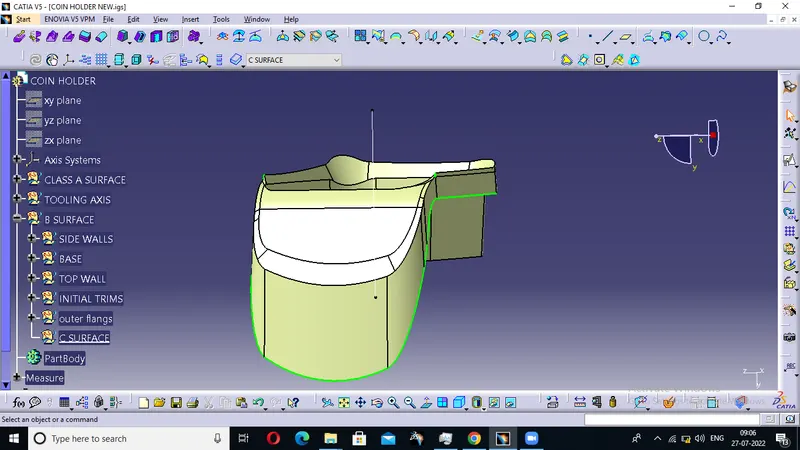

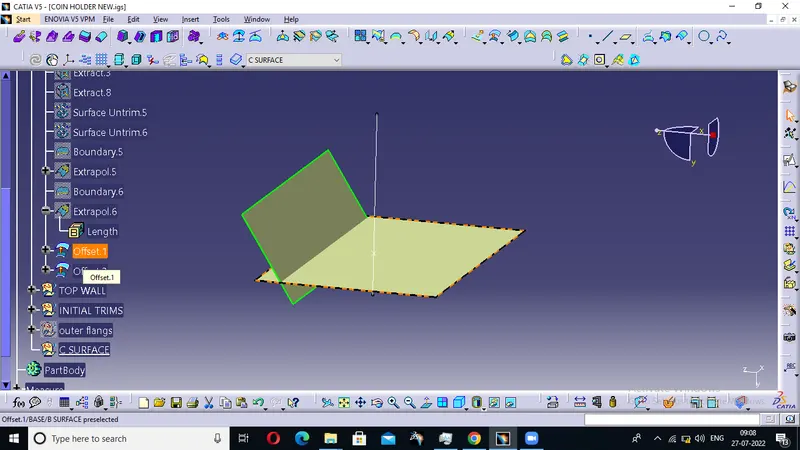

THE B SURFACE IS HAVING A TREE WITH BASE

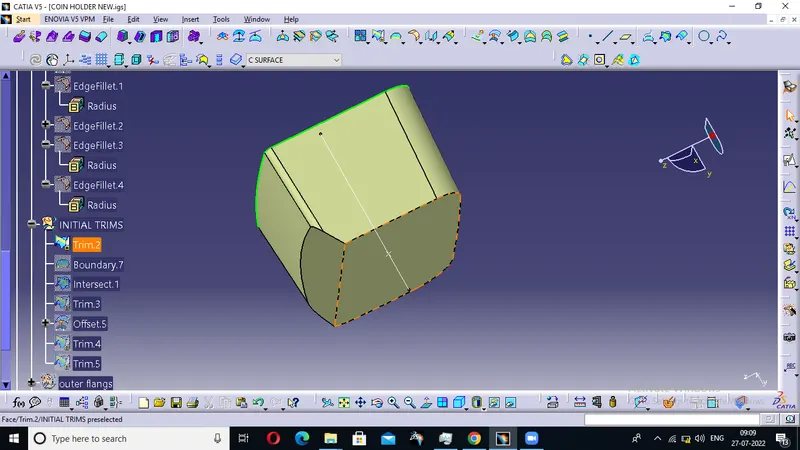

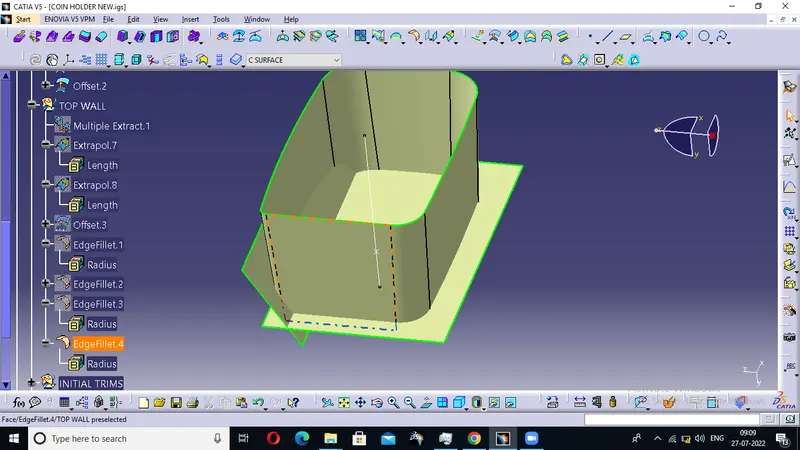

WE CUT THE SIDE WALLS WITH BASE

HERE IS THE RESULT

NOW WE ADD THE LID OR THE TOP SURFACE WITH REFERENCE TO CLASS A SURFACE

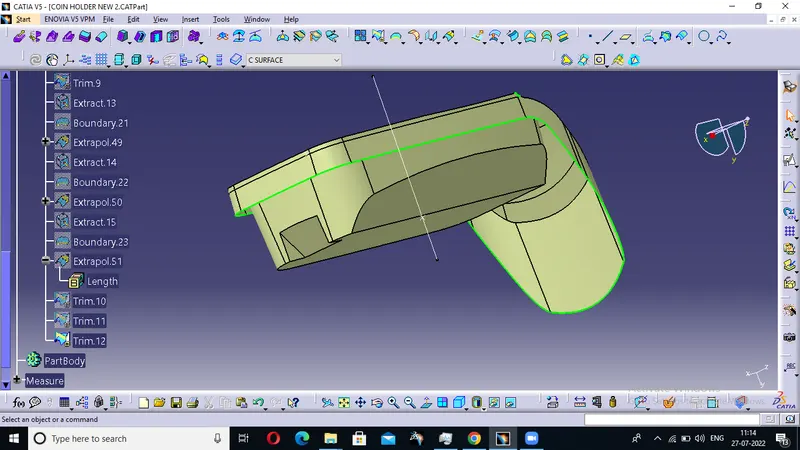

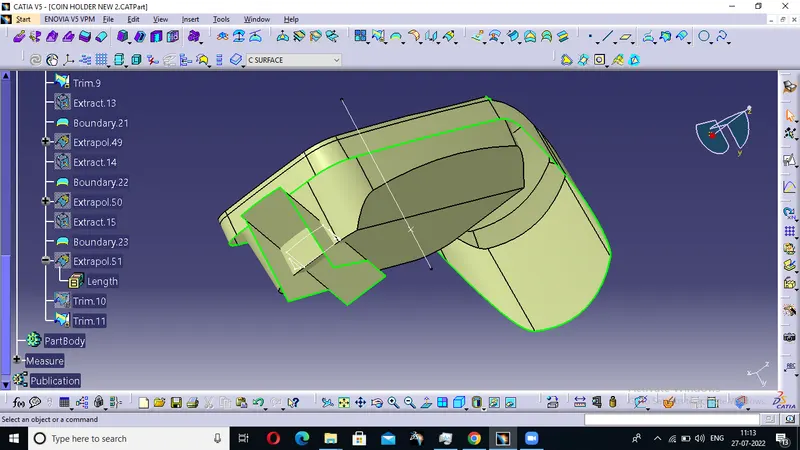

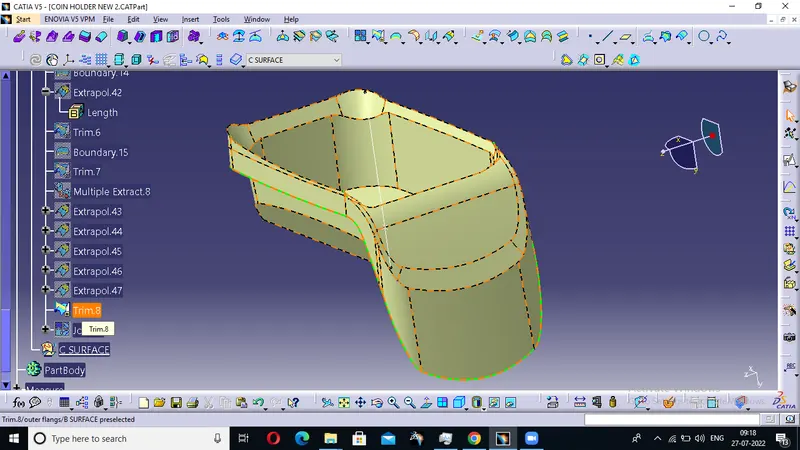

NOW WE JOIN THE CLASS B ELEMENTS LIKE TOP WALL SIDE WALL AND LID AS GIVEN IN THE TREE

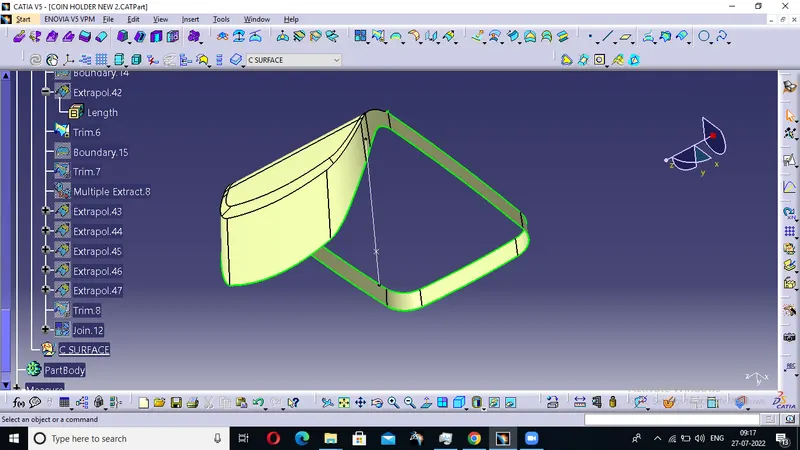

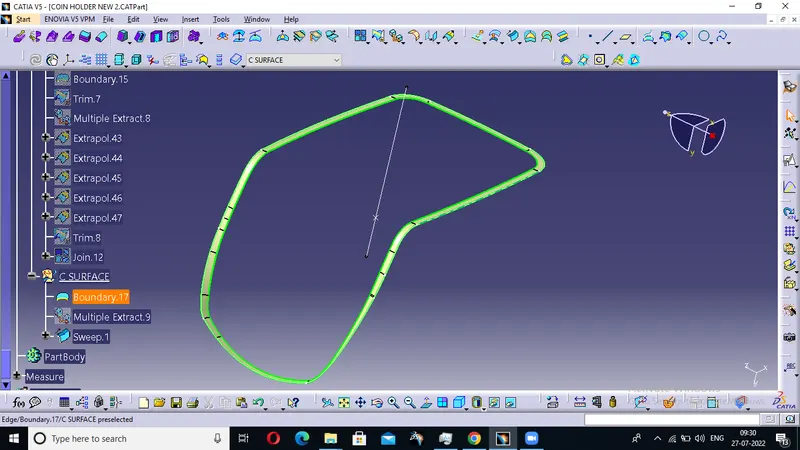

AS WE FORM B SURFACE TO JOIN WITH A SURFACE WE CREATE CLASS C SURFACE

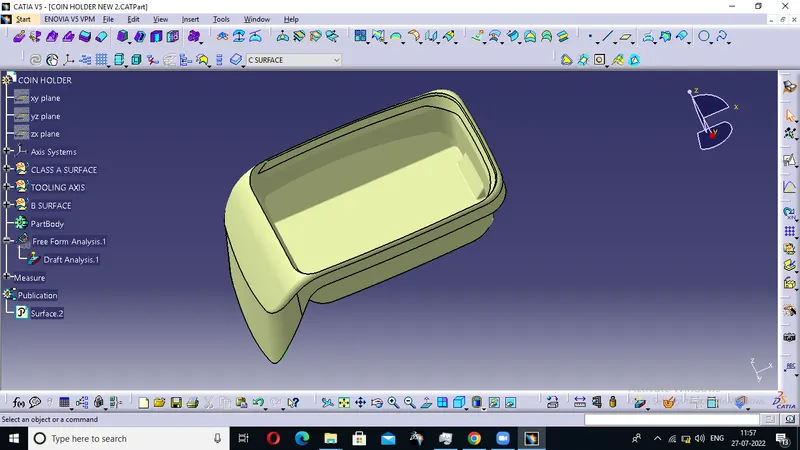

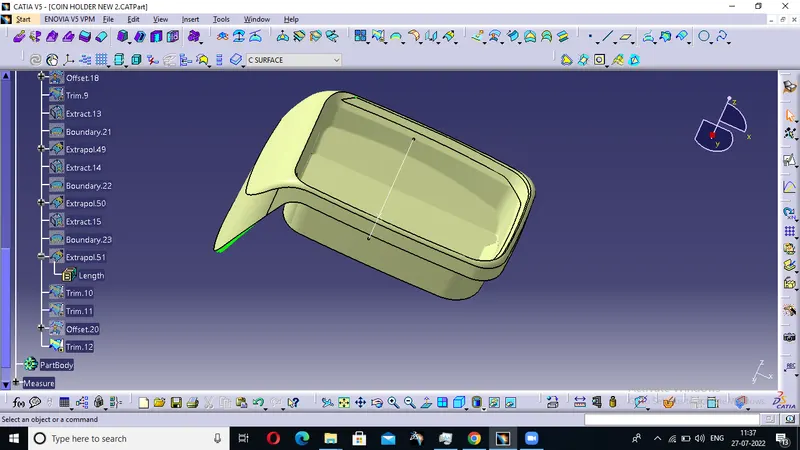

NOW AS YOU CAN SEE WE OBTAIN THE FINAL IMAGE WITH ALL THE A,B AND C CLASS SURFACE TOGETHER

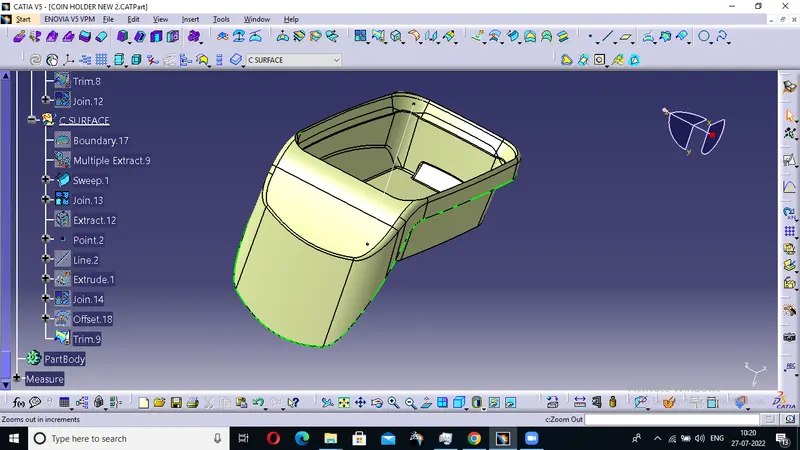

HERE ARE SOME DETAILING LIKE WE ADD SLANT TO THE SURFACE

THE FINAL IMAGE OF THE SLANT SURFACE

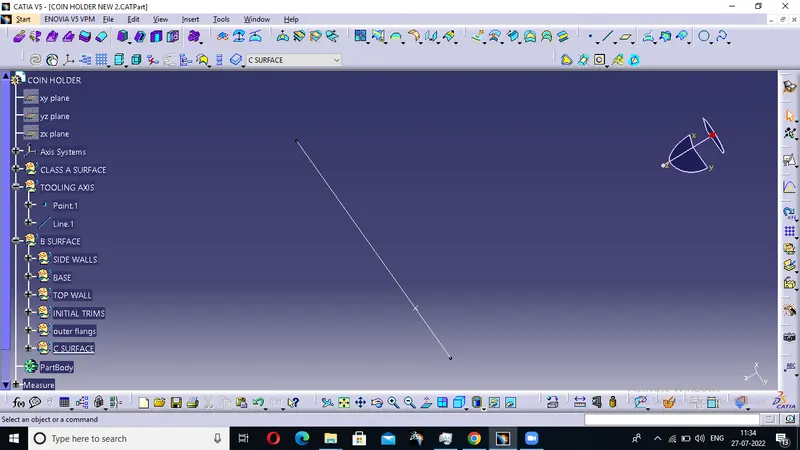

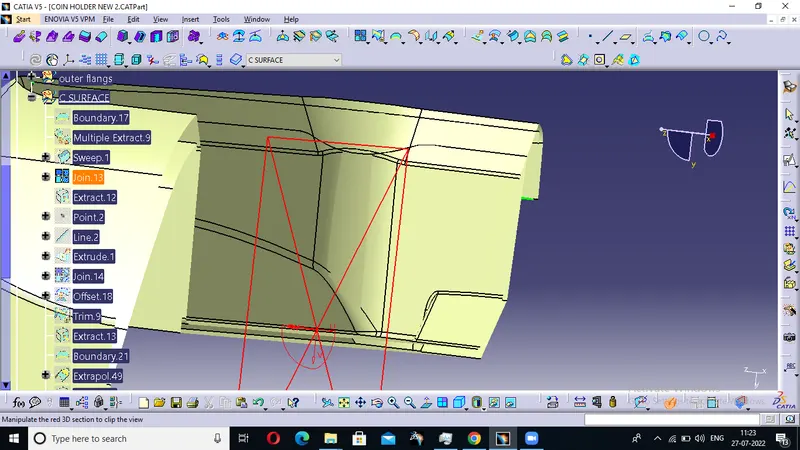

WE ALSO USE TOOLING AXIS TO CREATE THE SURFACES

WE ALSO DID DRAFTING BEFORE EXICUTION OF CREATION O OUR SURFACES

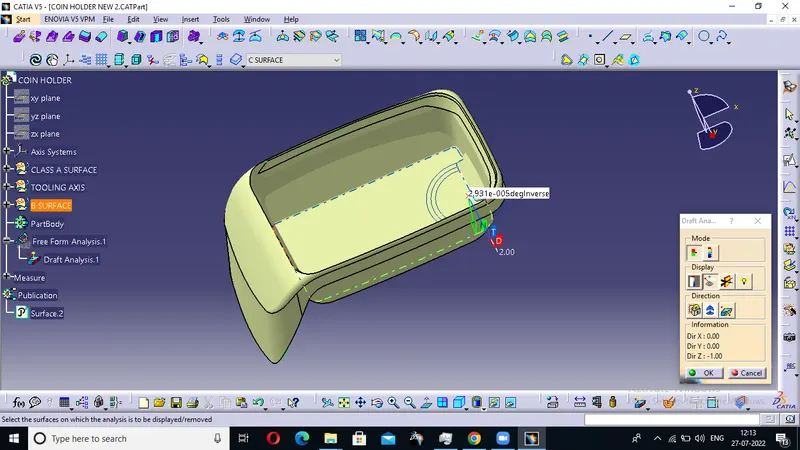

AT LAST WE DID THE DRAFT ANALYSIS IN THE END

WE ALSO OBSERVE THAT THE THICKNESS OF OUR SURFACES IS 2.5mm .
