Week 8 - Challenge 2 - Switch Bezel Design

this is the given class a surface with which we will form our B amd C surfaces

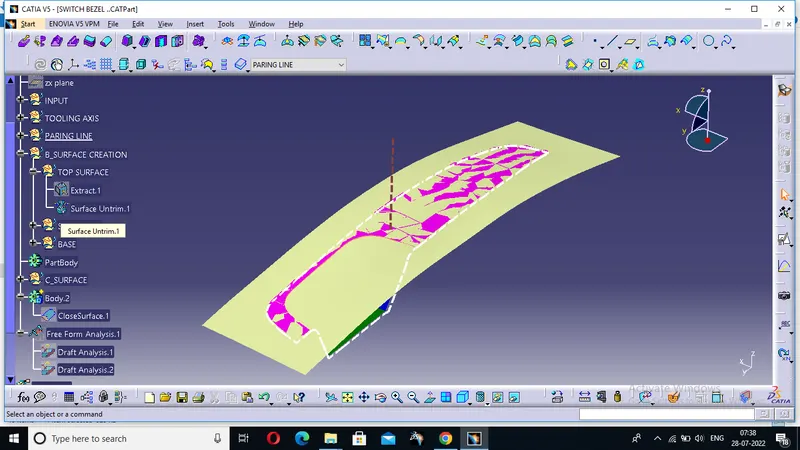

we will form the tooling axis with the reference to the A surface

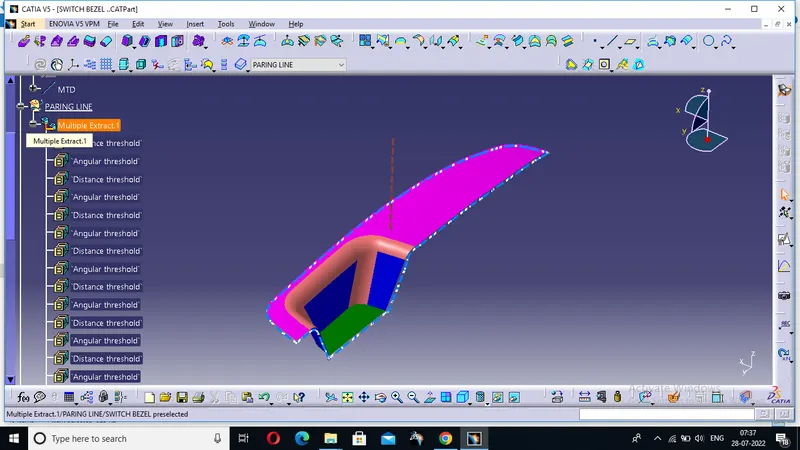

now we will extract multiple surfaces so as to form the given surfaces

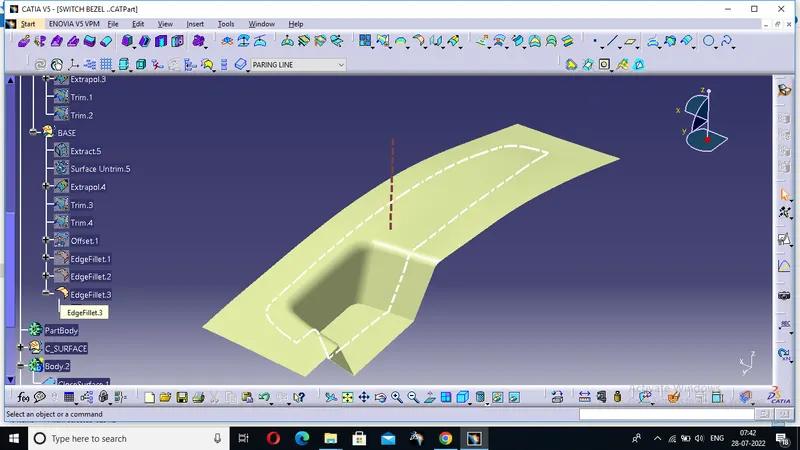

as we extrude the surface we will now tim to get the desire surface then we will offset it inwards with the thickness of 2.5 mm

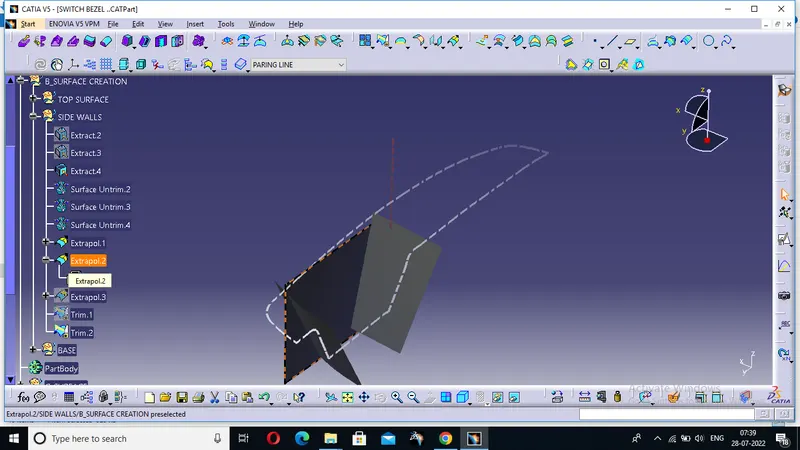

now we will form the required sidewalls

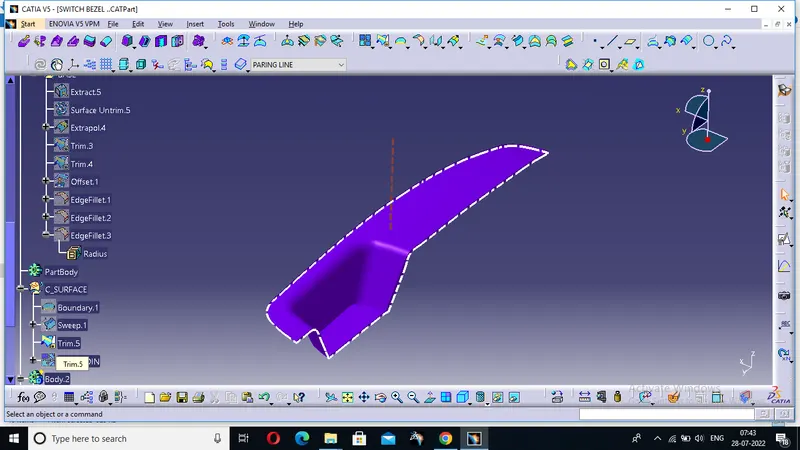

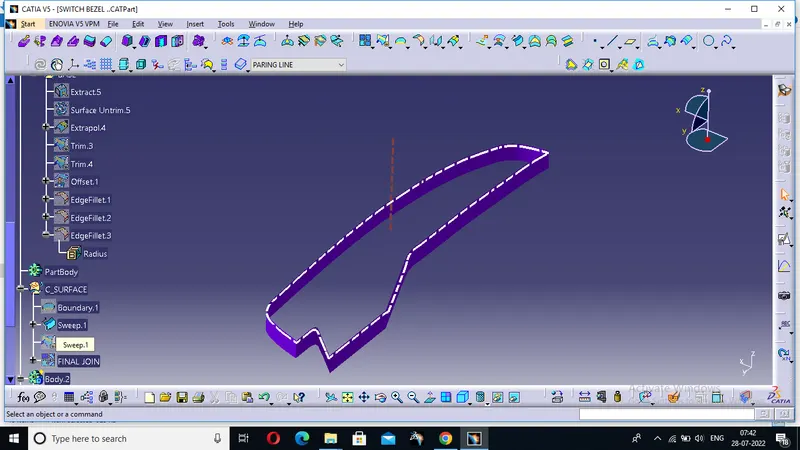

this will form the class B surface then with the help of curved surface we will extract the C surface as the C surface will only join class A and B surface

then this C surface will be joint by the b surface then A surface will be joint by both

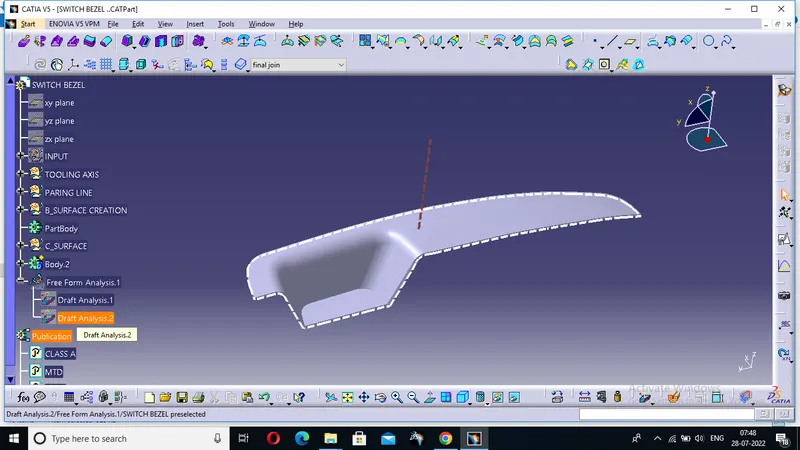

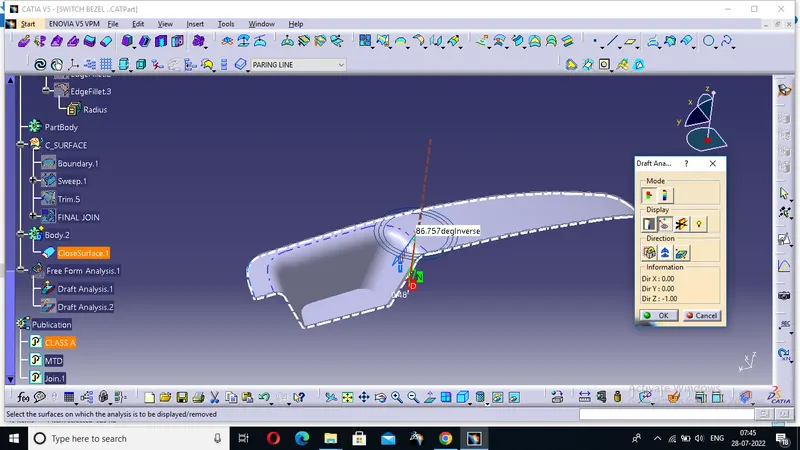

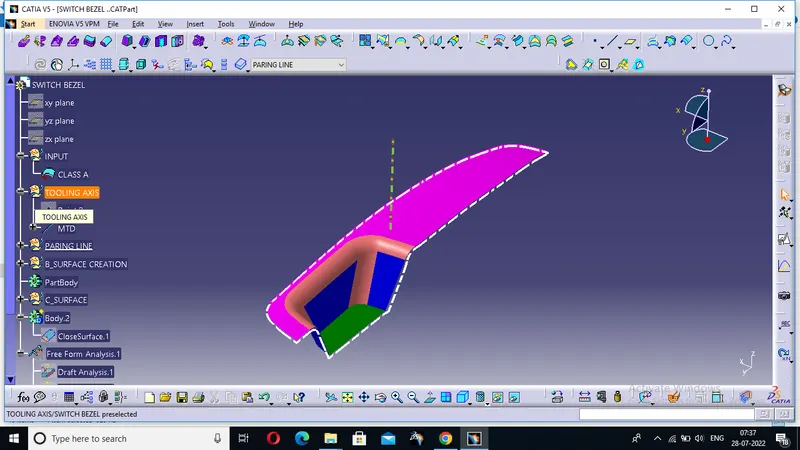

we also did the draft analysis to ensure all the surface given by class A, B and C are in the correct order

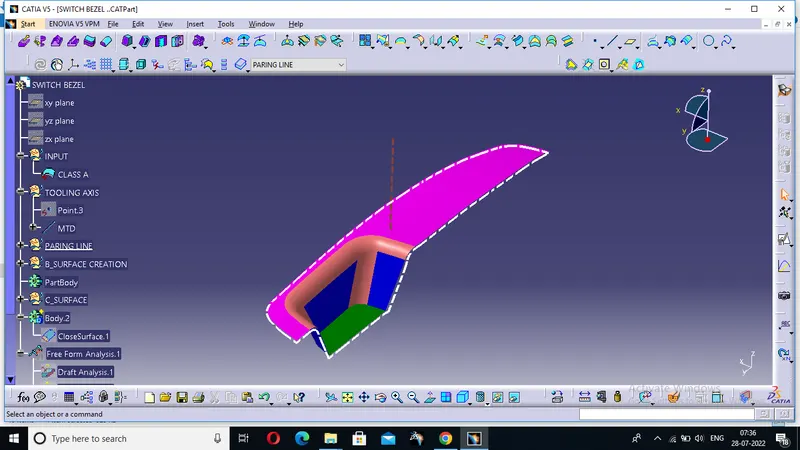

now we will add this into the closet surface to form the solid. and hence we form our final surface
