Week 9 - Attachment Feature Creation - Challenge 2

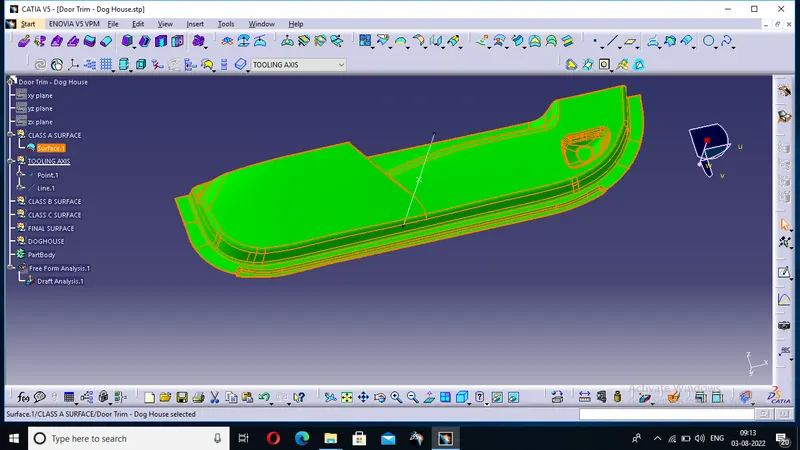

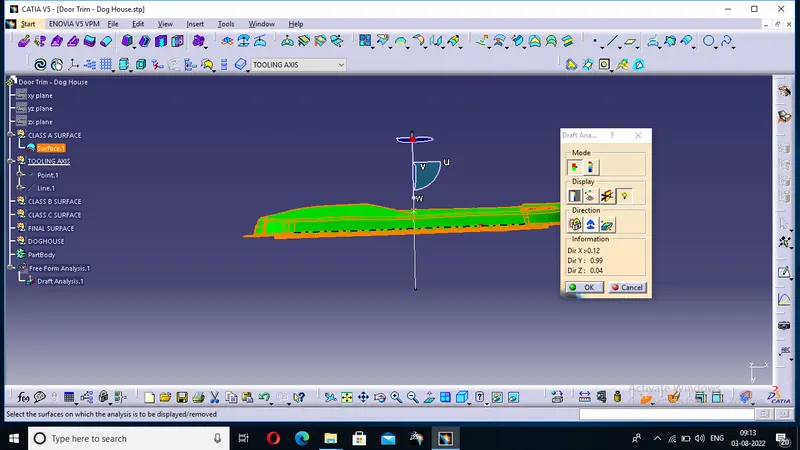

this is our class A surface we did the draft analysis with the help of tooling axis

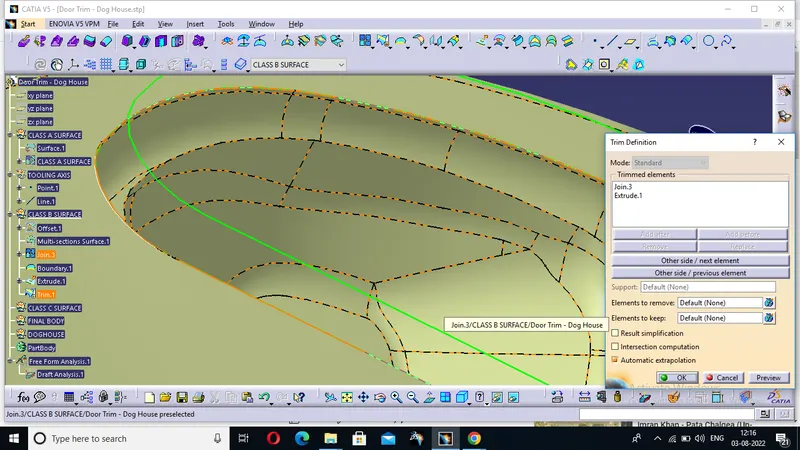

to form B surface we have to offset the following class A surface

the class A surface itself has many defects we tried to overcomr all the gaps and we sucessfuly did it

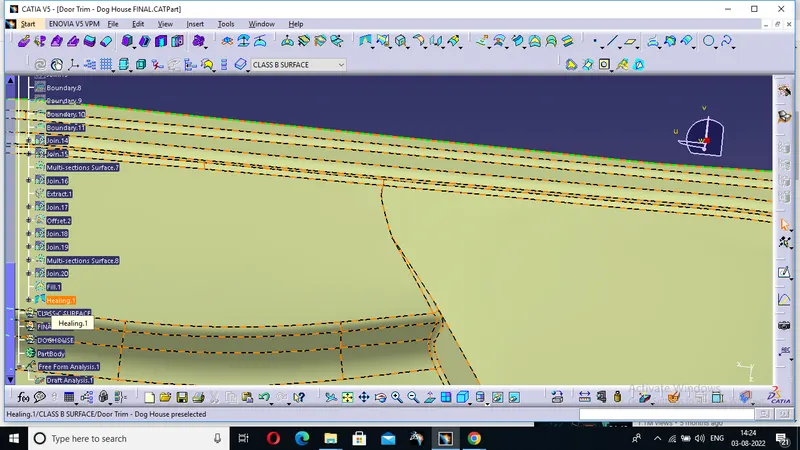

we use healing method to overcome some gaps and patches then we joined c surface to it

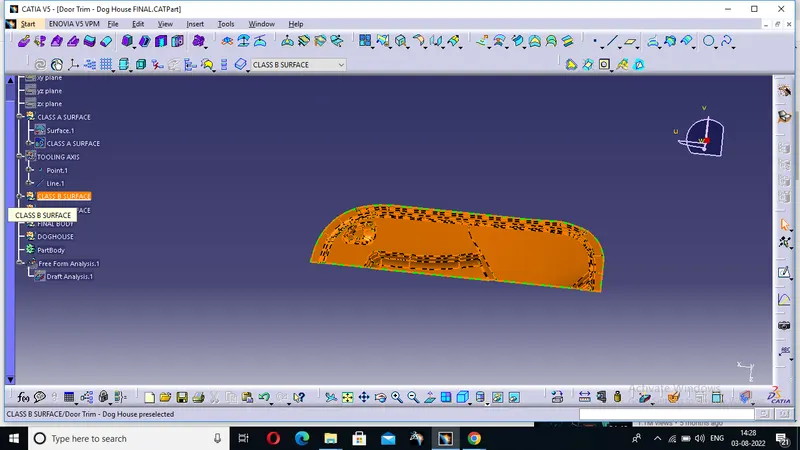

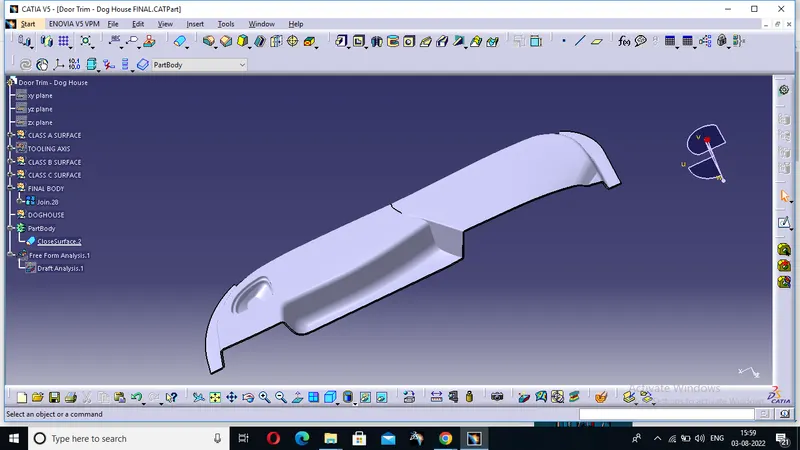

this is our final b surface then we joined all the Three surfces to make solid

then, we form the closet surface out of our three surfaces

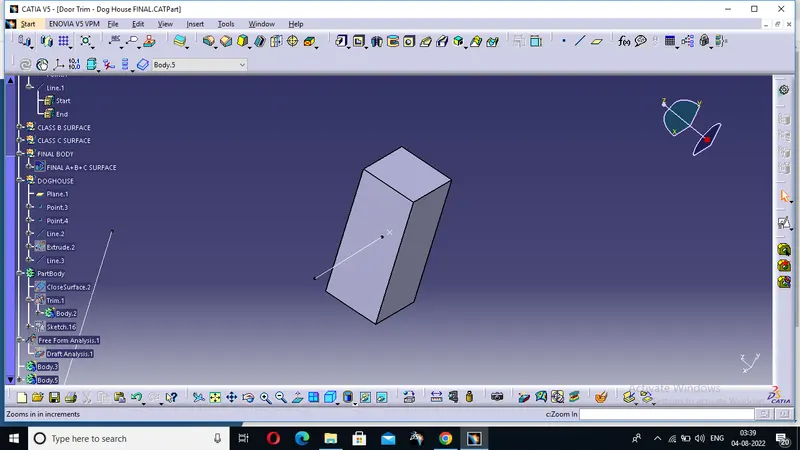

for the formation of doghouse we follow the padding methord to it we form the tooling axis parallel to the final closet body

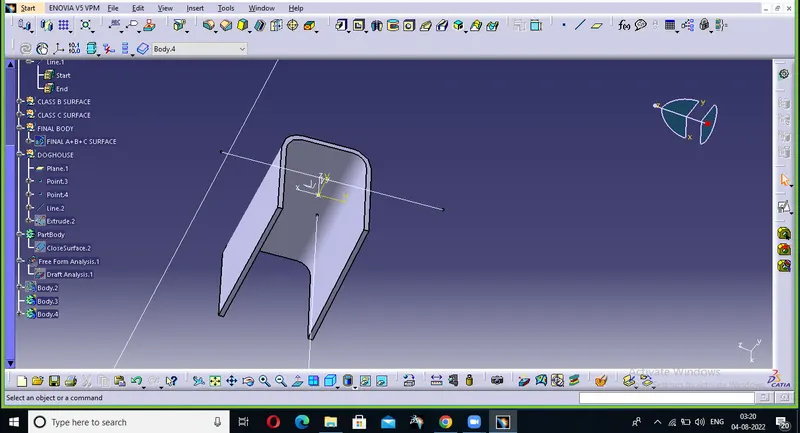

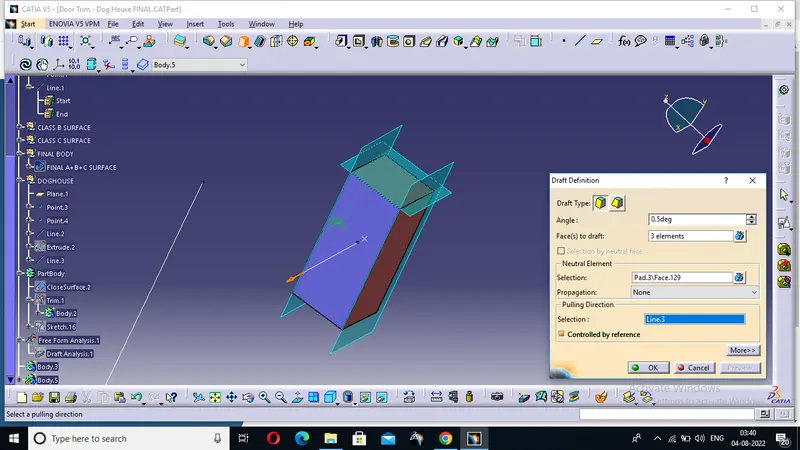

we did draft to it with reference to our tooling axis then we shell it and remove faces then we use edge fillet to it

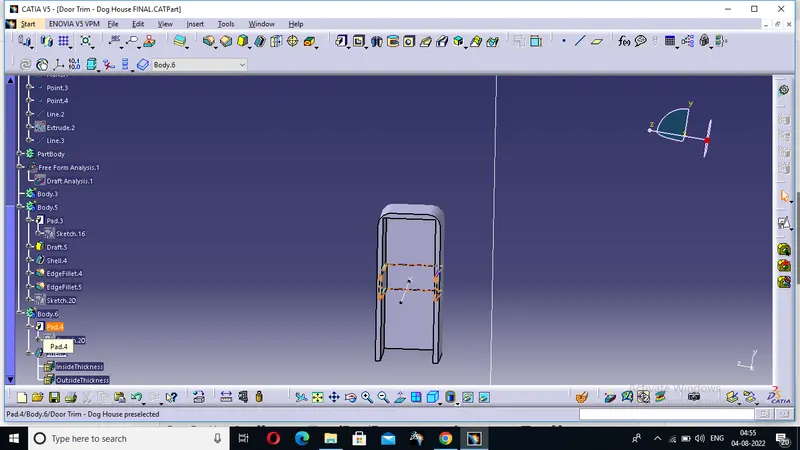

then we use special paste option with respect to our given pad and make this copy into another body then we did edge fillet with respect to upper surface then

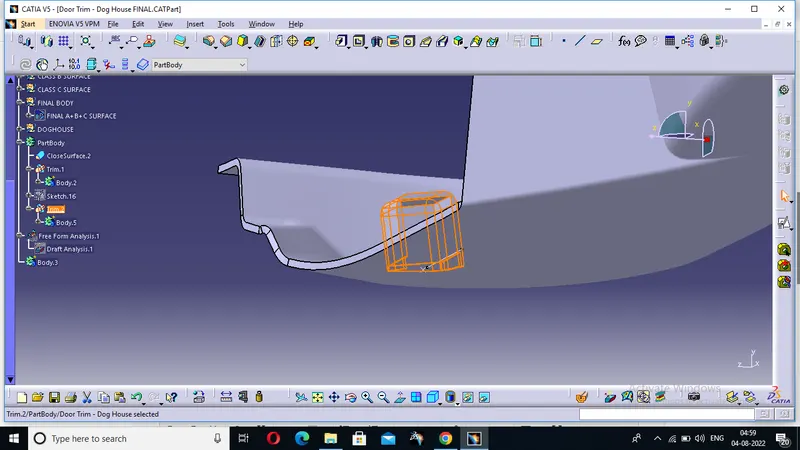

we did remove of inner body to the previous paddeed surface then we did union trim to our main part body

this is our final doghouse

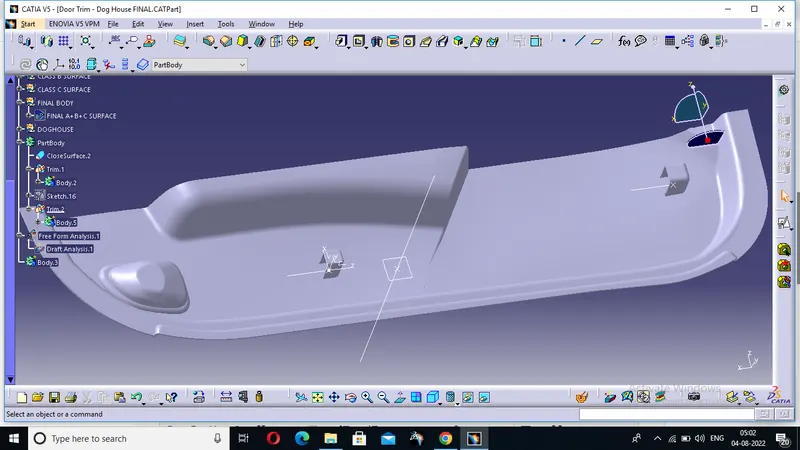

and this is our final structure of our doghouse
