Week 8 - Challenge 4 - Bumper

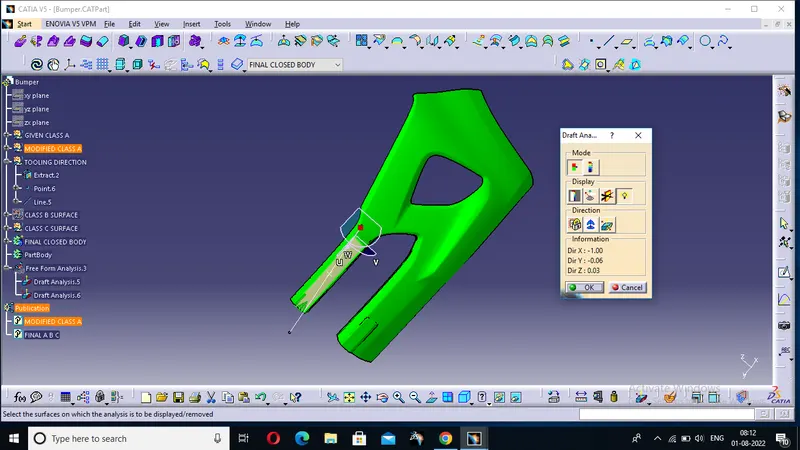

this is class A surface here we did the draft so as to see weather the give class A can have tooling axis or not

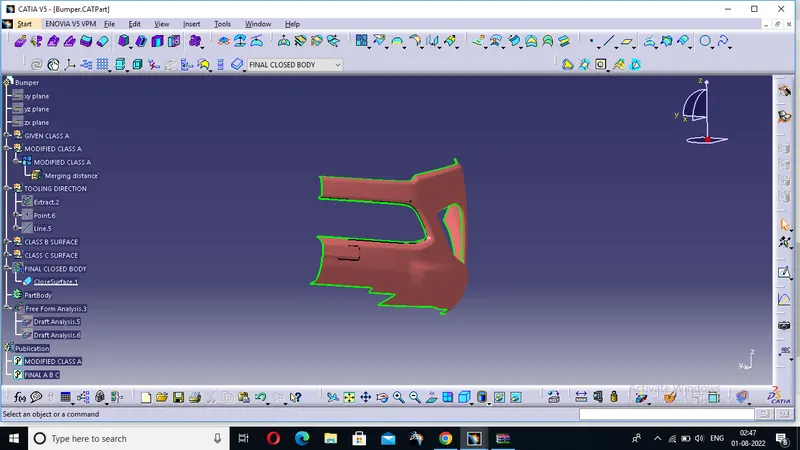

this is the given class A surface here we extract the given curve so as to attain the CLASS B surface

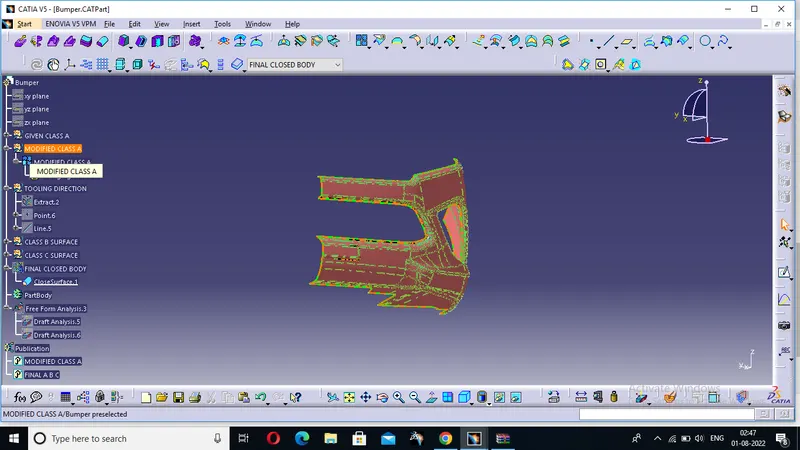

we join the class A THEN ,

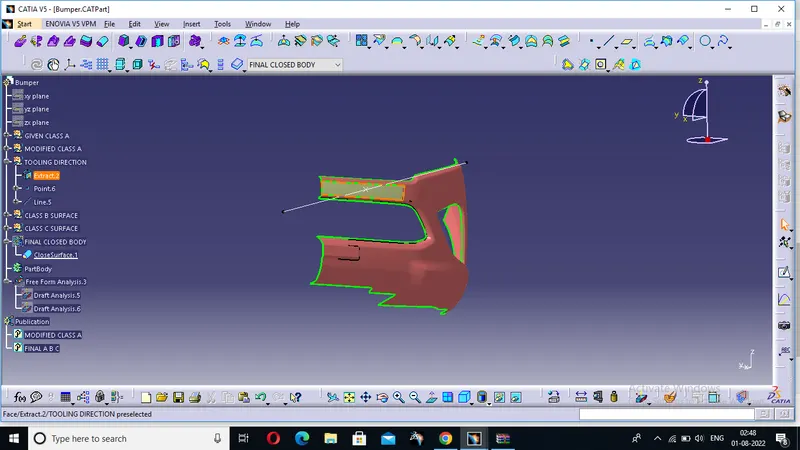

WE Extract the surface then we provide a point and there after we form a line which will form the tooling axis

we provide the smoothing to the curve surface we dont do directly the boundry because it forms small small point in that then ,

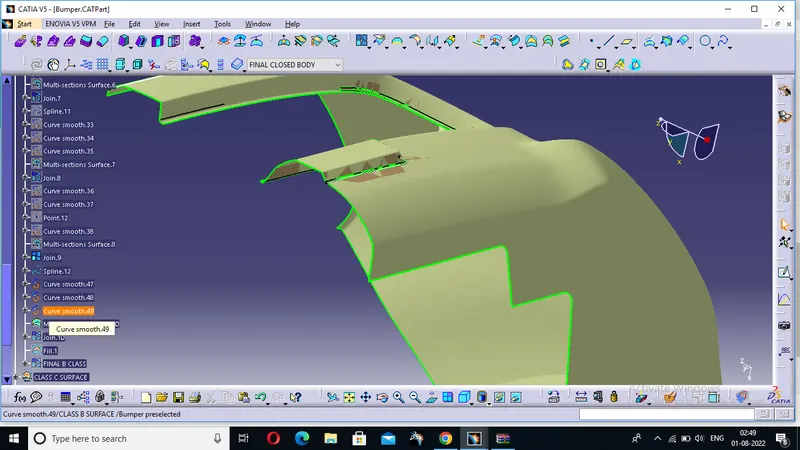

our class B surface will form then,

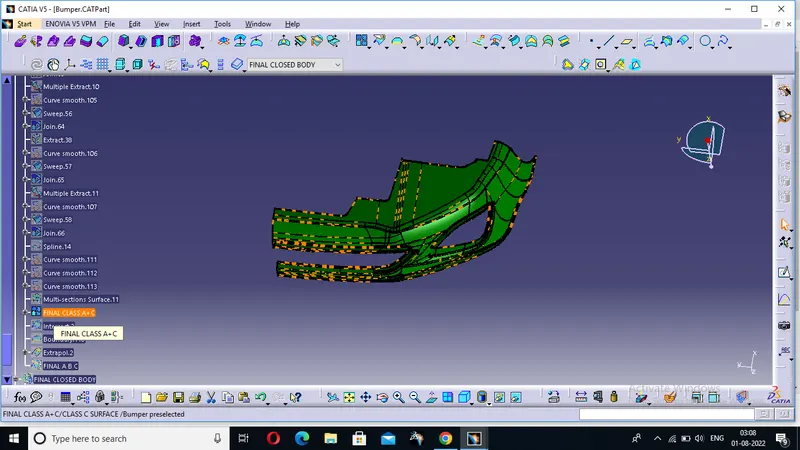

we add the class A which was given with the class c surface,

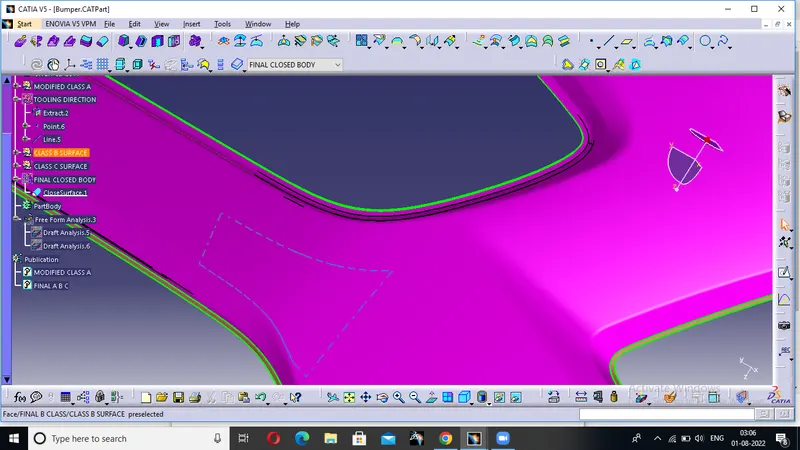

then we add to the a and c surface by using join command and then trim B surface then we join all three surface by usin join command

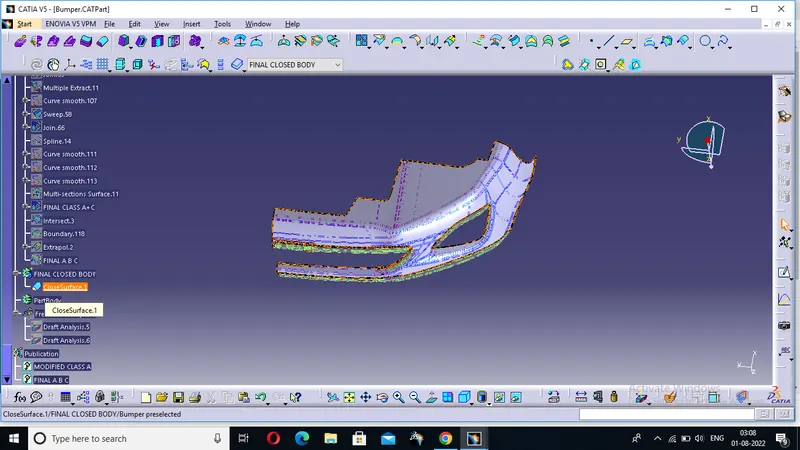

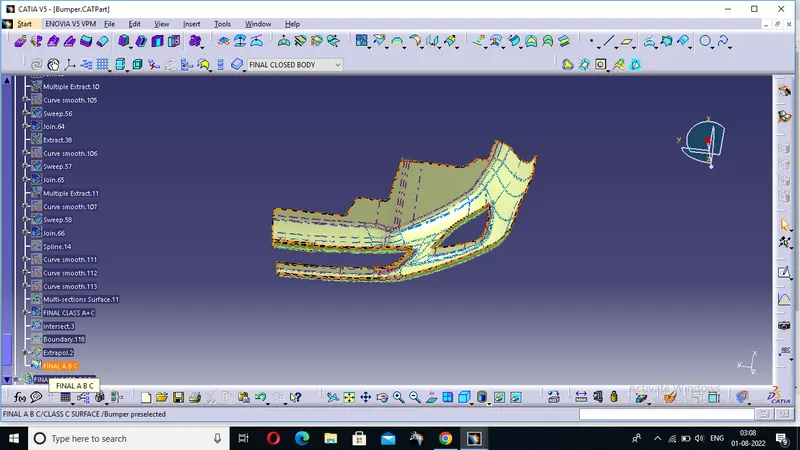

then we see that all the surfaces is bound or not then we form our final solid with all the three surfaces by selecting them by using close surface .
