Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

aim

Create the rib for the Drill Handle considering the design rules mentioned in the video.

main report

to create the rib byusing given design rules

asusal to create the tooling axis to ensure the part was the correct direction

to create the class b surface by using the offset command and to make sure tha class B surafce was make compelete surface by checking boundry command .

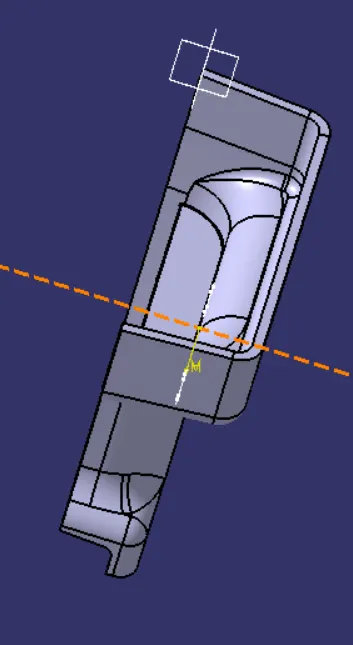

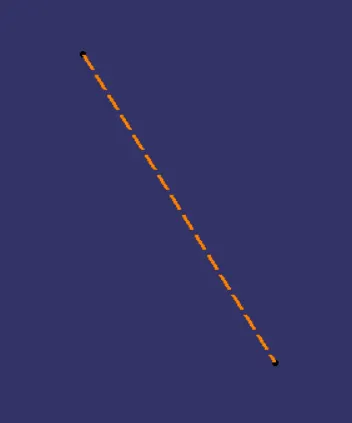

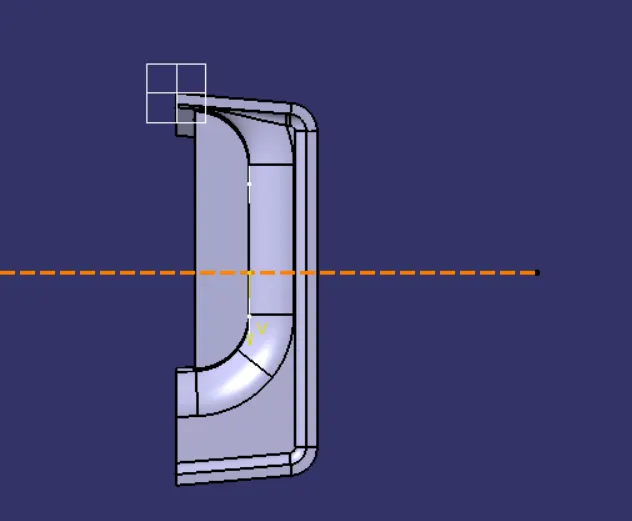

create the tooling axis

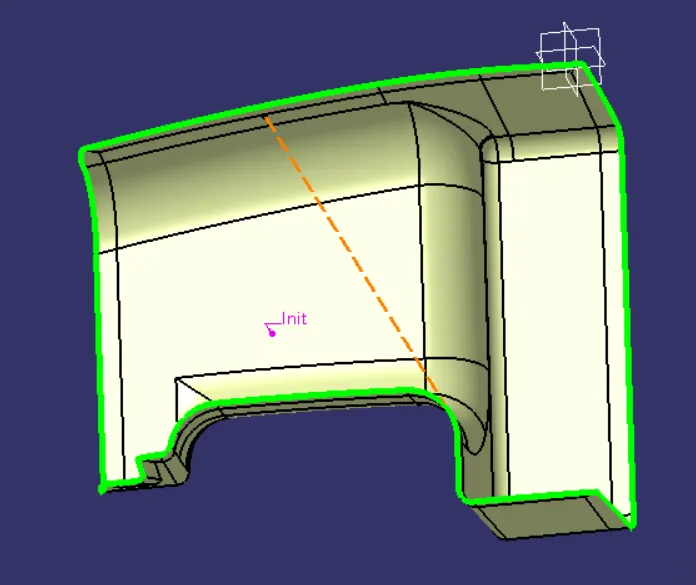

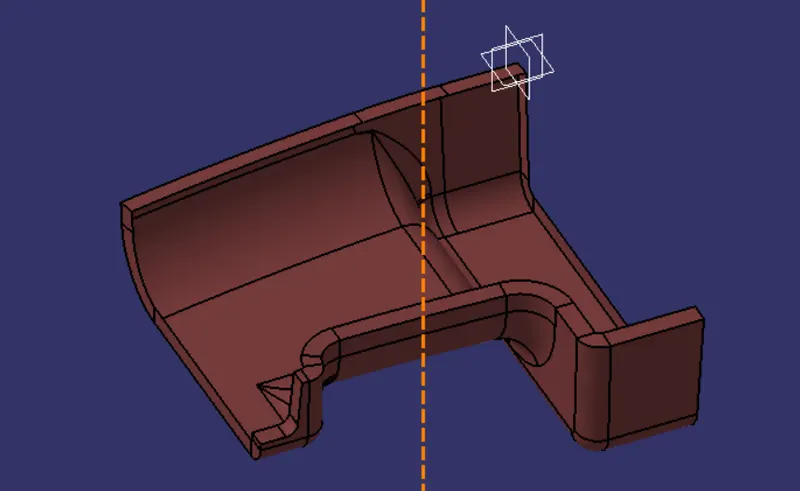

class B surface

to create the class B surface by using given class A surface

make sure the class b surface to fill the completely the class B surface

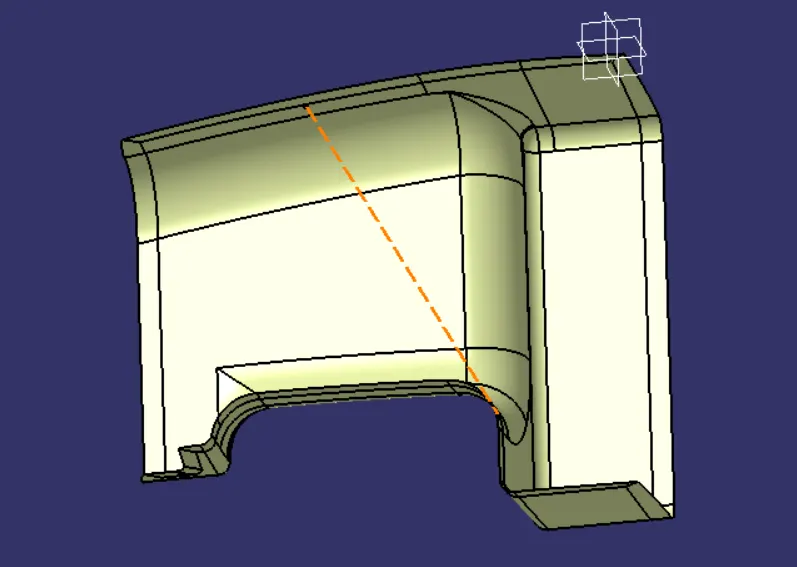

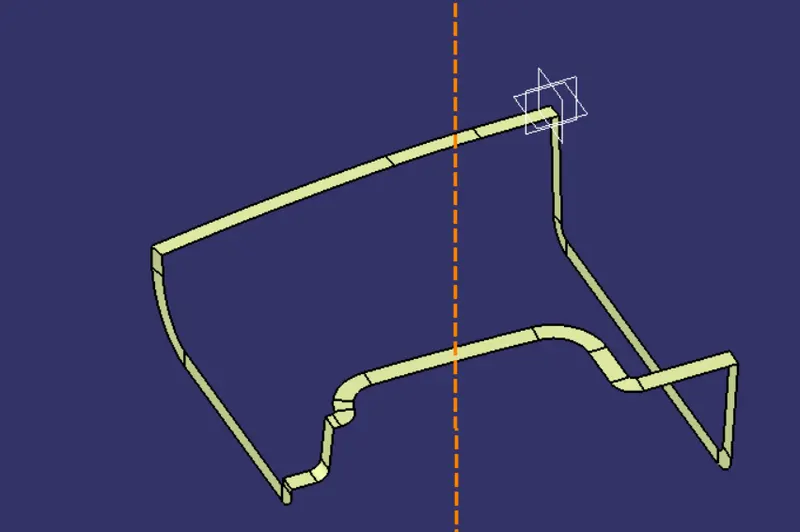

class C surface

to create the surface c the by using the given the class A surface

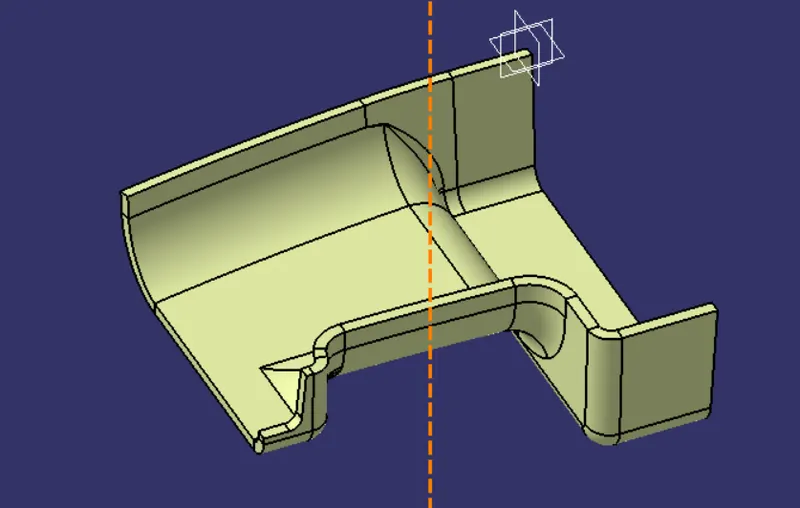

final output

to merge the class B and c surface to create the closed surface

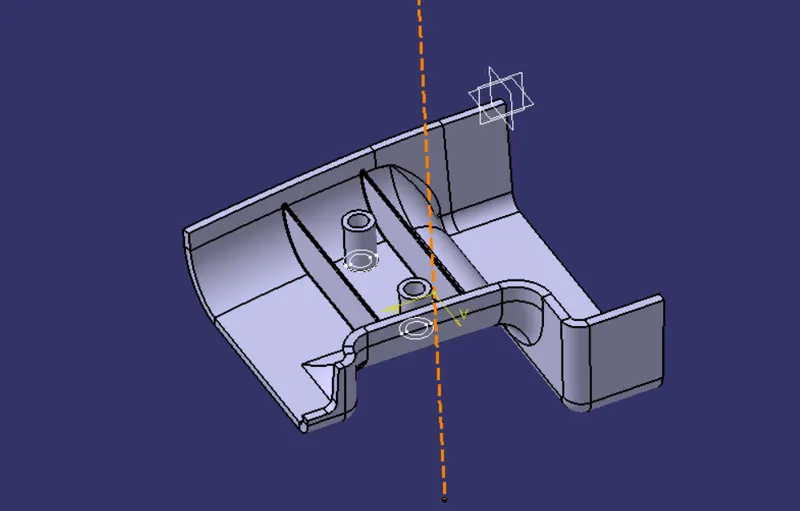

screw boss

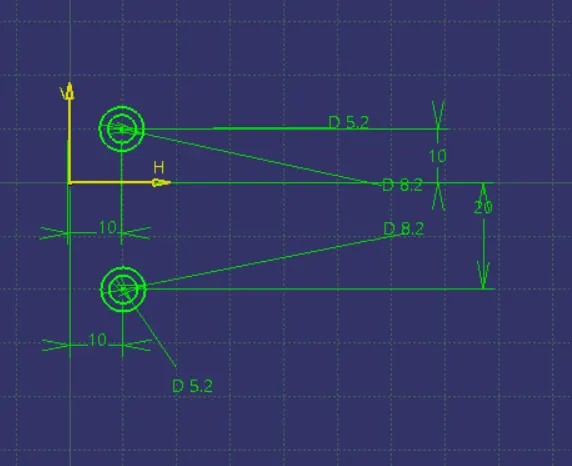

to create the screw boss by given data by follow the design principle

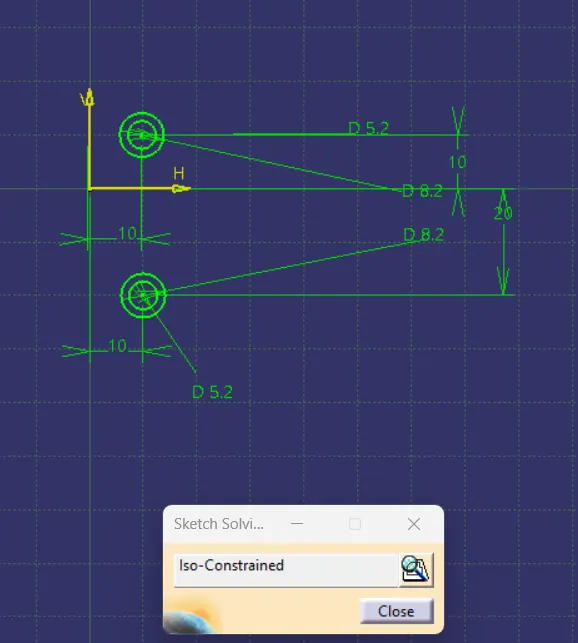

iso constrained

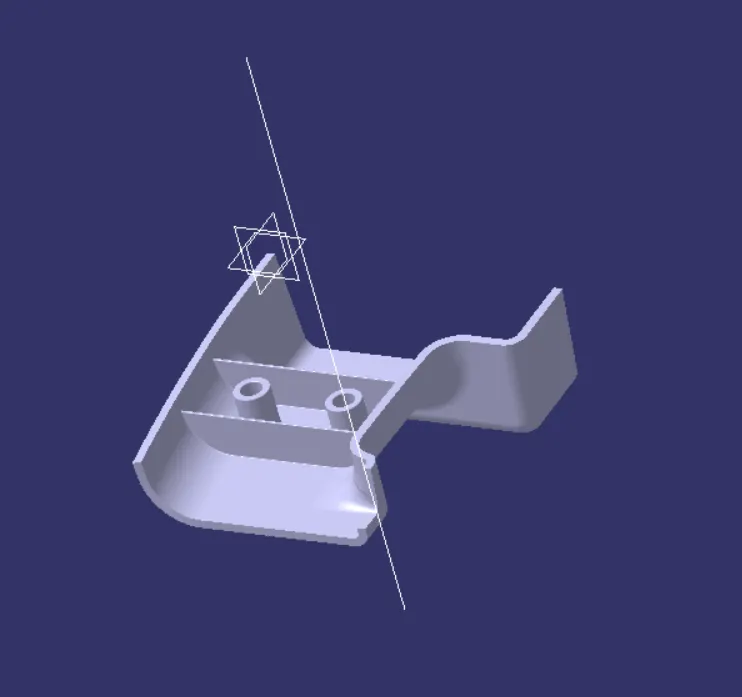

final out put

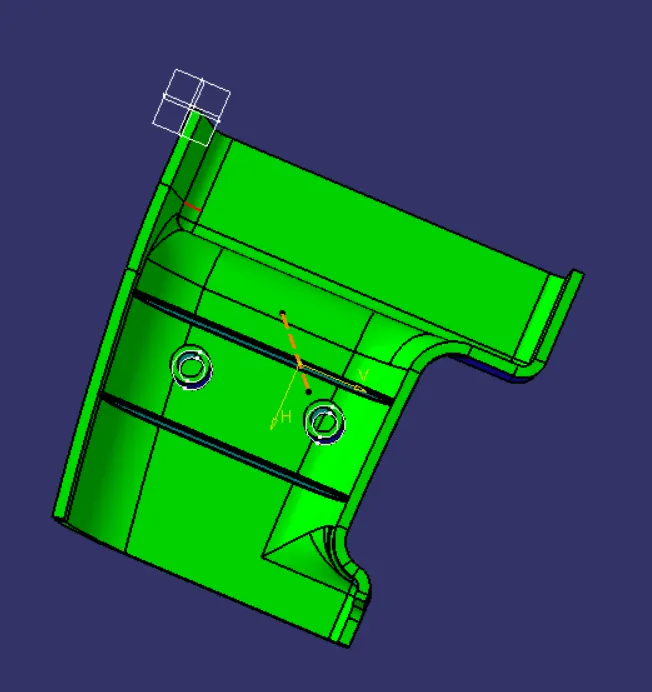

draft the analysis

multiple views

conculusion

• The Tooling axis and the SolidCAT part with B Side Features is created from the given Class A Surface and Draft Analysis is Performed.
