Attachment Feature Creation (Ribs & Screw Boss)

BBhargav Futane17 Aug 2022

REPORT:

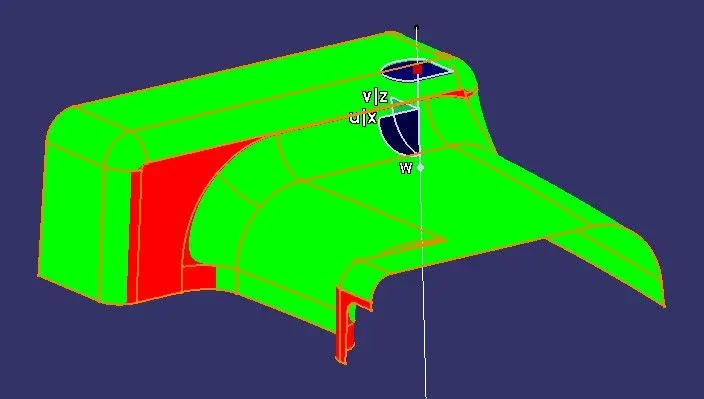

Tooling axis is made perpendicular to surface shown in the figure. As the class A surface surface itself won't clear the draft analysis of 3 degree, red shading is shown.
Also, for the class C surfaces, which are parallel to tooling axis, a draft of 3 degree is provided.
