Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

RRumman Khan9 Sept 2022

DESIGN FEA

AIM:

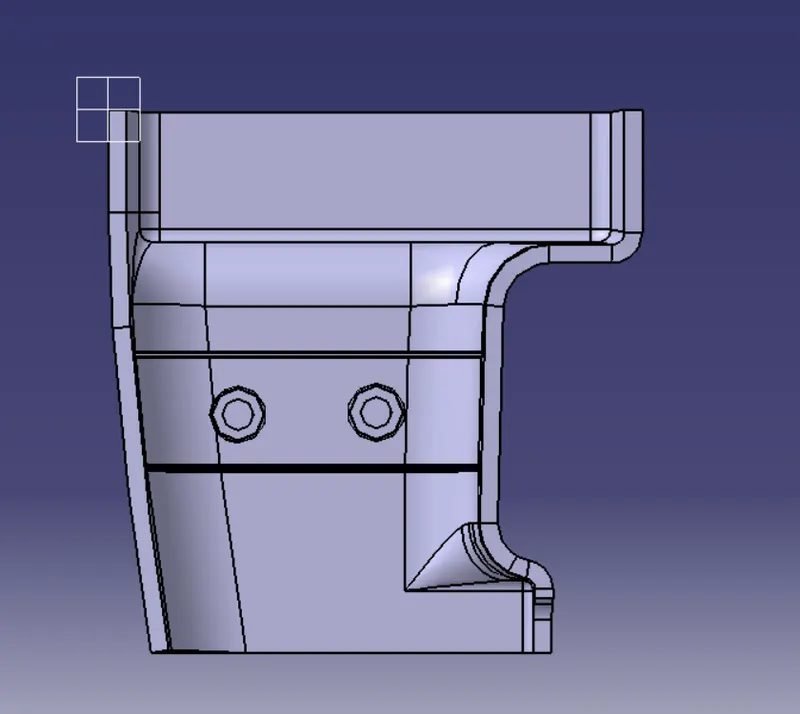

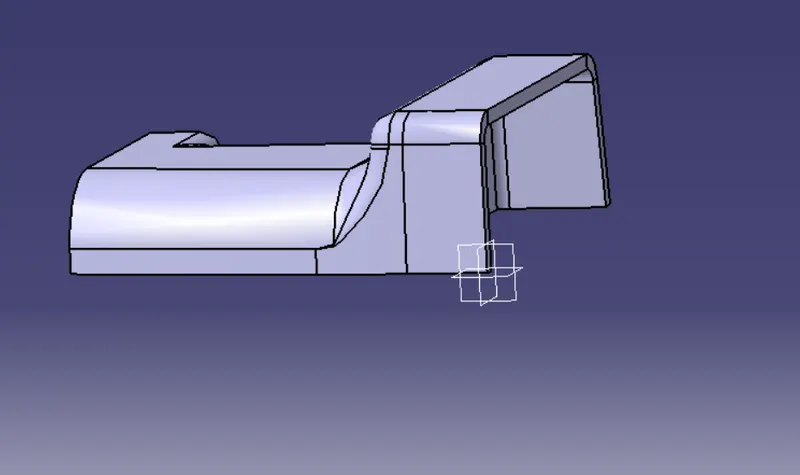

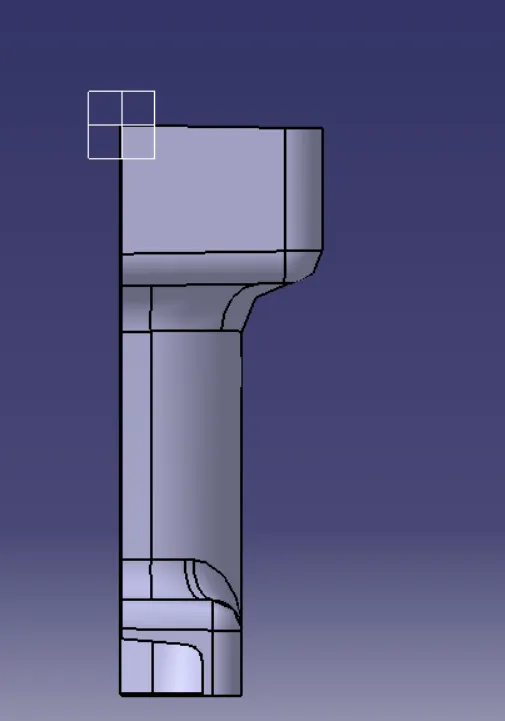

To Create the Door Handle Component from the given Class-A surface.
To Create the tooling axis for the given Class-A Surface meeting the requirements of the draft angle.

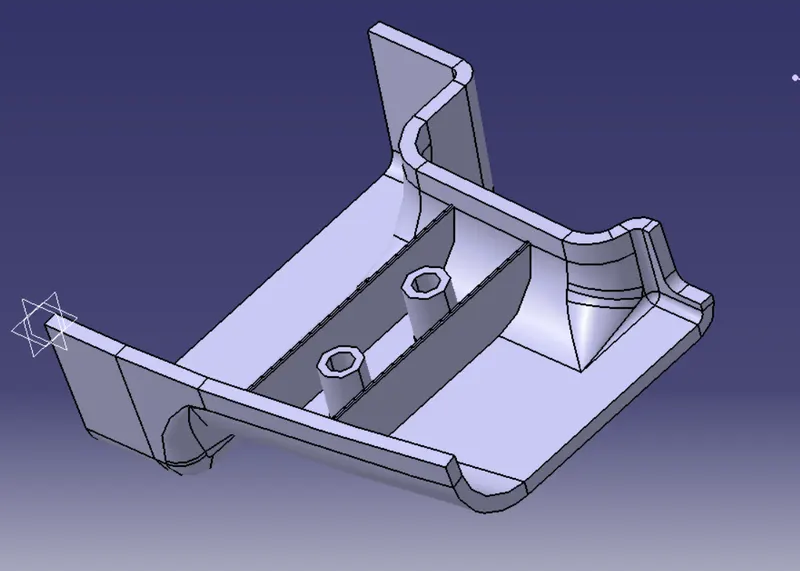

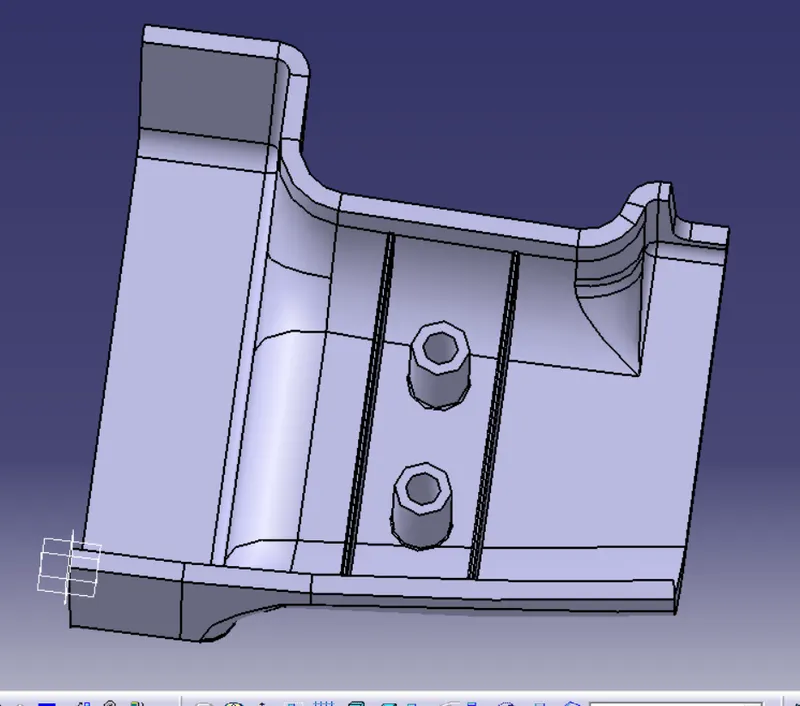

To Attach B side Features in the component.
To perform the Draft analysis on the model.

TOOLS USED:

Boundary
Join
Multiple extract
Bisecting line
Trim
Surface offset
Draft analysis
Intersect
Surface sweep
Close body surface

DESCRIPTION:

1. CREATING TOOLING AXIS -

The Tooling Direction is basically the direction that the mold pulls a part. The mold is built in two separate pieces, basically. You have a Cavity side and you have the Core side. The Core pulls apart from the Cavity and that's the Dye line or the Tooling Direction.

Open the given CAT part file.

Check for gaps between surfaces for that click on join and then preview.
If theres any gap between the surfaces join them with a maximum tolerance of 0.003 mm.

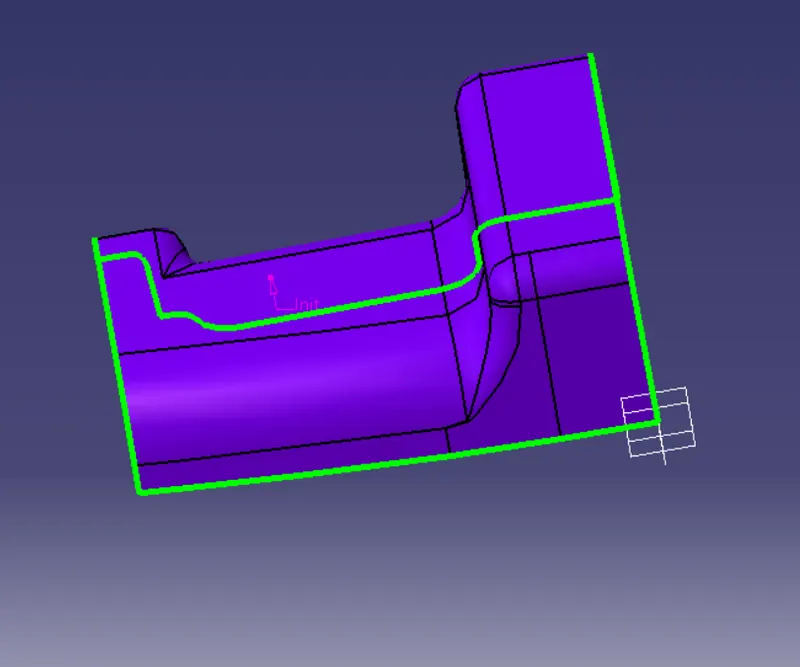

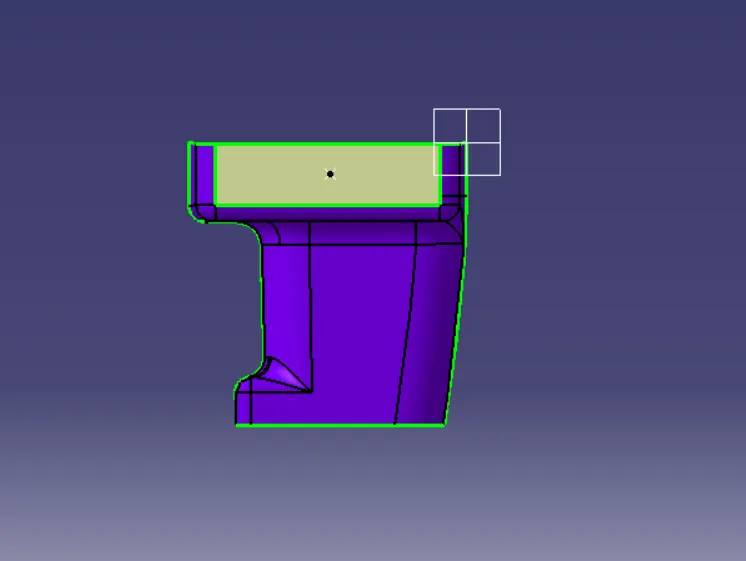

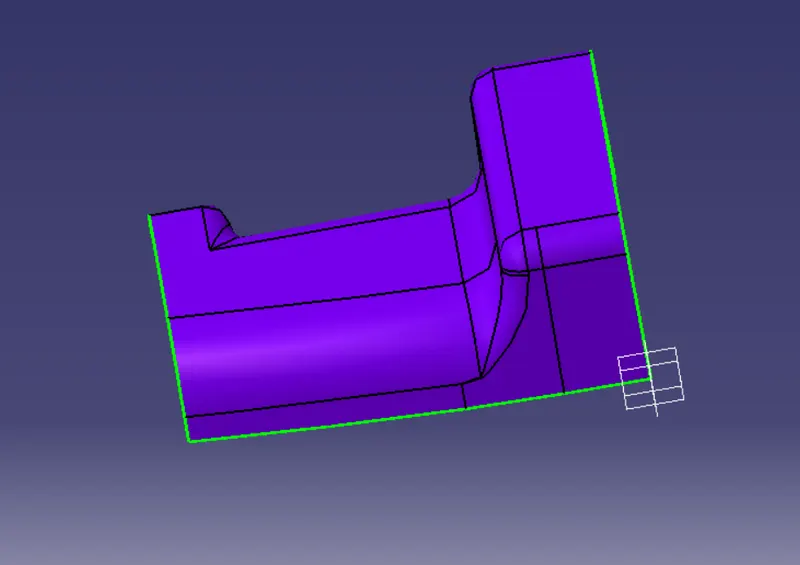

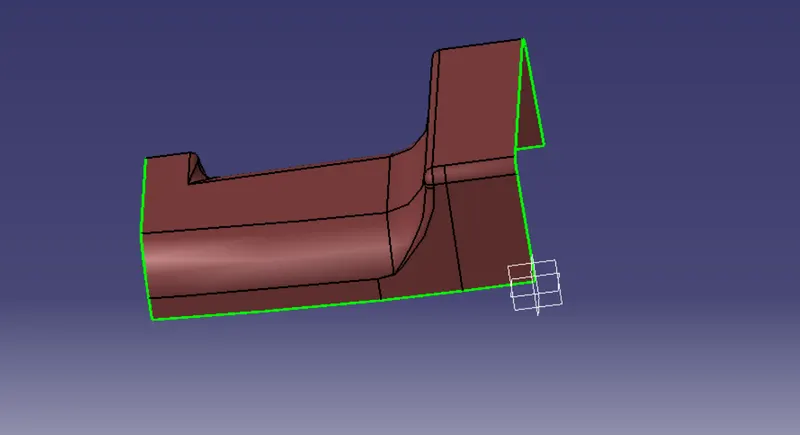

Extract the boundary and dissemble the boundary.

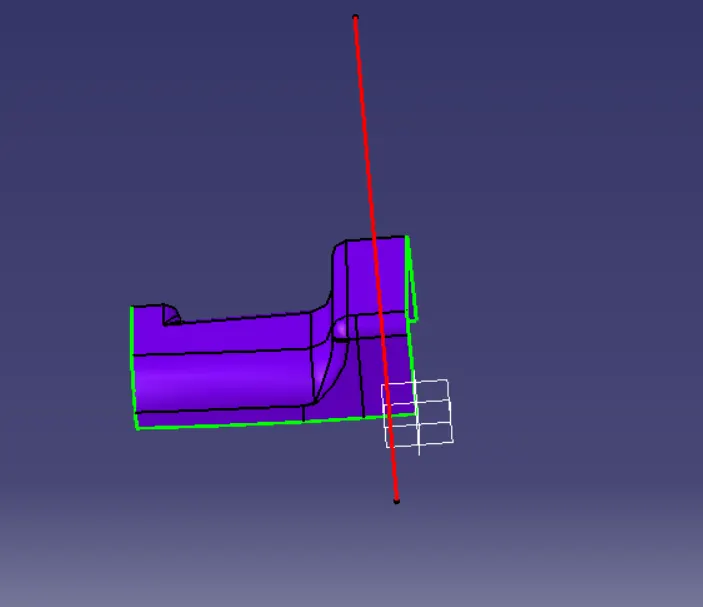

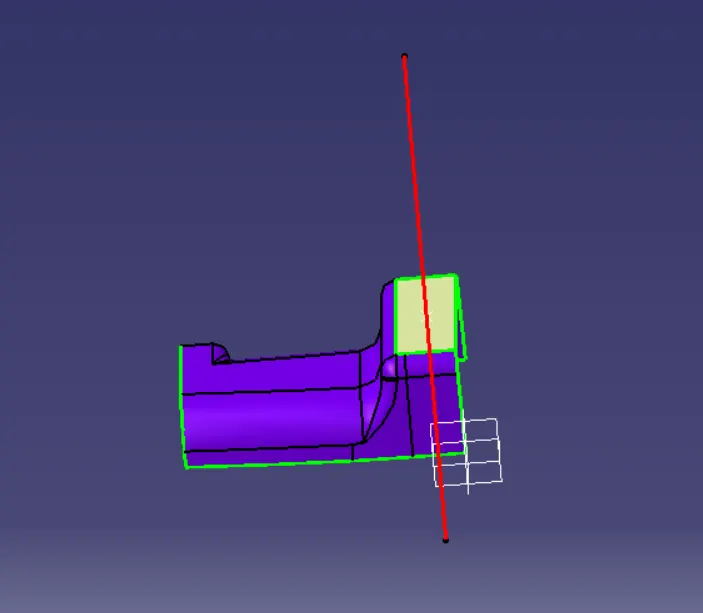

TOOLING AXIS:-

- We first have to look at the proper plane through which the complete component can pass the tooling easily.

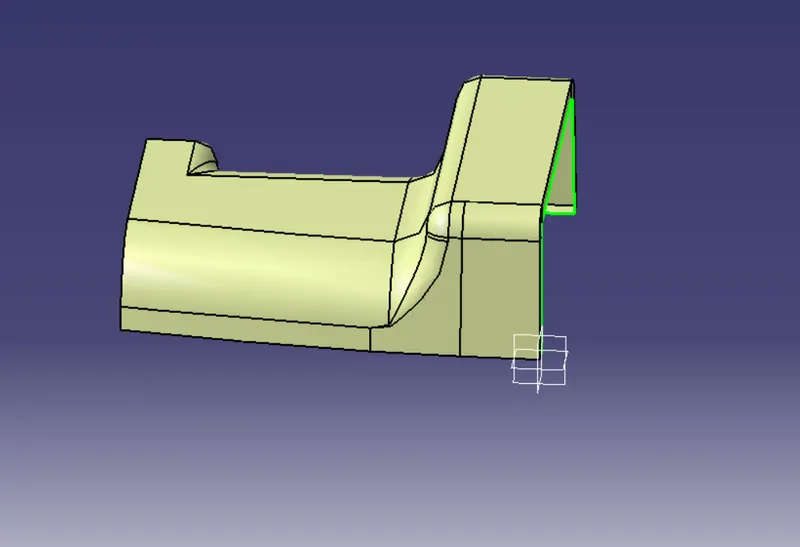

I have created the tooling axis by extracting the surface method.

2. PUBLICATION

Publication is done to the component to make it visible and navigate easily.
To publish the component go to tools > publications and then select the tooling axis and the class A surface.
A separate tree structure is formed under the main part.

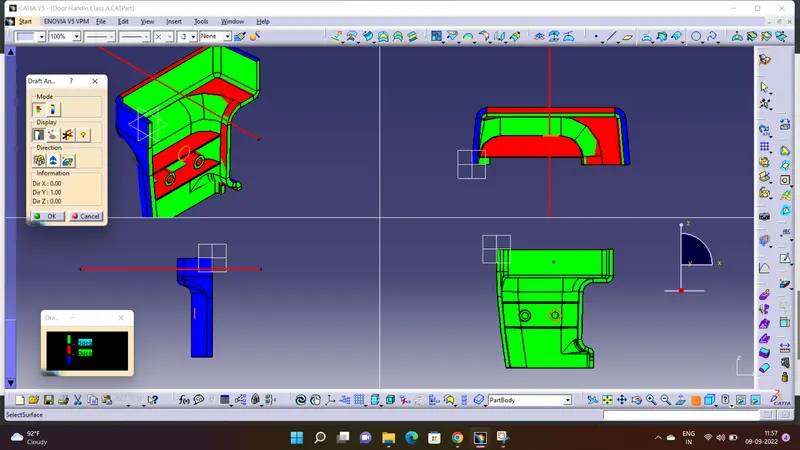

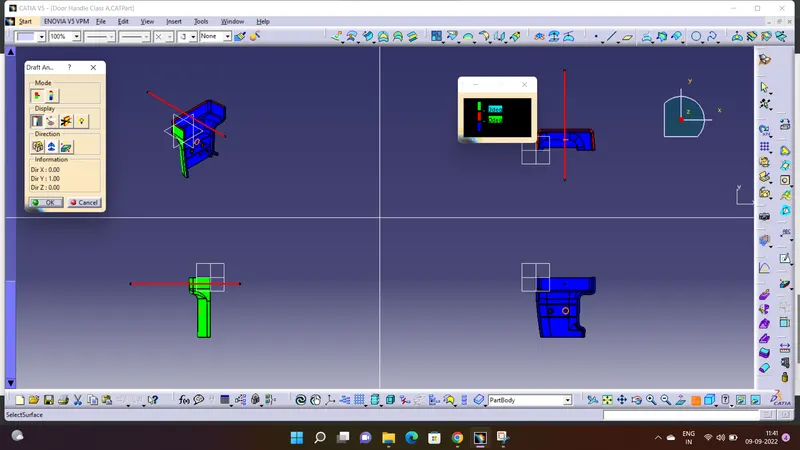

3. DRAFT ANALYSIS

The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

Before going to drat analysis go to customized view parameter >under mesh >check material and then click ok.

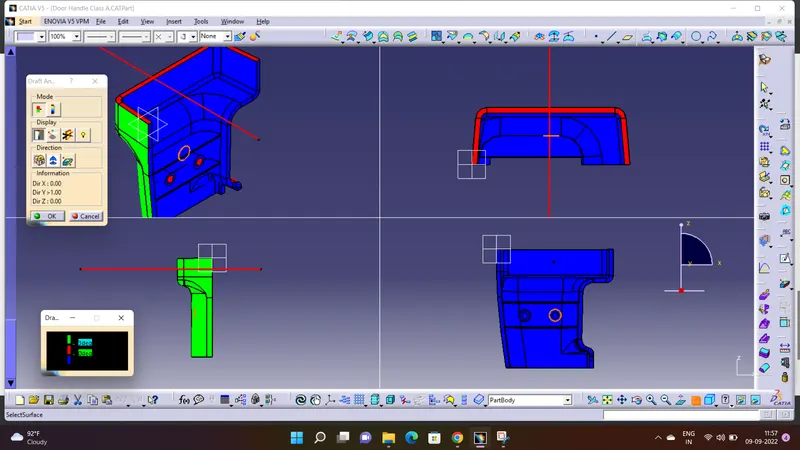

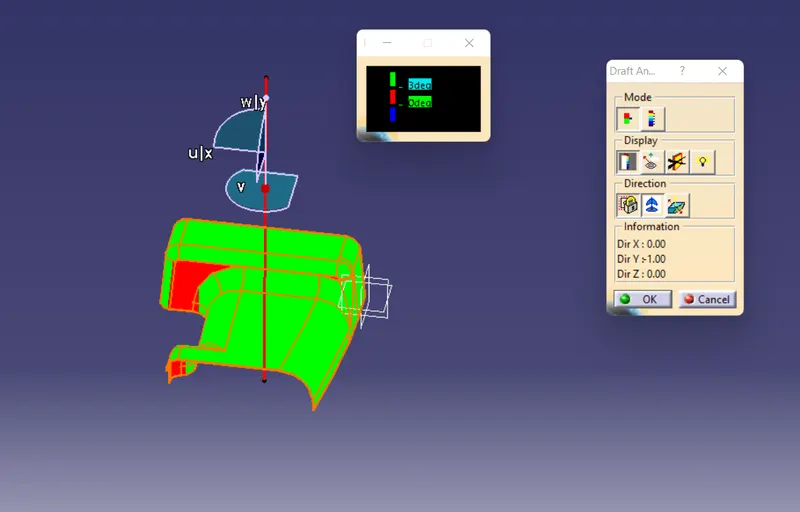

Now for draft analyses go to insert » analysis » feature draft analysis.
Use the compass to define the draft direction.
In the colour scale change the draft angle to 3 degrees.
The component changes to green in the indication of passing draft angle.
Use a running point to check the angle on the component.

The draft analysis is complete.

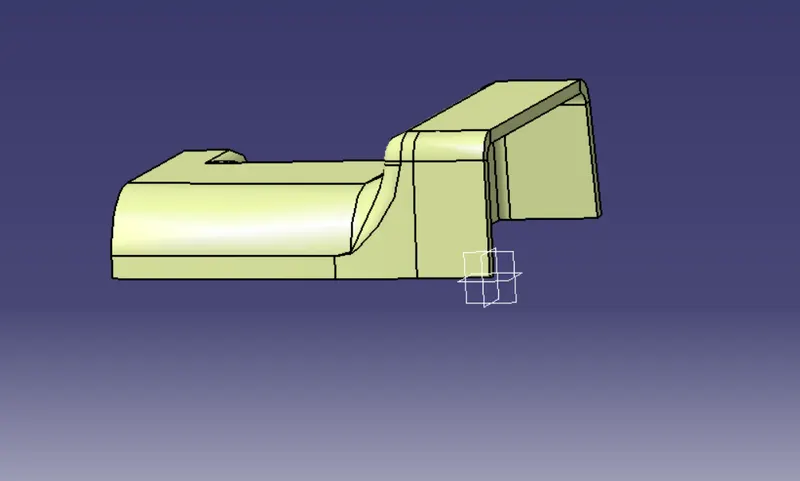

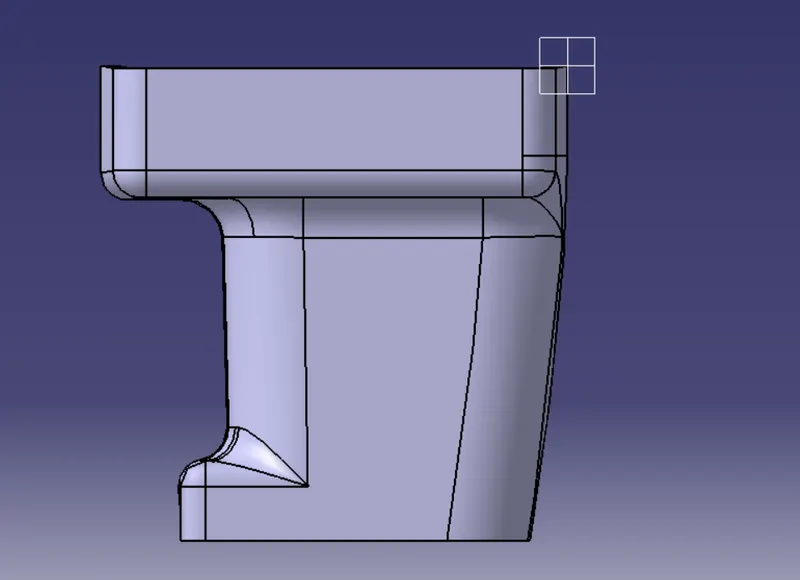

4. CREATING CLASS B SURFACE

Extract the surfaces from class A using multiple extracts and untrim them.
Use Extrapolate to make sure that all the untrims are properly intersected to trim and offset the surfaces to 2.5 mm to create the thickness.
Trim the extra surfaces using the trim command.
Insert them into the new geometrical set and name it with respective part names.
Apply fillets to the model after creating the entire surface.
If the edges are outside the fillet value will be added to the thickness of the component and if the edges are inside, the fillet value will be subtracted from the thickness of the component, for instance the thickness of the component Is 2.5mm the fillet value is 15mm so the outside portion value should be 17.5mm and inner eges should be filleted 12.5mm to get uniform thickness.
Perform trims one at a time so that it will be clear to understand.

5. CREATING CLASS C SURFACE

Extract the boundary from the class A surface using the boundary command.
Using a disassemble tool to divide the boundary as the boundary contains domains.
Use sweep command > choose profile type line > subtype as with draft direction > choose guide curve and draft direction > draft angle as 3 degrees> preview.
