Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

OBJECTIVE: The main objective of this challenge is to create the B-side features RIBs and Screw Bosses for a given drill handle.

GIVEN:

General Guidelines for Bosses:

• Draft - 0.5 degrees on the walls of boss
• Thickness - Typically 40%* of the nominal wall at the base.
• Height to Diameter Ratio - 3:1
• Radii - 0.25mm maximum radii.

PROCEDURE:

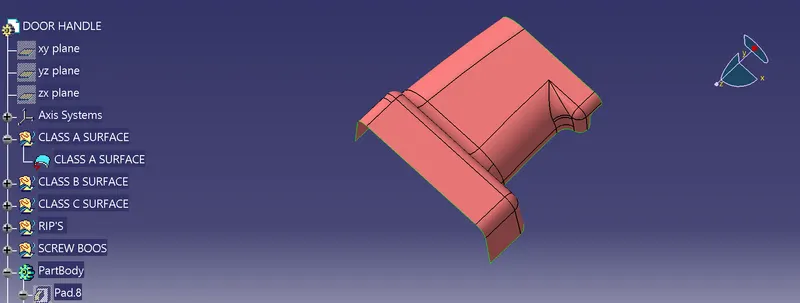

CLASS A-SURFACE

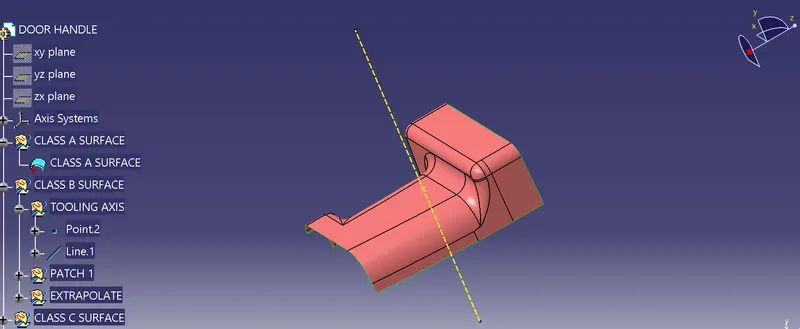

Tooling Axis creation:

It is defined as the direction in which the mould/core and cavity open. Selection of the direction of the tooling axis depends on the ease at which components can be easily ejected.

By analysing the component the most easily ejectable direction is somewhere close to the Z direction,(might be inclined to it) so we have made a sketch on the YZ plane of Axis System) to create a bisecting line considering the 2 faces which might be difficult to be tooled.

DRAFT ANALYSIS:

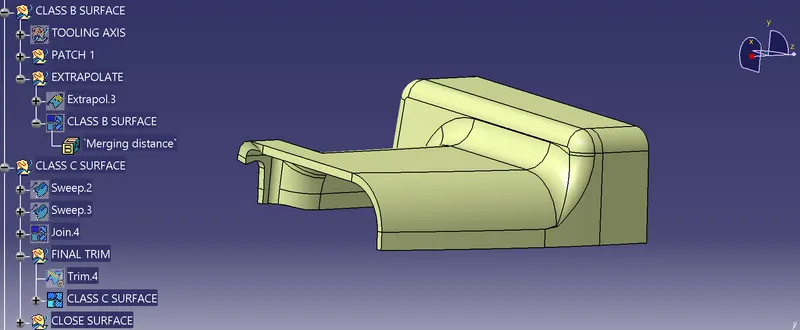

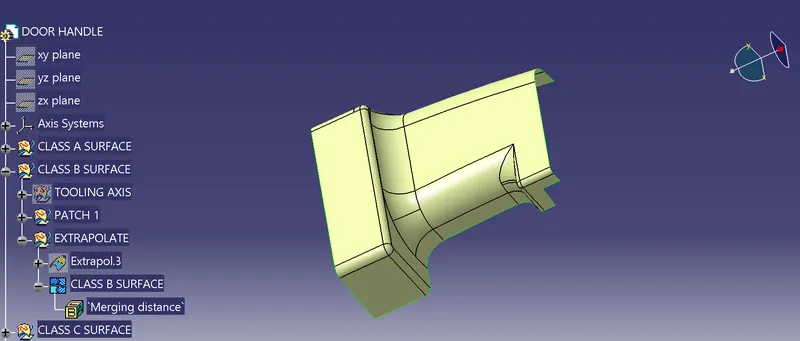

CLASS B-SURFACE:

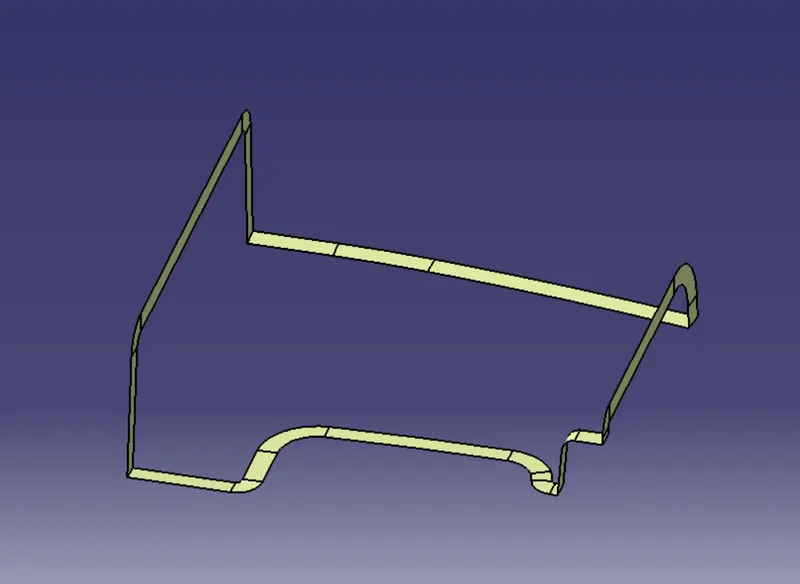

CLASS C-SURFACE:

Creation of Door Handle (SOLID SURFACE):

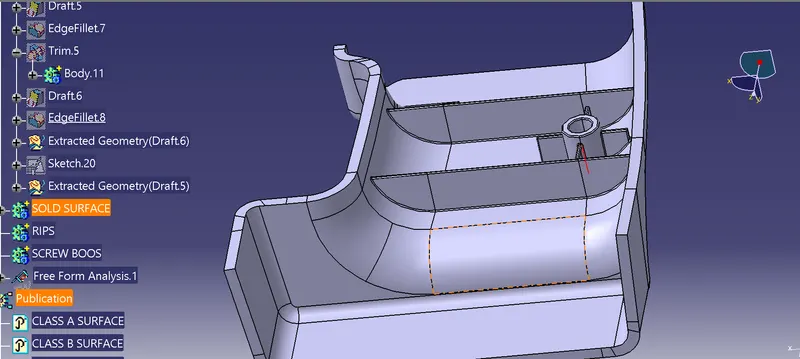

RIB CREATION

• Design Principle for Rib Creation

• Ribs are thin wall protrusions that extend perpendicularly from a wall or plane. They are usually found in clusters offering support to a plane that would have otherwise been too thick, but can also be stand-alone support for a single wall. They are commonly used to provide additional support and strength to a part. Thickness and location are essential to rib design.

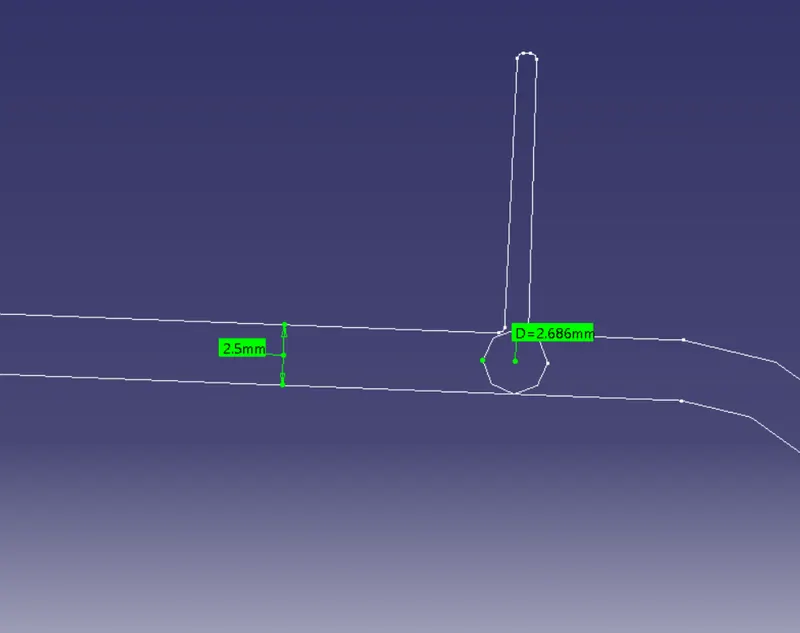

  First, the base surface where the rib has to be created is extracted using the Extract command. A positioned sketch is created and the profile for the rib is drawn.

• Next, the profile is extruded, to find the height,h=Wall thickness * 5

  =2.5*5

  = 12.5 mm

  Therefore, the height is 12.5 mm

• The extruded surface is thickened,

  Thickness,w=0.4*t

  =0.4 2.5

  =1mm

  Therefore, the thickness of the rib is 1 mm

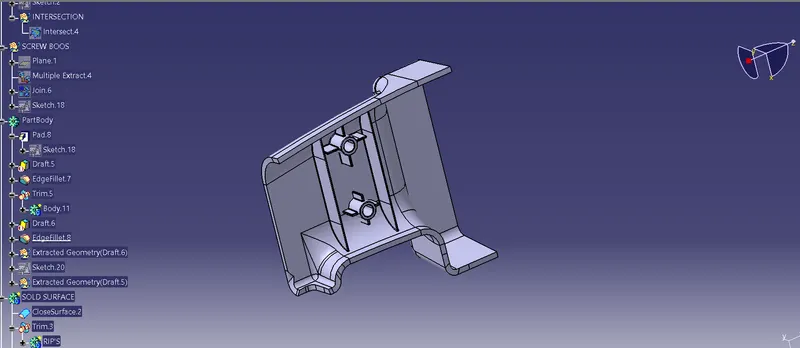

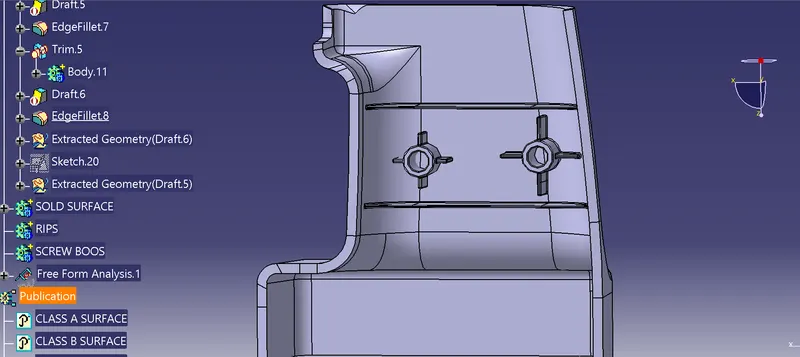

SCREW BOSS DESIGN

• Design Principle for Screw Boss Creation

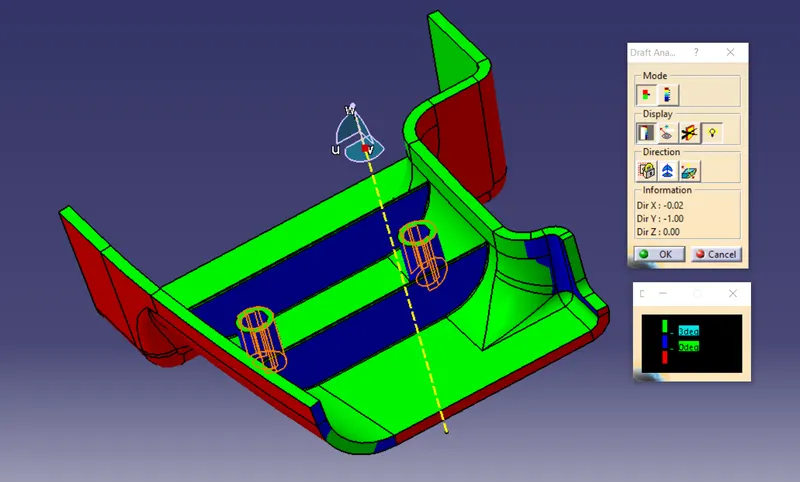

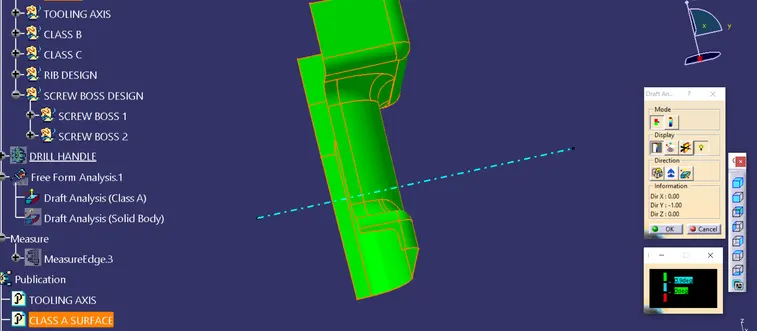

Draft Analysis of Door Handle:

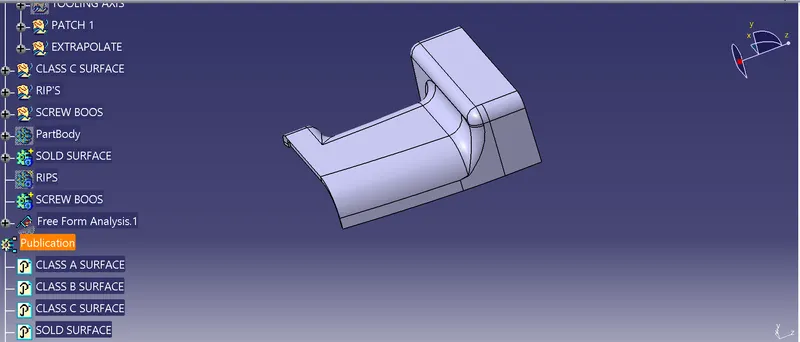

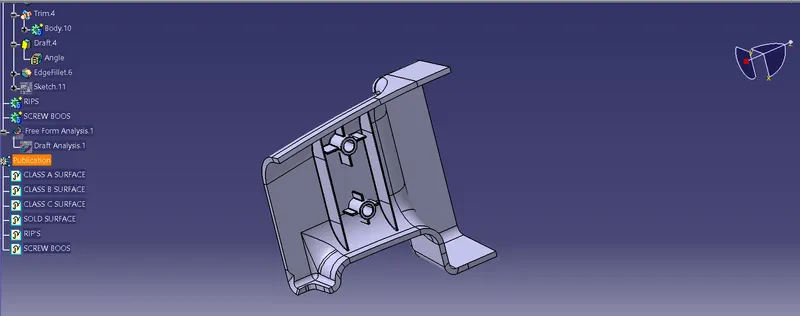

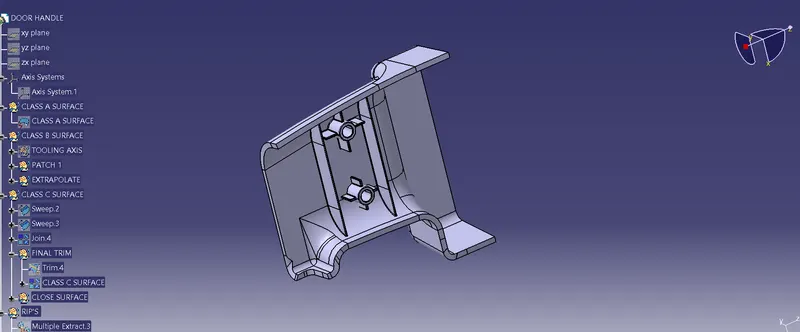

TREE STRUCTURE:

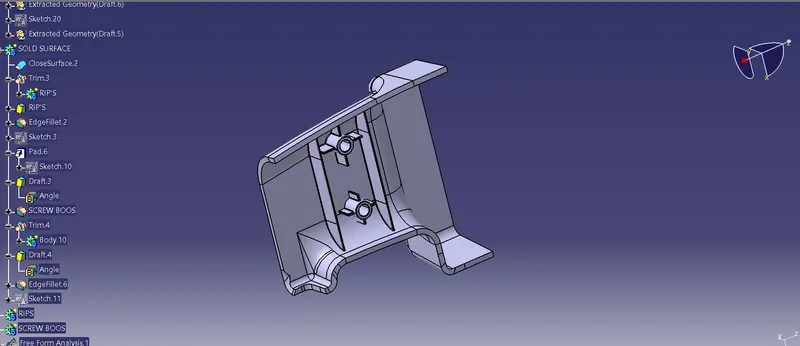

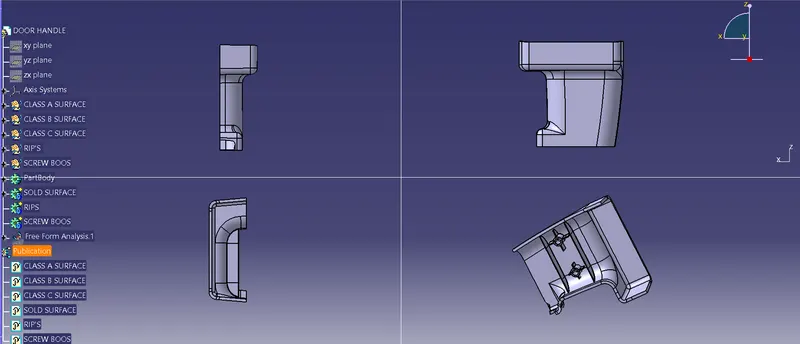

MULTIPLE VIEWS:
