Week 9 - Attachment Feature Creation - Challenge 2

Report

Step1: Tooling axis is created because of the mould is working based on the that direction. so we are going to make a clear of the core and cavity by using the draft of the side wall of the part.

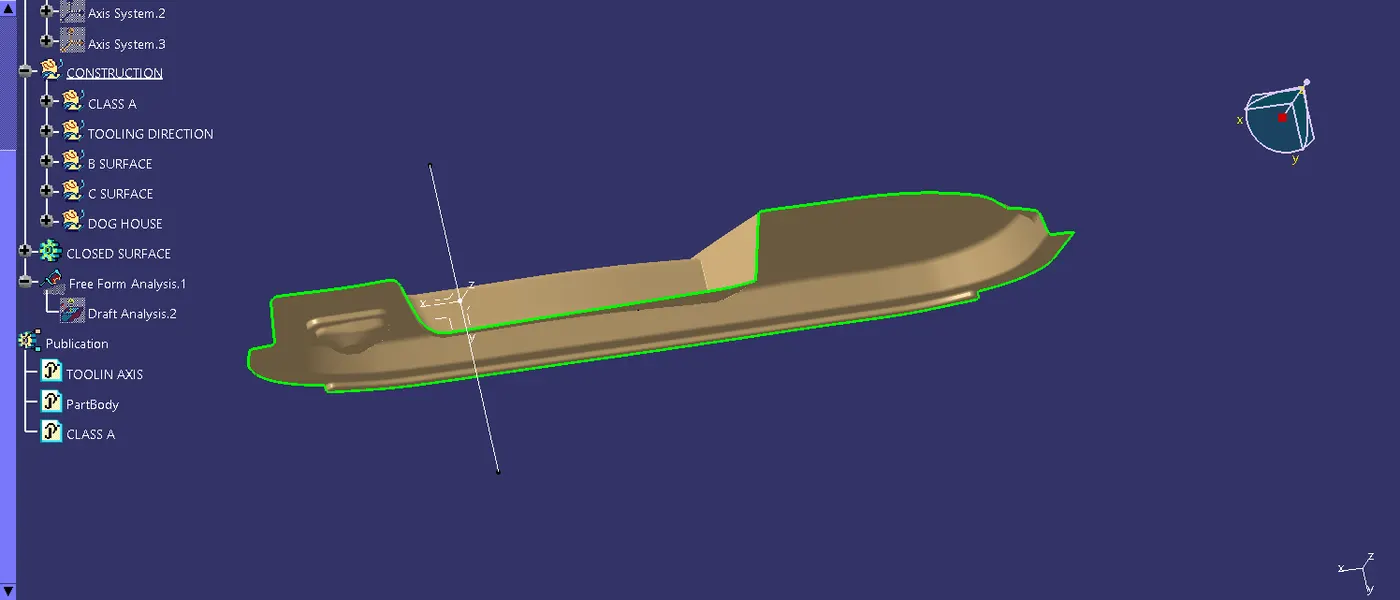

Step2: Using the part gravity point to make the tooling axis for the y direction.

Step3: Class A surface is the extract and then the offset of the surface in as per the requirement thickness of the 2.5mm.

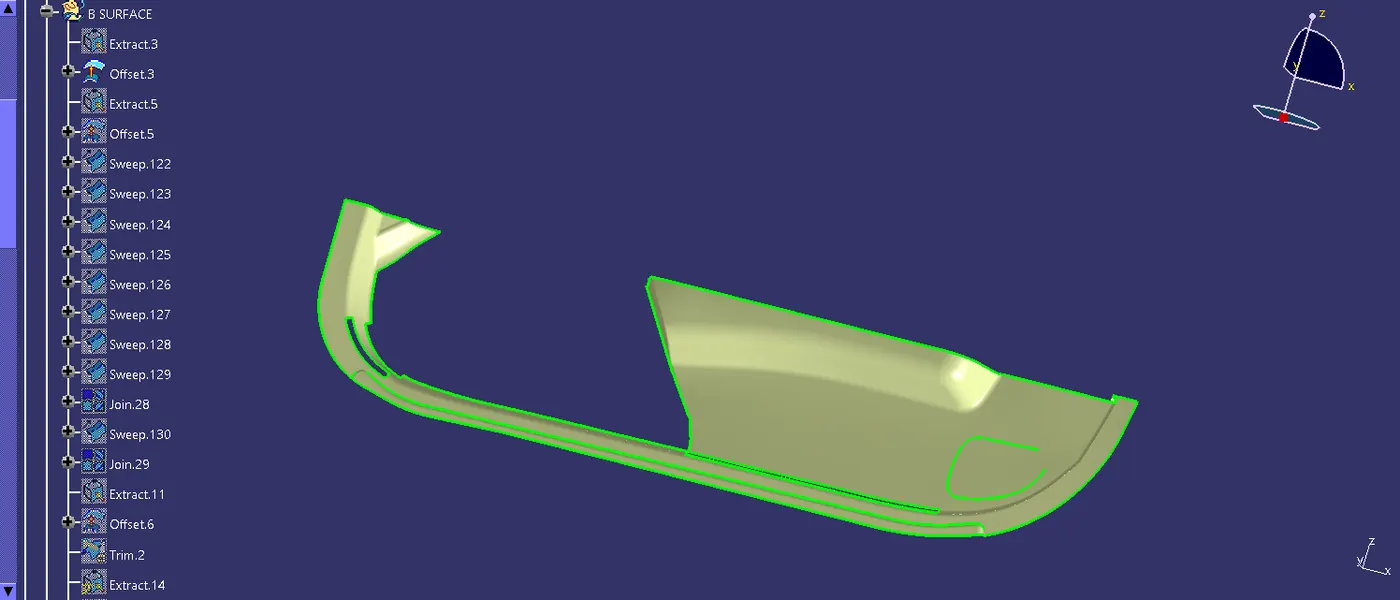

Step4: In offsetted surface is the having some patches of the surface so using tool of multisection and the blend to make fill of the patched.

Step5: And then using the tooling axis for make a c surface is edge of the surface direction to draft the surface of the part.

Step6: Then join the two surface of A and C . then that of the b surface is trimed on the A and c surface .

Step7: Next move to the part body and define the part body and using the closed surface to make solid part.

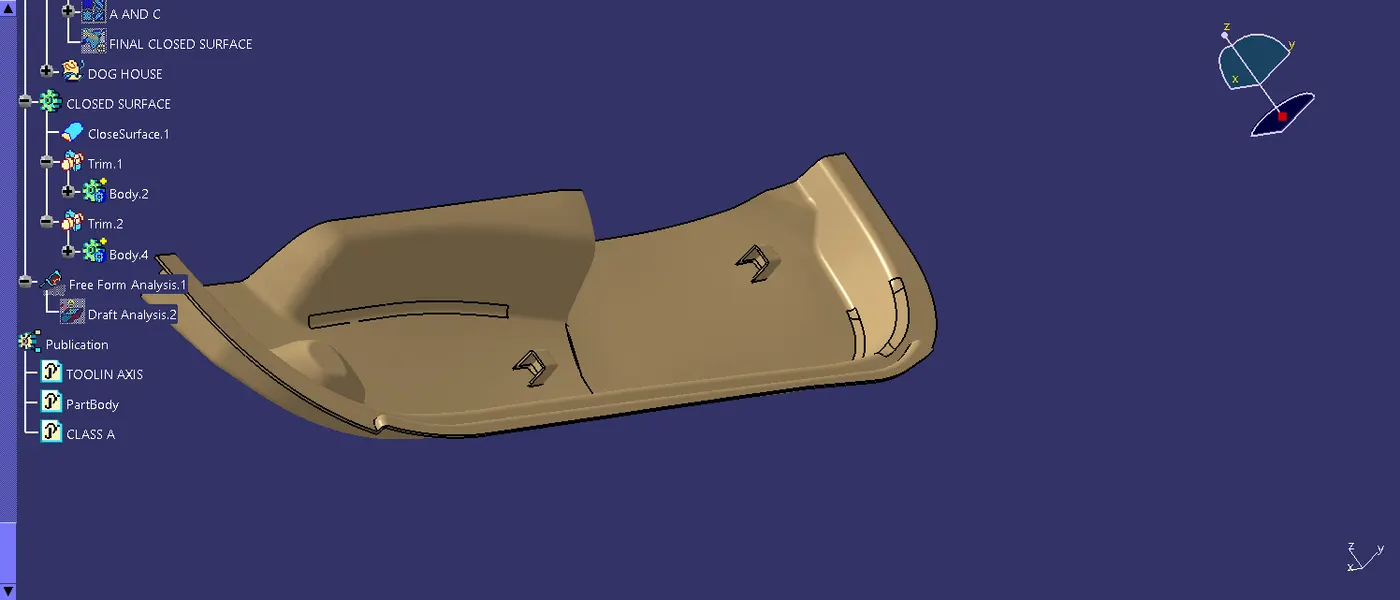

Step8: In that using the point tool and create point on the surface of the solid part and the created the profile of the dog house .

Step9: then extrude the line and move to part body make a thickness command to thick part and closed the uper part of dog house with using the offseted surface.

Step10: Then did the draft part of the 0.5 deg part and making the 3 to 6 mm height of the base cut of dog house.thickness is making of the half of the wall and make a draft of the part finally make the fillet of the part.

Step11: pulication of the Class A surface is used to make easy working and handle the surface fast so it can be used.

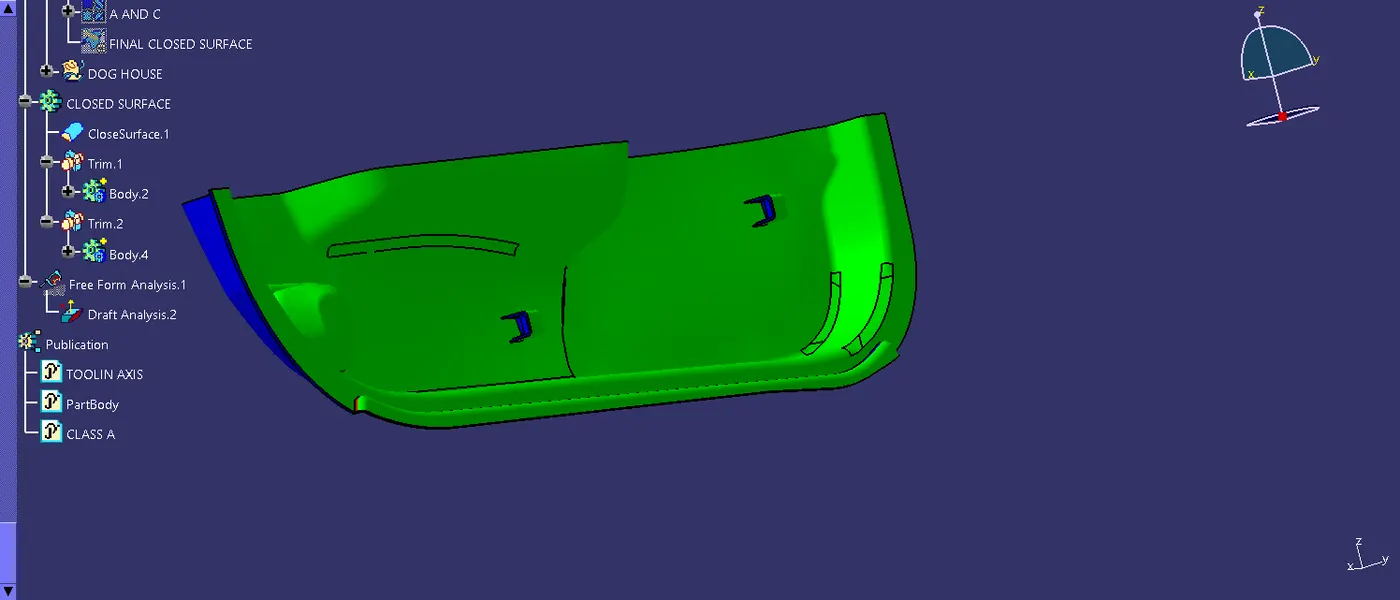

Step12: draft analysis of the part is make a analysis is base on the tooing driection then green close part of the anlysis is the having the some angle that is green colour and then blue is nuteral surface and red is the zero deg.
