Week 9 - Attachment Feature Creation - Challenge 2

Report

The Dog House is the B Class surface Feature used to give the extra length to the screw boss and to avoid various defects due to same

There are various Engineering rules to design a dog house, some are as follows

The height should be more than 12mm

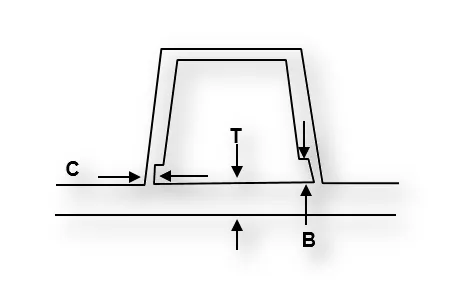

At the junction of dog house & Class b Surface the wall thickness of dog house should be less than or equal to 0.4 times the thickness of the dog house & depth of it should be 3mm ~ 6mm.

A minimum draft of 0.5 degree should be given inside the dog house for clearance of side core & 1.5 degree on the outside walls for clearance of main core

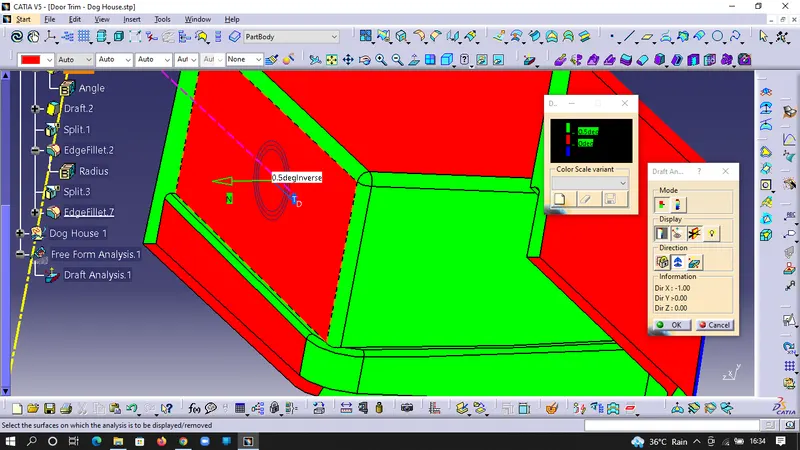

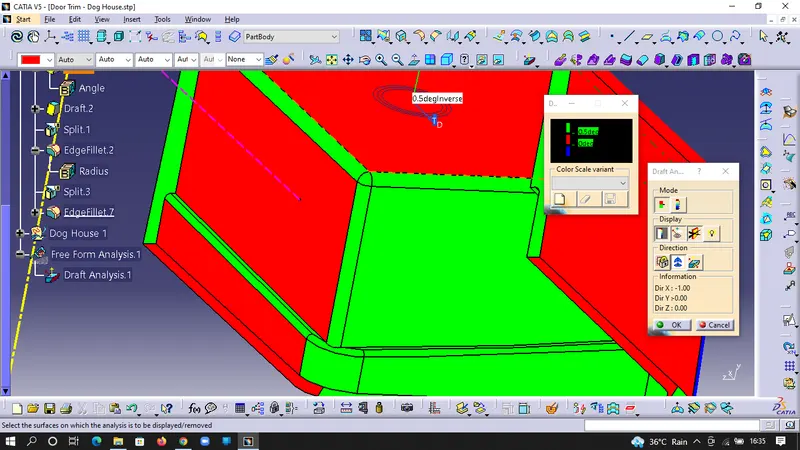

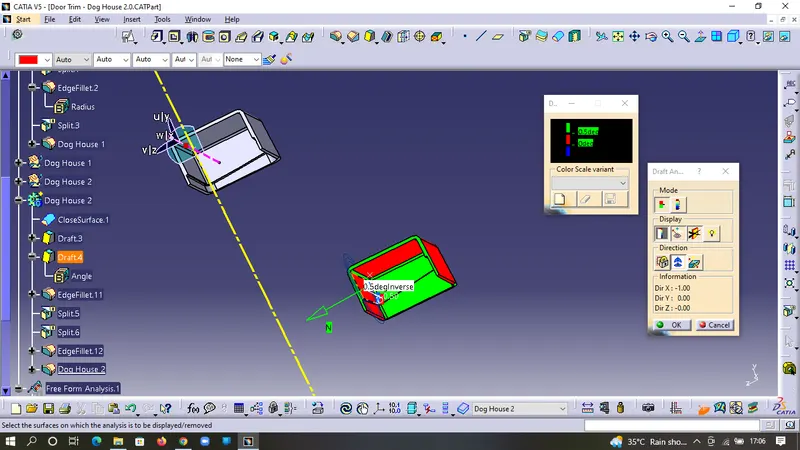

Draft Analysis of 1st Dog House

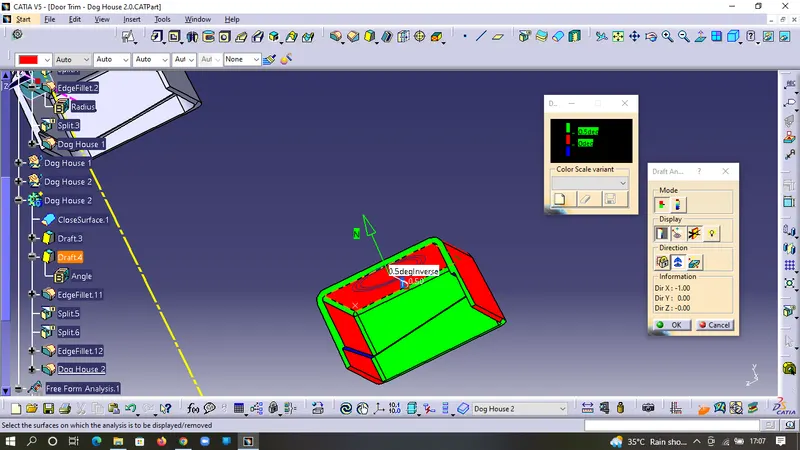

Draft Analysis of 2nd Dog House

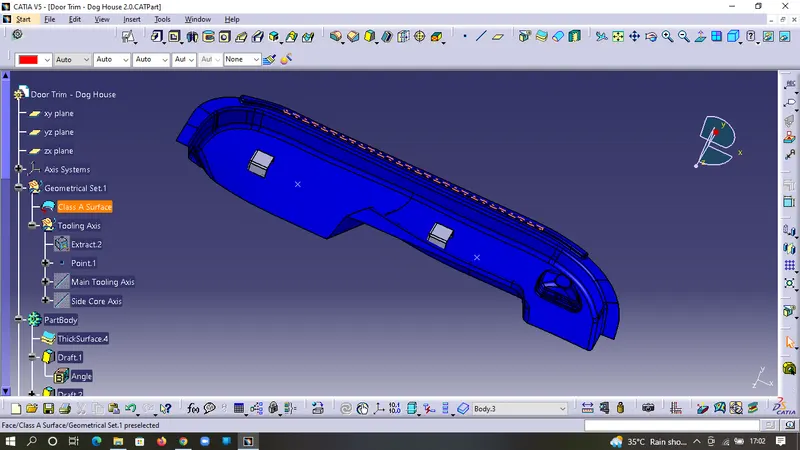

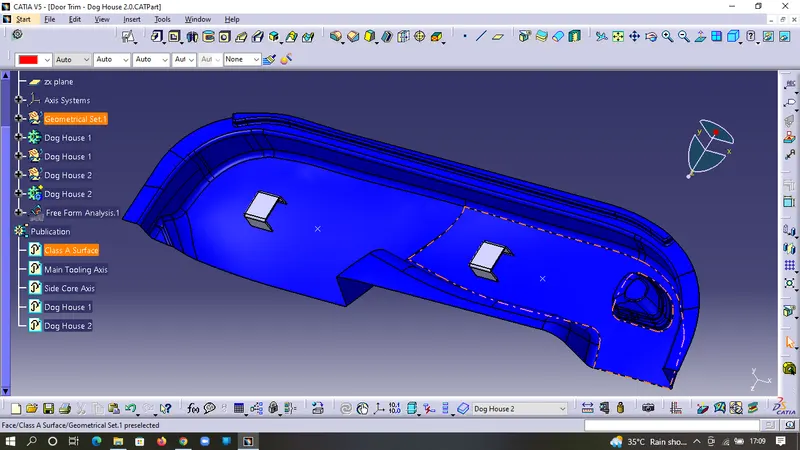

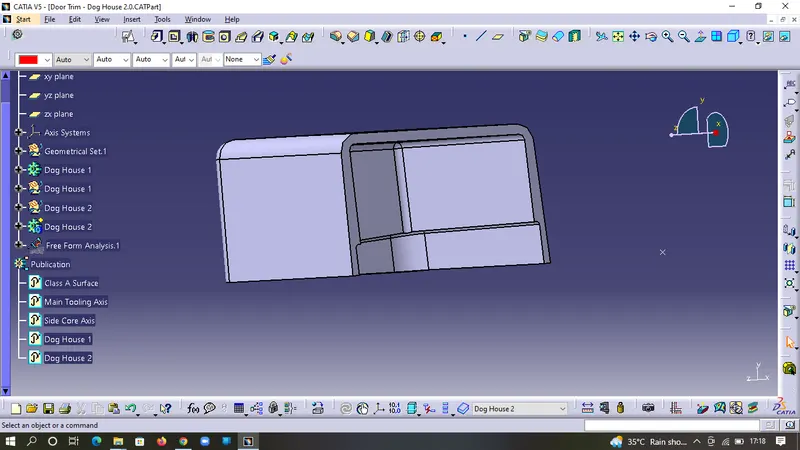

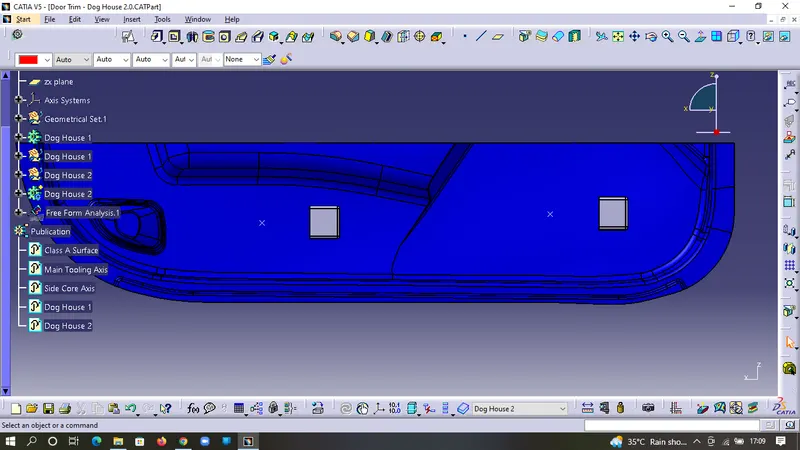

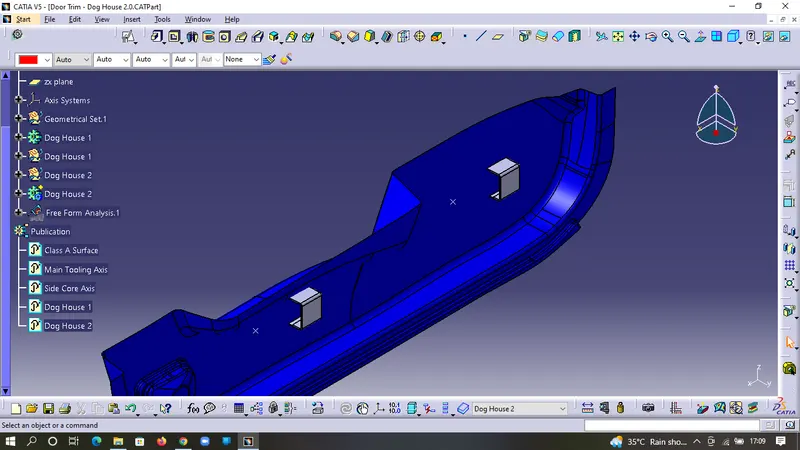

Screenshots of the completed design in various orientations (Isometric, Front, Side, and Top View)
