Week 9 - Attachment Feature Creation - Challenge 2

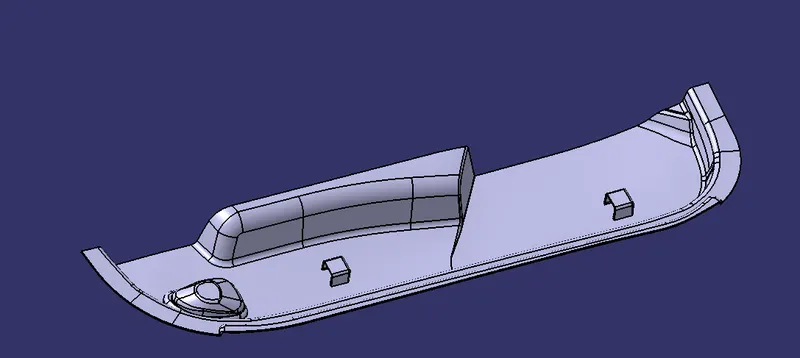

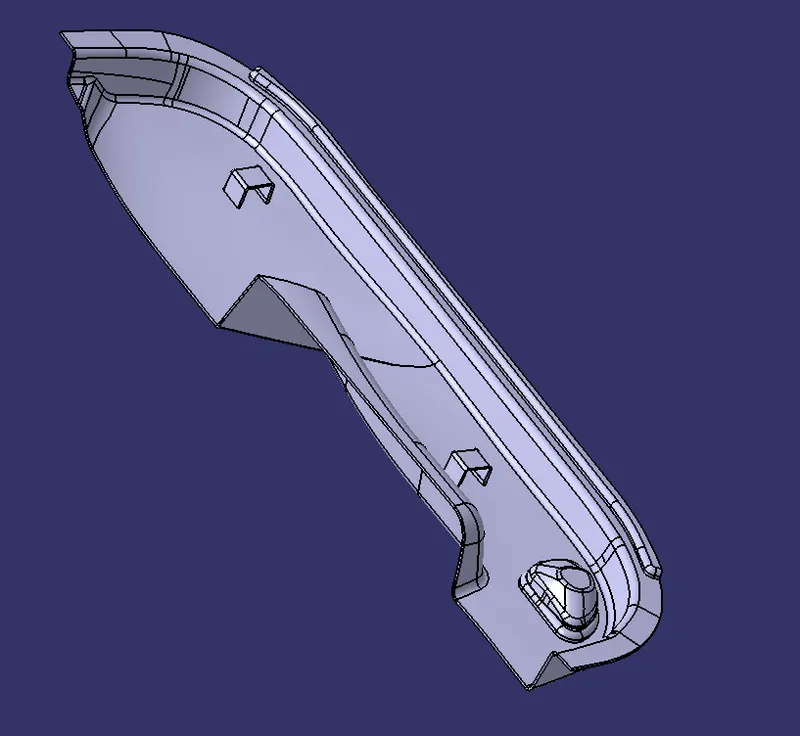

Screenshots of the completed design in various orientations:

Report:

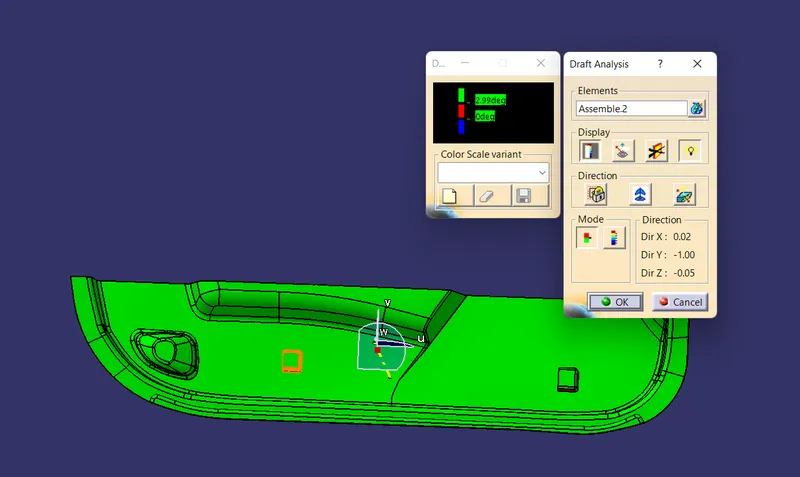

As we've discussed in previous examples that draft analysis is performed on the component for checking wethere the draft we created is easily manufacturable or not.

Tooling axis is the main axis along with which the product will be drafted and the main direction of motion will be in that particular direction.

Tooling Axis:

In here, I've searched for the methods online. I found this new method which was highly used by the industrialists. The name of the method is Moment of inertia method. In CATIA software there is a feature which allows you to find center of gravity of the product. So according to that we find point. We created a line normal to that point and that will be our tooling axis.
