Week 9 - Attachment Feature Creation - Challenge 2

AIM:

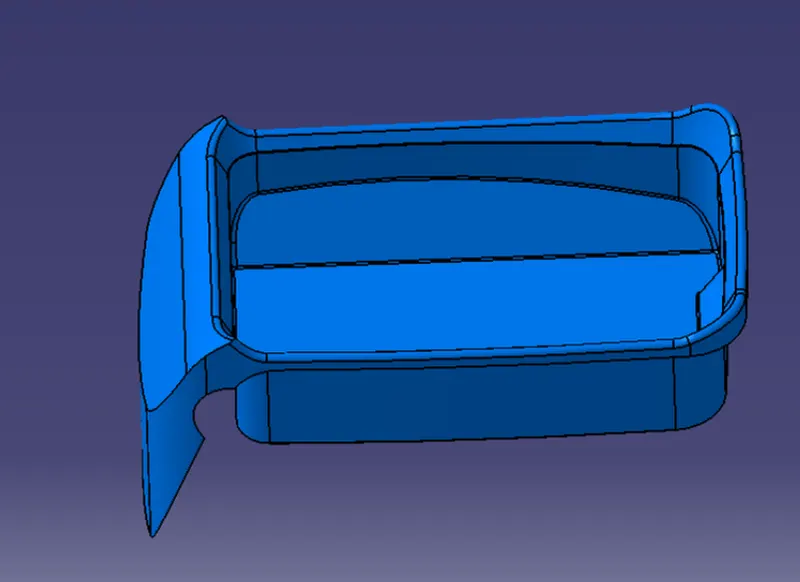

 To create a coin holder with ribs from the given A surface by adding a thickness of 2.5 mm to it and to create ribs as per the design standards .

PROCEDURE:

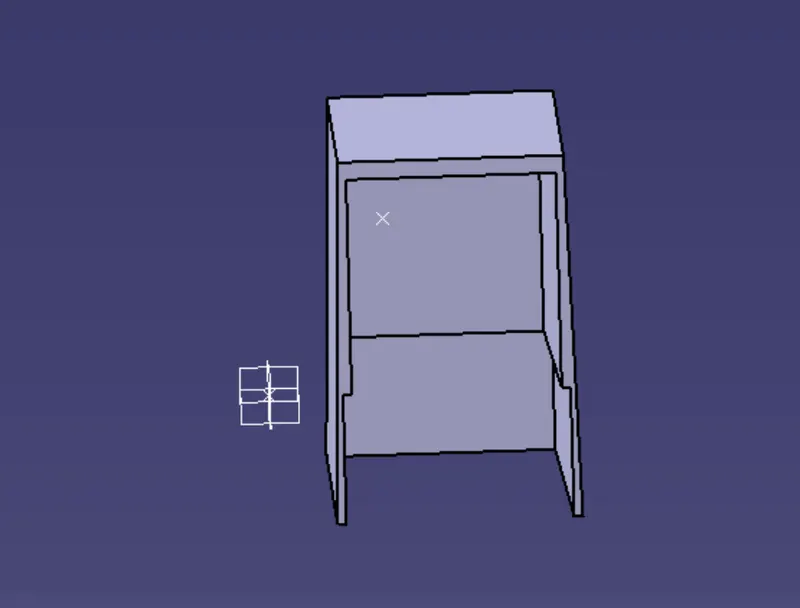

1)Tooling axis
        Tooling axis is nothing but the duirection in which the core and cavity opens and closes . Design engineer works is to analyse the class A surface and find out the besy possible tooling direction keeping in mind all the draft angle is with respect to the tooling axis so that the component can be easily ejected from the moulds.



2)A Class surface

    In automative design,a class A surface is any of aset of freedom surface of high efficiency and quality.Although,strictly ,it is nothing more than saying the surfaces have curvature and tangemcy alignment- to idealaesthetical reflection quality.Many people interpret class A surface to have G2(or even G3) curvature continuity to one another.Class A surfacing is done using computer_aided industrial design applications.Class A surface modellers are also called" digital sculptors" in the industry. Industrial develop their design stylling through the A- surface,the physical surface the end user can feel,touch ,see etc.



3)B Class surface creation

    Represent internal and functional surfaces.This cluster exemplary includes derived surfaces created by offset operation from class A surfaces to define the thickness of material.In this file important to link class B surfaces geometrical to enable an adaptation to class A surfaces automatically in case of styling change.

    After creating the tooling axis,B surface is to created which is nothing but the surface parallel to the A surface .B surface contains all the fillets and the edge which the A surface contains.

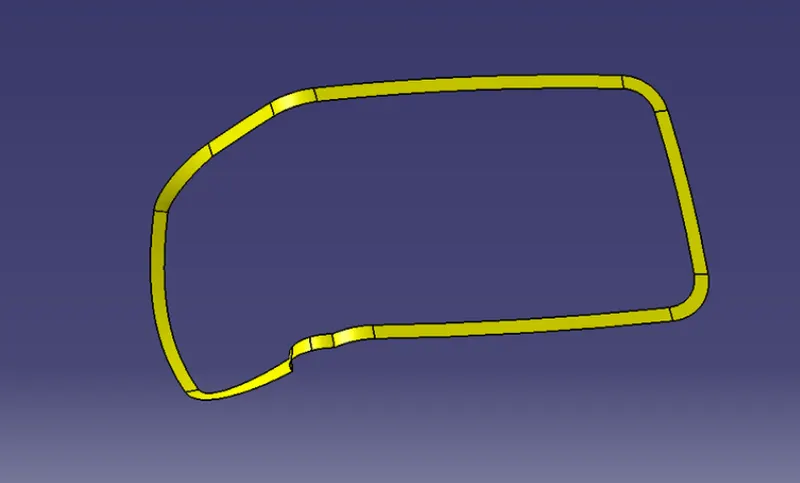

4)C Class surface creation

    Class C surafce is swept along the boundary of the class A at an angke perpendicular to the class A surface with respect to the tooling axis direction with a draft angle of 3degree.

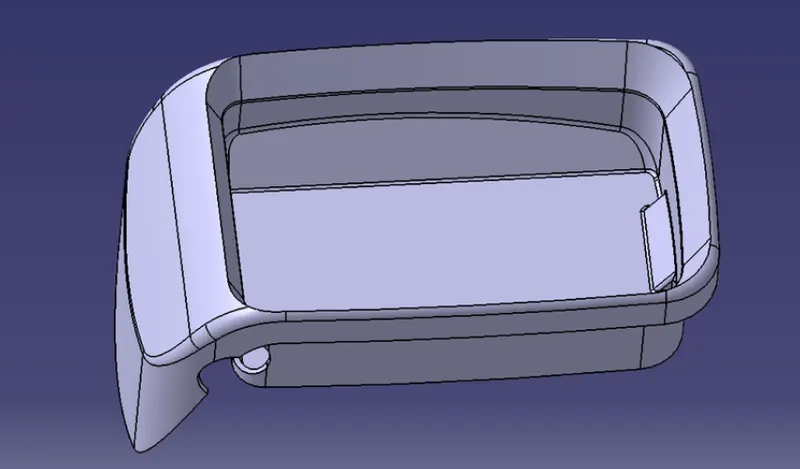

5) Joining Class A,B and C surface to get a closed surface

     After finishing all the 3 surfaces,join the class A and class C surfcae together using the join command .Now , the joined surfaces are then trimmed with class B surface to form a closed surface.

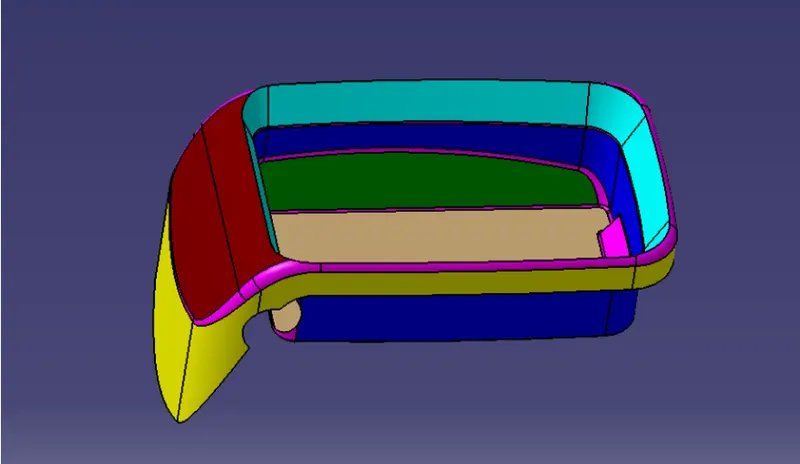

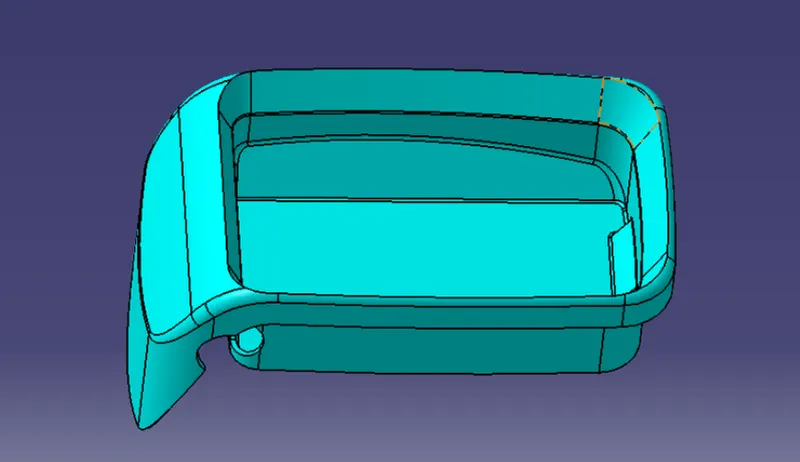

6) Draft analysis

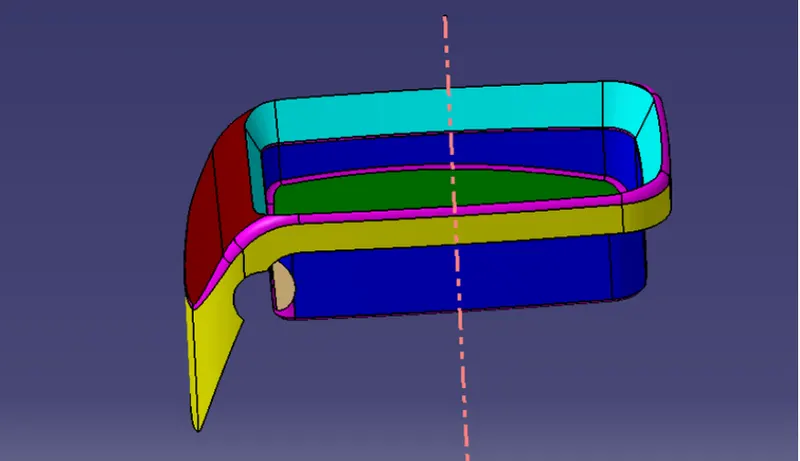

     The Draft analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on colour ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

     Draft angles are very important in thermofoming product design.If the product is formed onto a female or negative mould,it shrinks away from the mold sidewalls .As a result ,true femaleor negative products can be with vertical thermoformed with vertical walls having zero draft angles.

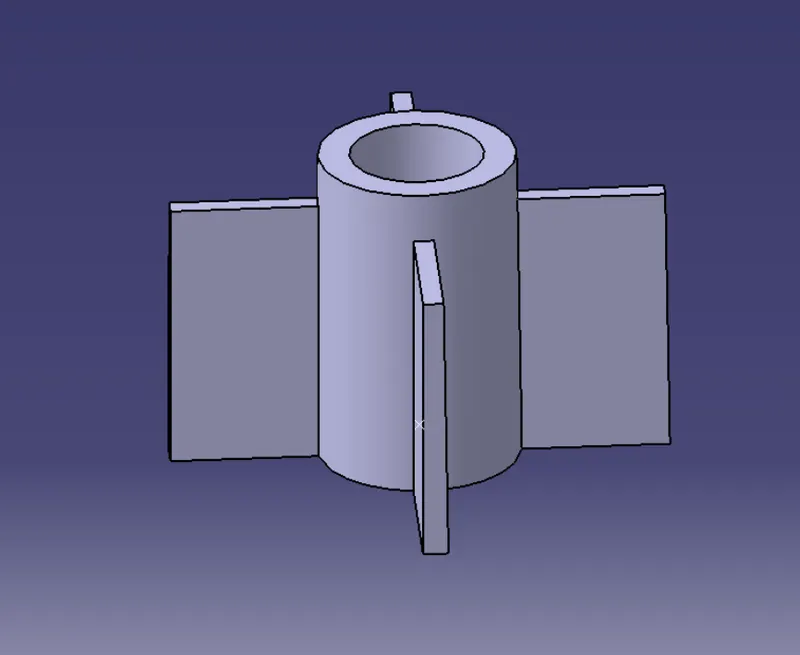

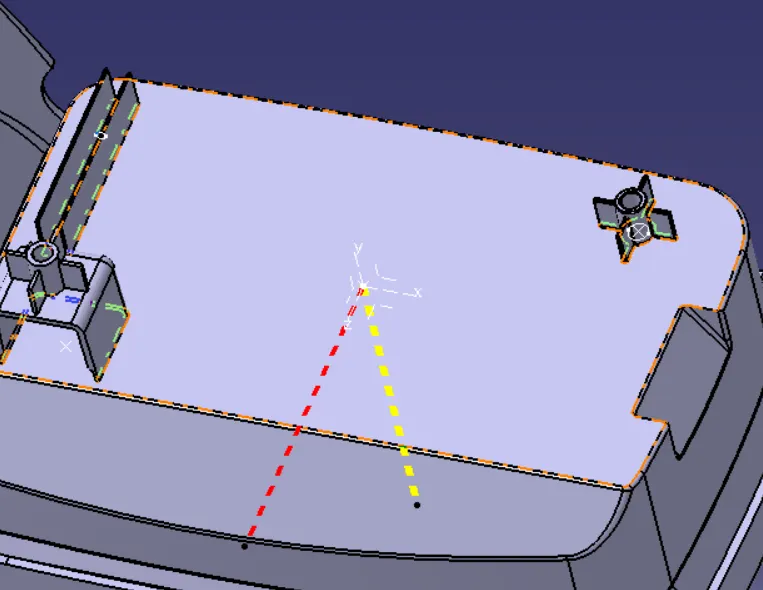

7) Creating screwboss

     Create the crew boss as per the design rules and give the required draft angle.

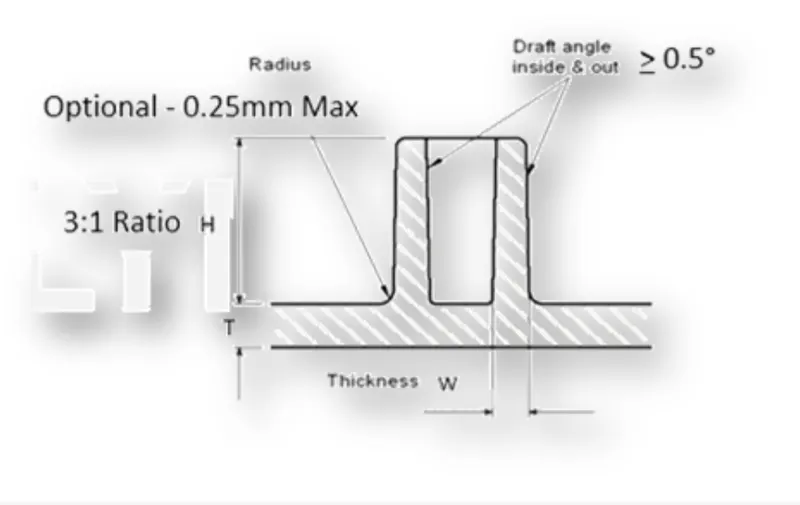

     Boss features are commonly found in injection moulding design.They are used to aid on the assembly of the moulded parts by providing a channel for a screw .To get these specifications,refer to the screw manufacturer's guidelines for recommended hole and surrounding wall thickness for your given screw.

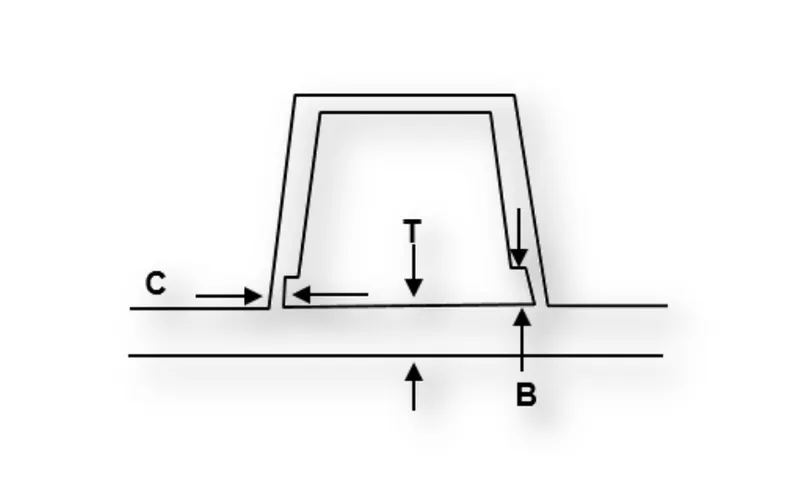

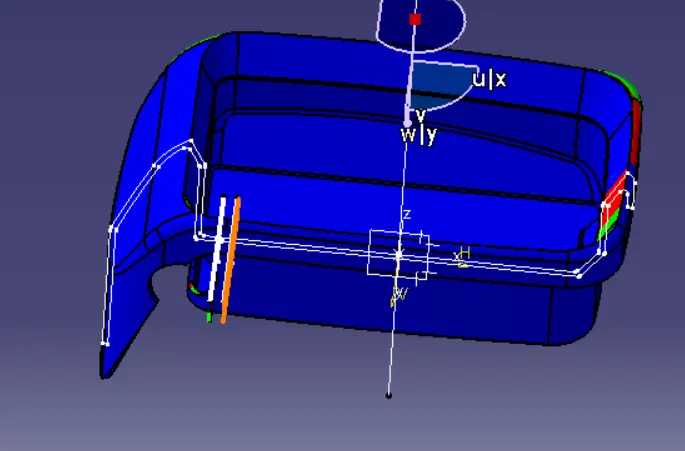

8) Creating dog house

• Create the dog house as per the design rules and give the required draft angle.
• Doghouse wall thickness at the intersection of the part wall (c) should be 40% or less than the main wall stock(T).
•  Hieght of (B) should be between 3.0-6.0 mm.

 Result:

•  Class A,B and C surface as per the automotive standards using catia V5 software.
•  Draft analysis was performed for the built model and it could be seen that the draft was under permissible limit for the manufacturing of the component.
•   Ribs were created for the component as per the design rules.
