Week 9 - Attachment Feature Creation - Challenge 2

TOOLING AXIS CREATION.

- FOR COIN HOLDER WITH BOSS AND DOG HOUSE WITH NEED TWO TOOLING AXIS , WE NEED SIDE CORE TO CLEAR SOME FACE IN DOG HOUSE.

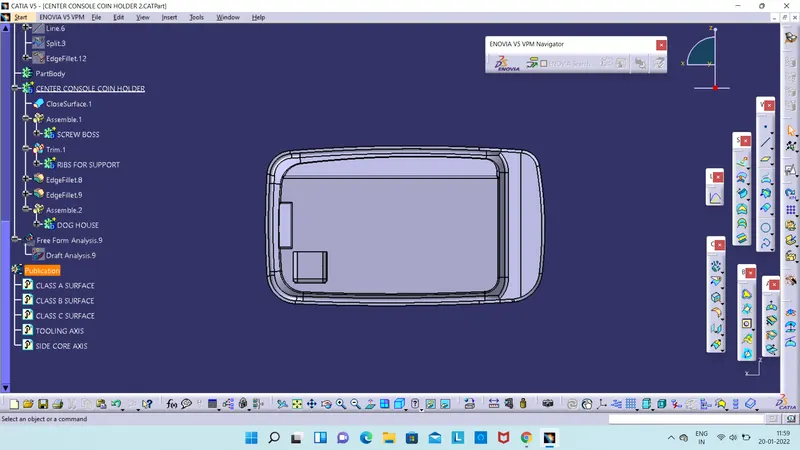

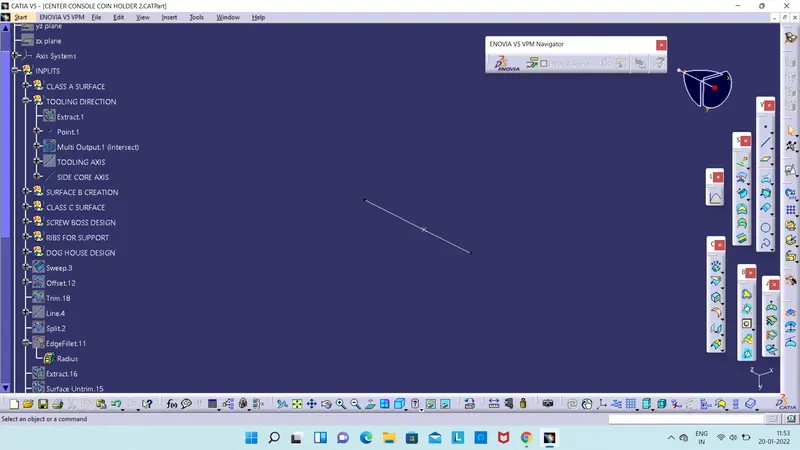

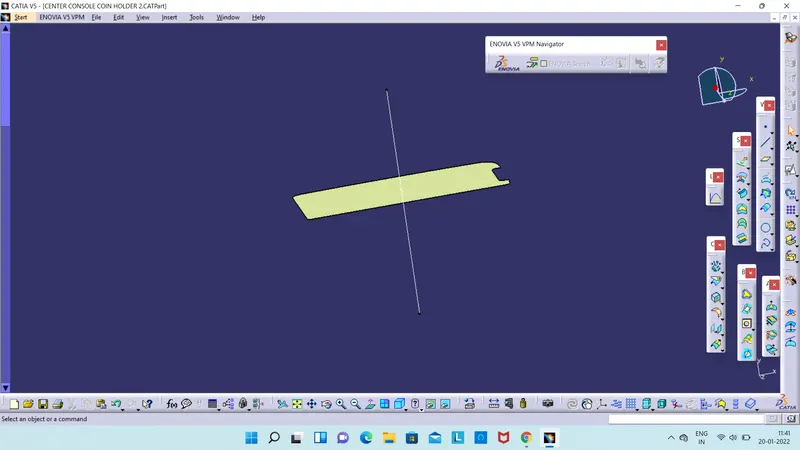

- I HAVE EXTRACT THE BASE SURFACE FROM THE PART BODY AND TAKEN A CENTER POINT ON THE SURFACE

- FROM THERE DRAWN A LINE WITH THAT EXTRACT AS REFERANCE AND POINT.

- I HAVE CONSIDER THIS TO BE MY TOOLING AXIS.

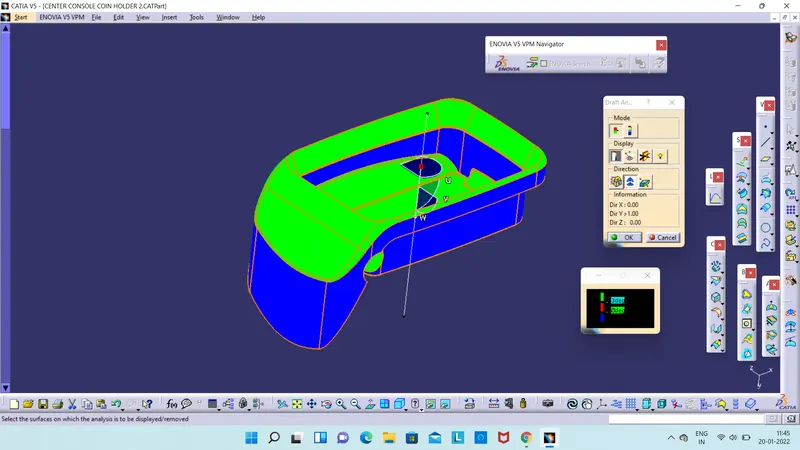

- AND PERFORM A DRFAT ANALYSIS ON CLASS A SURFACE.

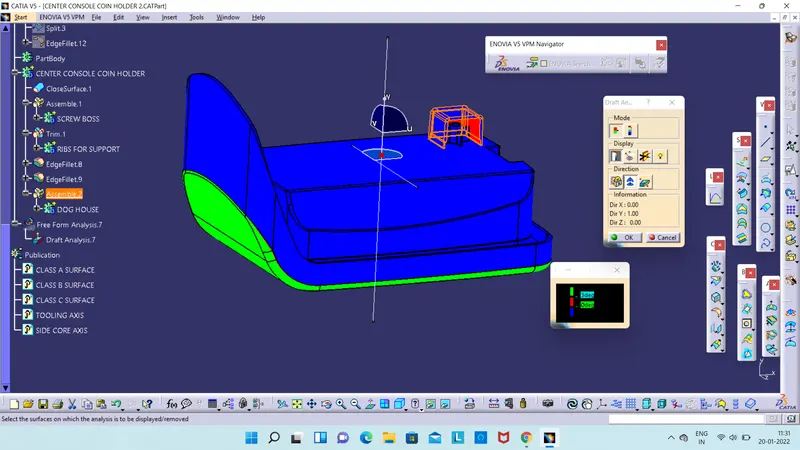

- GO TO INSERT THAN FEATURE DRAFT ANALYSIS , MOVE THE COMPASS TO THE TOOLING AXIS ENSURE ITS PROPERLY

FIX THAN SELECT THE SURFACE GIVE DRAFT ANGLE AS 3 DEG.

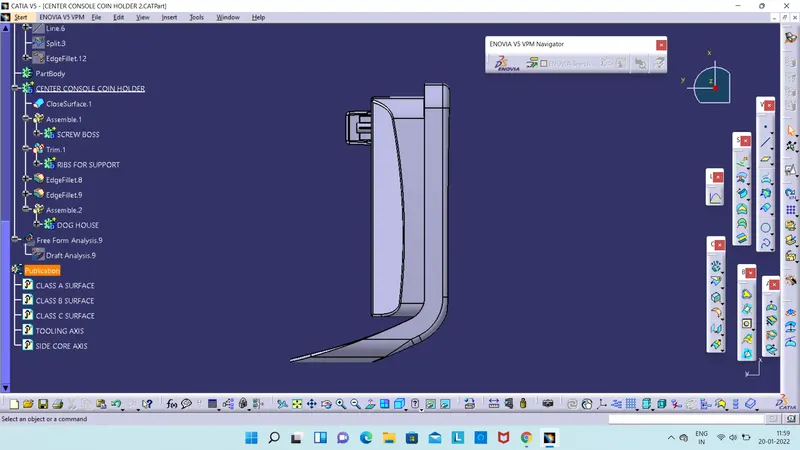

- AND ITS BEEN SOLVED SO WILL CONSIDER THIS LINE AS OUR TOOLING AXIS FOR FURTHER PROCESS.

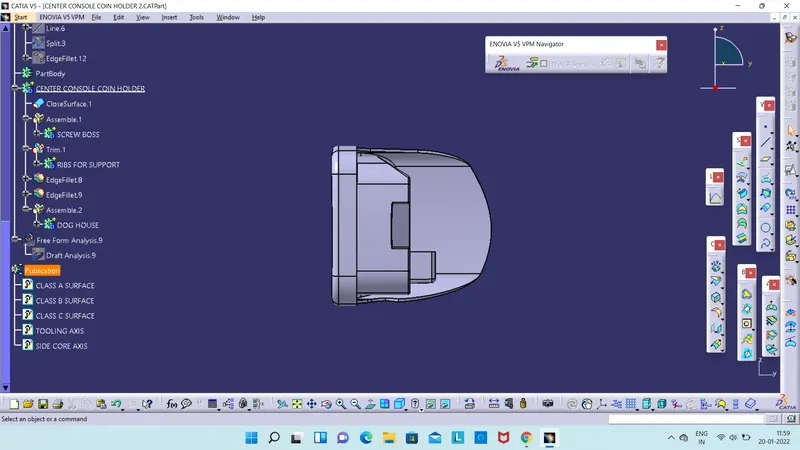

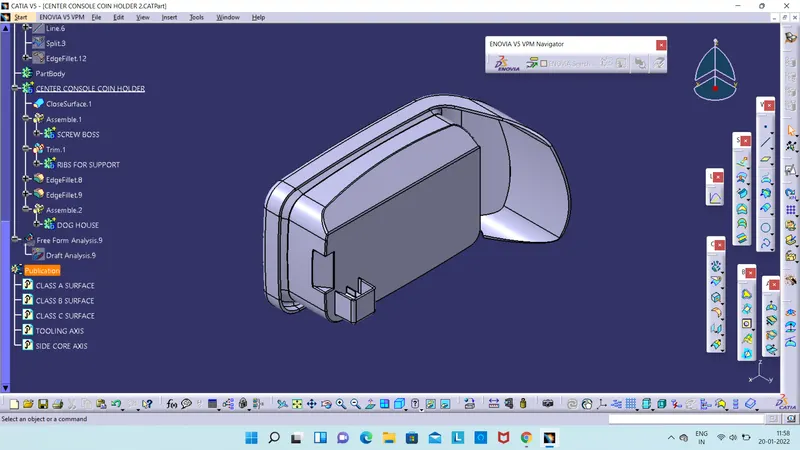

- AFTER CREATING SCREW BOSS AND DOG HOUSE.

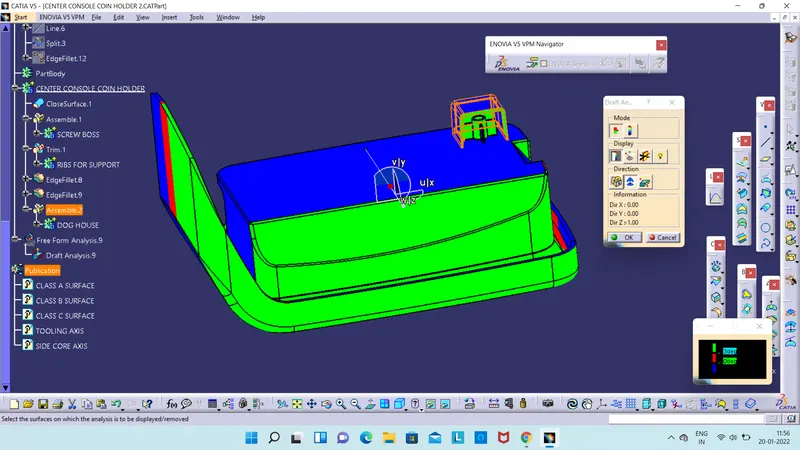

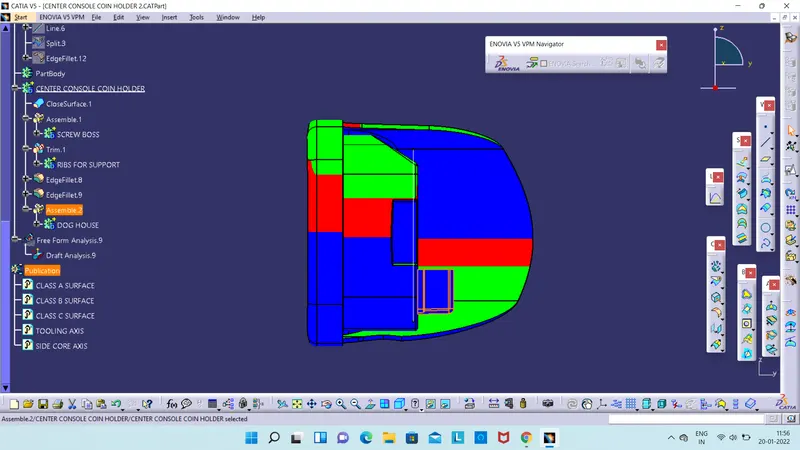

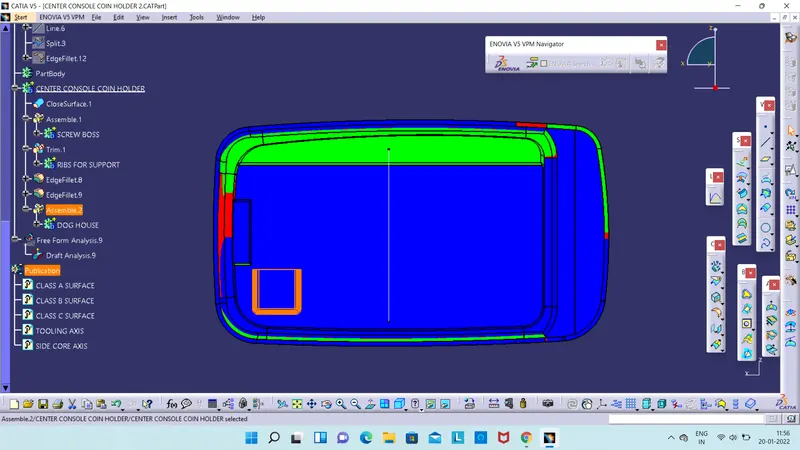

- I HAVE PERFORM THE ANALYSIS AGAIN AND WE CAN SOME RED PORTION IN THE DOG HOUSE

- SO WE NEED SIDE CORE AXIS TO CLEAR THIS.

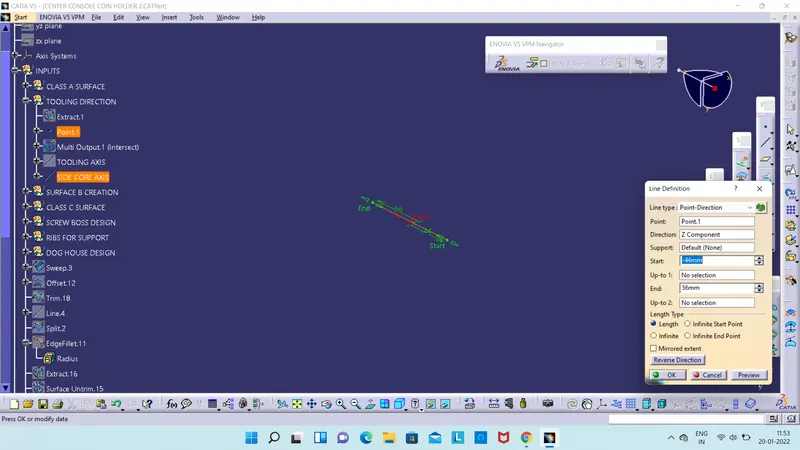

- SO FROM OUR SAME POINT DRAW A POINT - DIRECTION LINE TO Z DIRECTION.

- THIS CAN BE OUR SIDE CORE AXIS.

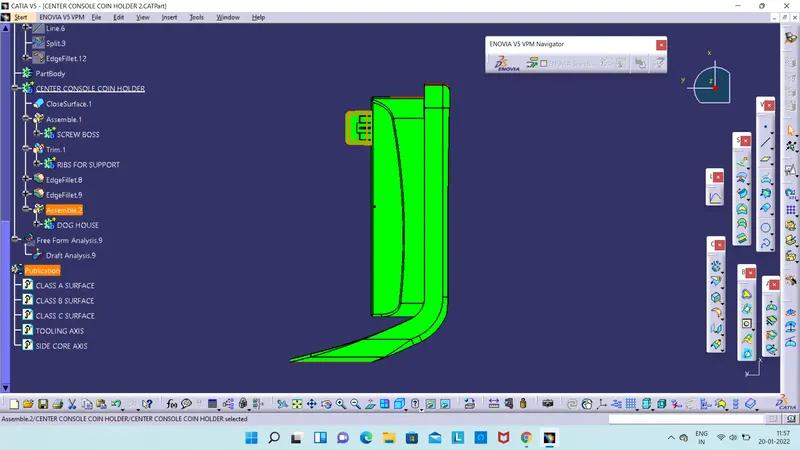

- SO I PERFORMED ANALYSIS AGAIN WITH THIS AXIS.

- AND FACES WERE CLEARED WITH SIDE CORE AXIS.
