Week 8 - Challenge 3 - Switch Bezel Design

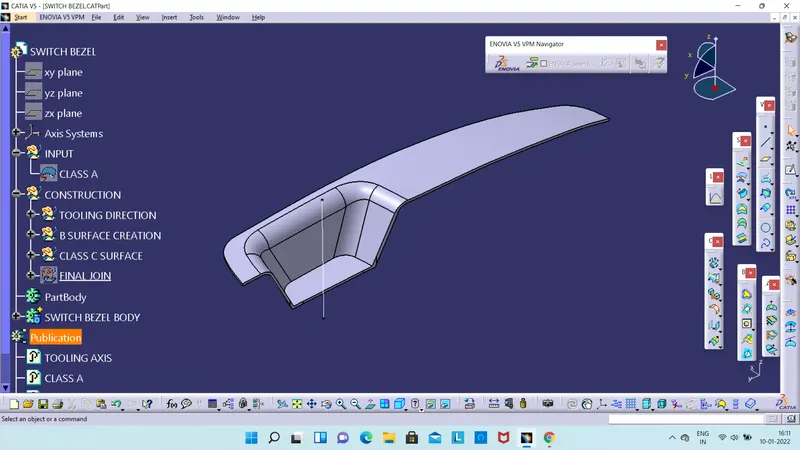

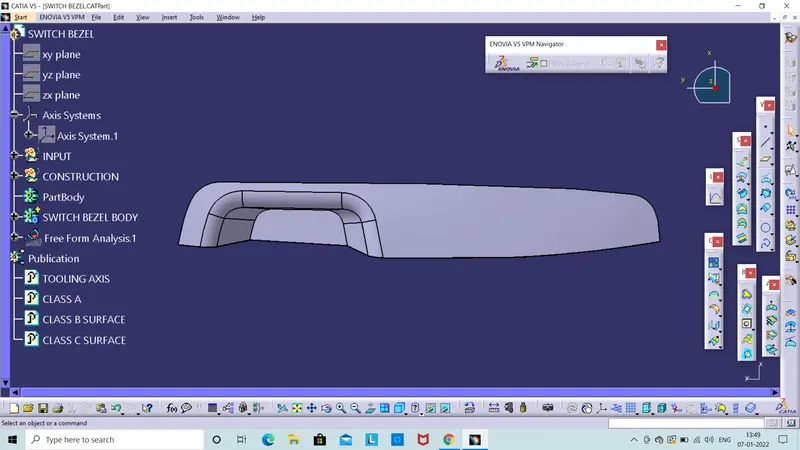

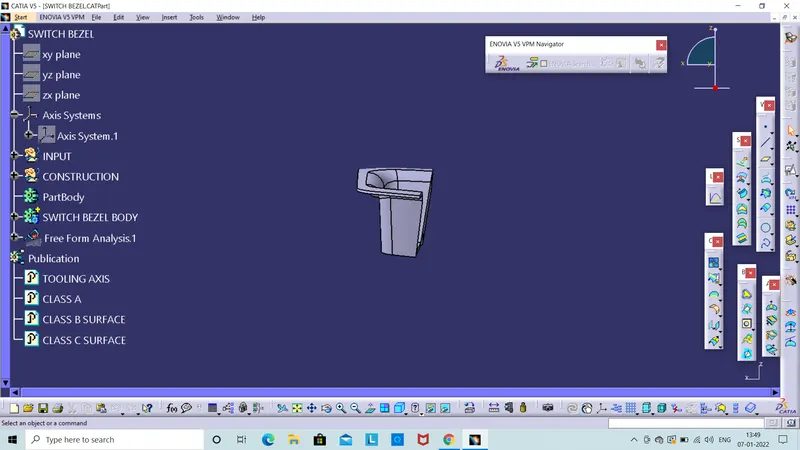

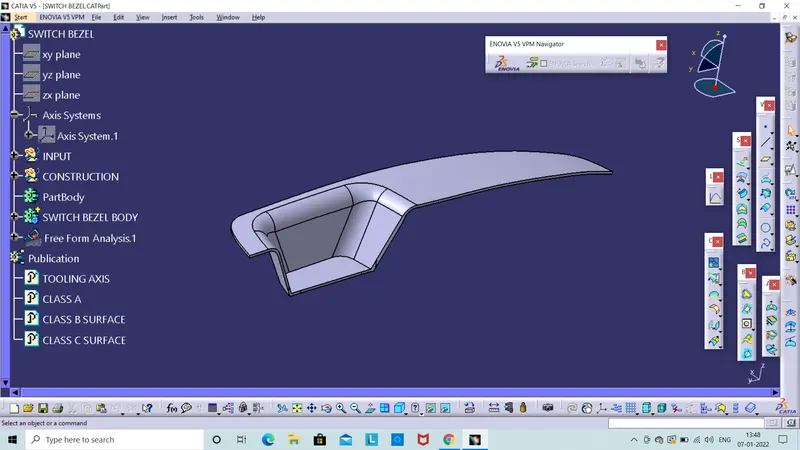

SWTICH BEZEL WITH CLASS A , B , C SURFACE

DRAFT ANALYSIS ON SWITCH BEZEL

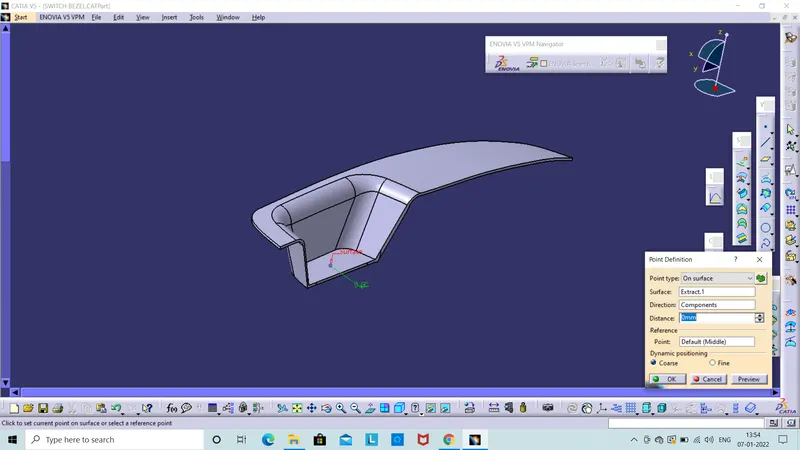

- ON THE GIVEN SWITCH BEZEL FIRSTLY WE CAN EXTRACT THE BASE AND TAKE POINT THERE , WE CAN SIMPLY SELECT INSERT POINT

   AND SELECT ON SURFACE AT 0 CO-ORDINATES SO WILL GET POINT AT CENTER.

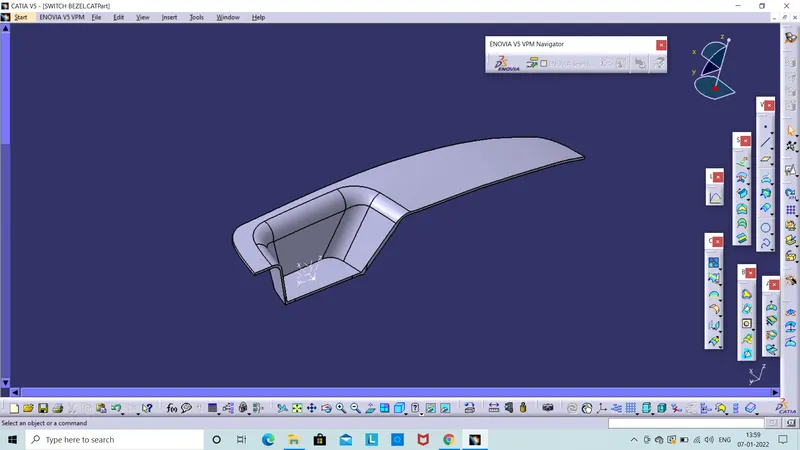

- AFTER THIS FOR THE PLANES WE CAN ADD A NEW AXIS SYSTEM BY TAKING THAT POINT INTO REFERANCE.

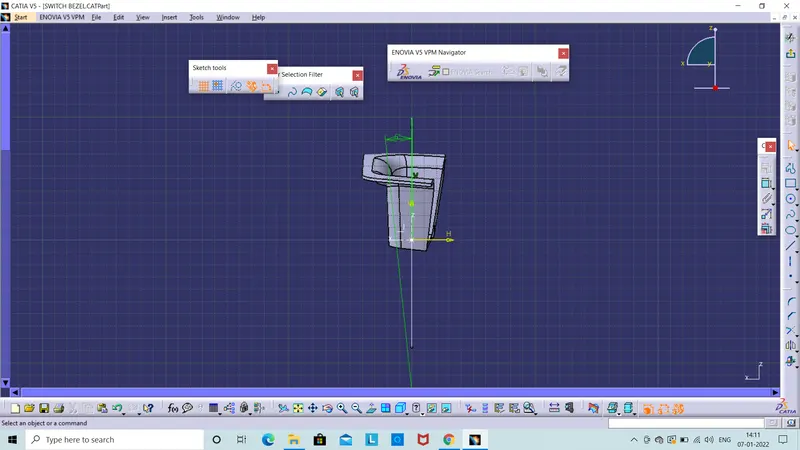

- NOW , WE CAN SKETCH AT THIS SO SIMPLY SELECT POSITION SKETCH TAKE YZ PLANE AND POINT AS REFERANCE

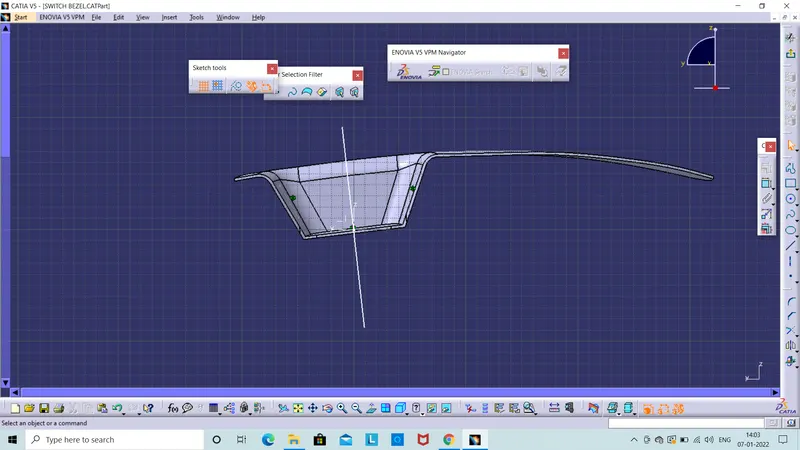

- WE CAN DRAW TWO REFERANCE LINE ON SIDE

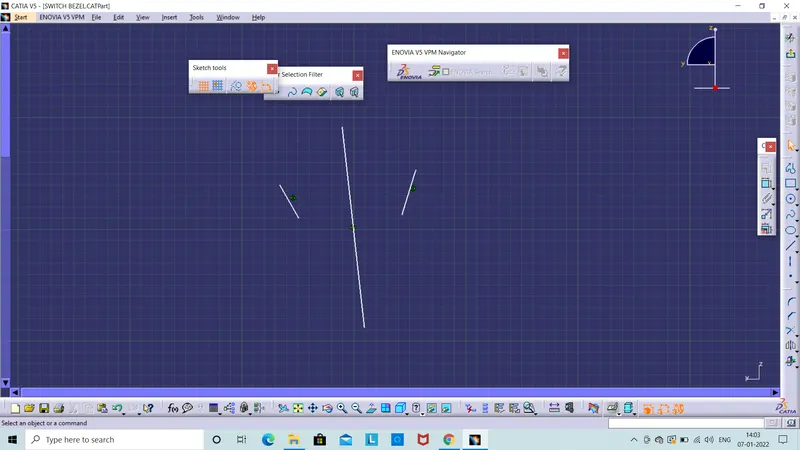

- ENSURE THAT BOTH LINES ARE ISOLATED MAKE IT AS CONTRUCTION LINE AND BEFORE IT FROM THE  BOTH LINES DRAW A BISECTING LINE.

- WHICH WILL BE OUR FIRST REFERANCE LINE FOR THE TOOLING AXIS.

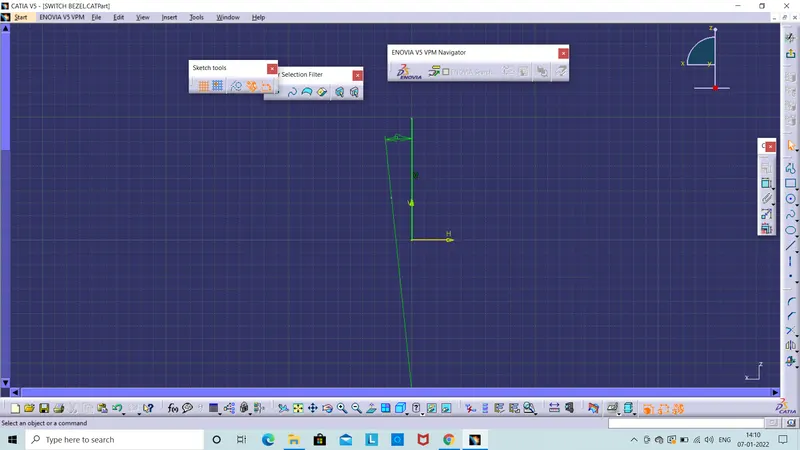

- WE FIRST INTERSECT CONSIDER CLASS A SURFACE AND THEN DRAW A STRAIGHT LINE AND SECOND LINE FROM THE ORIGIN GIVE ANGLE BETWEEN THEM I HAVE TAKEN THE ANGLE 6 DEG.

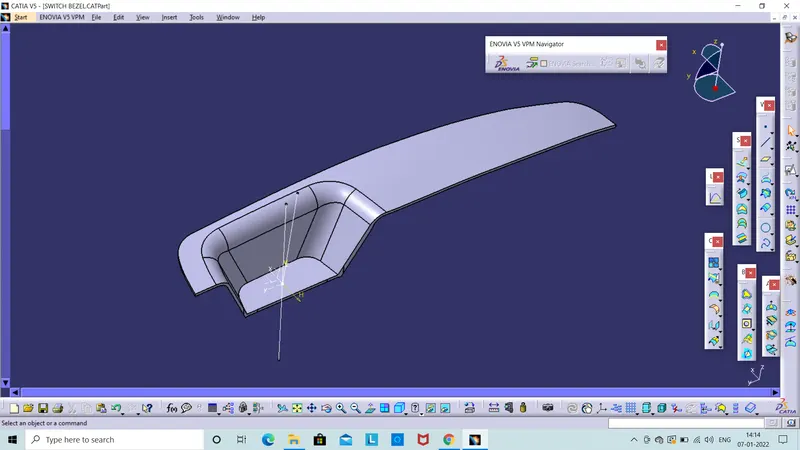

- NOW WE HAVE TWO LINES WE CAN BISECT THEM AND CAN CREATE A NEW LINE WHICH WILL BE OUR TOOLING AXIS

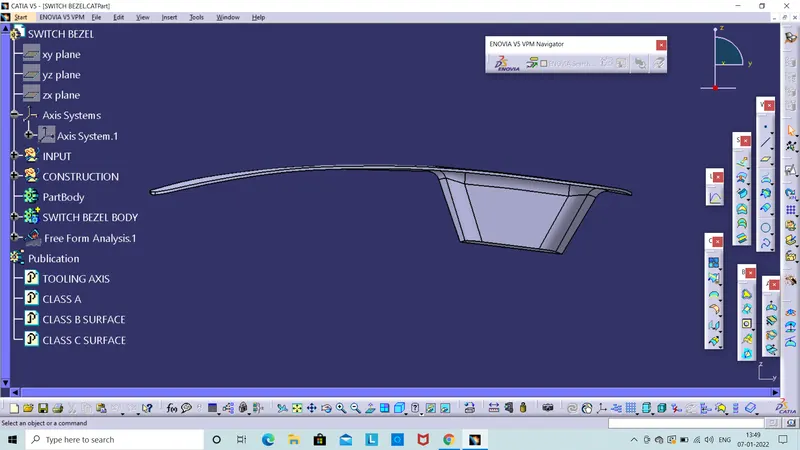

- SO WE GOT OUR TOOLING AXIS AND WE CAN START DRAFT ANALYSIS.

- ENSURE TO SELECT MATERIAL MODE IN CUSTOMIZE VIEW.

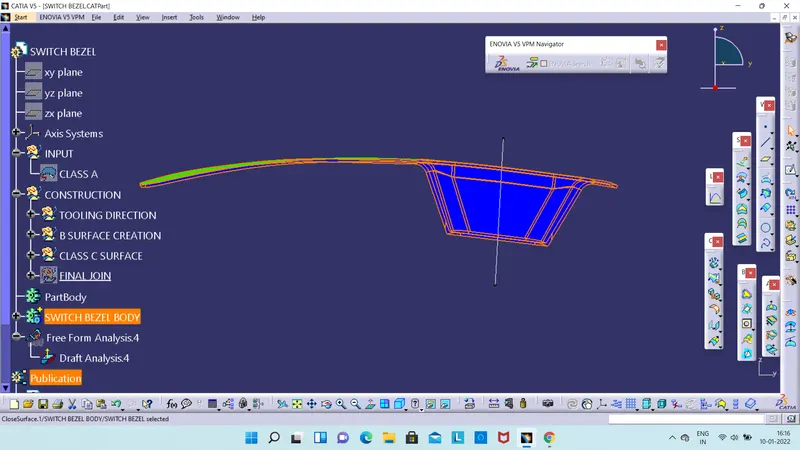

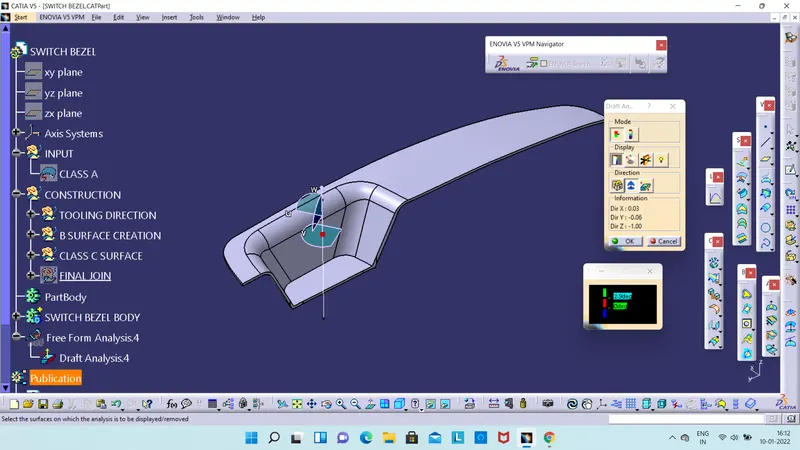

- GO TO INSERT  THAN ANALYSIS AND SELECT FEATURE DRAFT ANALYSIS.

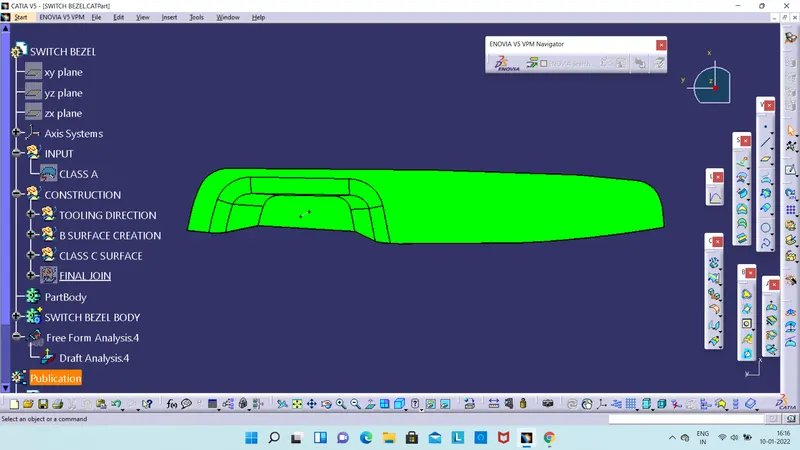

- FIRST MAKE THE COMPASS INTERSECT WITH THE TOOLING DIRECTION.

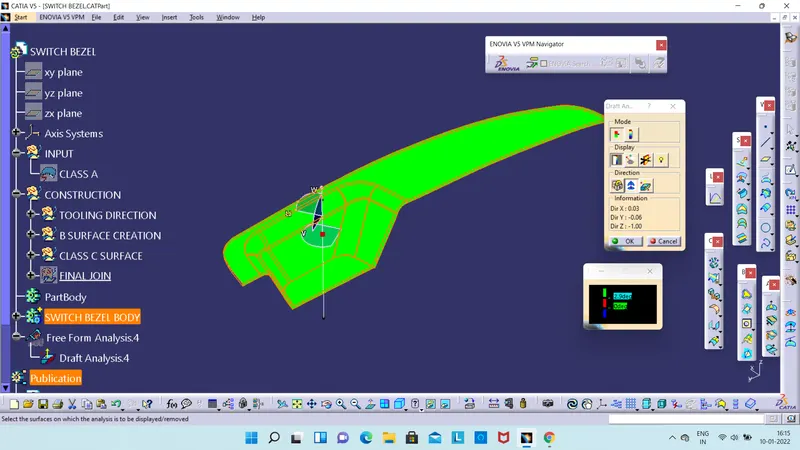

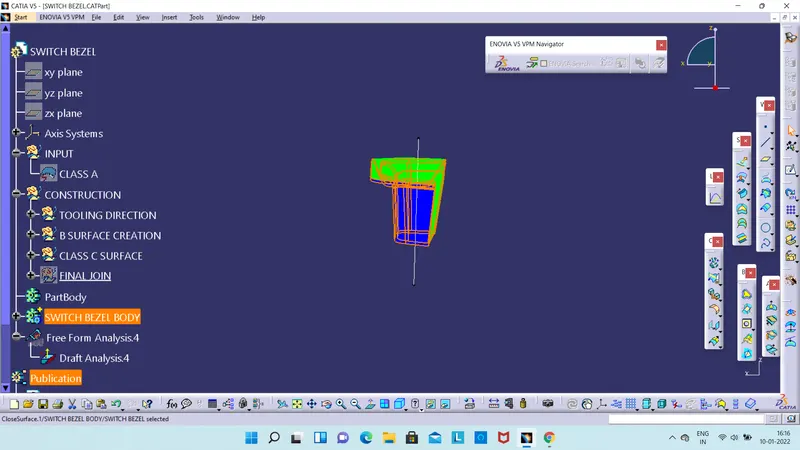

- THAN CLICK ON THE BODY IT WILL TURN INTO GREEN COLOUR

- AND GIVE THE DRAFT ANGLE 3 DEG.
