Week 8 - Challenge 4 - Coin Holder Design

CREATING TOOLING AXIS IN COIN HOLDER

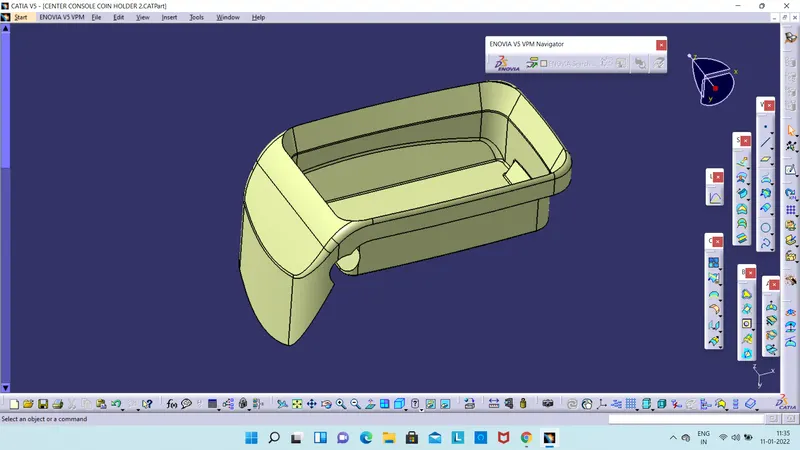

- THIS IS THE GIVEN CLASS A SURFACE OF CENTER CONSOLE COIN HOLDER.

- TO CREATE A TOOLING AXIS IN THIS SURFACE FIRST WE NEED TO SELECT THE DIRECTION.

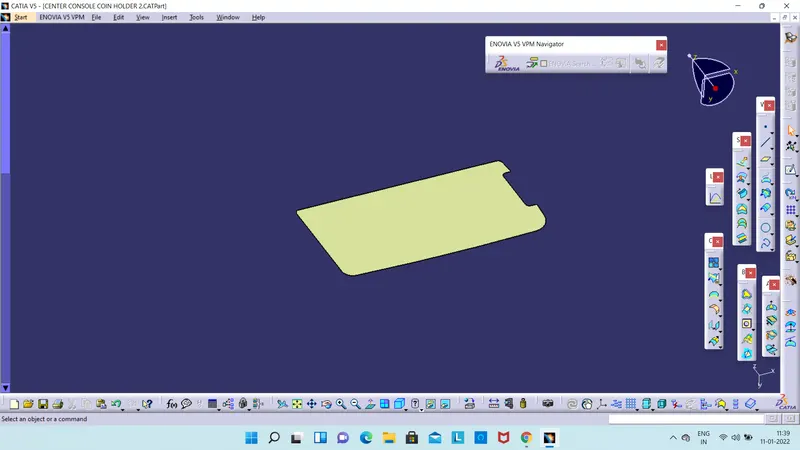

- FIRST WE NEED A CENTER POINT ON THE SURFACE FOR THAT EXTRACT THE BASE

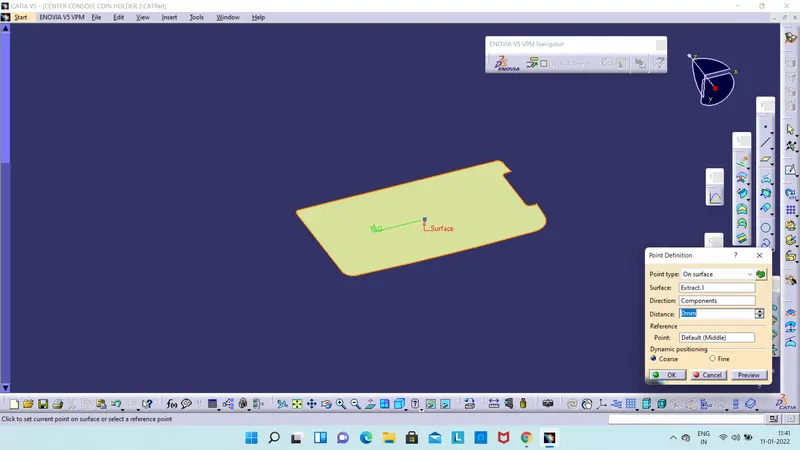

- ON THIS BASE WE CAN CREATE A POINT , JUST GO TO THE POINT ON SURFACE POINT AND CREATE A POINT ON

0 CO - ORDINATES IT WILL CREATE A POINT ON CENTER.

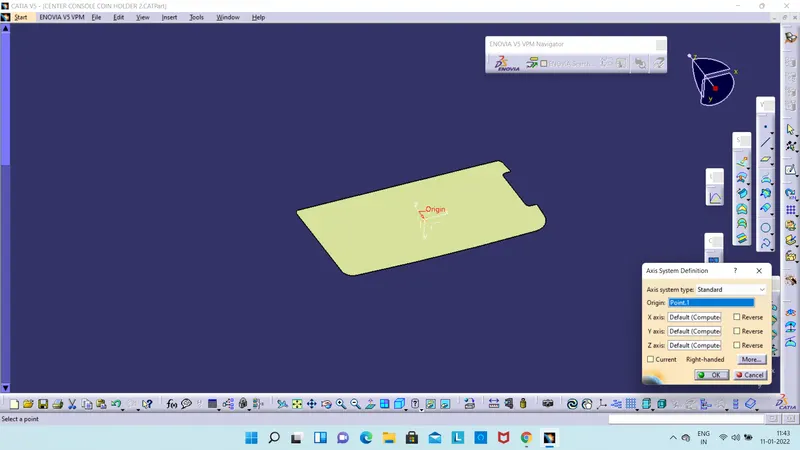

- AFTER THIS FOR THE DIRECTION WE CAN INSERT A NEW AXIS SYSTEM SO JUST GO TO INSERT , SLECT AXIS

SYSTEM AND CREATE A NEW AXIS SYSTEM WITH REFERANCE TO THIS POINT ENSURE THAT IT IS NOT CURRENT.

- FROM THIS WE CAN A INTERSECTION LINE FOR THE REFERANCE.

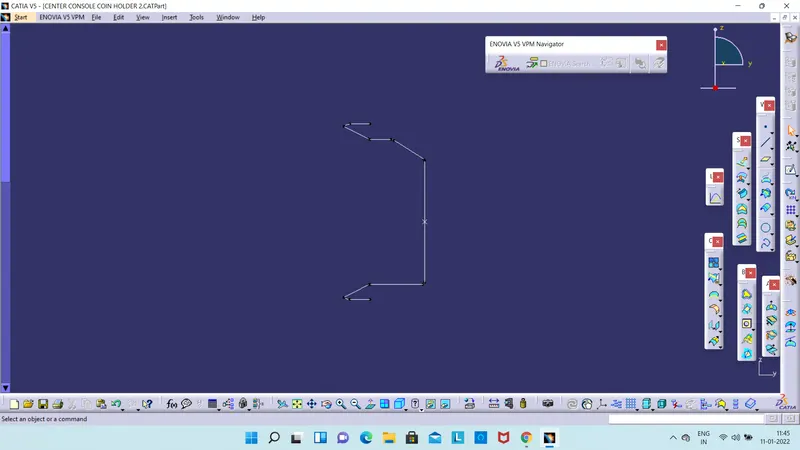

- GO TO INTERSECT SLECT YZ PLANE AND SELECT CLASS A SURFACE AND IT WILL GENERATE A INTERSECTION LINE

THROUGH THE SURFACE.

- IN THIS CASE WE CAN SEE THERE NO NEED FOR ANY BISECTING LINE WE CAN SIMPLE DRAW A LINE FROM THAT POINT

ON Y DIRECTION AND CONSIDER THIS LINE AS OUR TOOLING AXIS.

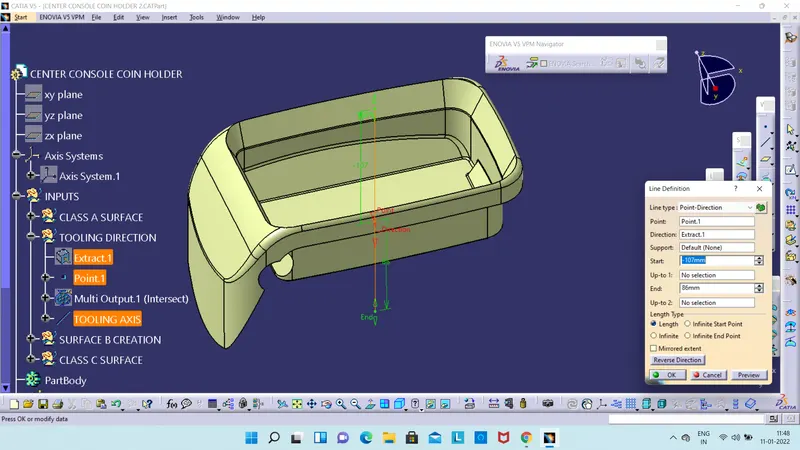

- SO GO TO LINE COMMAND DRAW A POINT - DIRECTION LINE TAKE POINT AND THE EXTRACT AS REFERANCE

- THIS WILL BE OUR TOOLING AXIS

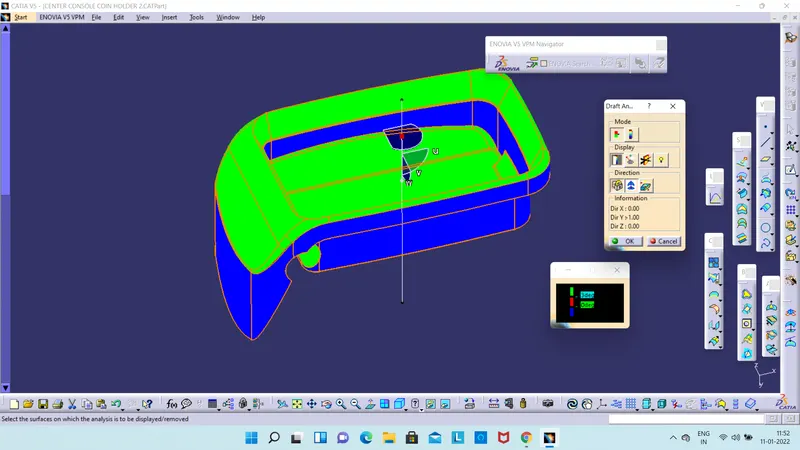

- NOW LETS START WITH DRAFT ANALYSIS WILL FIRST DO ANALYSIS ON CLASS A SURFACE.

- SO AS WE KNOW JUST GO TO INSERT THAN ANALYSIS AND SELECT FEATURE DRAFT ANALYSIS.

- AFTER THAT CLICK ON DIRECTION FOR DRAFT AND DRAG THE COMPASS AND INTERSECT IT WITH TOOLING AXIS.

- CLICK ON THE SURFACE GIVE THE DRAFT ANGLE AS 3 DEG.

- AND YESS IT SOLVING IN THIS VALUE.

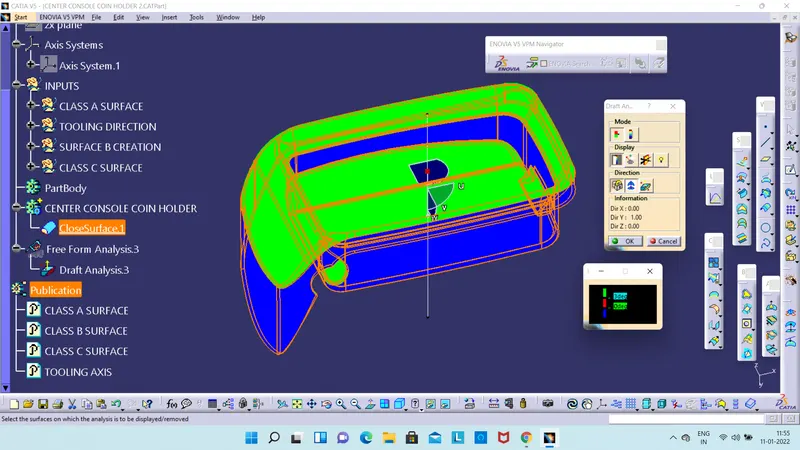

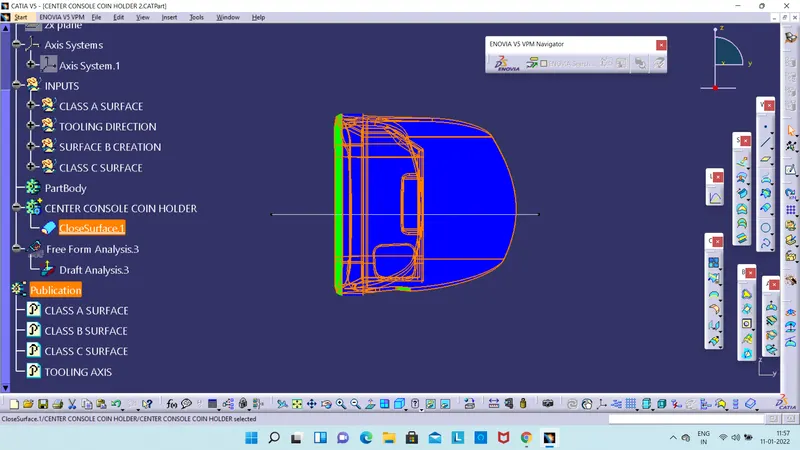

- NOW AFTER CREATING CLASS B AND C SURFACE , WE HAVE MADE IT A CLOSE SURFACE LETS PERFORM THE SAME

IN THE CLOSE SURFACE.

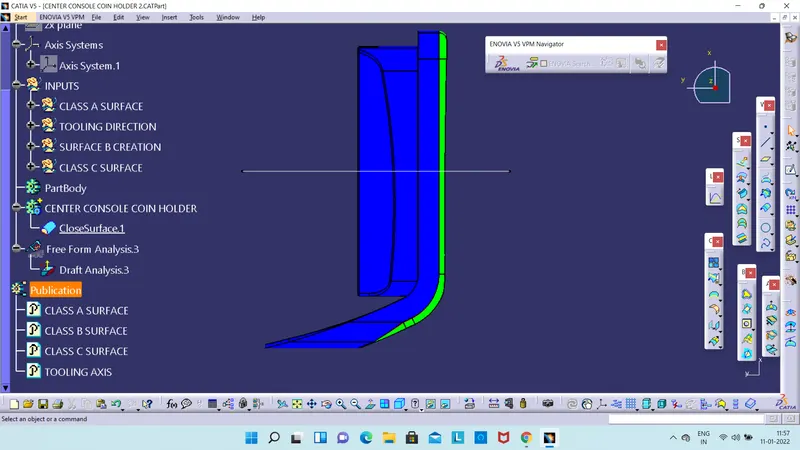

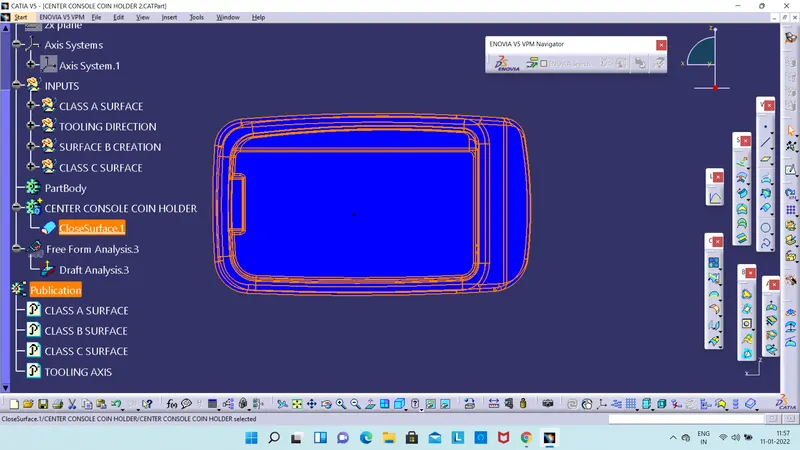

- FOLLOW THE SAME DRAFT ANALYSIS PROCESS ON THE CLOSE SURFACE

- GIVE IT 3 DEG DRAFT AND ITS DONE.
