Week 8 - Challenge 5 - Core & Cavity Design

TOOLING AXIS CREATION AND DRAFT ANALYSIS ON SWITCH BEZEL.

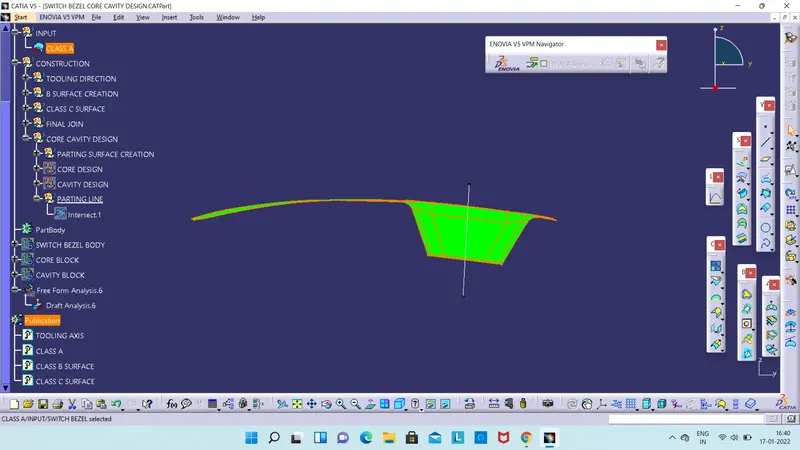

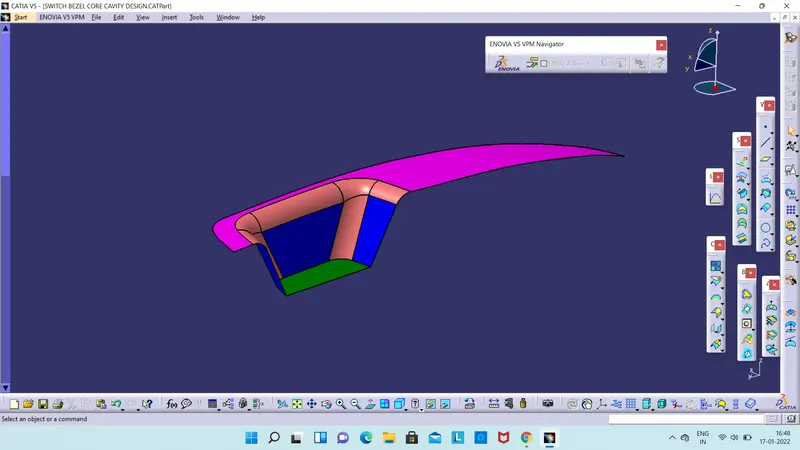

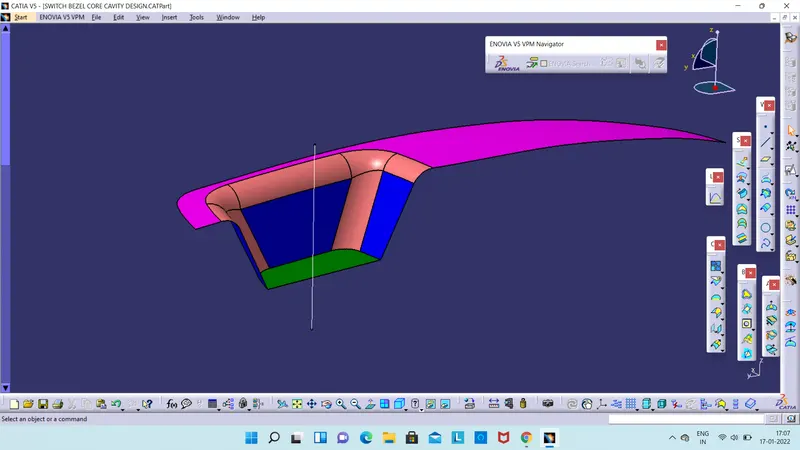

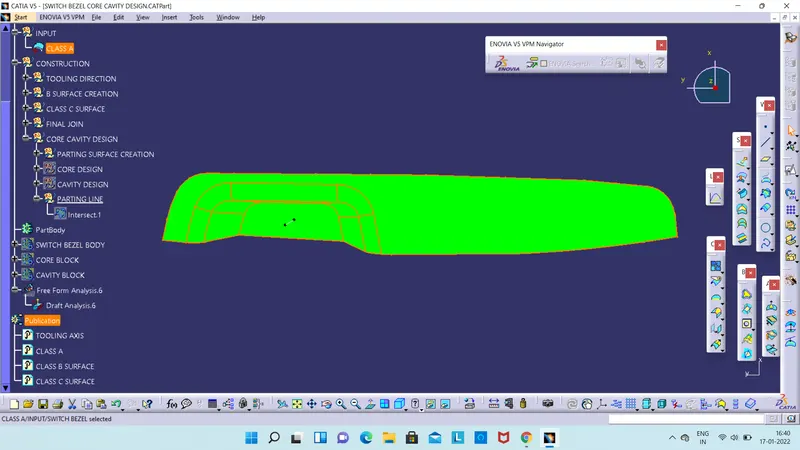

- THIS IS CLASS A SURFACE FOR SWITCH BEZEL , LETS CREATE TOOLING AXIS FIRST AND DO DRAFT ANALYSIS ON CLASS A FIRST.

- FOR TOOLING AXIS IN THIS SURFACE WE HAVE ENSURE THAT IT MUST COVER WHOLE SURFACE FOR DRAFT.

- WE CAN SEE A BASE THERE IN GREEN COLOUR WE CAN CONSIDER IT FOR CENTER POINT , SO EXTRACT THAT AND TAKE A POINT AT CENTER.

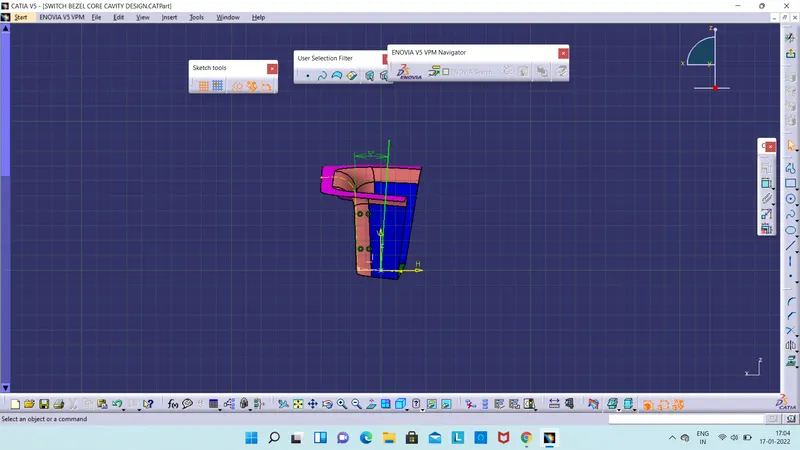

- INSERT A AXIS SYSTEM WITH THAT POINT AS REFERANCE AND INSERT A NEW SKETCH ON YZ PLANE.

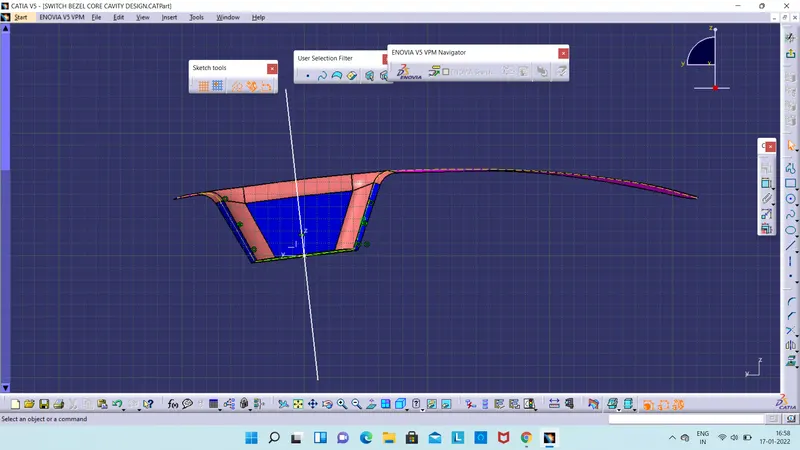

- ON THE SKETCH DRAW TWO REFERANCE LINE ON BOTH SIDE ON THE SIDES WALLS

- FROM THESE BOTH LINE DRAW A BISECTING LINE , THAT LINE WILL OUR REFERANCE LINE ON THE X - AXIS.

- WE HAVE DO THIS SAME FOR THE Y DIRECTION.

- SO SELECT SKETCH AGAIN ON THE XZ PLANE AND DRAW A LINE ON THE EDGE OF CLASS A AND OTHER LINE

FROM THE AXIS COMPASS AND CONTRAIN BOTH BY GIVING ANGLE OF 5 DEG.

- THIS WILL BE REFERANCE LINE FOR Y DIRECTION.

- AFTER THIS CREATE A BISECTING LINE FROM THIS BOTH LINE.

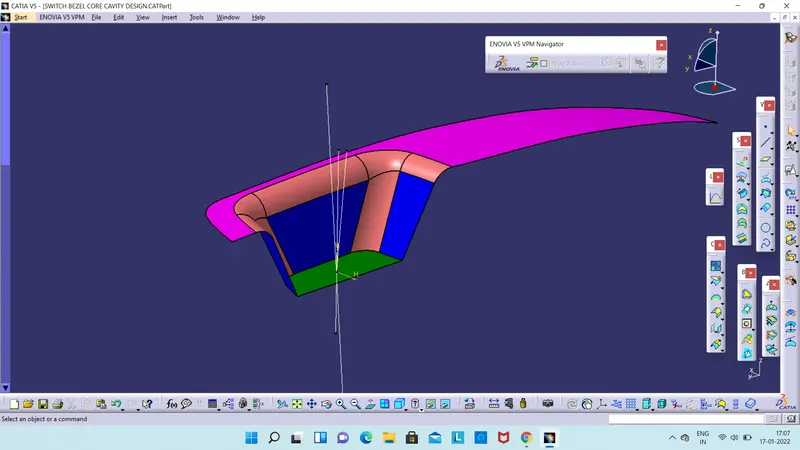

- THIS LINE WE CAN USE AS TOOLING AXIS FOR THE DRAFT ANALYSIS.

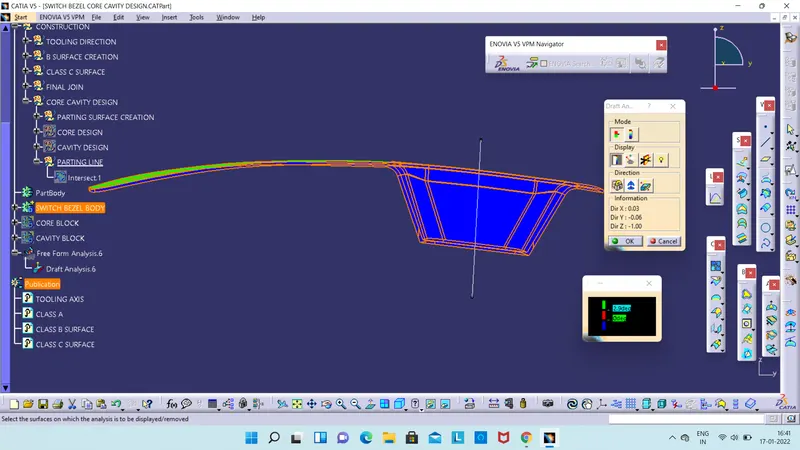

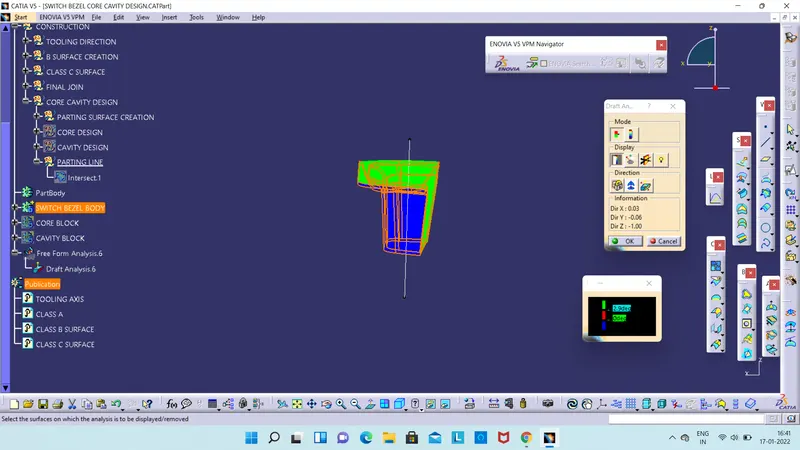

- NOW LETS START DRAFT ANALYSIS.

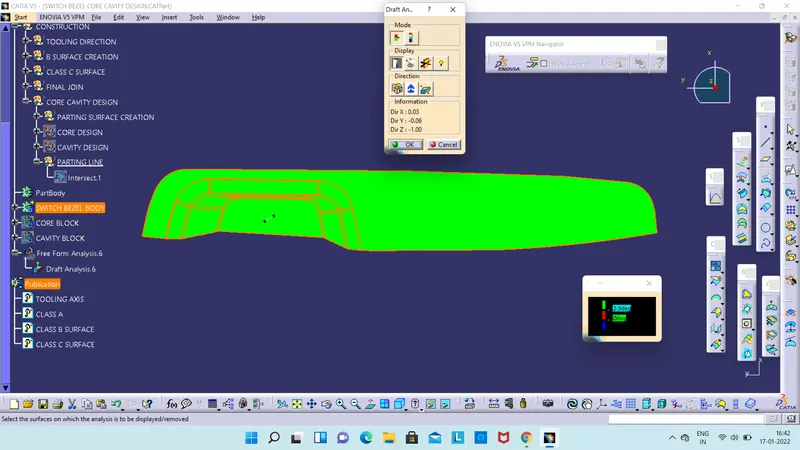

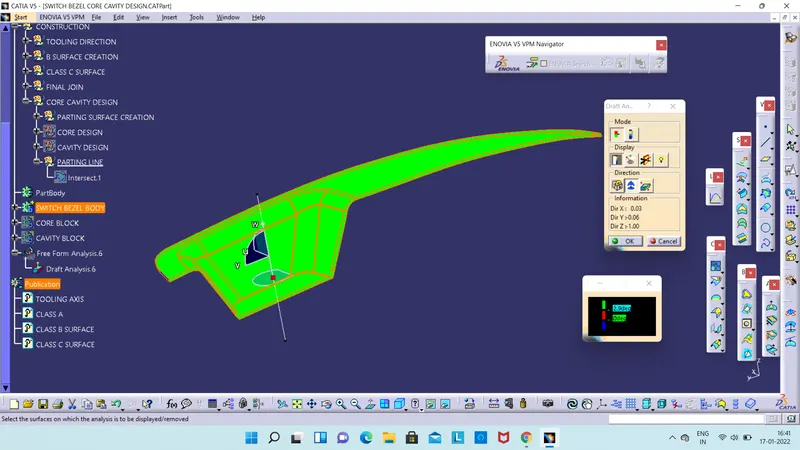

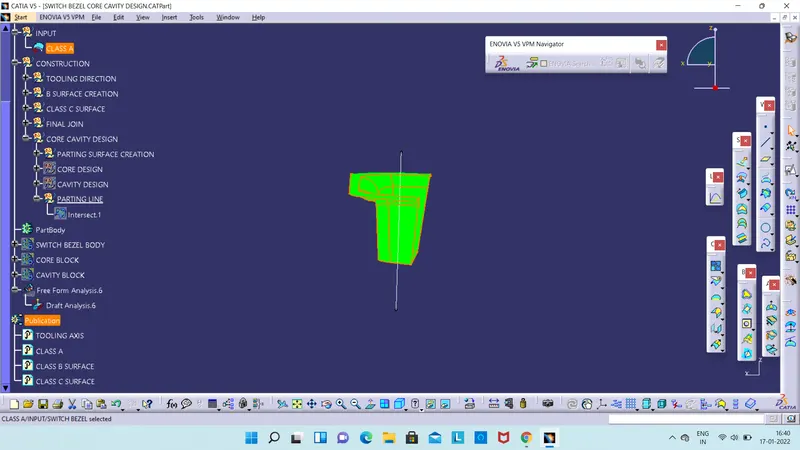

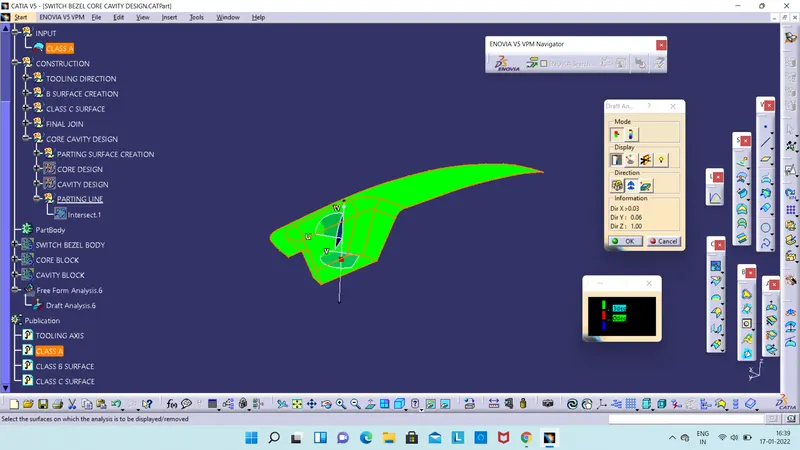

- GIVE DRAFT ANGLE AS 3 DEG AND ITS SOLVING ON CLASS A , NOW LETS TRY THIS ANALYSIS ON CLOSE SURFACE

WITH CLASS B AND C SURFACE.

- WE CAN SEE IT AS COVERED EVERYTHING AT 2.9 DEG.

- SO WE CAN USE THIS TOOLING AXIS.

CORE AND CAVITY DESIGN FOR SWITCH BEZEL.

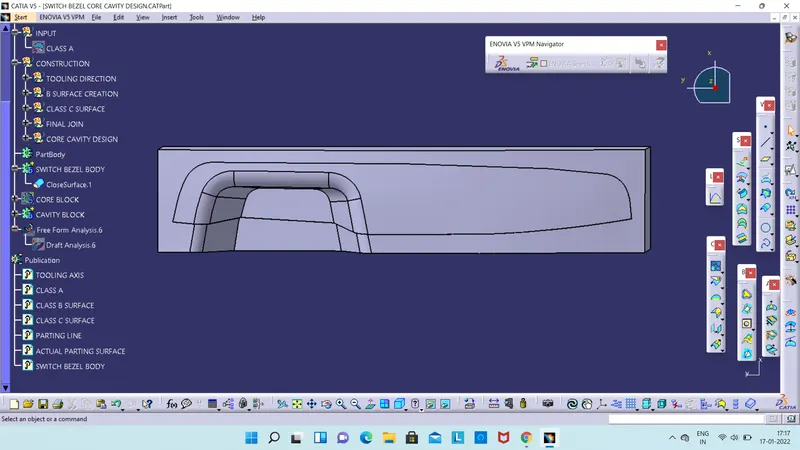

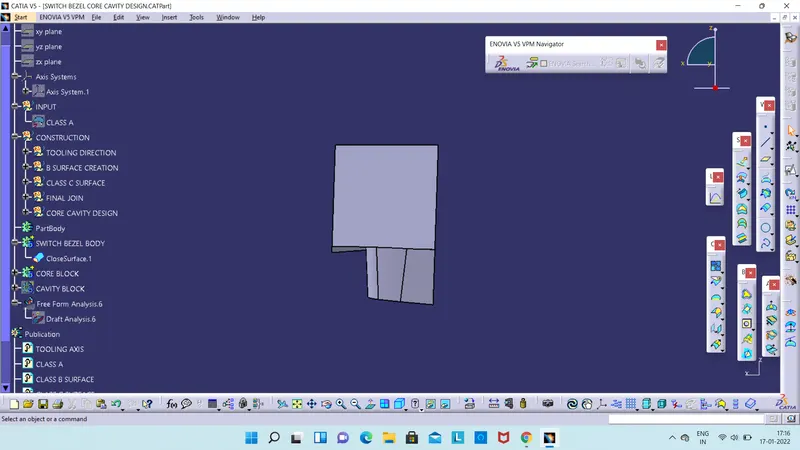

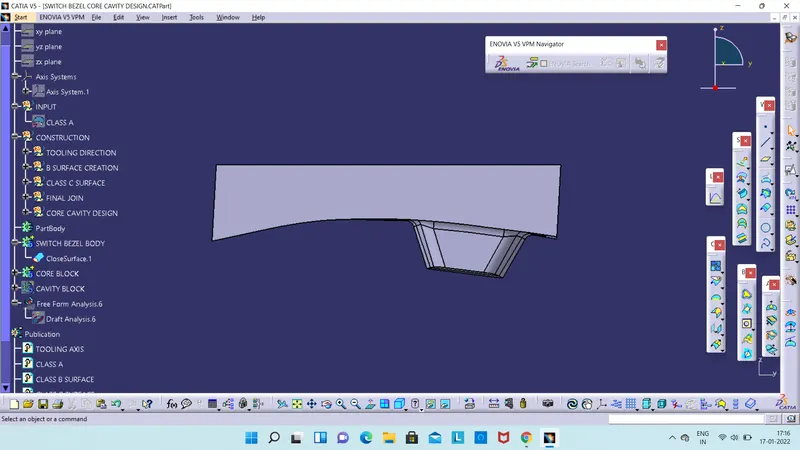

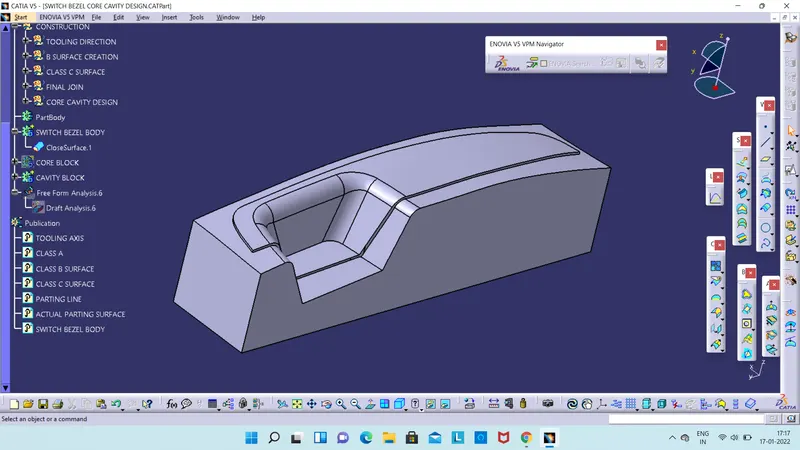

CORE BLOCK.

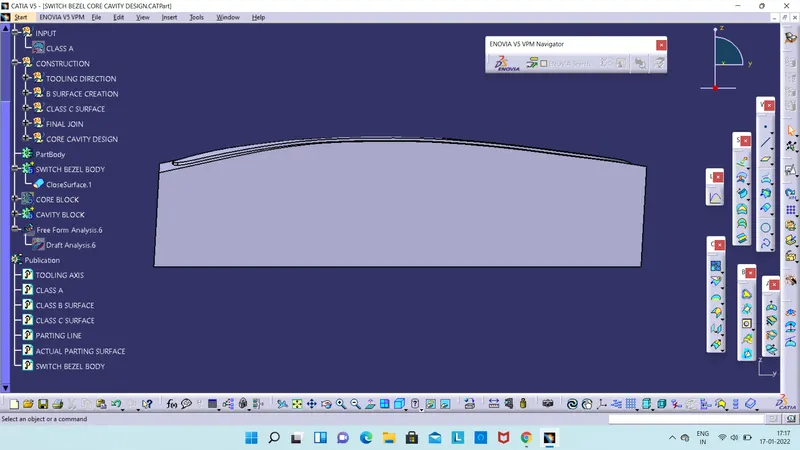

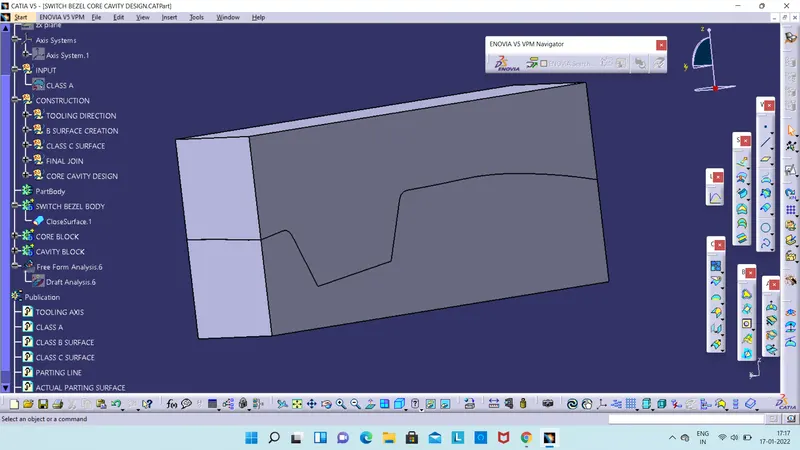

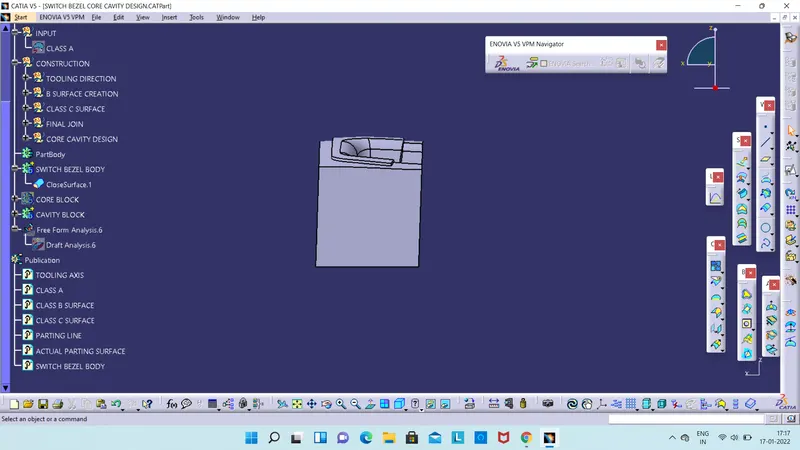

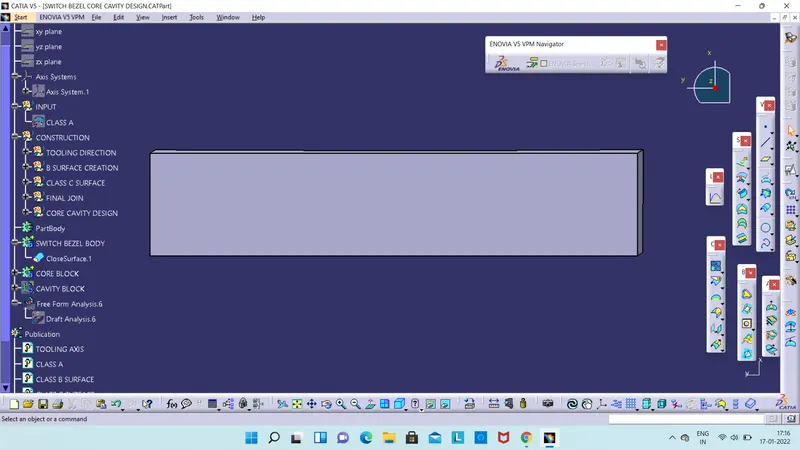

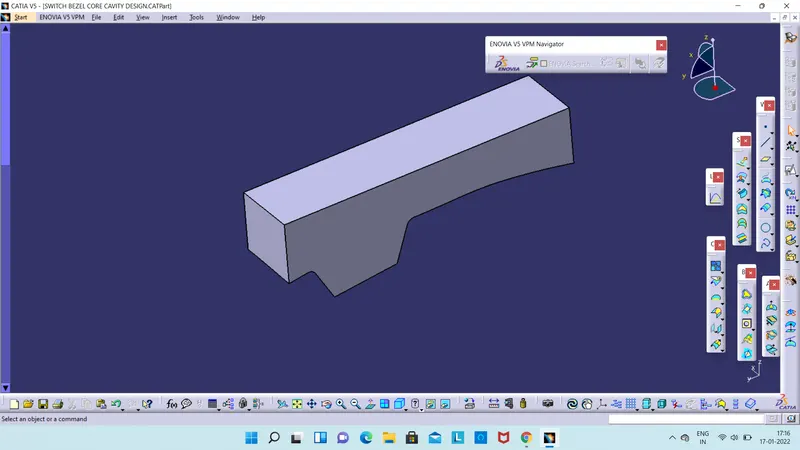

CAVITY BLOCK.
