Week 8 - Challenge 2 - Base Bracket Design
DRAFT ANALYSIS OF BASE BRACKET
- THIS IS THE GIVEN BASE BRACKET IN WHICH WE HAVE TO PERFORM DRAFT ANALYSIS
- SO, FIRST WILL CHECK DIRECTION FOR TOOLING AXIS AS WE CAN THERE ARE TWO HOLES ON SURFACE Y AXIS WILL NOT BE OUR SELECTION
AND FROM THE X AXIS BOTH HOLES ARE NOT COVERED , SO WILL SELECT THE Z DIRECTION.
- SO FIRST A NEW GEOMETRICAL SET AND WE CAN NAME IT AS TOOLING AXIS HENCE ALL THE OPERATIONS OF TOOLING AXIS WILL BE UNDER IT
CAN ONE CAN FIND IT EASILY.
- AFTER THAT WILL TAKE A CENTER POINT FROM HOLE ON SURFACE WE CAN SIMPLY USE POINT COMMAND AND THEN THE EDGE OF CIRCLE AND IT
WILL GENRATE A CENTER POINT.

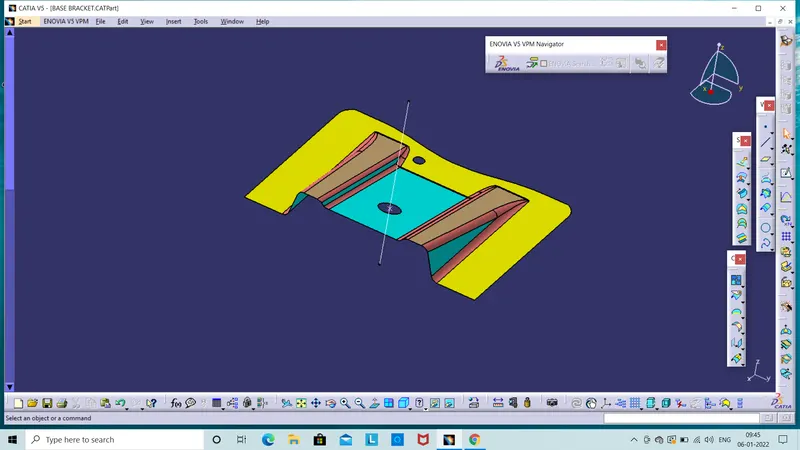

- FROM THIS POINT AS REFERANCE WE CAN CREATE A LINE TOWARDS Z - DIRECTION WHICH WILL BE OUR DUMMPY TOOLING AXIS JUST FOR PRACTISE.
- IT WILL BE COME UP LIKE THIS, NOW WE CAN CREATE INTERCTION ON THE SURFACE WITH Y - Z PLANE AS REFERANCE
- WE CAN SIMPLE ADD A NEW AXIX SYSTEM OR CAN ADD A NEW PLANE WITH POINT AS REFERANCE.

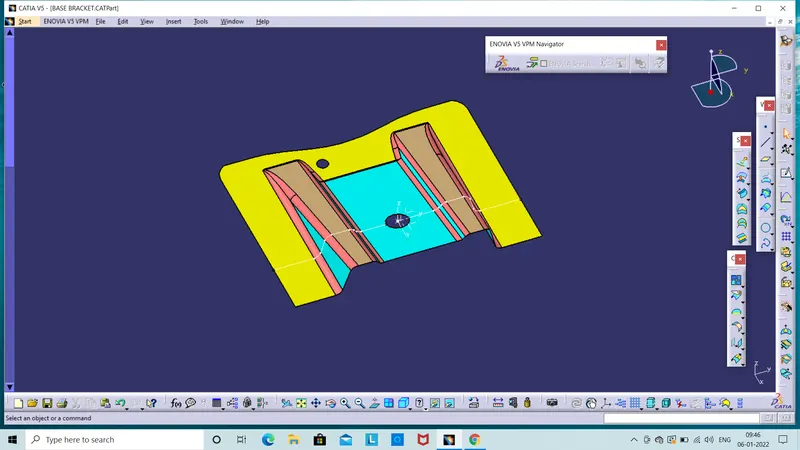

- THEN FROM THE TOOLBAR SELECT INTERECTION AND SELECT YZ PLANE THEN THE SURFACE AND IT WILL A PARTING LINE
ON THE SURFACE.
- AS WE CAN SEE IN THE IMAGE DISPLAY IT FROM X DIRECTION AND HIDE THE CLASS A SURFACE

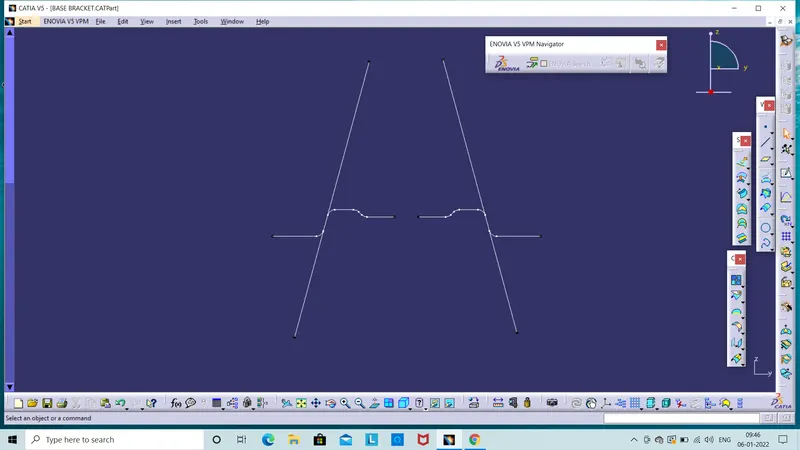

- NOW AS WE NOW WE CAN CREATE TO REFERANCE LINE ON BOTH SIDE TO GENERATE A BISECTING LINE.
- SO JUST CREATE A POINT TO POINT LINE ON BOTH SIDE.

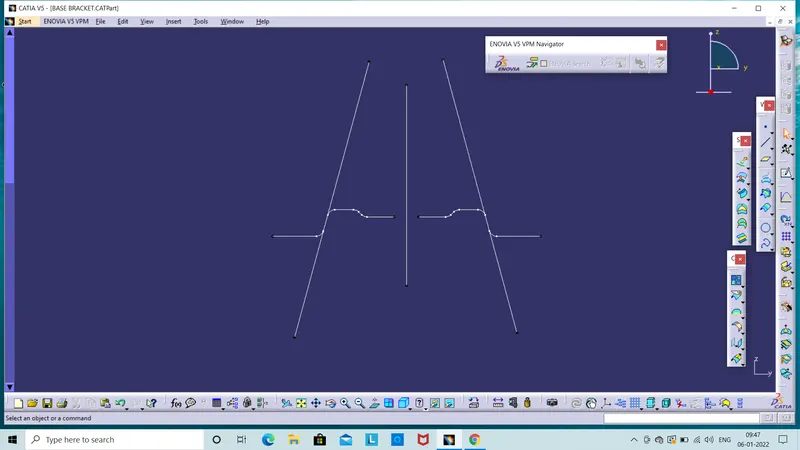

- SO THIS WILL BE THE OUTPUT AND FROM THESE LINE CREATE A BISECTING LINE WHICH WILL BE OUR TOOLING AXIS.

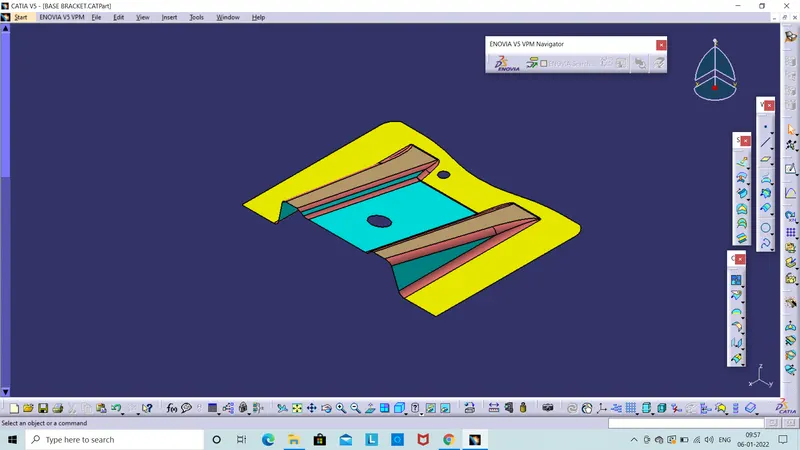

- SO WILL GET THE TOOLING AXIS NOW WE CAN START THE DRAFT ANALYSIS , HIDE THE OTHER LINES AND UNHIDE CLASS A SURFACE.
- BEFORE STARTING TH ANALYSIS ENSURE THAT THE MATERIAL SECTION IS SELECTED

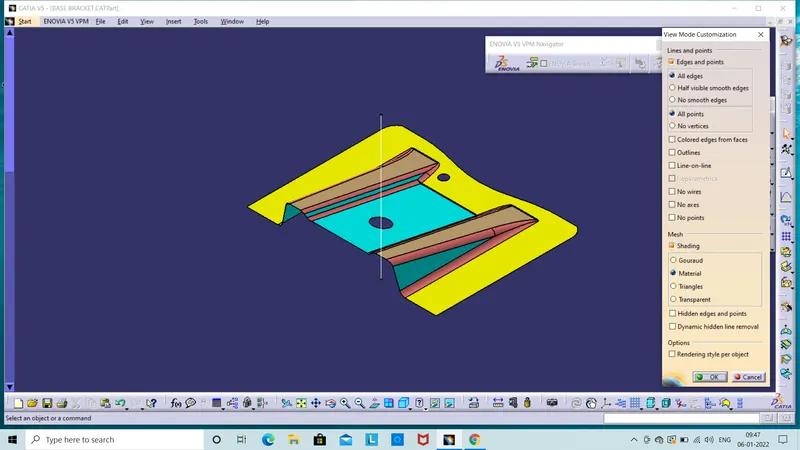

- JUST GO TO VIEW TOOLBAR - CUSTOMIZE VIEW - MATERIAL
- NOW , GO TO INSERT AND ANALYSIS AND SELECT FEATURE DRAFT ANALYSIS.
- NOW FROM THE DIRECTION BOX SELECT 2ND OPTION TO DEFINE THE NEW DRAFT DIRECTION
- DRAG THE COMPASS ON THE TOOLING ENSURE THE DIRECTION IS TOWARDS THE TOOLING AXIS
- THEN SELECT THE 1ST OPTION ON THE SAME BOX LOCK AND LOCK THE COMPASS THERE.

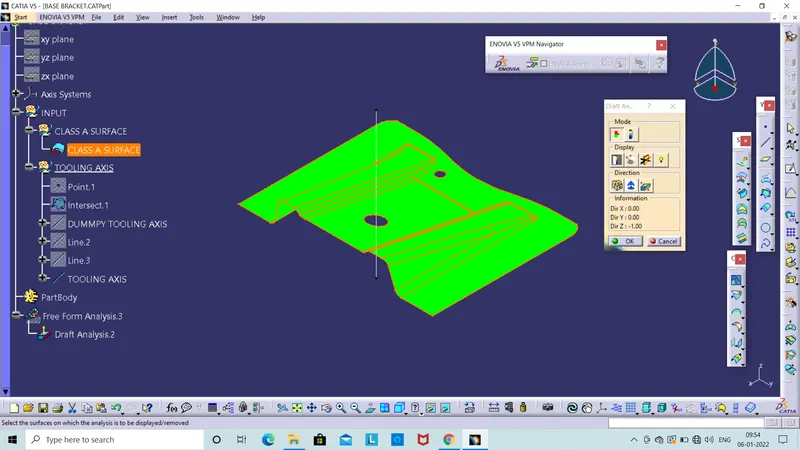

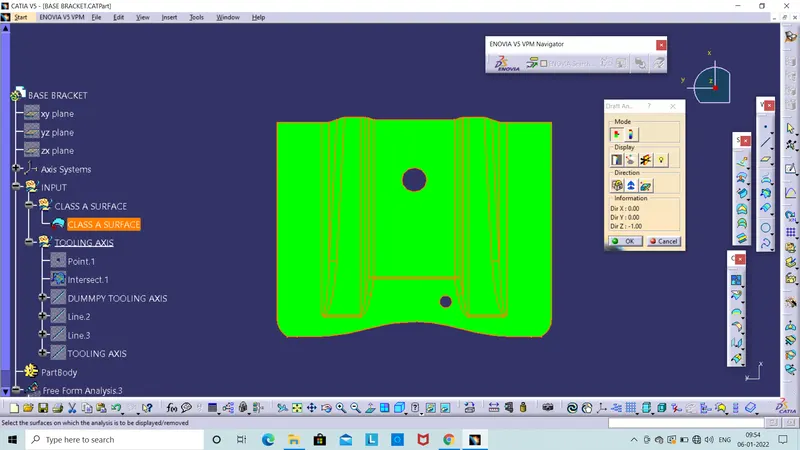

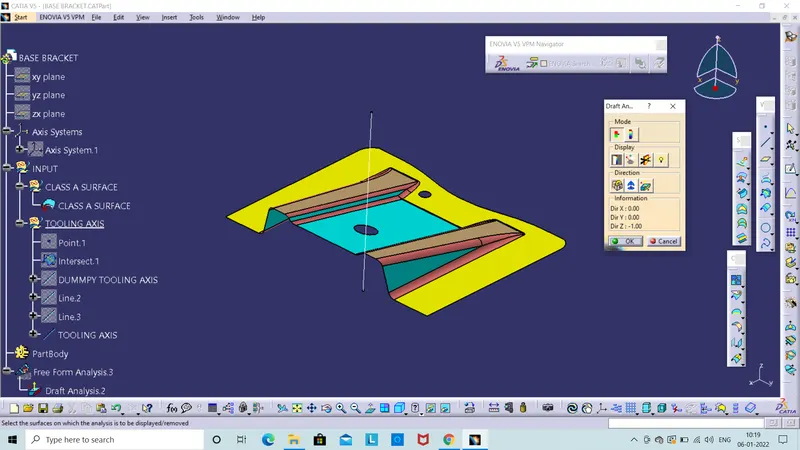

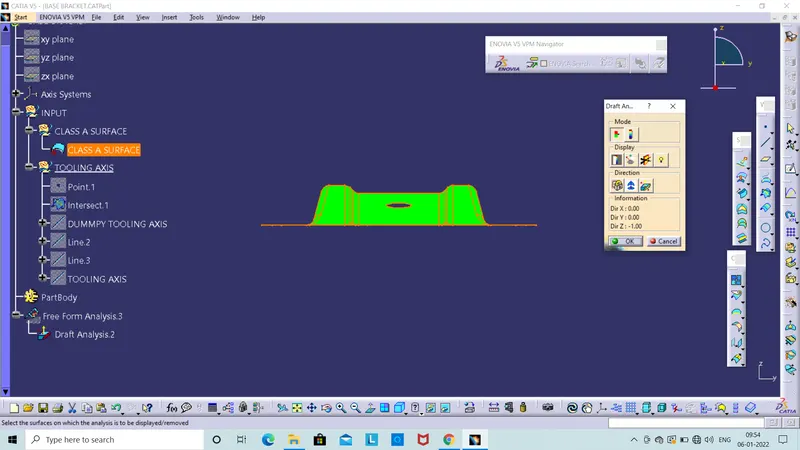

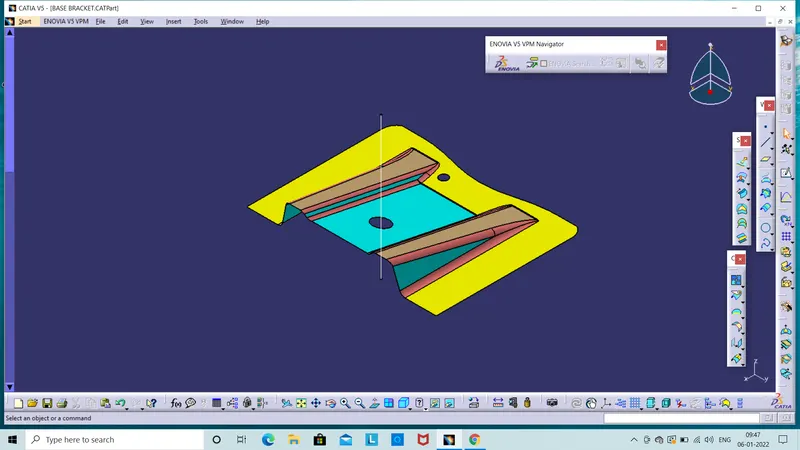

- AFTER THAT AS WE CLICK ON THE SURFACE IT WILL TURN INTO GREEN COLOUR.
- WE CAN CHANGE THE DRAFT VALUE FROM 2ND DIALOG BOX.
- 3 DEG IS NOMINAL VALUE FOR DRAFT SO KEEP IT TO 3 DEG.

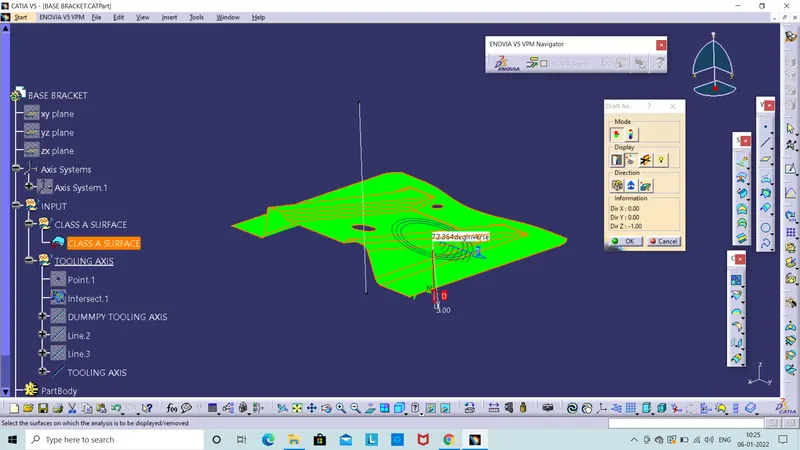

- WE CAN 2ND OPTION FROM DISPLAY BOX OF ANALYSIS UNDER RUNNING POINT AND DRAG CURSOR ON DIFFRENT
POINT OF THE CLASS A SURFACE.

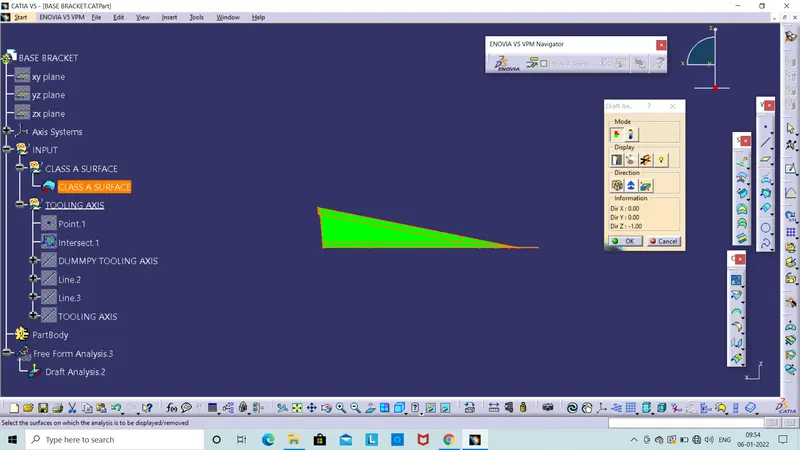

- AND WE CAN SEE THE VALUE OF DRAFT.

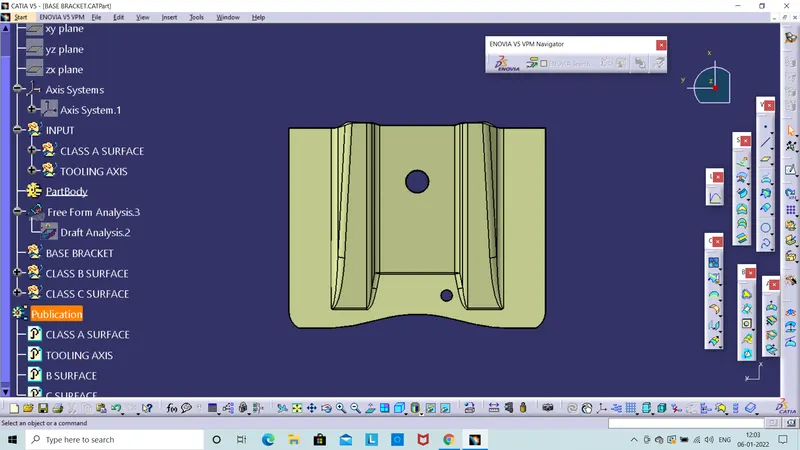

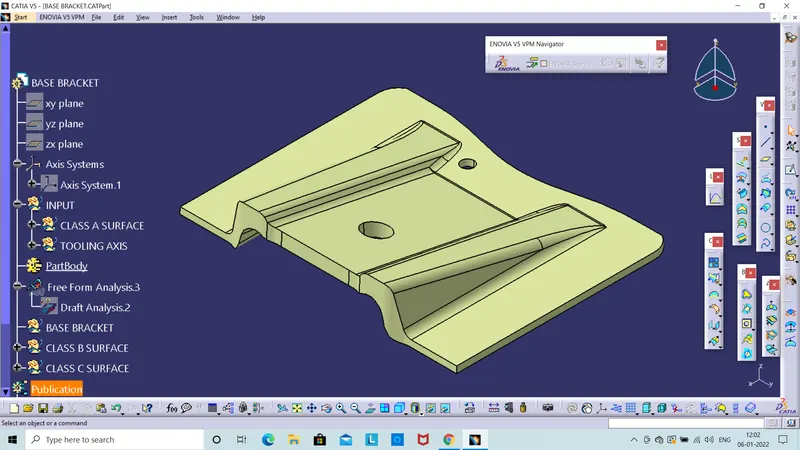

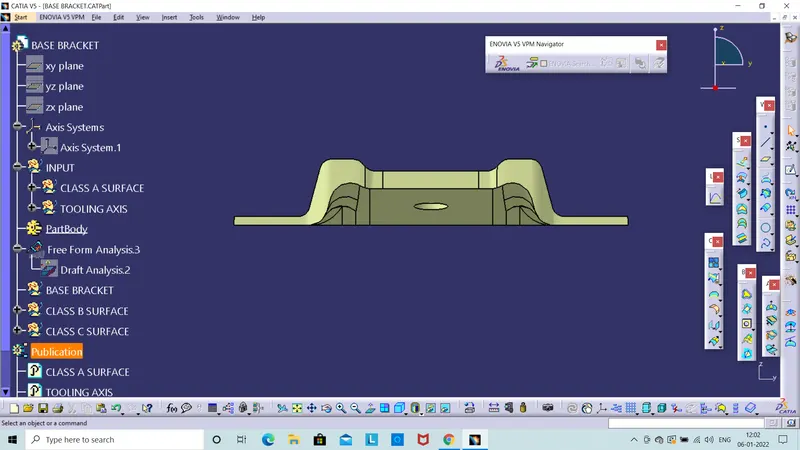

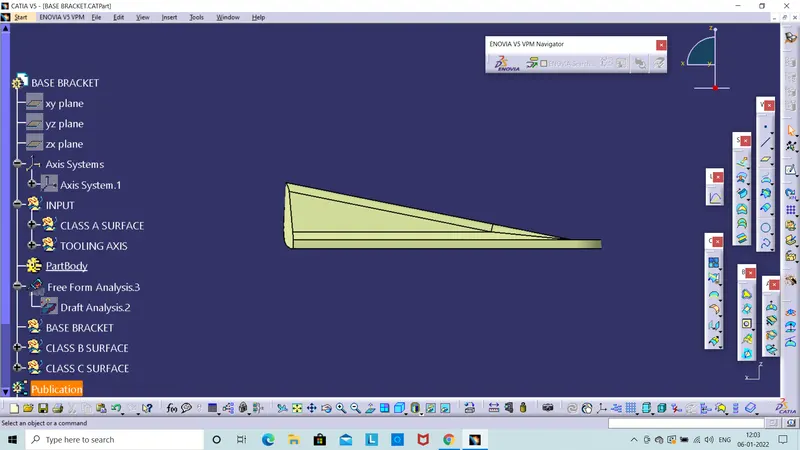

BASE BRACKET WITH CLASS A SURFACE JOIN WITH CLASS B AND C SURFACE
