Week 9 - Attachment Feature Creation - Challenge 2

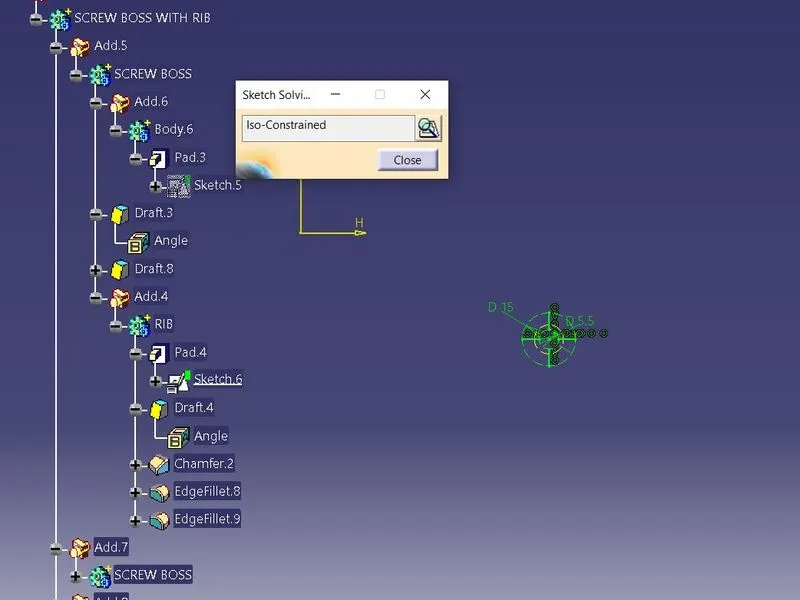

1. Craeting screw boss with specific with specific dimenssion.

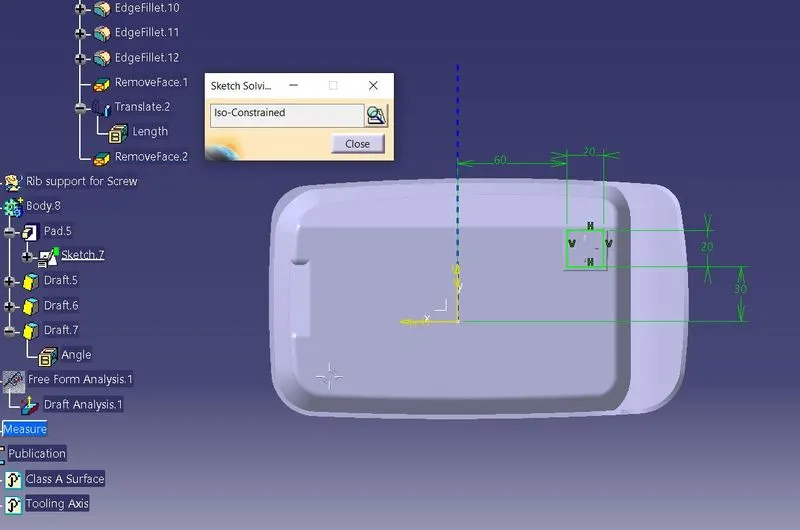

2. Rib design with specific dimession for which sink mark will not created.

3. Dog house designs with specific desiign criteria.

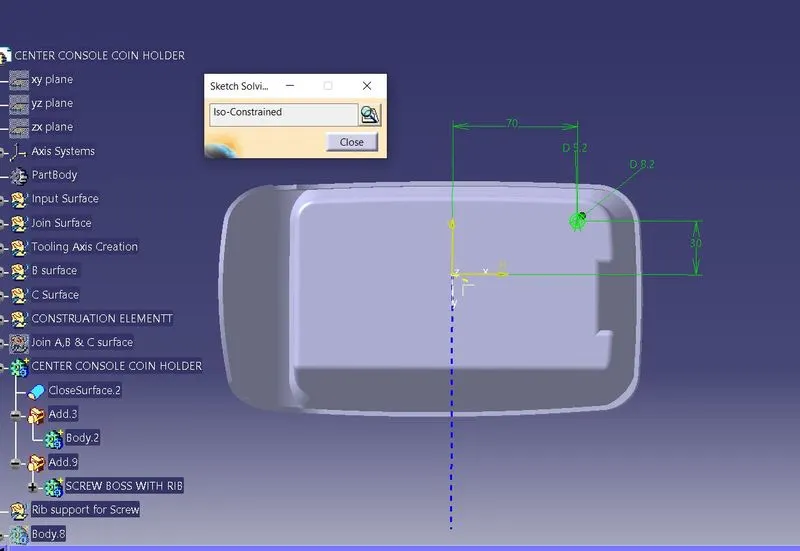

4. Complete boss with rib design and dog house design.

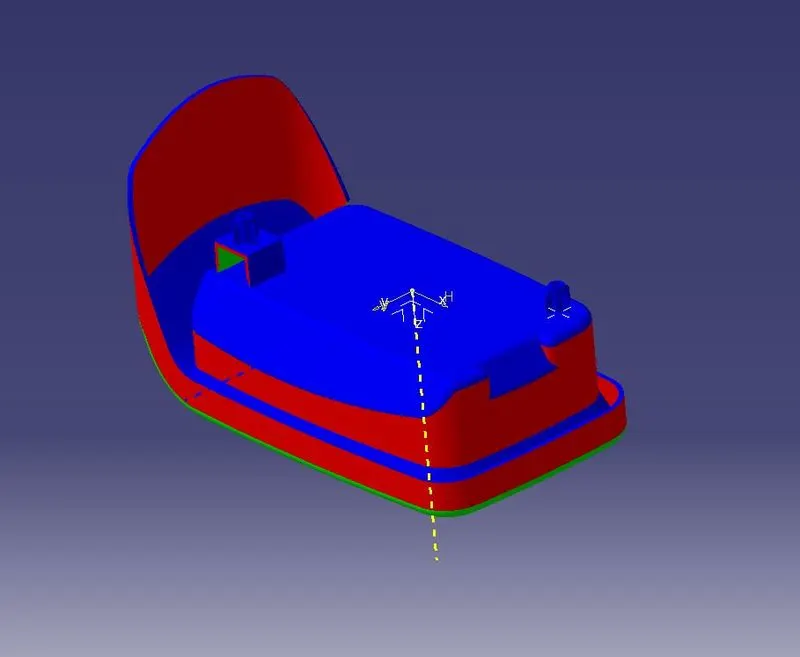

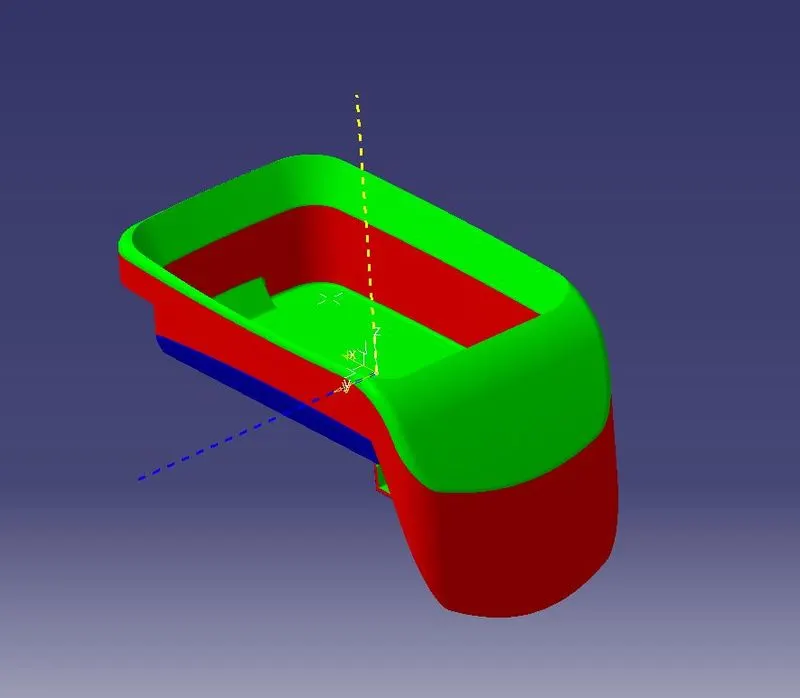

5. Draft analysis with specific toolinfg directio. Green line is the main tooling direction but some faces are perpendicular so this shows in red colour in draft analysis so we have to concern for this about class A surface designer to correct this with tooling direction.

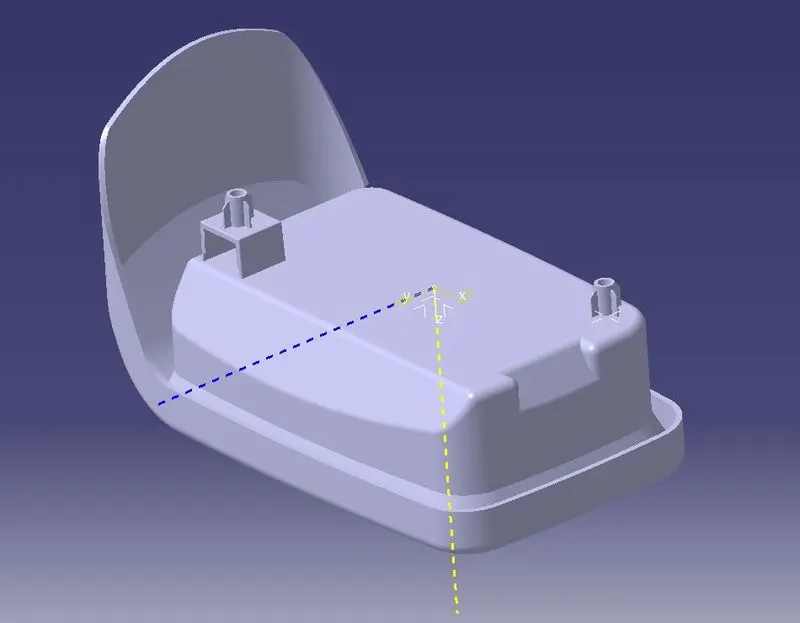

6.blue line is side tooling direction for which dog house will demolded.

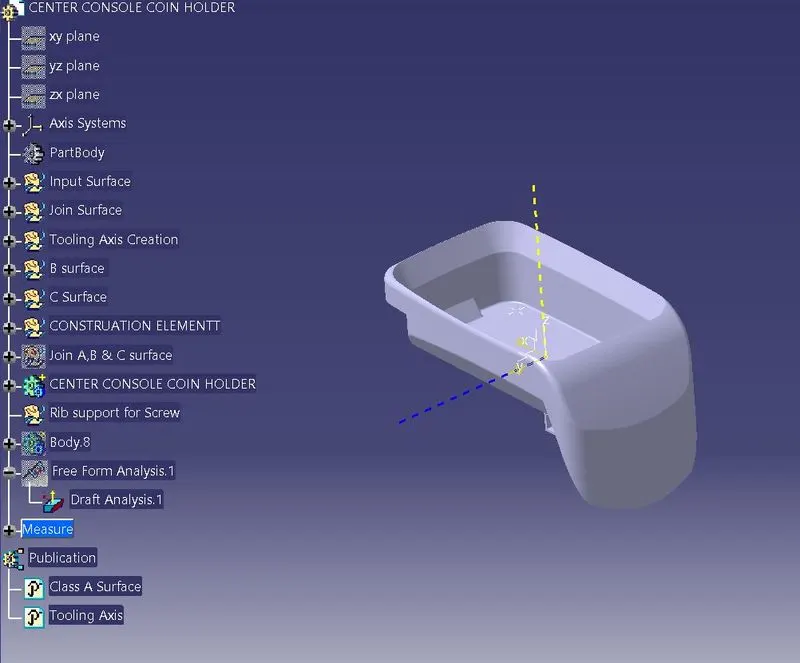

7. Complete tree structure of the the dog house with screw boss and dog house.
