Week 9 - Attachment Feature Creation - Challenge 2

AIM:

Create the boss and Dog House for the Centre console coin holder considering the design rules mentioned in the video.

OBJECTIVE:

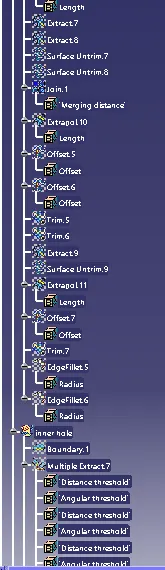

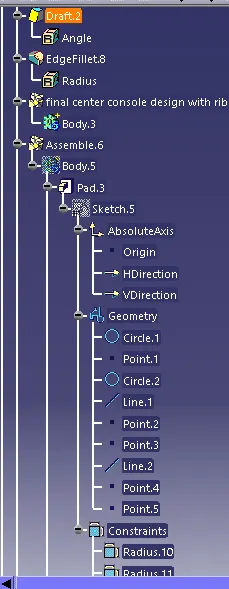

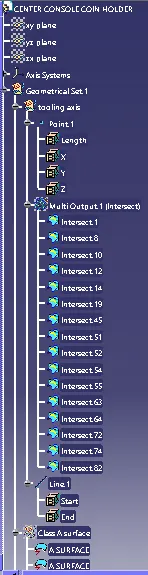

• Ensure Proper Tree Structure
• Geometrical sets should have a proper name based on the sketches present inside of it
• All the sketches should be created under the Geometrical set
• A detailed report should be done explaining the draft analysis and the tooling axis creation.
• An explanation should be given on the way of creating the tooling axis particularly the Bisecting method.

PROCEDURE:

Step-1: Connectivity check

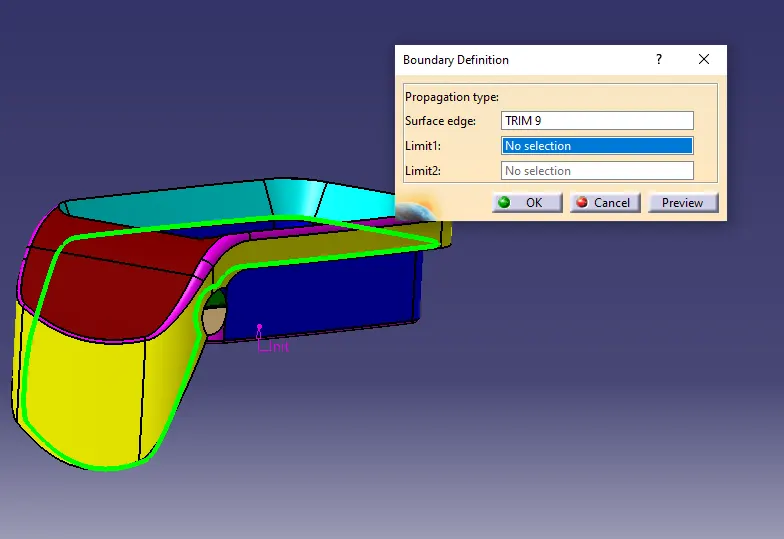

• First we have to verify the part design using join surface option by simply selecting the class A surface .
• Another method is create a boundary layer of surface and disassemble it from the boundary layer from the surface.

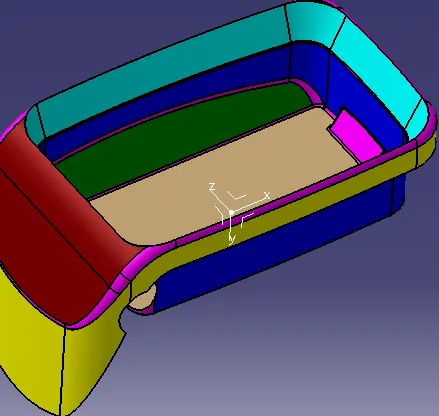

Step-2: Create tooling axis (Bisecting method)

• Create a reference point by selecting the center circle of surface.
• Then create the axis for the surface to easily define the tooling axis.
• simply select the point and xyz plane.

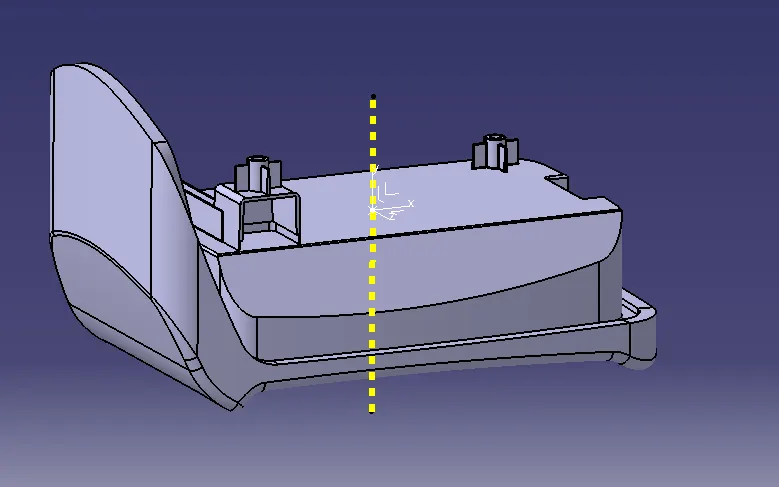

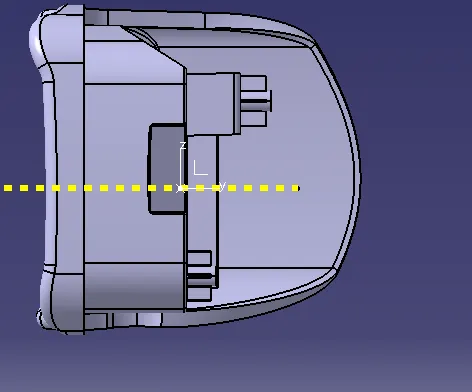

• To get a dummy tooling axis in x direction.
• Use the intersection command, to get a wire diagram of surface in x direction.
• Use multiple extract to separate the bottom face for tooling axis definition.

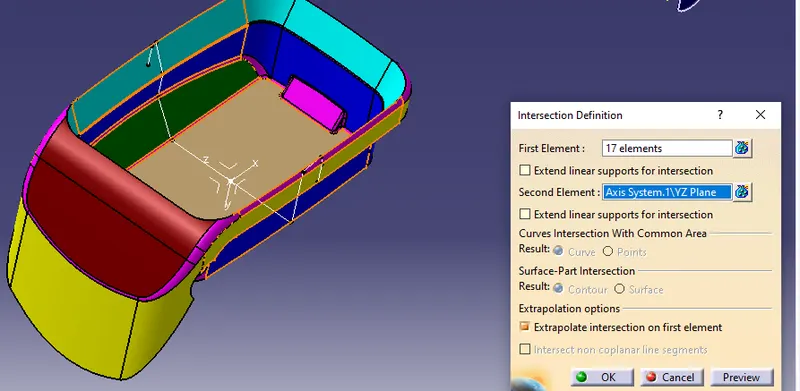

• select the intersection command, select first element is plane of dummy axis say zx plane, select second element as class A surface, click ok.
• The draft angle of x direction is created to get the tooling axis of x-direction.
• We will get the tooling axis in x-direction and also define its line color and thickness

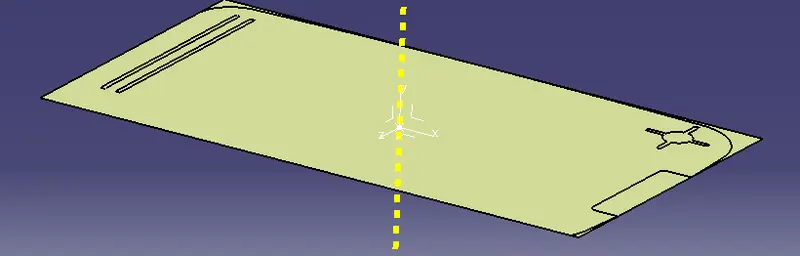

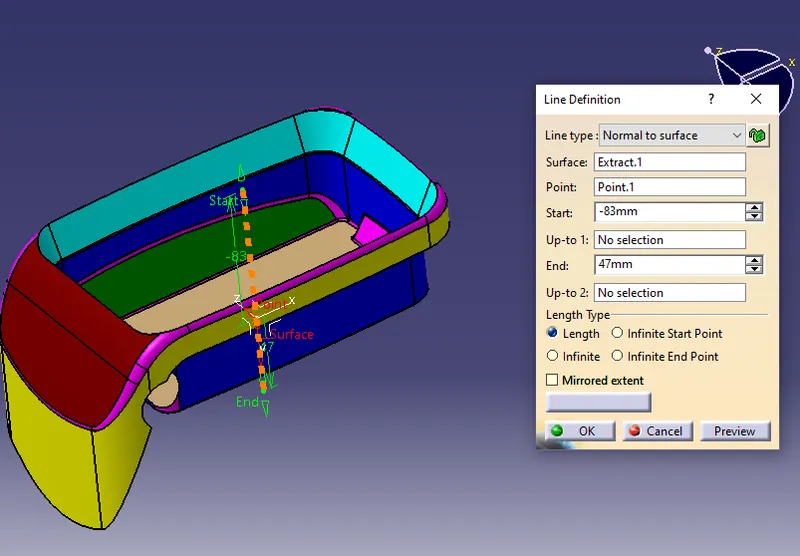

• After the dummy axis definition, select the tooling axis of x to bisect using line command.
• The tooling axis for draft analysis is formed.

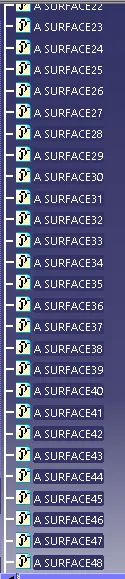

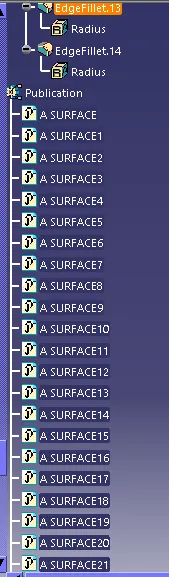

• Use publication command to publish the class A surface and tooling axis.

Step-3: Perform draft analysis

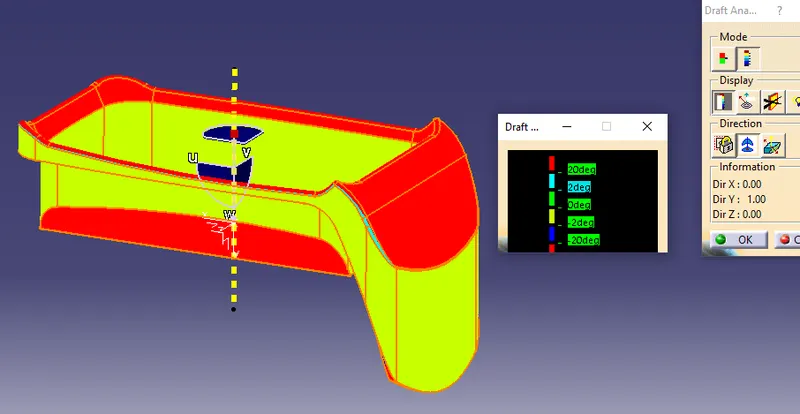

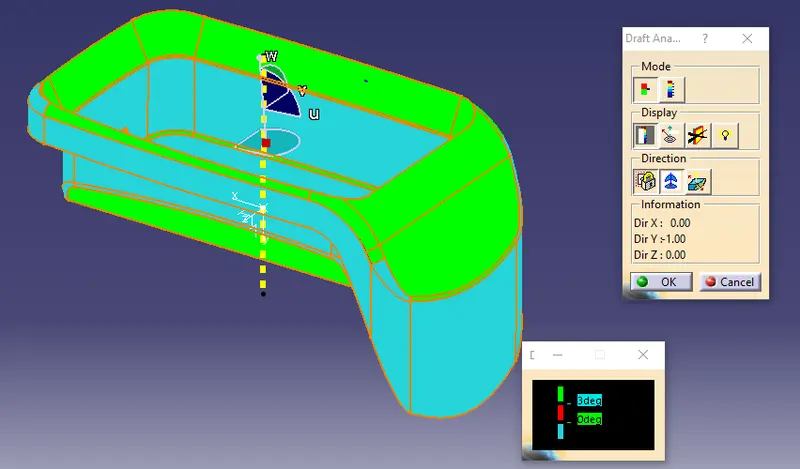

• Select the draft analysis command, ensure the material feature is used.
• Use quick analysis mode, display color scale option.

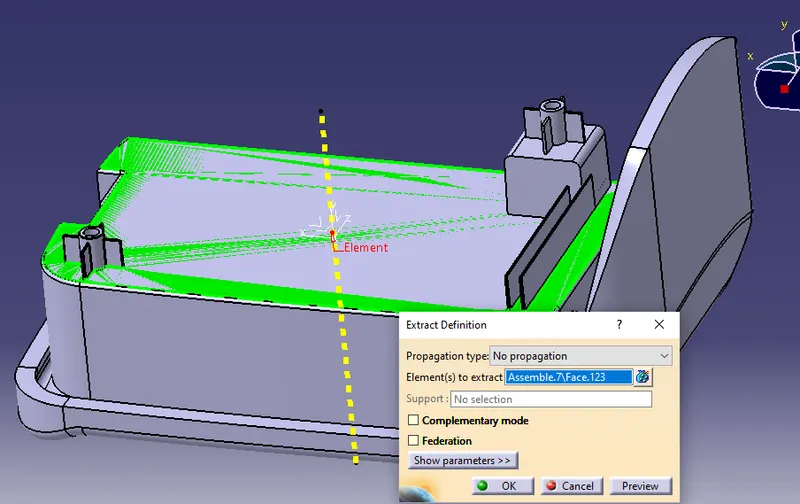

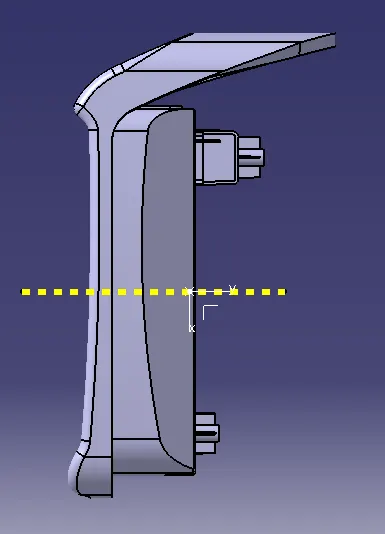

• Click on compass command on direction, drag and drop it in tooling axis.

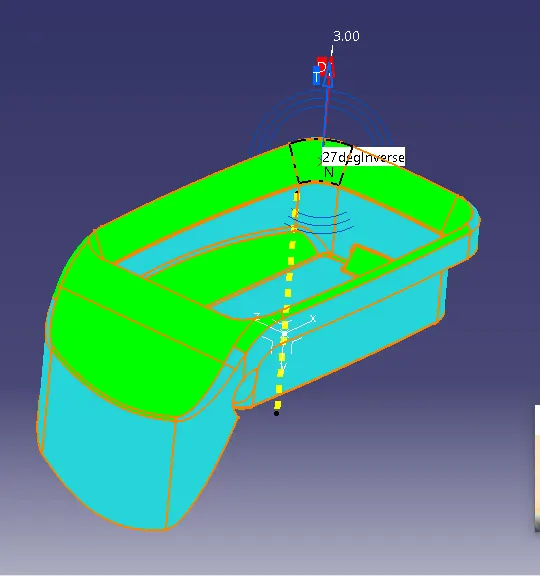

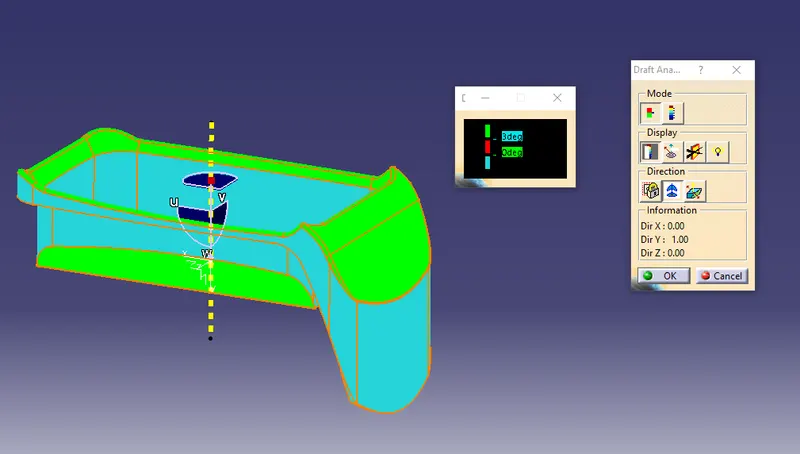

• The draft should show green surface which is feasible draft angle.
• If red is shown not feassible draft angle and for blue negative draft angle.

• Use analyses under running point, to ensure same angle on symmetrical direction.

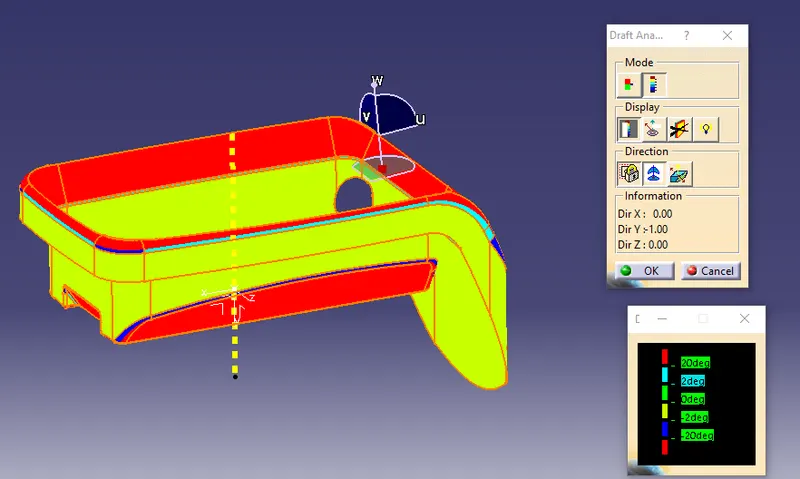

• Below is fully analyze mode to get the varied angle in class A surface.

• Below is fully analyze mode to get the varied angle in class C surface.

Step-4: Create screw boss

• First extract the surface where we have to create the boss design.

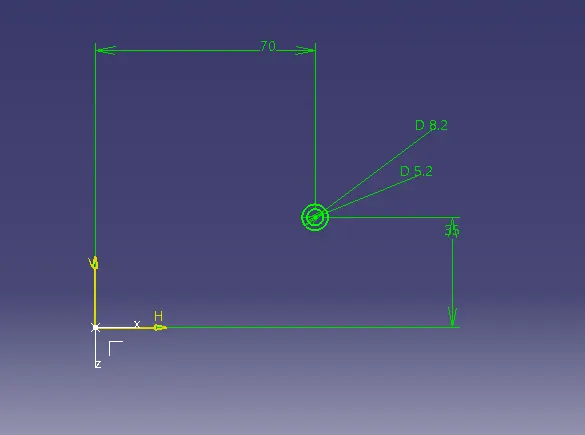

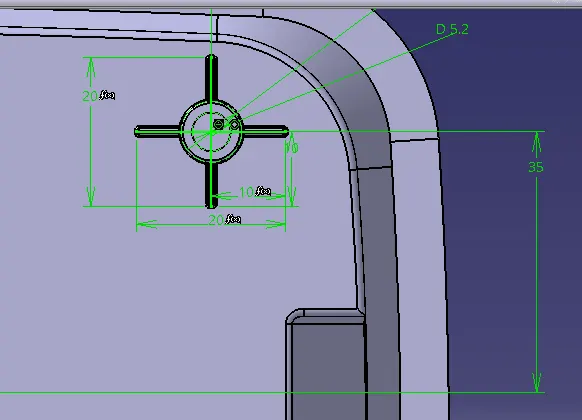

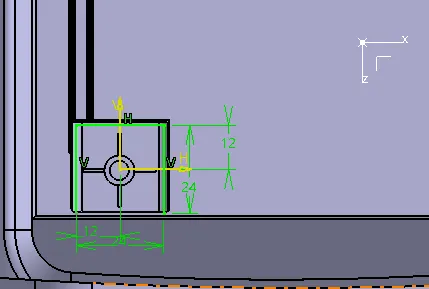

• Then create a sketch of a line which is boss baseline and constraints should apply.

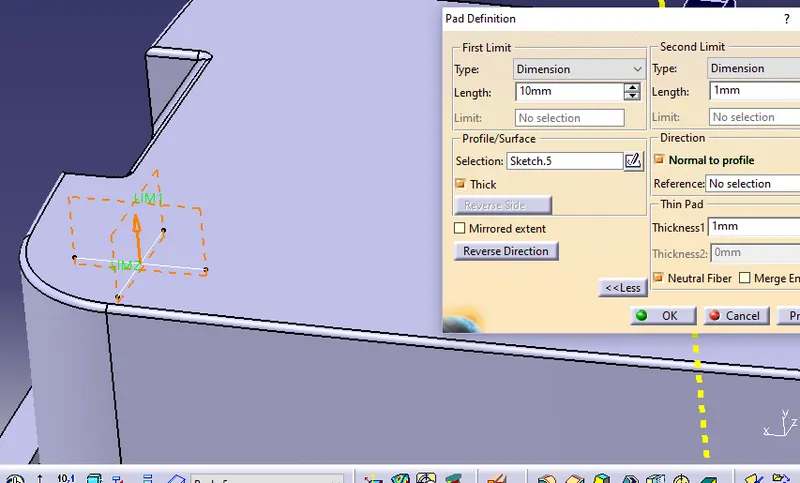

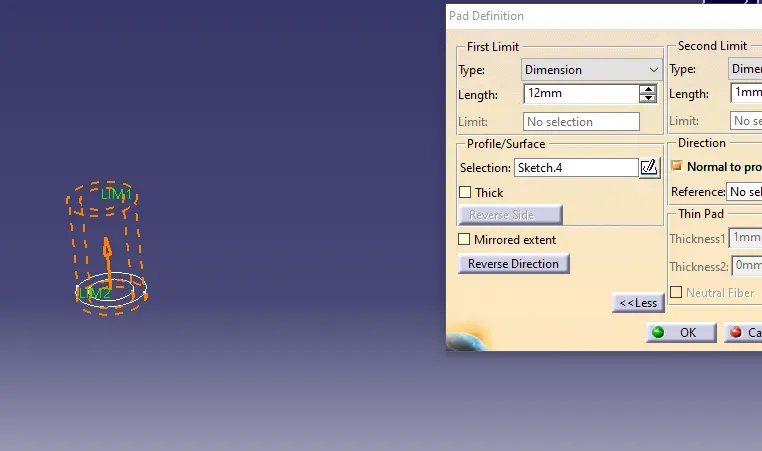

• Pad the line for 5t where t is thickness of the object (2.5mm).
• Also extended the other side for 1 mm or else the object can't be assembled.

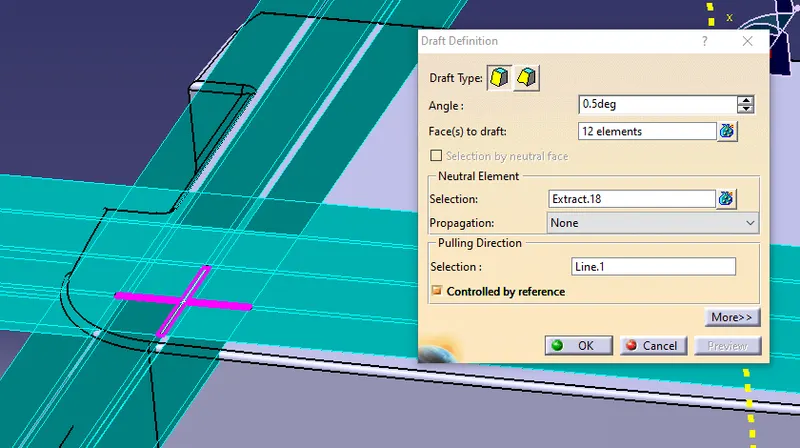

• Apply draft angle of 0.5 deg.

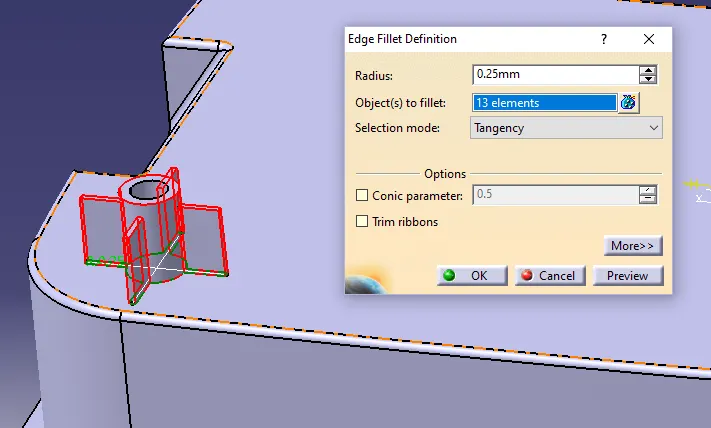

• And also apply edge fillet as 0.25 mm.

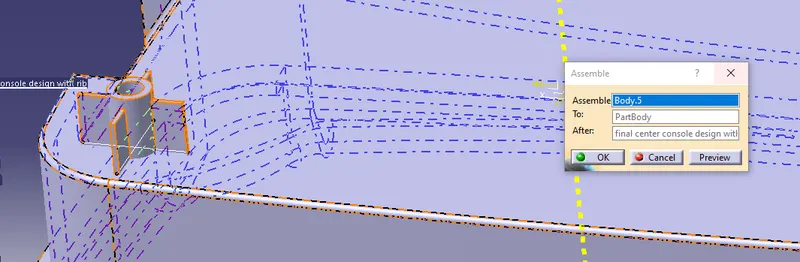

• Create a body and use boolean assemble option.

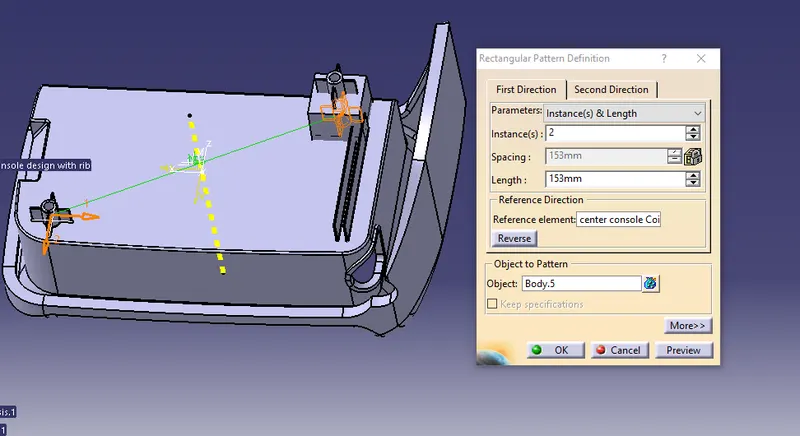

• Use Translate or pattern option to copy and move the boss to opposite side.

Step-5: Create dog house

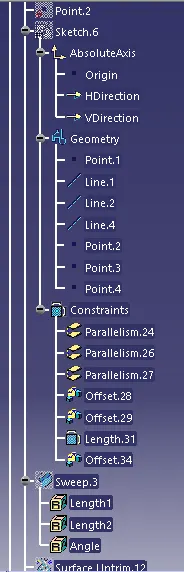

• Then create a sketch of a line which is dog house baseline and constraints should apply.

•

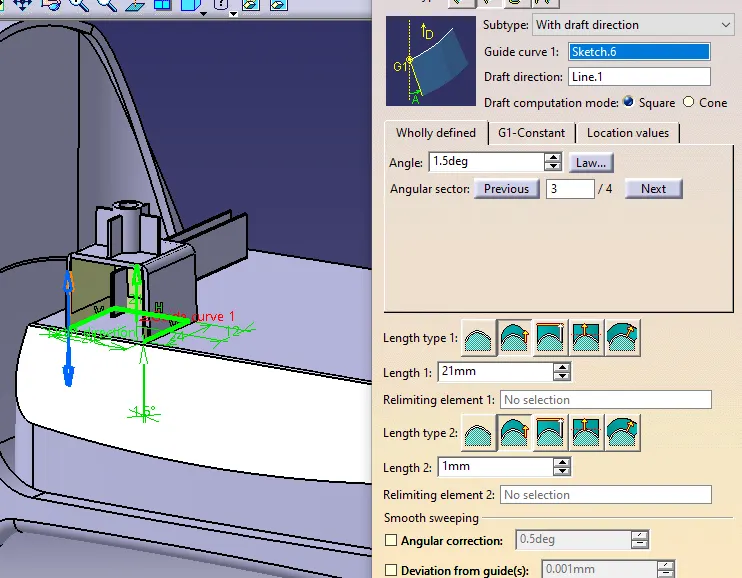

• Sweep the line for 5t where t is thickness of the object (2.5mm).
• Also extended the other side for 1 mm or else the object can't be assembled.

•

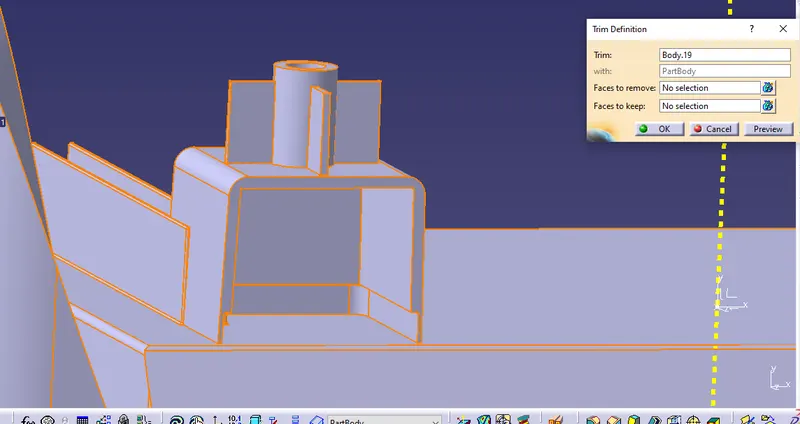

• Extract and untrim the bottom part of console.

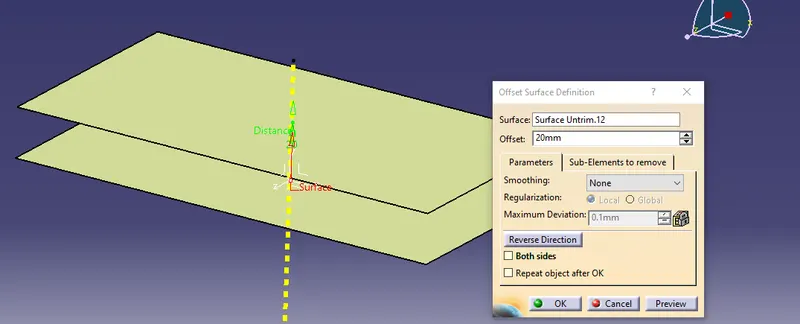

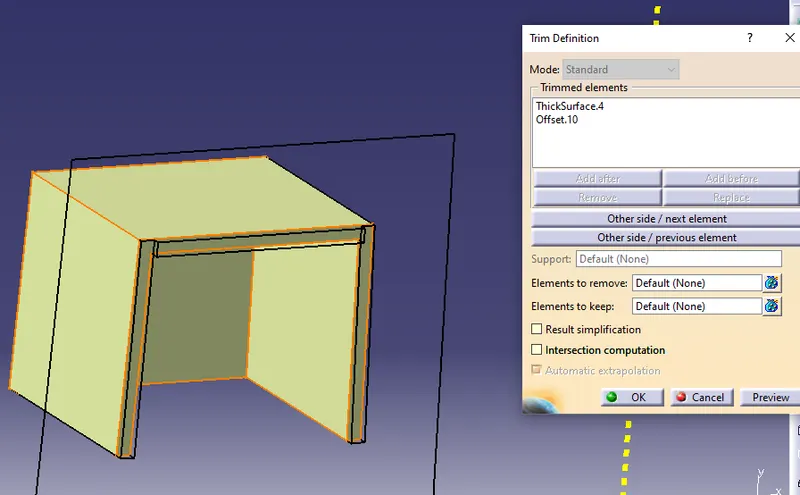

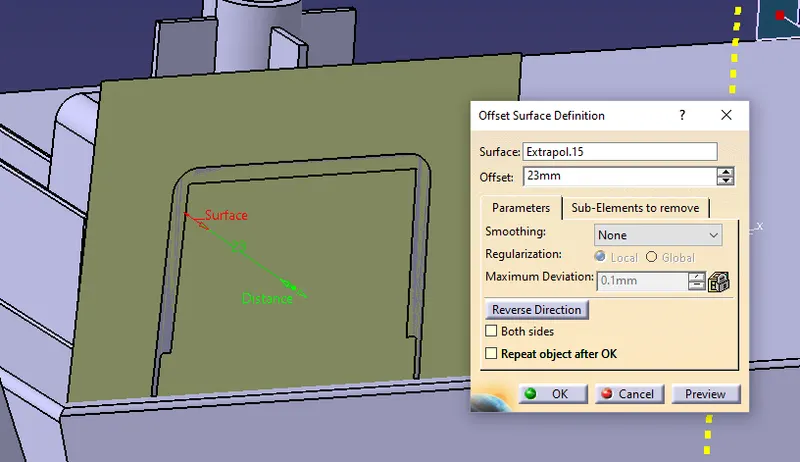

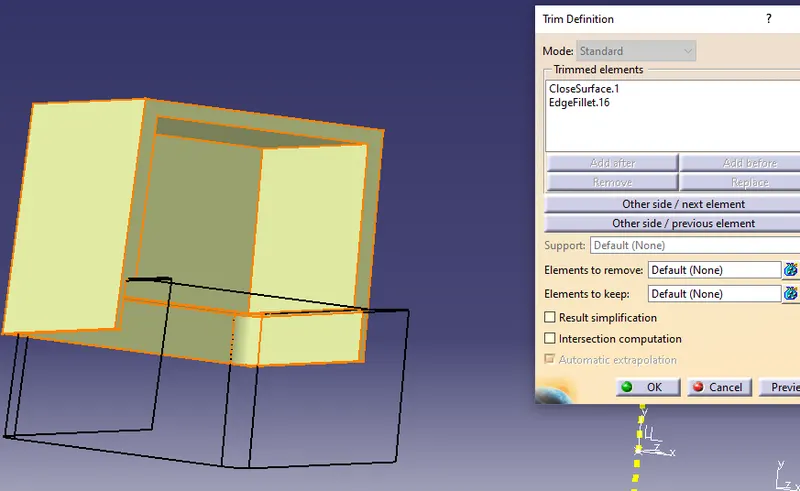

• And offset it to close the swept dog house baseline and trim it.

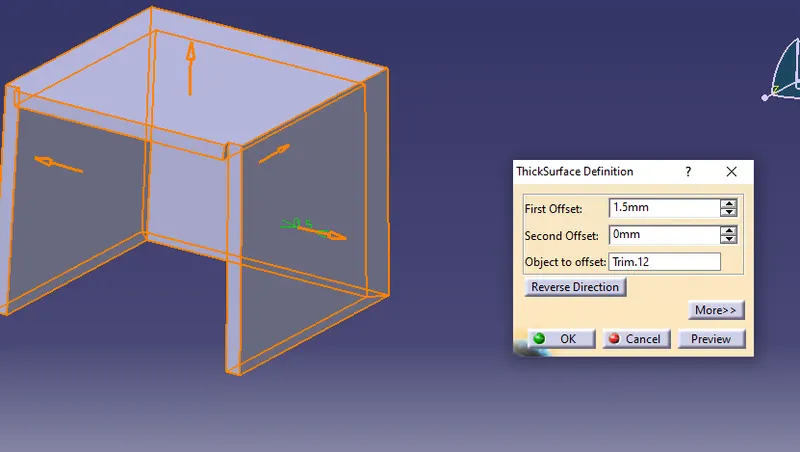

• Use the thick surface option.

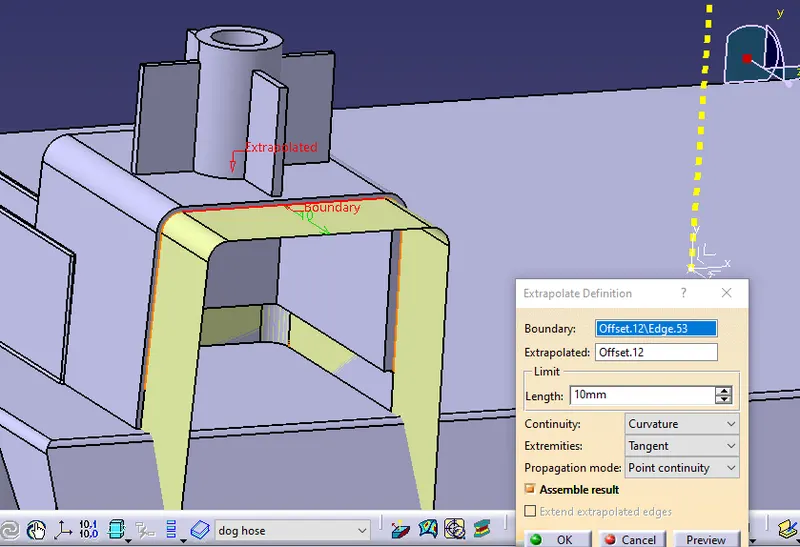

• Extract and untrim the Back part of dog house.

• And offset it to trim the excess dog house.

• Extract and explorate the inner part of dog house.

• And offset the base plane to trim the inner wall of intersection to dog house.

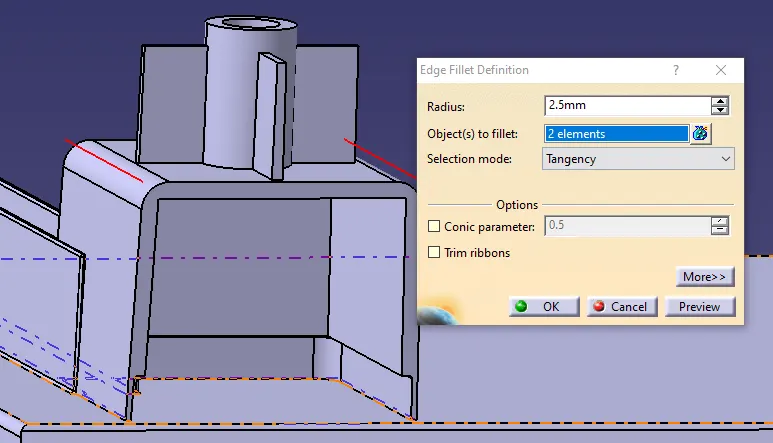

• And also apply edge fillet as 0.25 mm.

• Create a body and use boolean assemble option.

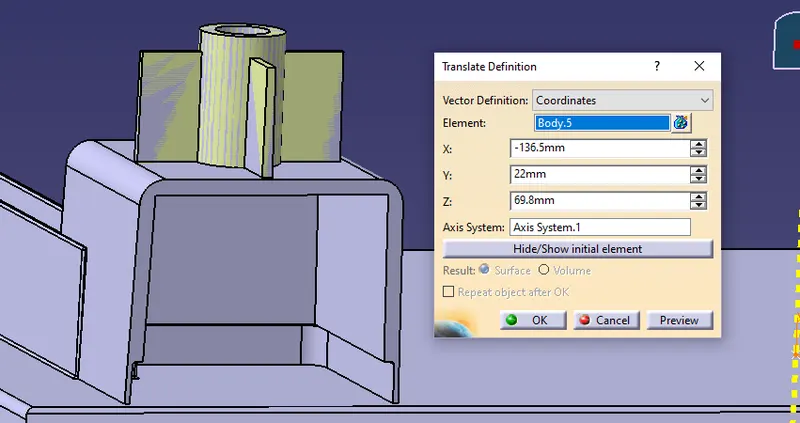

• Use Translate or pattern option to move the boss to upper side of dog house.

RESULT:

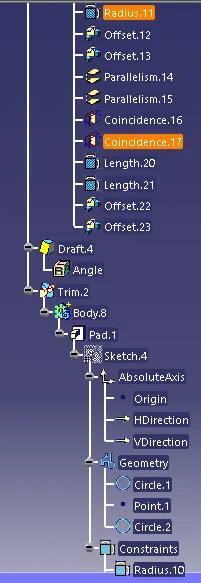

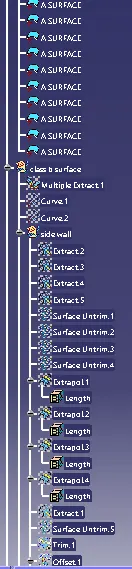

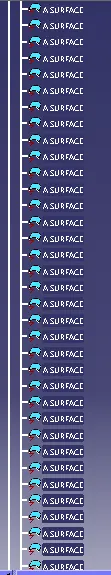

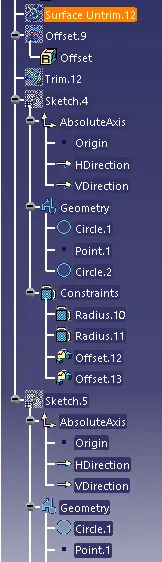

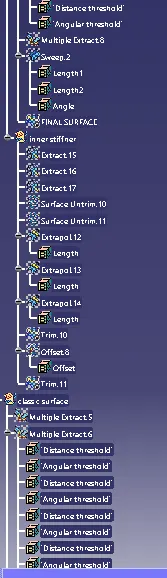

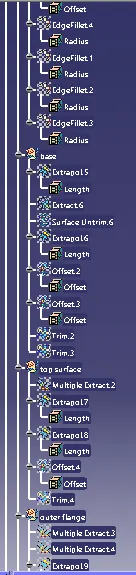

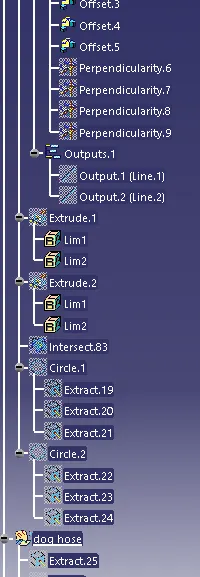

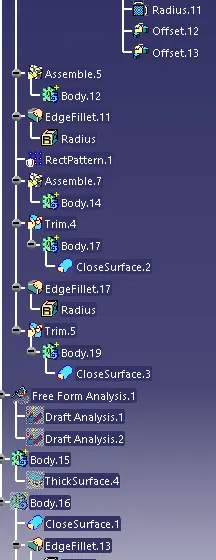

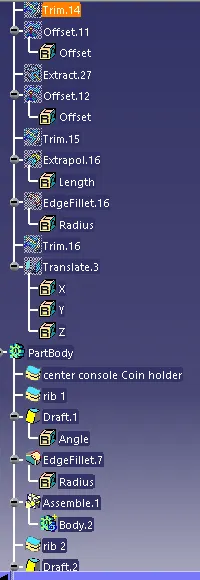

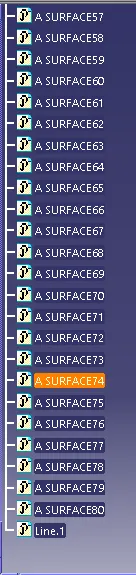

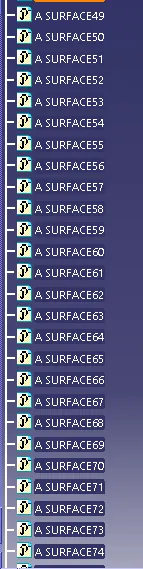

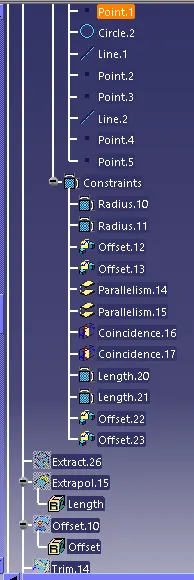

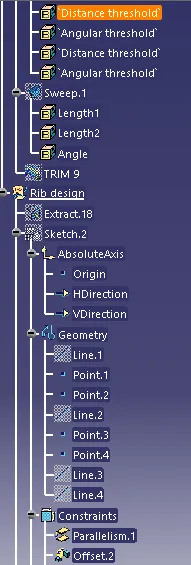

• Tree structure

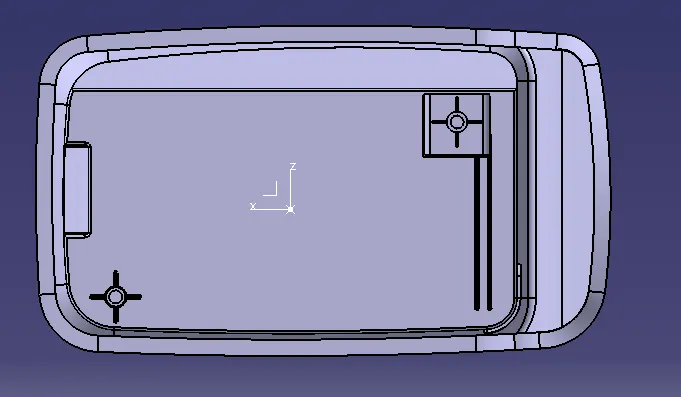

• Isometric View

• Front View

• Side View

• Top View
