Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

AIM:

Create a tooling axis for the given Fan cover model meeting the requirements of the draft angle and perform the Draft analysis on the model.

OBJECTIVE:

• Ensure Proper Tree Structure.
• Geometrical sets should have a proper name based on the sketches present inside of it.
• All the sketches should be created under the Geometrical set.
• Use the publication option and publish the below
  • Tooling Axis
  • Class A surface
• A detailed report should be done explaining the draft analysis and the tooling axis creation.
• An explanation should be given on the way of creating the tooling axis particularly the Bisecting method.

PROCEDURE:

Step-1: Connectivity check

• First we have to verify the part design using join surface option by simply selecting the draft fan surface.

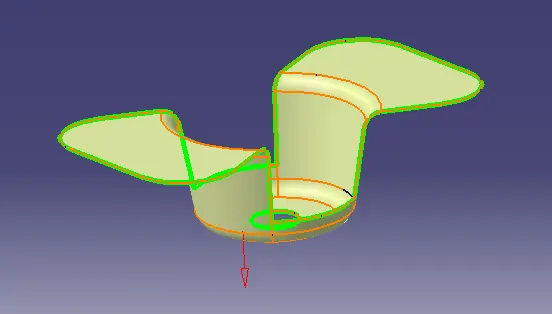

• Another method is create a boundary layer of surface and disassemble it from the boundary layer from the surface.

Step-2: Create tooling axis (Bisecting method)

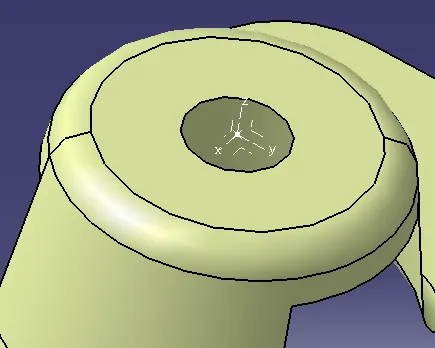

• Create a reference point by selecting the center circle of surface.
• Then create the axis for the surface to easily define the tooling axis.
• simply select the point and xyz plane.

• To get a dummy tooling axis in x and y axis

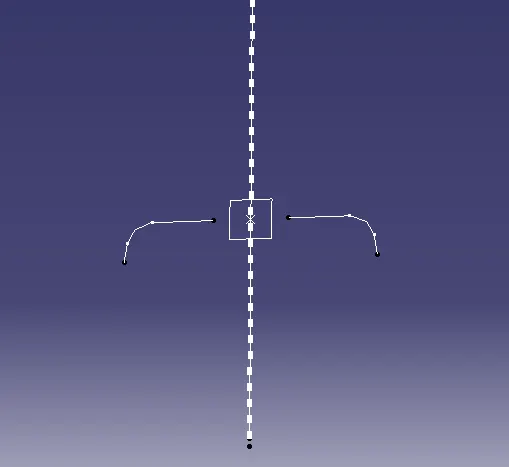

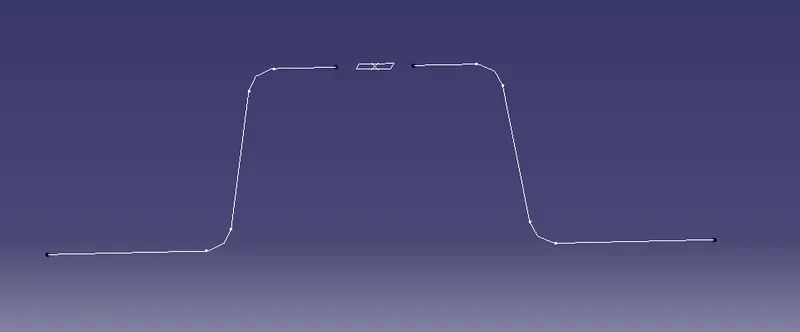

• Use the intersection command, to get a wire diagram of surface in x direction.
• select the intersection command, select first element is plane of dummy axis say zx plane, select second element as draft fan surface, click ok.

• The draft angle of x direction is created to get the tooling axis of x-direction.
• Select the line command, select the perpendicular line's points and drag for desired distance. and same on other side too.

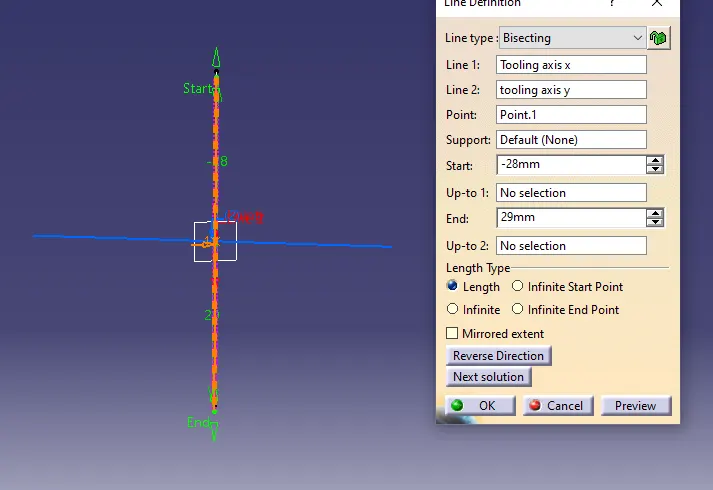

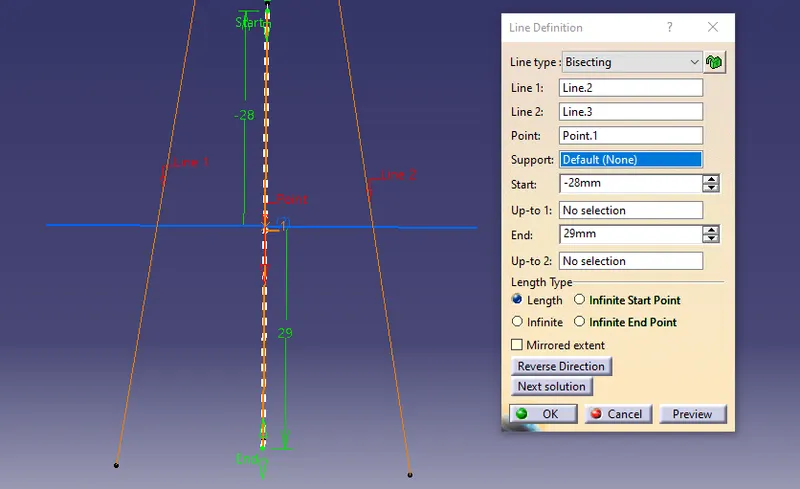

• Then use bisect line command to create a bisecting line between the draft angles..

• We will get the tooling axis in x-direction and also define its line color and thickness

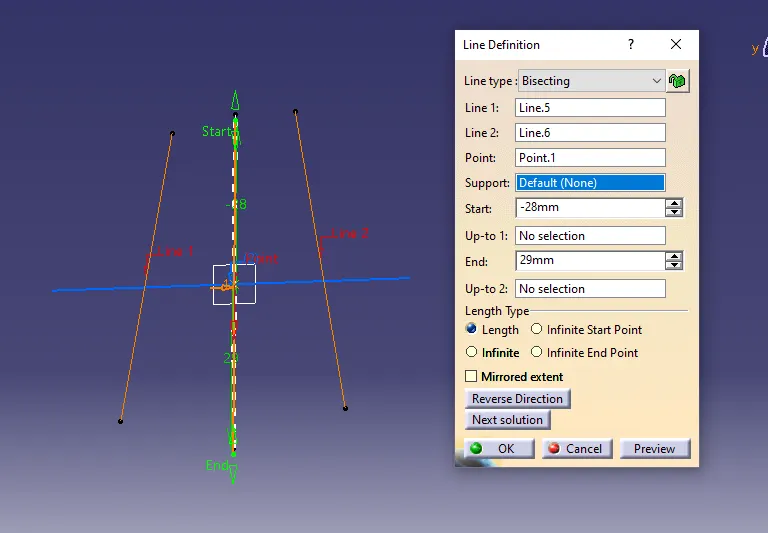

• Do the same proceedure to define the tooling axis of y-direction.

• After the dummy axis definition, select the tooling axis of x and y to bisect using line command.
• The tooling axis for draft analysis is formed.
• Use publication command to publish the draft fan surface and tooling axis.

Step-3: Perform draft analysis

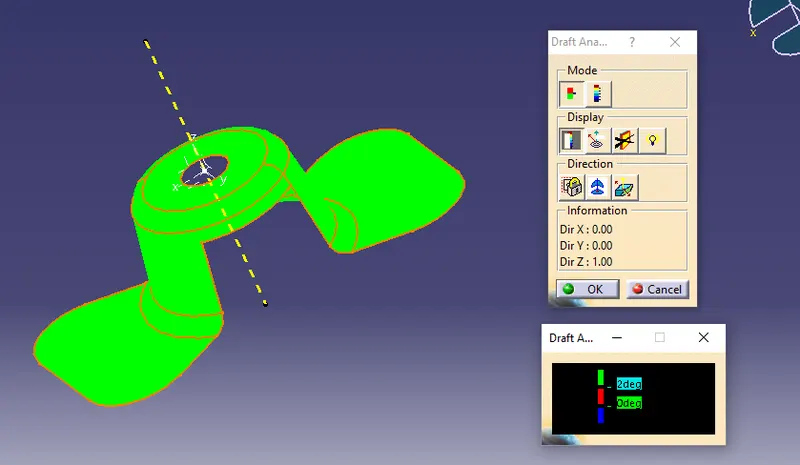

• Select the draft analysis command, ensure the material feature is used.
• Use quick analysis mode, display color scale option.

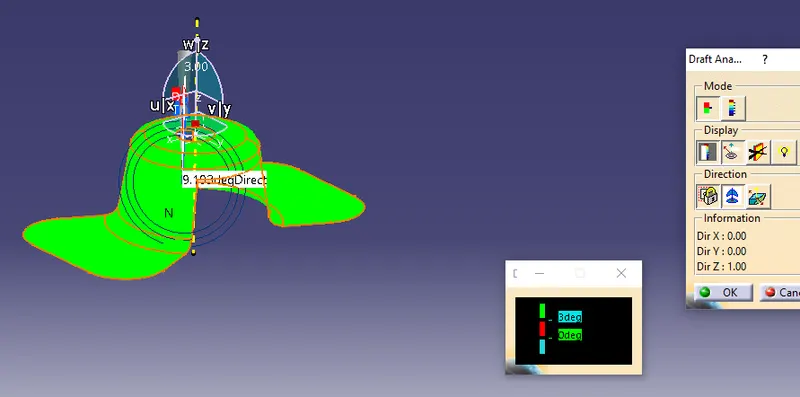

• Click on compass command on direction, drag and drop it in tooling axis.

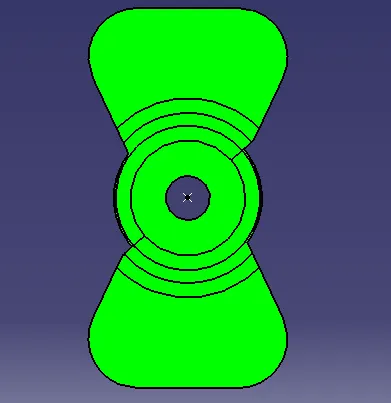

• The draft should show green surface which is feasible draft angle.
• If red is shown not feassible draft angle and for blue negative draft angle.

• Use analyses under running point, to ensure same angle on symmetrical direction.

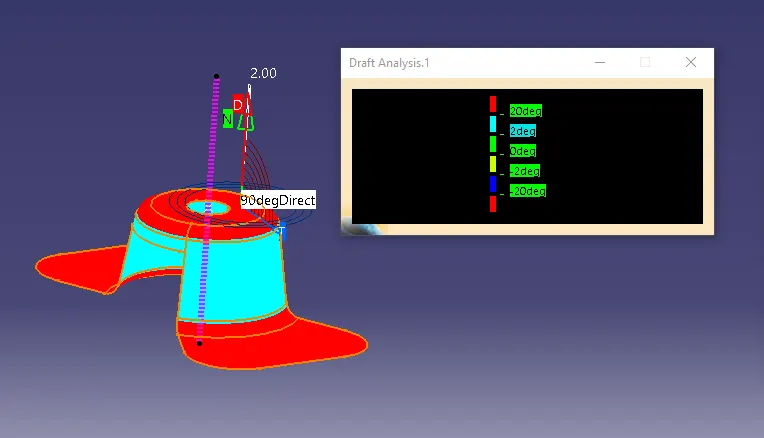

• Below is fully analyze mode to get the varied angle in draft fan.

RESULT:

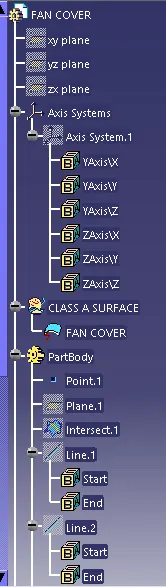

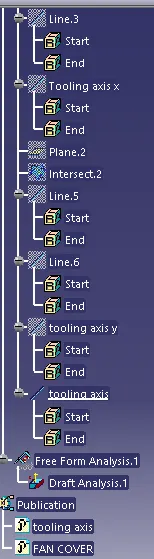

• Tree structure

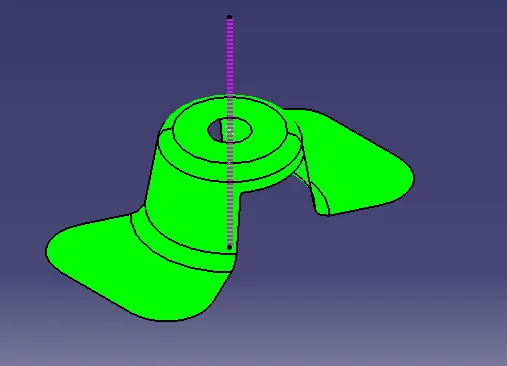

• Isometric View

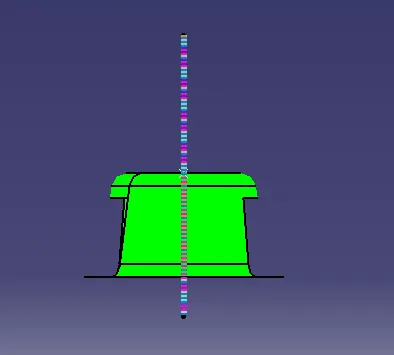

• Front View

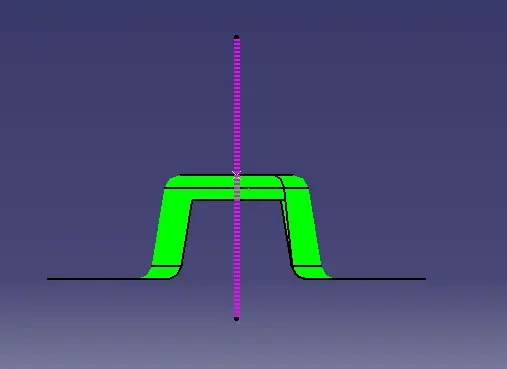

• Side View

• Top View
